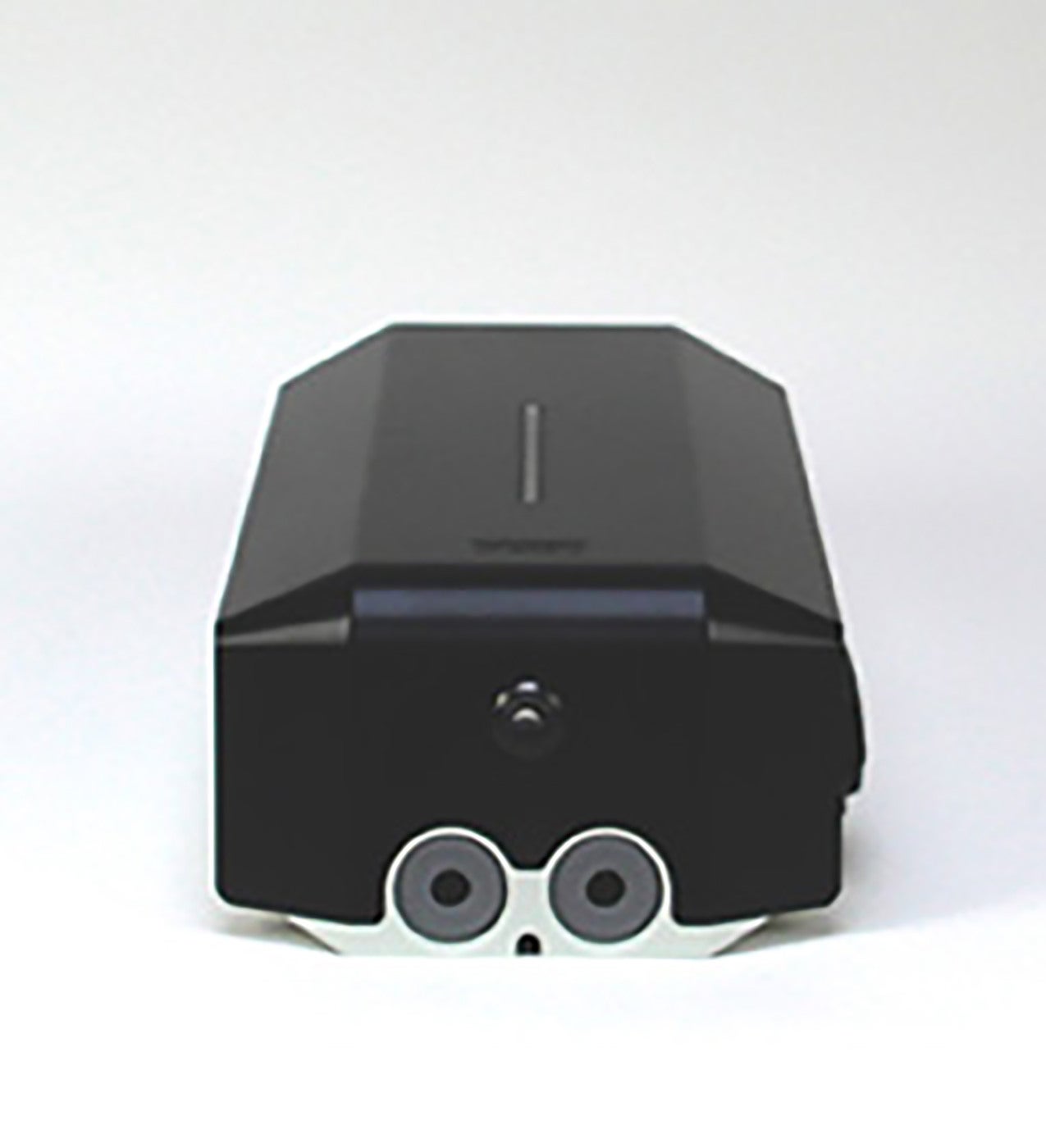

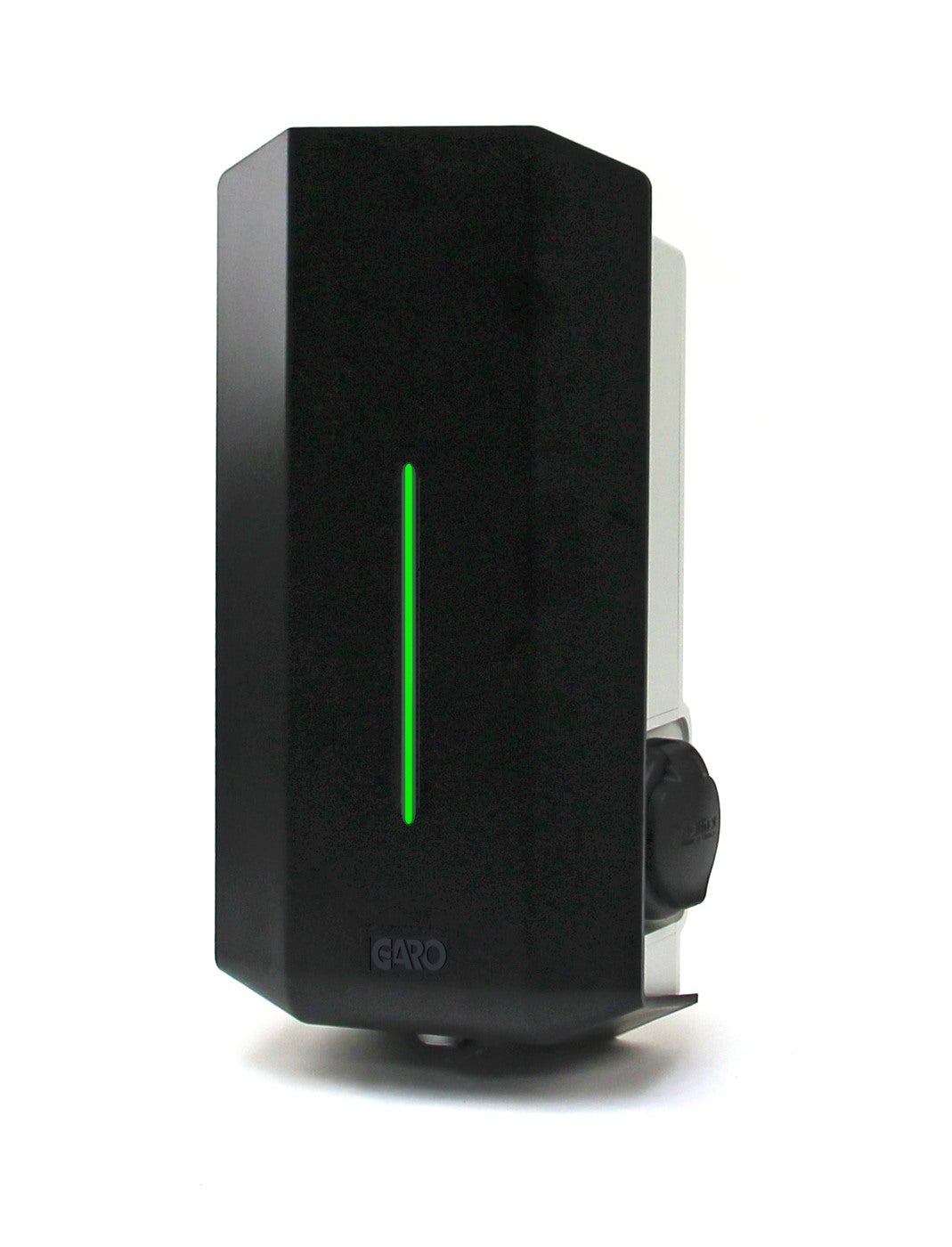

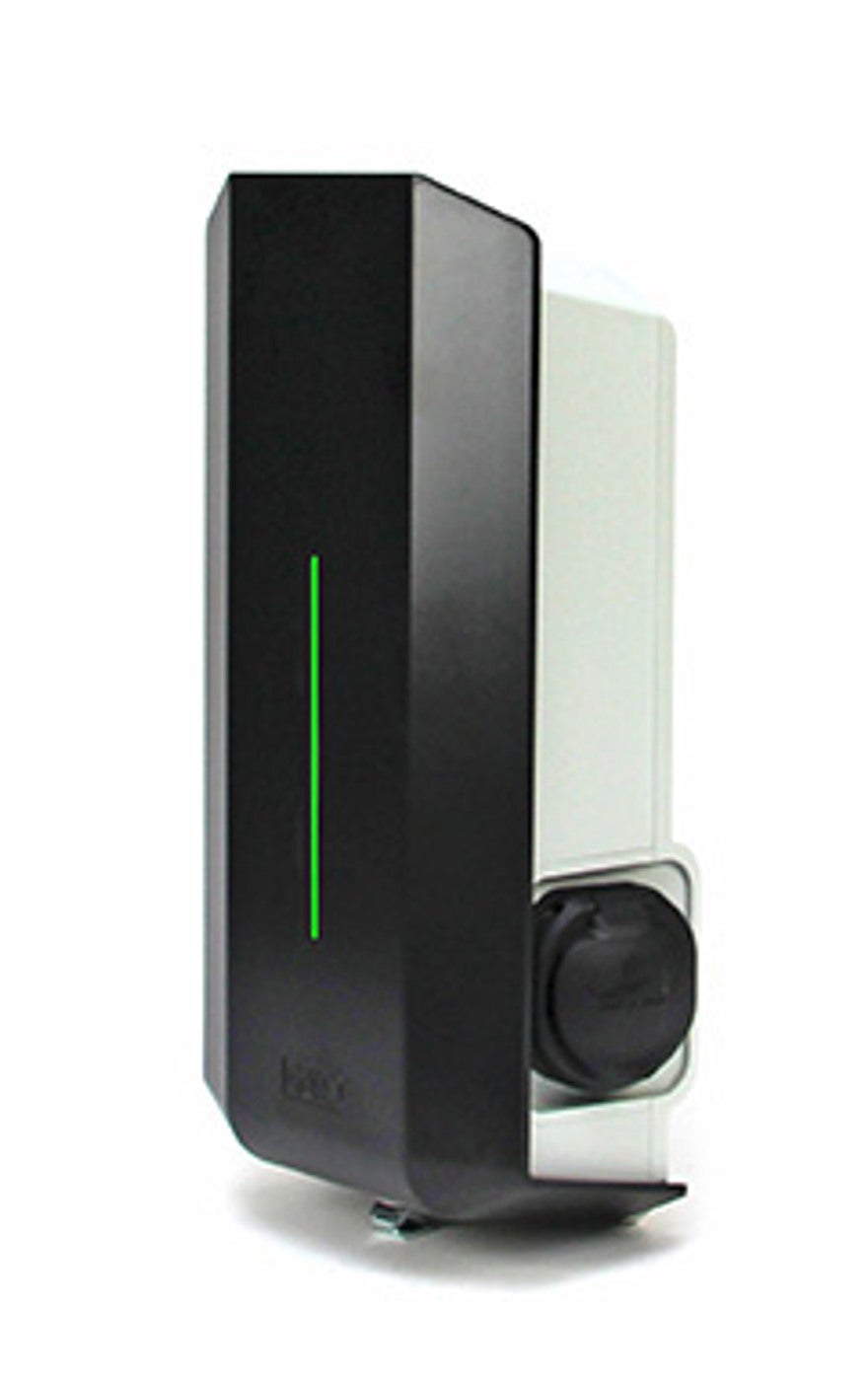

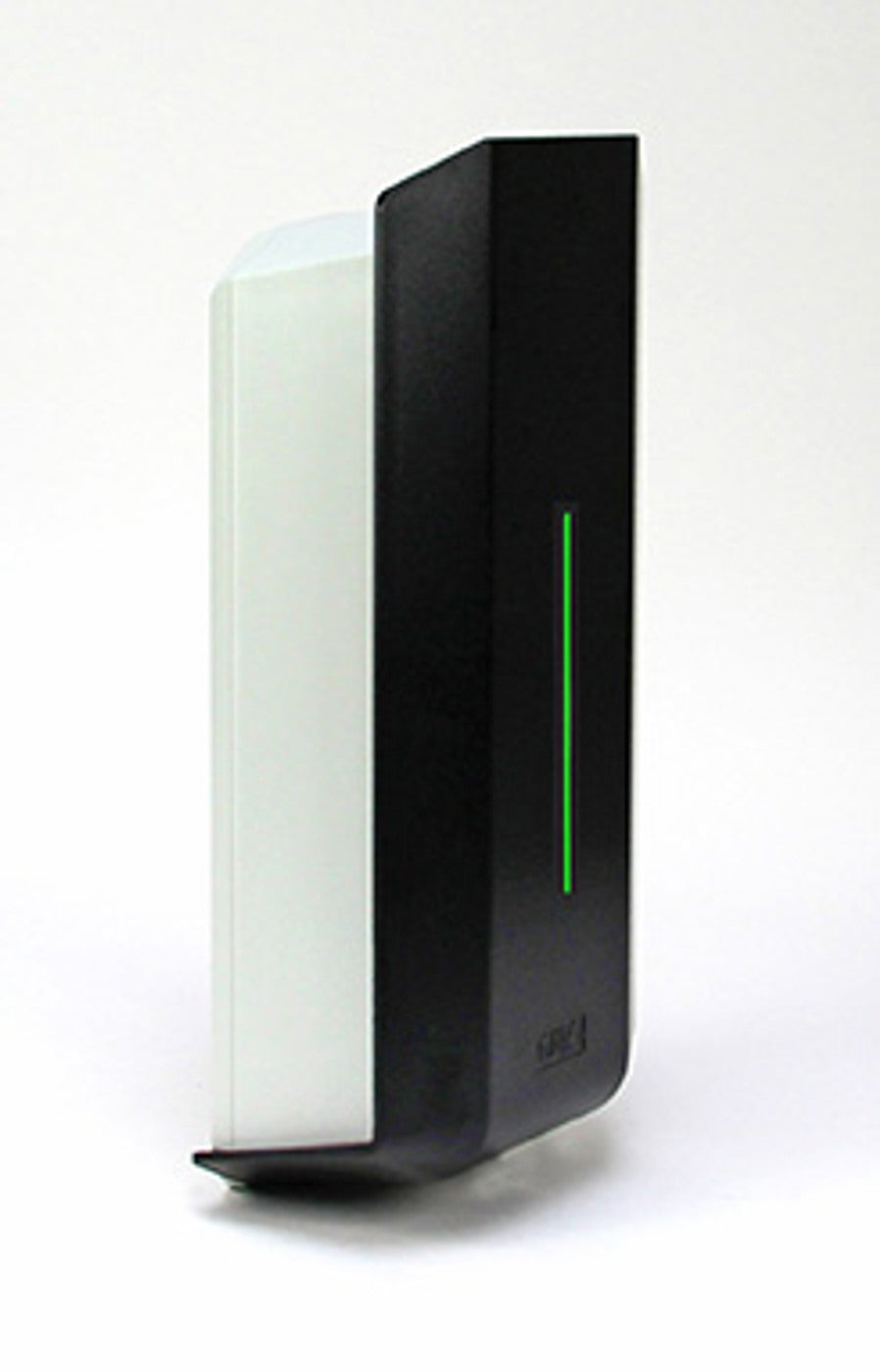

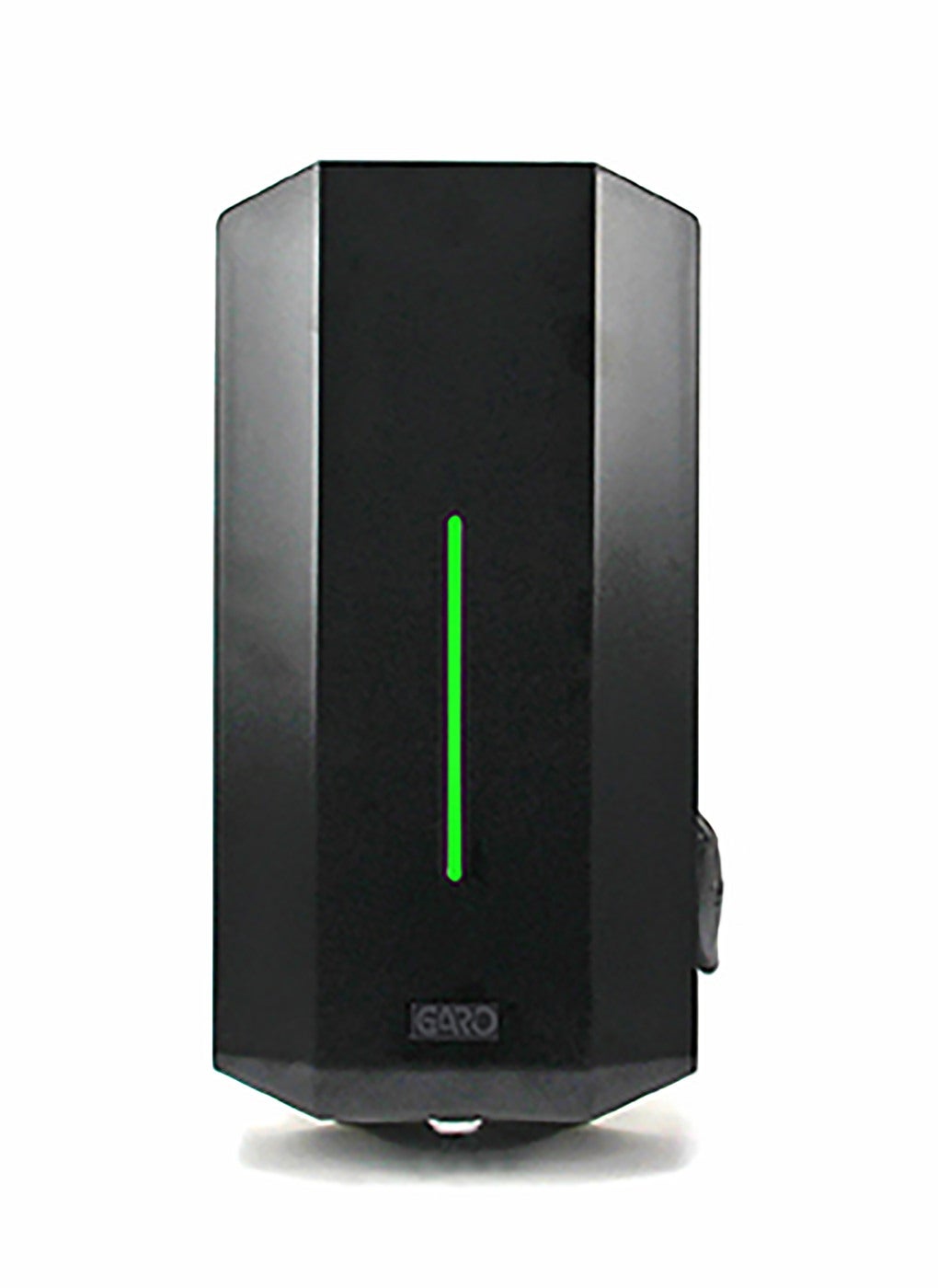

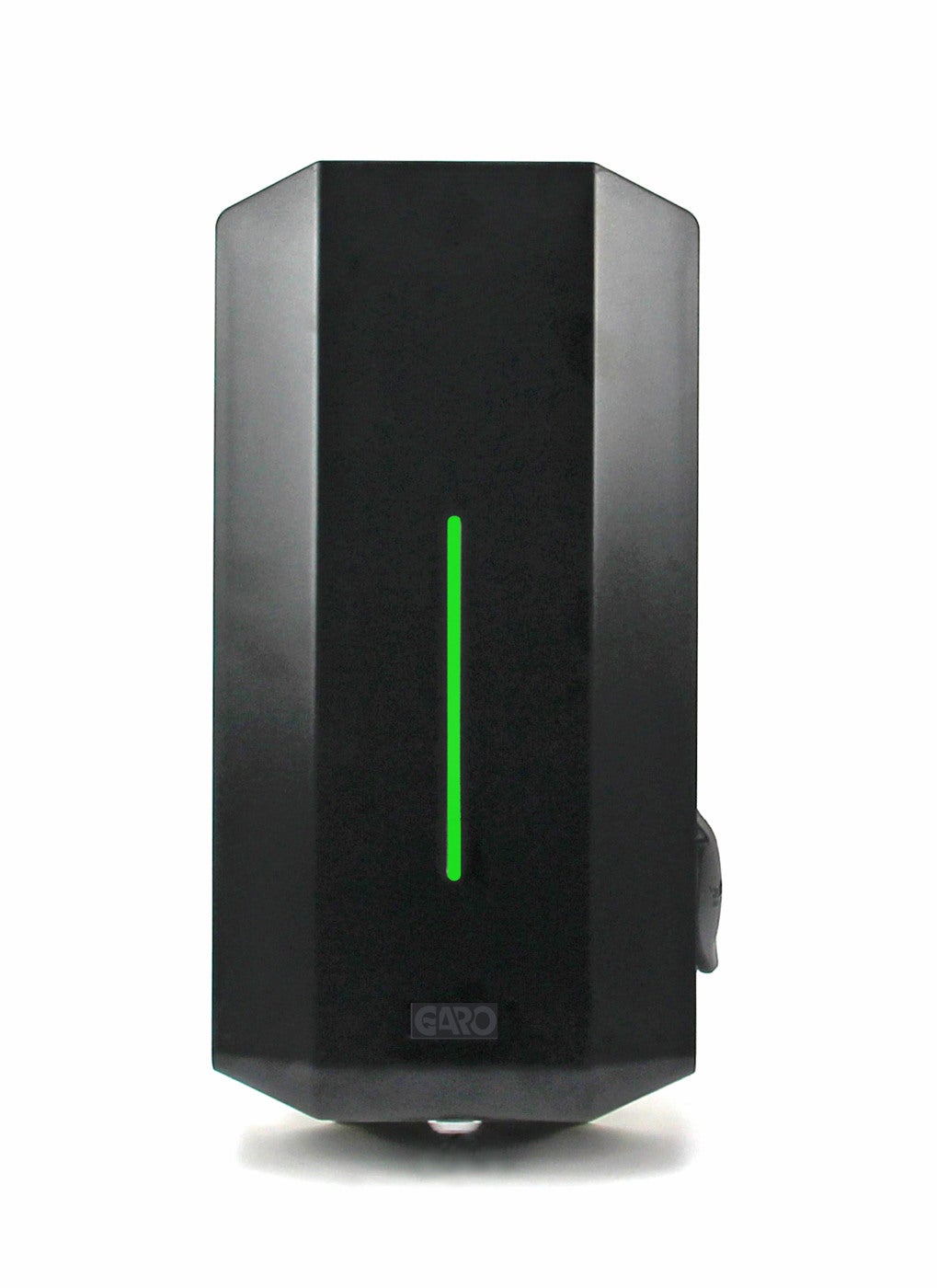

Wallbox with outlet GLB

Please note that this is a discontinued product. See the document ”Phaseout GLB I GTB”. Modular wallboxes that can be built to the desired system through group formation, based on a master unit with WiFi-module that simpler wallboxes can be connected. Protected against DC fault currents and prepared with dynamic load balancing in several levels. Always equipped with DC protection according to international standards. Load balancing automatically reduces the vehicle's charging current and minimizes the risk Wallbox type2 EV-outlet 7,4kW with RCBO A, DC monitoring and energy meter.
E-number
E2449135
Article number
353406
Materials Plastic
Standard EN61851-1 IEC 61439-7 AEVCS
Frequency [Hz] 50Hz
Color Black
Rated current [A] 32A
Rated voltage [V AC] 400V AC
Mounting method Wall mounting
Length of cable [m] Not included
Lock Yes
AC/DC output 1 Type 2 Outlet
DC-fault protection Yes
Charging current [A] 6, 10, 13, 16, 20, 25, 32
Degree of protection [IP] IP44
Impact strength [IK] IK08
EngineerWidth 205
EngineerHeight 422
EngineerDepth 124
Name WALLBOX EV 7,4kW RCBO-A DC WM
E-number E2449135
Article number 353406
Type designation GLB-DCM-T274WO-A
Energymeter Built-in meter
Phases [PH] 3PH
RCCB No
Power [kW] 22kW
RCBO Yes
NetProductWeight 3.2

More variants of Wallbox with outlet GLB

E-number Article number Type designation Energymeter Phases [PH] RCCB Power [kW] RCBO NetProductWeight
WALLBOX EV 7,4kW RCBO-A DC WM E2449135 353406 GLB-DCM-T274WO-A Built-in meter 3PH No 22kW Yes 3.2
WALLBOX EV 22kW RCCB-A DC E2449138 353410 GLB-DC-T222WO-A No 3PH Type A 22kW 5.5
WALLBOX EV 22kW DC MM E2449139 353411 GLB-DCM-T222WO Built-in meter 3PH No 22kW No 5.5
WALLBOX EV 7,4kW RCBO-A DC MB E2449140 353415 GLB-DCMB-T274WO-A Built-in meter 1PH No 7,4kW Yes 5.5
WALLBOX EV 22kW DC MBUS E2449159 353691 GLB-DCMB-T222WO Built-in meter 1PH No 7,4kW Yes 5.5
