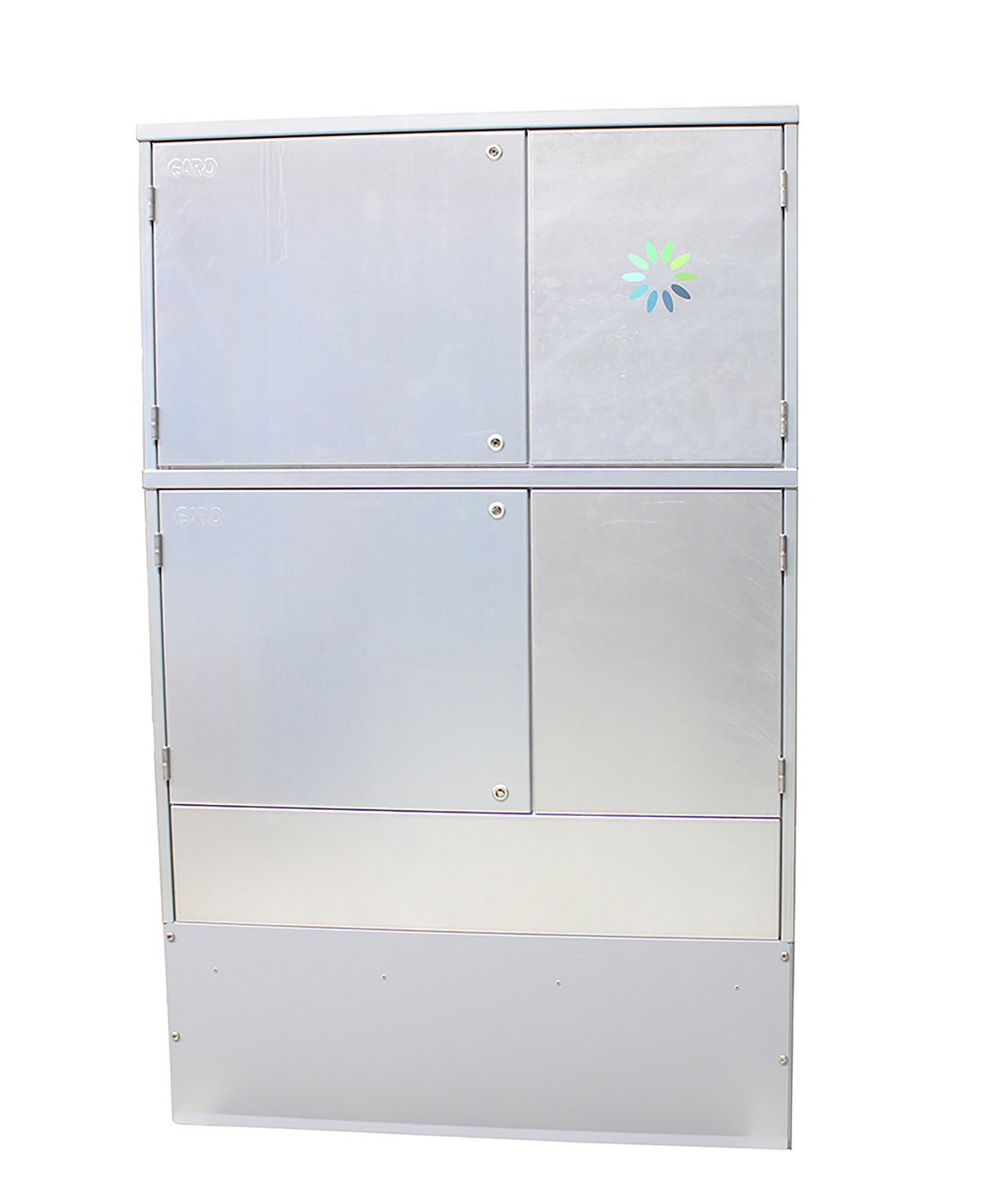

Cable Emob cabinets measuring 9out

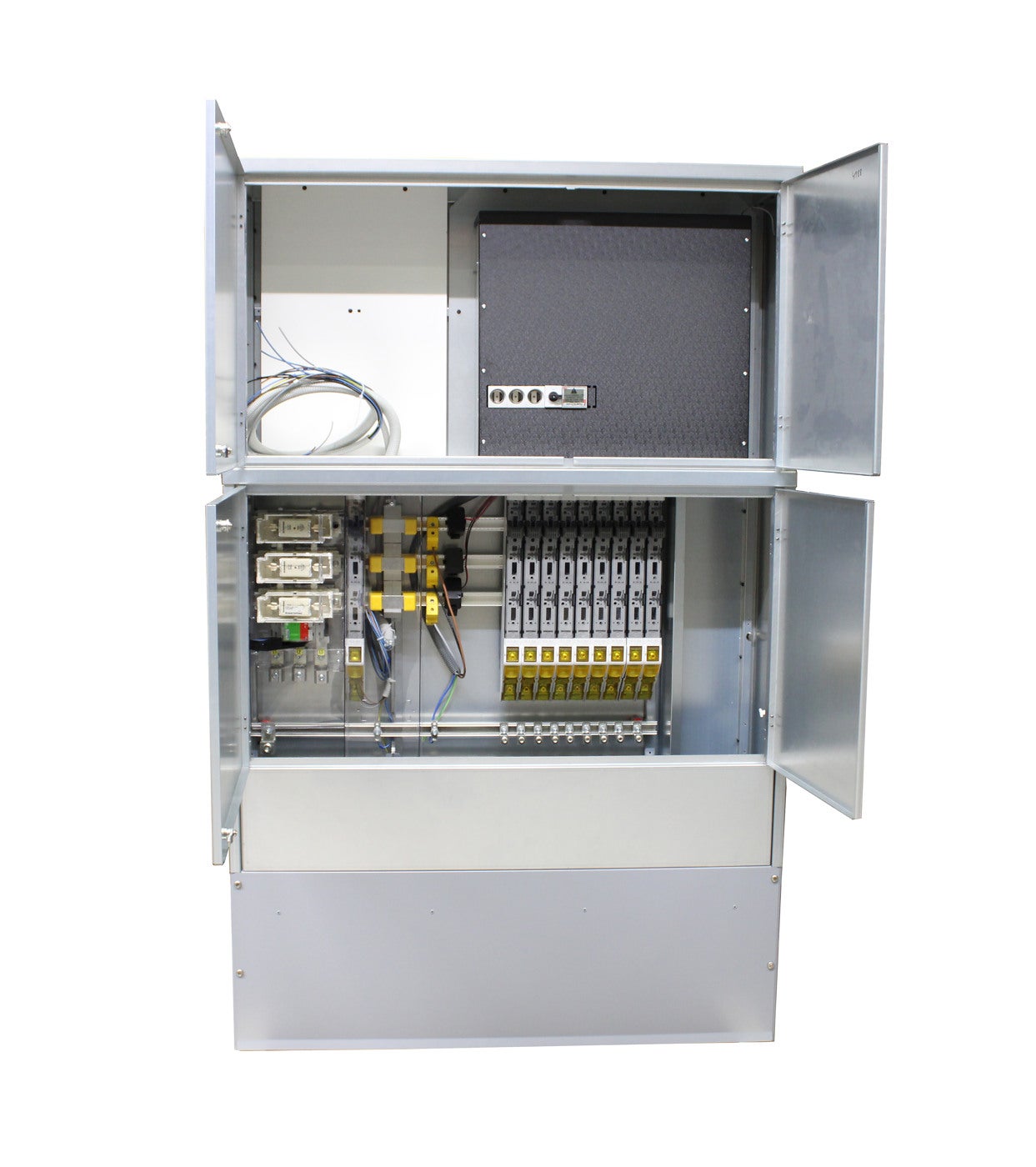

Cable cabinet with grid measurement adapted for up to 9 charging points complete with fuse strips and space for Network measurement. Equipped with meter for load balancing of the chargers and prepared for connection to service provider. Incoming 250A Main switch. Cable cabinet equipped for E-mobility with 9 connections and prepared for connection to feeding net measurement
E-number
E0736000
E0736000
Article number
353601
353601
| Short-circuit current [kA] | Icc 50kA |
|---|---|
| Frequency [Hz] | 50Hz |
| Housing material | Magnelis |
| Color | Grey |
| Rated voltage [V AC] | 690V AC |
| Number of poles | 3 |
| Mounting method | Floor fastening |
| Energymeter MID | 0 |
| Isolation voltage [V] | Ui1000 |
| Degree of protection [IP] | IP34D |
| Impact strength [IK] | IK10 |
| NetProductWeight | 181 |
| Name | CABLE CABINET 9OUT MET EMOB |
|---|---|
| E-number | E0736000 |
| Article number | 353601 |
| Type designation | GKSM-EM9 |
| Standard | IEC61439-5 |
| Rated current [A] | 500A |
| Energymeter | 0 |
| EngineerWidth | 2100 |
| EngineerHeight | 1900 |
| EngineerDepth | 330 |
