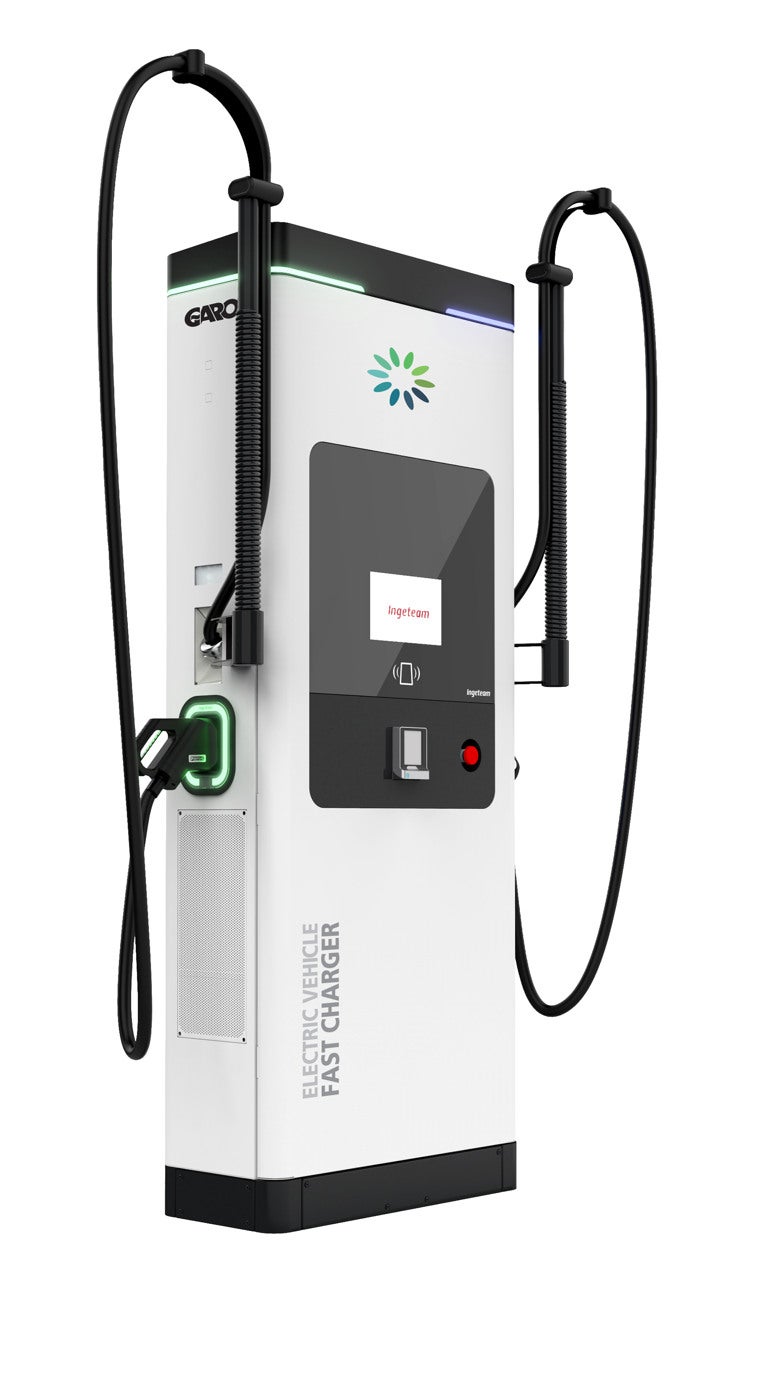

Charger Rapid 60kW DC2
The rapid charger Rapid 60kW is created to deliver power even to the most demanding vehicles. The charging station has been designed to meet the highest requirements and quality standards and offers the best performance in terms of energy management, communication, reliability and efficiency. The chargers are compatible with CCS and have the option of one or two cables in DC charging mode. Load balancing is achieved between the CCS cables or between installed Rapid charging stations in a cluster. In these c DC charger 60kW 2pcs CCS, 4,4m usable cable length.10 inch touchdisplay, MID-meter and prepared for payment terminal.
E-number
E2700892
E2700892
Article number
354531
354531
| Type designation | RDC2-CCS-60-4G-PT |
|---|---|
| Standard | EN61851-1 IEC 61439-7 AEVCS |
| Operation Temperature [C] | -35C...+55C |
| Frequency [Hz] | 50/60Hz |
| Housing material | Stainless steel and aluminium |
| Color | Grey |
| Rated current [A] | 150A |
| Rated voltage [V AC] | 400V |
| Mounting method | Floor fastening |
| Modelltype | Rapid |
| Energymeter | Built-in meter MID |
| Length of cable [m] | 5m |
| Energymeter MID | Yes |
| AC/DC output 1 | CCS |
| AC/DC output 2 | CCS |
| Communication | MC |
| Display | Yes |
| Stand-by[W] | >60W |
| Degree of protection [IP] | IP54 |
| Impact strength [IK] | IK10 (Touchscreen IK08) |
| NetProductWeight | 200 |
| EngineerWidth | 760 |
| EngineerHeight | 1950 |
| EngineerDepth | 336 |
| Name | CHARGER DC2 60kW CCS 4G PT RAPID |
|---|---|
| E-number | E2700892 |
| Article number | 354531 |
