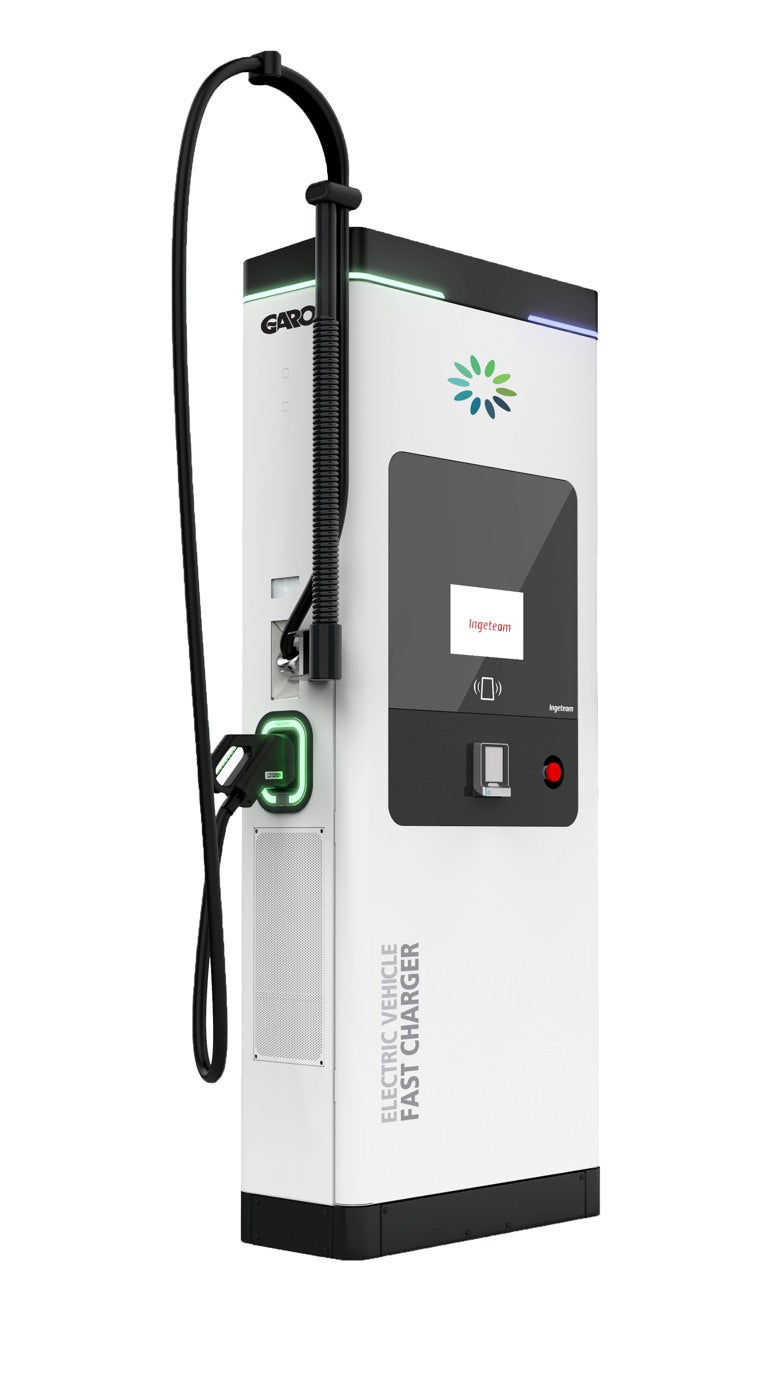

Charger Rapid 60kW DC1
The rapid charger Rapid 60kW is created to deliver power even to the most demanding vehicles. The charging station has been designed to meet the highest requirements and quality standards and offers the best performance in terms of energy management, communication, reliability and efficiency. The chargers are compatible with CCS and have the option of one or two cables in DC charging mode. Load balancing is achieved between the CCS cables or between installed Rapid charging stations in a cluster. In these c Charger DC1 CCS 60kW 4G blindlock paymentterminal in front Rapid
Article number
354502
354502
| Type designation | RDC1-CCS-60-4G-PT |
|---|---|
| Standard | EN61851-1 IEC 61439-7 AEVCS |
| Operation Temperature [C] | -35C...+55C |
| Frequency [Hz] | 50/60Hz |
| Housing material | Stainless steel and aluminium |
| Color | Grey |
| Rated current [A] | 150A |
| Rated voltage [V AC] | 400V |
| Mounting method | Wall mounting |
| Modelltype | Rapid |
| Energymeter | Built-in meter MID |
| Length of cable [m] | 5m |
| Energymeter MID | Yes |
| AC/DC output 1 | CCS |
| Communication | MC |
| Power[kW] | 60kW |
| Display | Yes |
| Stand-by[W] | >60W |
| Degree of protection [IP] | IP54 |
| Impact strength [IK] | IK10 (Touchscreen IK08) |
| NetProductWeight | 180 |
| EngineerWidth | 760 |
| EngineerHeight | 1950 |
| EngineerDepth | 335 |
| Name | CHARGER DC1 60kW CCS 4G PT RAPID |
|---|---|
| Article number | 354502 |
