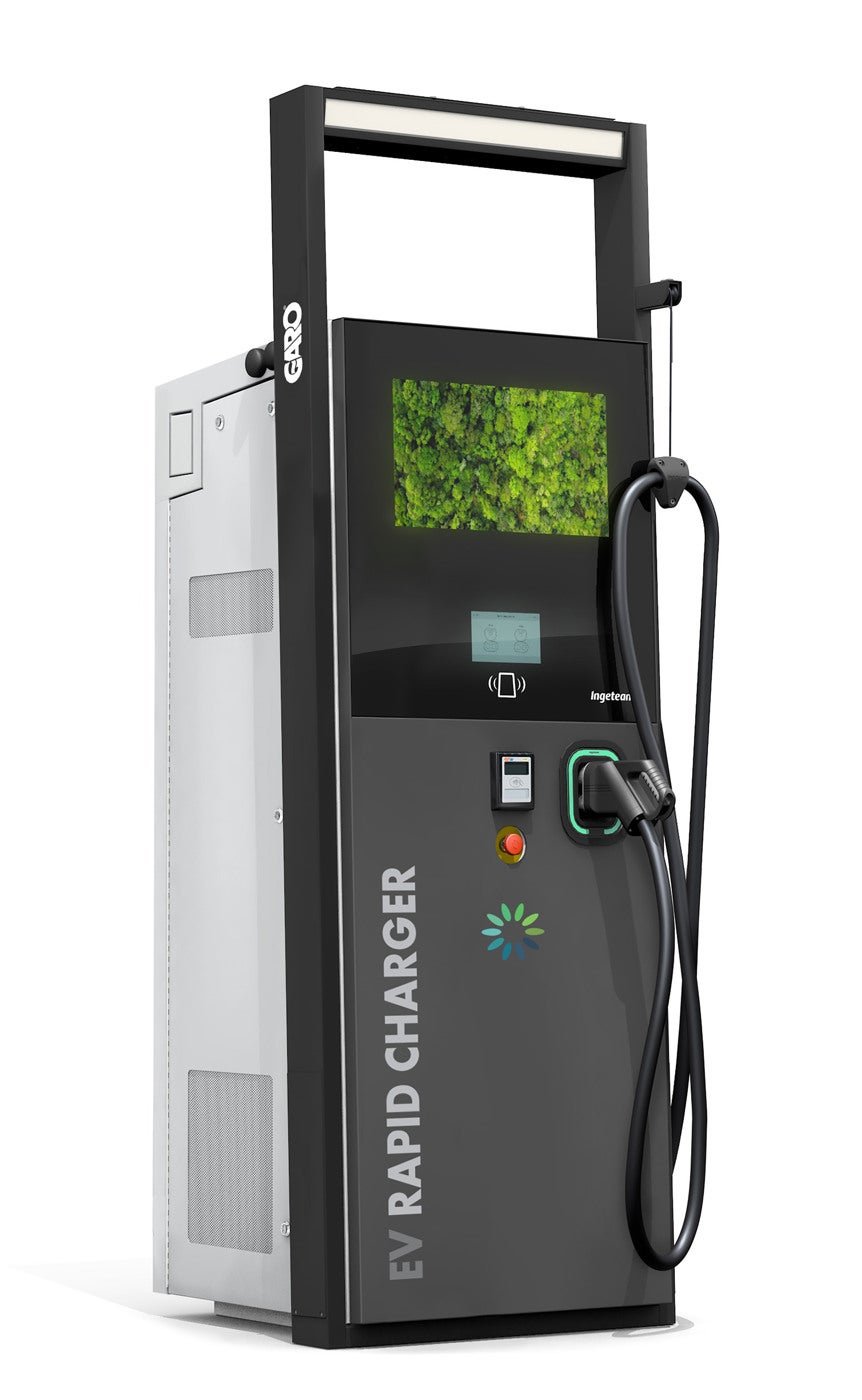

Charger Rapid 120kW DC1
The rapid charger Rapid 120kW is created to deliver power even to the most demanding vehicles. The charging station has been designed to meet the highest requirements and quality standards and offers the best performance in terms of energy management, communication, reliability and efficiency. The chargers are compatible with CCS and have the option of one or two cables in DC charging mode. Load balancing is achieved between the CCS cables or between installed Rapid charging stations in a cluster. In these DC charger 120kW 1x6,5meter CCS cable 150A, 4G kit, 7" HMI-display, MID-meter and prepared for payment terminal 2.
Article number
354514
354514
| EngineerWidth | 774 |
|---|---|
| EngineerHeight | 2300 |
| EngineerDepth | 730 |
| Name | CHARGER DC1 CCS120 4G PT RAPID |
|---|---|
| Article number | 354514 |
| Type designation | RDC1-CCS-120-4G-PT |
| Standard | EN61851-1 IEC 61439-7 AEVCS |
| Operation Temperature [C] | -35C...+55C |
| Frequency [Hz] | 50/60Hz |
| Housing material | Stainless steel and aluminium |
| Color | Grey |
| Rated current [A] | 150A |
| Rated voltage [V AC] | 400V |
| Mounting method | Wall mounting |
| Modelltype | Rapid |
| Energymeter | Built-in meter MID |
| Length of cable [m] | 5m |
| Energymeter MID | Yes |
| AC/DC output 1 | CCS |
| Communication | MC |
| Power[kW] | 60kW |
| Display | Yes |
| Stand-by[W] | >60W |
| Degree of protection [IP] | IP54 |
| Impact strength [IK] | IK10 (Touchscreen IK08) |
| NetProductWeight | 420 |
