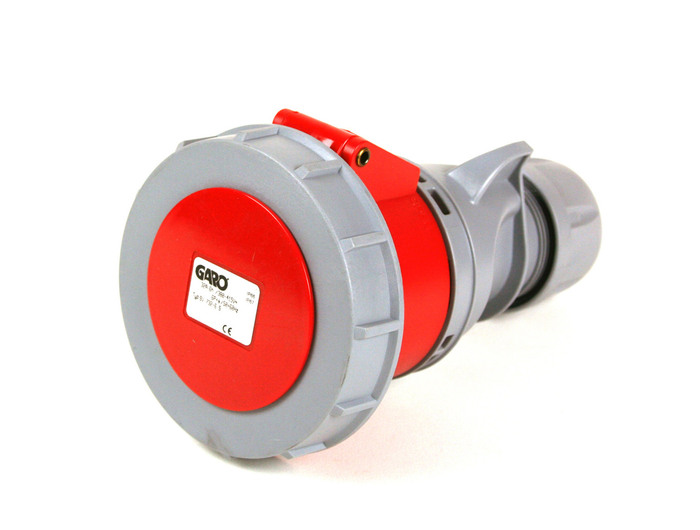

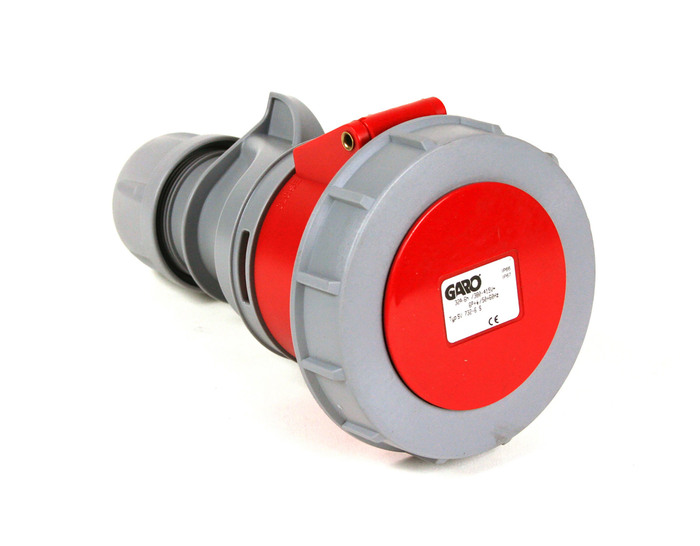

CONNECTOR 4P 32A 6h

Connector 32A IP44 Basic

Basic, our standard range with a screw function. In-line socket 32A. Connectors bacis 4-poles 32A 6h
E-number
E2424667
Article number
2424667
Support
EngineerDepth 50
Name CONNECTOR 4P 32A 6h
E-number E2424667
Article number 2424667
Type designation S 332-6 S
Materials Plastic
Standard EN60309-2
Frequency [Hz] 50/60Hz
Color Red
Rated current [A] 32A
Rated voltage [V AC] 400V AC
Number of poles 4/3P+E
Wire flexible [mm²] 2,5-6mm²
Modelltype Basic
RAL-number RAL3000
Clock hour position [h] 6h
Pin/Sleeve Sleeve
Degree of protection [IP] IP44
NetProductWeight 0.25
EngineerWidth 92
EngineerHeight 159

Instruction Sheet

More variants of Connector 32A IP44 Basic

CONNECTOR 3P 32A 2h
CONNECTOR 3P 32A 2h
E-number
E2424657
Article number
2424657
Type designation
Materials
Plastic
Standard
EN60309-2
Color
Green
Rated current [A]
32A
Number of poles
3/2P+E
Wire flexible [mm²]
2,5-6mm²
Modelltype
Basic
RAL-number
RAL6010
Clock hour position [h]
2h
Pin/Sleeve
Sleeve
Degree of protection [IP]
IP44
NetProductWeight
0.23
EngineerWidth
92
EngineerHeight
159
CONNECTOR 3P 32A 4h
CONNECTOR 3P 32A 4h
E-number
E2424658
Article number
2424658
Type designation
Materials
Plastic
Standard
EN60309-2
Frequency [Hz]
50/60Hz
Color
Yellow
Rated current [A]
32A
Rated voltage [V AC]
100-130V AC
Number of poles
3/2P+E
Wire flexible [mm²]
2,5-6mm²
Modelltype
Basic
RAL-number
RAL1023
Clock hour position [h]
4h
Pin/Sleeve
Sleeve
Degree of protection [IP]
IP44
NetProductWeight
0.23
EngineerWidth
92
EngineerHeight
159
CONNECTOR 3P 32A 6h
CONNECTOR 3P 32A 6h
E-number
E2424659
Article number
2424659
Type designation
S 232-6 S
Materials
Plastic
Standard
EN60309-2
Frequency [Hz]
50/60Hz
Color
Blue
Rated current [A]
32A
Rated voltage [V AC]
200-250V AC
Number of poles
3/2P+E
Wire flexible [mm²]
2,5-6mm²
Modelltype
Basic
RAL-number
RAL5017
Clock hour position [h]
6h
Pin/Sleeve
Sleeve
Degree of protection [IP]
IP44
NetProductWeight
0.23
EngineerWidth
92
EngineerHeight
170
CONNECTOR 3P 32A 7h
CONNECTOR 3P 32A 7h
E-number
E2424660
Article number
2424660
Type designation
Materials
Plastic
Standard
EN60309-2
Frequency [Hz]
50/60Hz
Color
Black
Rated current [A]
32A
Rated voltage [V AC]
480-500V AC
Number of poles
3/2P+E
Wire flexible [mm²]
2,5-6mm²
Modelltype
Basic
RAL-number
RAL9005
Clock hour position [h]
7h
Pin/Sleeve
Sleeve
Degree of protection [IP]
IP44
NetProductWeight
0.23
EngineerWidth
92
EngineerHeight
159
CONNECTOR 3P 32A 9h
CONNECTOR 3P 32A 9h
E-number
E2424661
Article number
2424661
Type designation
Materials
Plastic
Standard
EN60309-2
Frequency [Hz]
50/60Hz
Color
Red
Rated current [A]
32A
Rated voltage [V AC]
380-415V AC
Number of poles
3/2P+E
Wire flexible [mm²]
2,5-6mm²
Modelltype
Basic
RAL-number
RAL3000
Clock hour position [h]
9h
Pin/Sleeve
Sleeve
Degree of protection [IP]
IP44
NetProductWeight
0.23
EngineerWidth
92
EngineerHeight
159
CONNECTOR 3P 32A 12h
CONNECTOR 3P 32A 12h
E-number
E2424662
Article number
2424662
Type designation
Materials
Plastic
Standard
EN60309-2
Frequency [Hz]
50/60Hz
Color
Grey
Rated current [A]
32A
Rated voltage [V AC]
After isolating transformerb
Number of poles
3/2P+E
Wire flexible [mm²]
2,5-6mm²
Modelltype
Basic
RAL-number
RAL7046
Clock hour position [h]
12h
Pin/Sleeve
Sleeve
Degree of protection [IP]
IP44
NetProductWeight
0.23
EngineerWidth
92
EngineerHeight
159
CONNECTOR 4P 32 A 2h
CONNECTOR 4P 32 A 2h
E-number
E2424663
Article number
2424663
Type designation
Materials
Plastic
Standard
EN60309-2
Frequency [Hz]
0
Color
Green
Rated current [A]
32A
Rated voltage [V AC]
0
Number of poles
4/3P+E
Wire flexible [mm²]
2,5-6mm²
Modelltype
Basic
RAL-number
RAL6010
Clock hour position [h]
2h
Pin/Sleeve
Sleeve
Degree of protection [IP]
IP44
NetProductWeight
0.25
EngineerWidth
92
EngineerHeight
159
CONNECTOR 4P 32 A 3h
CONNECTOR 4P 32 A 3h
E-number
E2424664
Article number
2424664
Type designation
Materials
Plastic
Standard
EN60309-2
Frequency [Hz]
50/60Hz
Color
Red
Rated current [A]
32A
Rated voltage [V AC]
380-440V AC
Number of poles
4/3P+E
Wire flexible [mm²]
2,5-6mm²
Modelltype
Basic
RAL-number
RAL3000
Clock hour position [h]
3h
Pin/Sleeve
Sleeve
Degree of protection [IP]
IP44
NetProductWeight
0.25
EngineerWidth
92
EngineerHeight
159
CONNECTOR 4P 32A 4h
CONNECTOR 4P 32A 4h
E-number
E2424665
Article number
2424665
Type designation
Materials
Plastic
Standard
EN60309-2
Frequency [Hz]
50/60Hz
Color
Yellow
Rated current [A]
32A
Rated voltage [V AC]
100-130V AC
Number of poles
4/3P+E
Wire flexible [mm²]
2,5-6mm²
Modelltype
Basic
RAL-number
RAL1023
Clock hour position [h]
4h
Pin/Sleeve
Sleeve
Degree of protection [IP]
IP44
NetProductWeight
0.25
EngineerWidth
92
EngineerHeight
159
CONNECTOR 4P 32A 5h
CONNECTOR 4P 32A 5h
E-number
E2424666
Article number
2424666
Type designation
Materials
Plastic
Standard
EN60309-2
Frequency [Hz]
50/60Hz
Color
Black
Rated current [A]
32A
Rated voltage [V AC]
600-690V AC
Number of poles
4/3P+E
Wire flexible [mm²]
2,5-6mm²
Modelltype
Basic
RAL-number
RAL9005
Clock hour position [h]
5h
Pin/Sleeve
Sleeve
Degree of protection [IP]
IP44
NetProductWeight
0.25
EngineerWidth
92
EngineerHeight
159
CONNECTOR 4P 32A 6h
CONNECTOR 4P 32A 6h
E-number
E2424667
Article number
2424667
Type designation
S 332-6 S
Materials
Plastic
Standard
EN60309-2
Frequency [Hz]
50/60Hz
Color
Red
Rated current [A]
32A
Rated voltage [V AC]
400V AC
Number of poles
4/3P+E
Wire flexible [mm²]
2,5-6mm²
Modelltype
Basic
RAL-number
RAL3000
Clock hour position [h]
6h
Pin/Sleeve
Sleeve
Degree of protection [IP]
IP44
NetProductWeight
0.25
EngineerWidth
92
EngineerHeight
159
CONNECTOR 4P 32A 7h
CONNECTOR 4P 32A 7h
E-number
E2424668
Article number
2424668
Type designation
Materials
Plastic
Standard
EN60309-2
Frequency [Hz]
50/60Hz
Color
Black
Rated current [A]
32A
Rated voltage [V AC]
480-500V AC
Number of poles
4/3P+E
Wire flexible [mm²]
2,5-6mm²
Modelltype
Basic
RAL-number
RAL9005
Clock hour position [h]
7h
Pin/Sleeve
Sleeve
Degree of protection [IP]
IP44
NetProductWeight
0.25
EngineerWidth
92
EngineerHeight
159
CONNECTOR 4P 32A 9h
CONNECTOR 4P 32A 9h
E-number
E2424669
Article number
2424669
Type designation
NetProductWeight
0.25
EngineerWidth
92
EngineerHeight
159
CONNECTOR 4P 32A 10h
CONNECTOR 4P 32A 10h
E-number
E2424670
Article number
2424670
Type designation
NetProductWeight
0.25
EngineerWidth
92
EngineerHeight
159
CONNECTOR 4P 32A 11h
CONNECTOR 4P 32A 11h
E-number
E2424671
Article number
2424671
Type designation
NetProductWeight
0.25
EngineerWidth
92
EngineerHeight
159
CONNECTOR 5P 32A 2h
CONNECTOR 5P 32A 2h
E-number
E2424672
Article number
2424672
Type designation
NetProductWeight
0.27
EngineerWidth
98
EngineerHeight
165
CONNECTOR 5P 32A 3h
CONNECTOR 5P 32A 3h
E-number
E2424673
Article number
2424673
Type designation
NetProductWeight
0.27
EngineerWidth
98
EngineerHeight
165
CONNECTOR 5P 32A 4h
CONNECTOR 5P 32A 4h
E-number
E2424674
Article number
2424674
Type designation
NetProductWeight
0.27
EngineerWidth
98
EngineerHeight
165
CONNECTOR 5P 32A 5h
CONNECTOR 5P 32A 5h
E-number
E2424675
Article number
2424675
Type designation
NetProductWeight
0.27
EngineerWidth
98
EngineerHeight
165
CONNECTOR 5P 32A 6h
CONNECTOR 5P 32A 6h
E-number
E2424676
Article number
2424676
Type designation
S 432-6 S
NetProductWeight
0.27
EngineerWidth
98
EngineerHeight
165
CONNECTOR 5P 32A 7h
CONNECTOR 5P 32A 7h
E-number
E2424677
Article number
2424677
Type designation
NetProductWeight
0.27
EngineerWidth
98
EngineerHeight
165
CONNECTOR 5P 32A 9h
CONNECTOR 5P 32A 9h
E-number
E2424678
Article number
2424678
Type designation
NetProductWeight
0.27
EngineerWidth
98
EngineerHeight
165
CONNECTOR 5P 32A 11h
CONNECTOR 5P 32A 11h
E-number
E2424679
Article number
2424679
Type designation
NetProductWeight
0.27
EngineerWidth
98
EngineerHeight
165

More variants of Connector 32A IP44 Basic

E-number Article number Type designation Materials Standard Frequency [Hz] Color Rated current [A] Rated voltage [V AC] Number of poles Wire flexible [mm²] Modelltype RAL-number Clock hour position [h] Pin/Sleeve Degree of protection [IP] NetProductWeight EngineerWidth EngineerHeight
CONNECTOR 3P 32A 2h E2424657 2424657 Plastic EN60309-2 Green 32A 3/2P+E 2,5-6mm² Basic RAL6010 2h Sleeve IP44 0.23 92 159
CONNECTOR 3P 32A 4h E2424658 2424658 Plastic EN60309-2 50/60Hz Yellow 32A 100-130V AC 3/2P+E 2,5-6mm² Basic RAL1023 4h Sleeve IP44 0.23 92 159
CONNECTOR 3P 32A 6h E2424659 2424659 S 232-6 S Plastic EN60309-2 50/60Hz Blue 32A 200-250V AC 3/2P+E 2,5-6mm² Basic RAL5017 6h Sleeve IP44 0.23 92 170
CONNECTOR 3P 32A 7h E2424660 2424660 Plastic EN60309-2 50/60Hz Black 32A 480-500V AC 3/2P+E 2,5-6mm² Basic RAL9005 7h Sleeve IP44 0.23 92 159
CONNECTOR 3P 32A 9h E2424661 2424661 Plastic EN60309-2 50/60Hz Red 32A 380-415V AC 3/2P+E 2,5-6mm² Basic RAL3000 9h Sleeve IP44 0.23 92 159
CONNECTOR 3P 32A 12h E2424662 2424662 Plastic EN60309-2 50/60Hz Grey 32A After isolating transformerb 3/2P+E 2,5-6mm² Basic RAL7046 12h Sleeve IP44 0.23 92 159
CONNECTOR 4P 32 A 2h E2424663 2424663 Plastic EN60309-2 0 Green 32A 0 4/3P+E 2,5-6mm² Basic RAL6010 2h Sleeve IP44 0.25 92 159
CONNECTOR 4P 32 A 3h E2424664 2424664 Plastic EN60309-2 50/60Hz Red 32A 380-440V AC 4/3P+E 2,5-6mm² Basic RAL3000 3h Sleeve IP44 0.25 92 159
CONNECTOR 4P 32A 4h E2424665 2424665 Plastic EN60309-2 50/60Hz Yellow 32A 100-130V AC 4/3P+E 2,5-6mm² Basic RAL1023 4h Sleeve IP44 0.25 92 159
CONNECTOR 4P 32A 5h E2424666 2424666 Plastic EN60309-2 50/60Hz Black 32A 600-690V AC 4/3P+E 2,5-6mm² Basic RAL9005 5h Sleeve IP44 0.25 92 159
CONNECTOR 4P 32A 6h E2424667 2424667 S 332-6 S Plastic EN60309-2 50/60Hz Red 32A 400V AC 4/3P+E 2,5-6mm² Basic RAL3000 6h Sleeve IP44 0.25 92 159
CONNECTOR 4P 32A 7h E2424668 2424668 Plastic EN60309-2 50/60Hz Black 32A 480-500V AC 4/3P+E 2,5-6mm² Basic RAL9005 7h Sleeve IP44 0.25 92 159
CONNECTOR 4P 32A 9h E2424669 2424669 0.25 92 159
CONNECTOR 4P 32A 10h E2424670 2424670 0.25 92 159
CONNECTOR 4P 32A 11h E2424671 2424671 0.25 92 159
CONNECTOR 5P 32A 2h E2424672 2424672 0.27 98 165
CONNECTOR 5P 32A 3h E2424673 2424673 0.27 98 165
CONNECTOR 5P 32A 4h E2424674 2424674 0.27 98 165
CONNECTOR 5P 32A 5h E2424675 2424675 0.27 98 165
CONNECTOR 5P 32A 6h E2424676 2424676 S 432-6 S 0.27 98 165
CONNECTOR 5P 32A 7h E2424677 2424677 0.27 98 165
CONNECTOR 5P 32A 9h E2424678 2424678 0.27 98 165
CONNECTOR 5P 32A 11h E2424679 2424679 0.27 98 165
