Inserts for fixed response time 3h

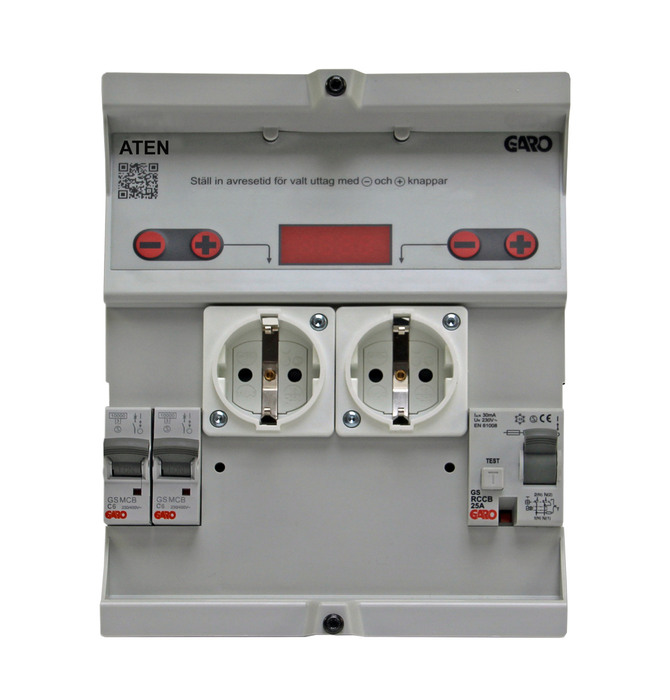

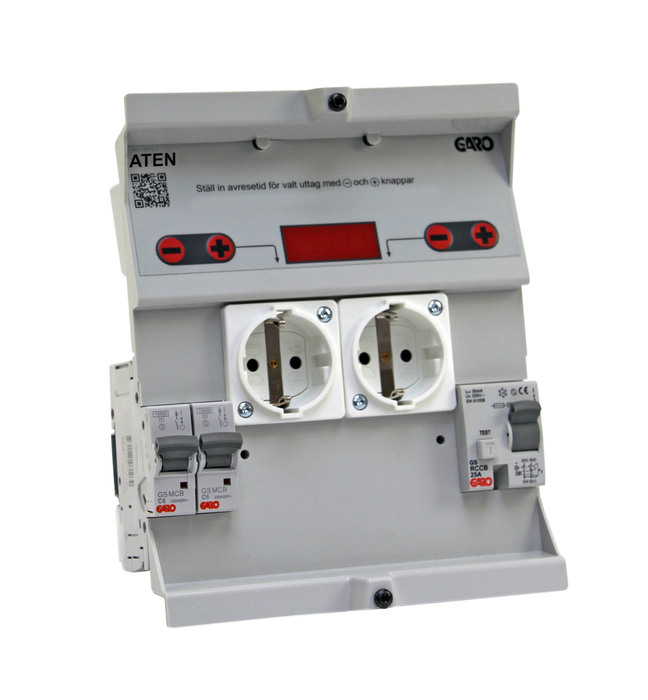

GAROs insert ATEN is an electronic timer with a repeating fixed operating time of 3 hours. Equipped with 2 Schuko sockets and 2 RCBOs or RCD and MCB. The components are mounted on a DIN rail, making replacement very easy. The insert has maintenance-free capacitor backup of 48 hours and a clock with automatic summer / wintertime. The insert is compatible and can be used with old series of P100 enclosure. Insert car without measuring, 6A fits PN-system, 3h response time, with RCCB
E-number
2449219
Article number
353026
Support
Degree of protection [IP] 44
Package size [pcs] 1
Width [mm] 175
Height [mm] 220
Depth [mm] 100
Rated voltage [V AC] 230
Short-circuit current [kA] 10
Response time [min] Max 180
Frequency [Hz] 50
Name INS CAR-PN1 MAX 3H 6A WOM
E-number 2449219
Article number 353026
Type designation ATEN 206-1
Materials Plastic
Colour Grey
Standard EN 61439-7
Netweight [kg] 1.30
Rated current [A] 6
RCCB 1 pcs 25A/2P
MCB 2 pcs C106
RCBO 1
Schuko [pcs] 2

More variants of Inserts for fixed response time 3h

E-number Article number Type designation Materials Colour Standard Netweight [kg] Rated current [A] RCCB MCB RCBO Schuko [pcs]
INS CAR-PN1 MAX 3H 6A WOM 2449219 353026 ATEN 206-1 Plastic Grey EN 61439-7 1.30 6 1 pcs 25A/2P 2 pcs C106 1 2
INS CAR-PN1 10A MAX 3H WO MEAS 2449220 353027 ATEN 210-1 Plastic Grey EN 61439-7 1.30 10 1 pcs 25A/2P 2 pcs C110 1 2
INS CAR-PN2 MAX 3H 6A WOM 2449221 353028 ATEN 206-2 Plastic Grey EN 61439-7 1.20 6 2pcs 6A/2P 2
INS CAR-PN2 MAX 3H 10A WOM 2449222 353029 ATEN 210-2 Plastic Grey EN 61439-7 1.20 10 2pcs 10A/2P 2
