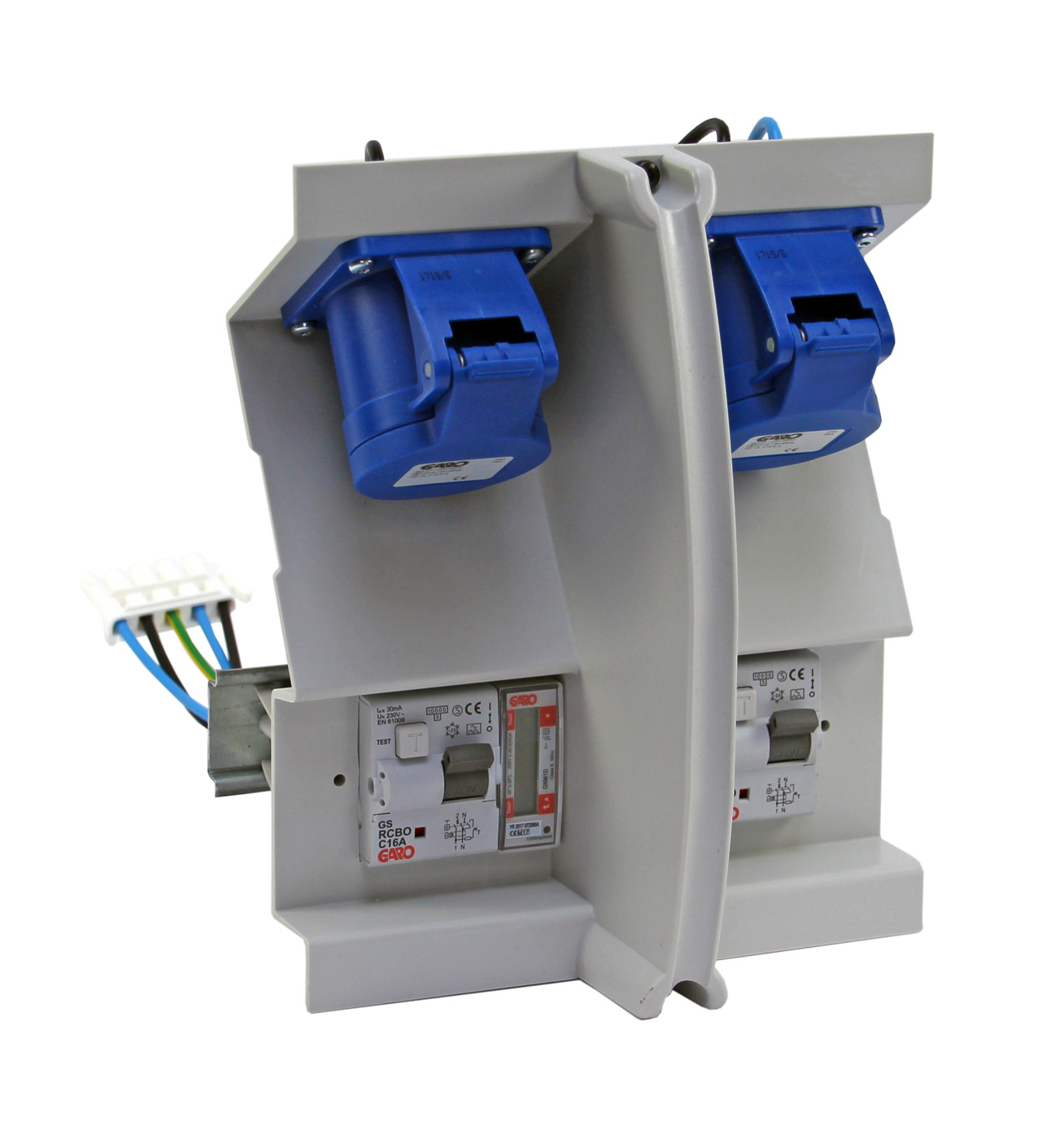

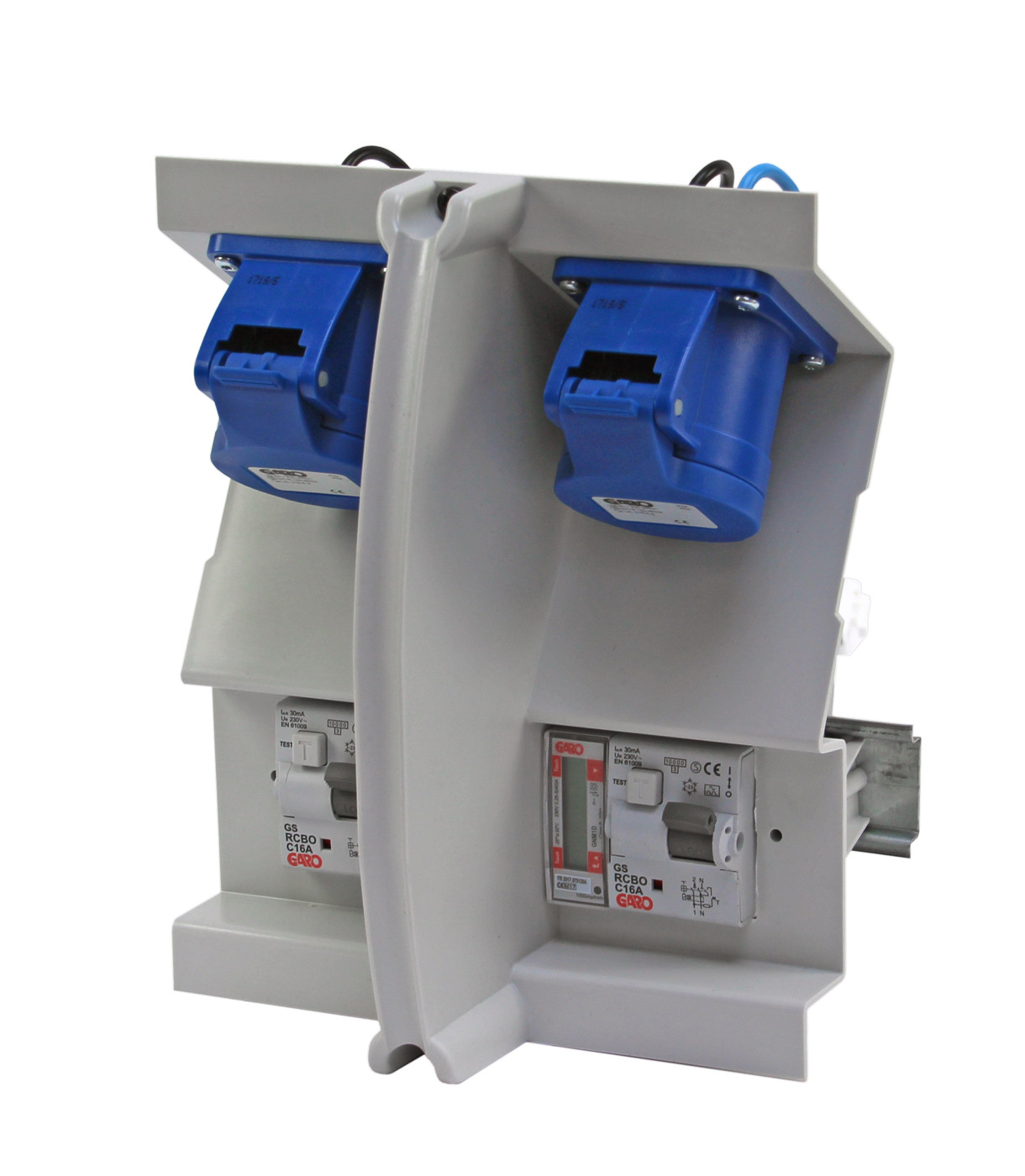

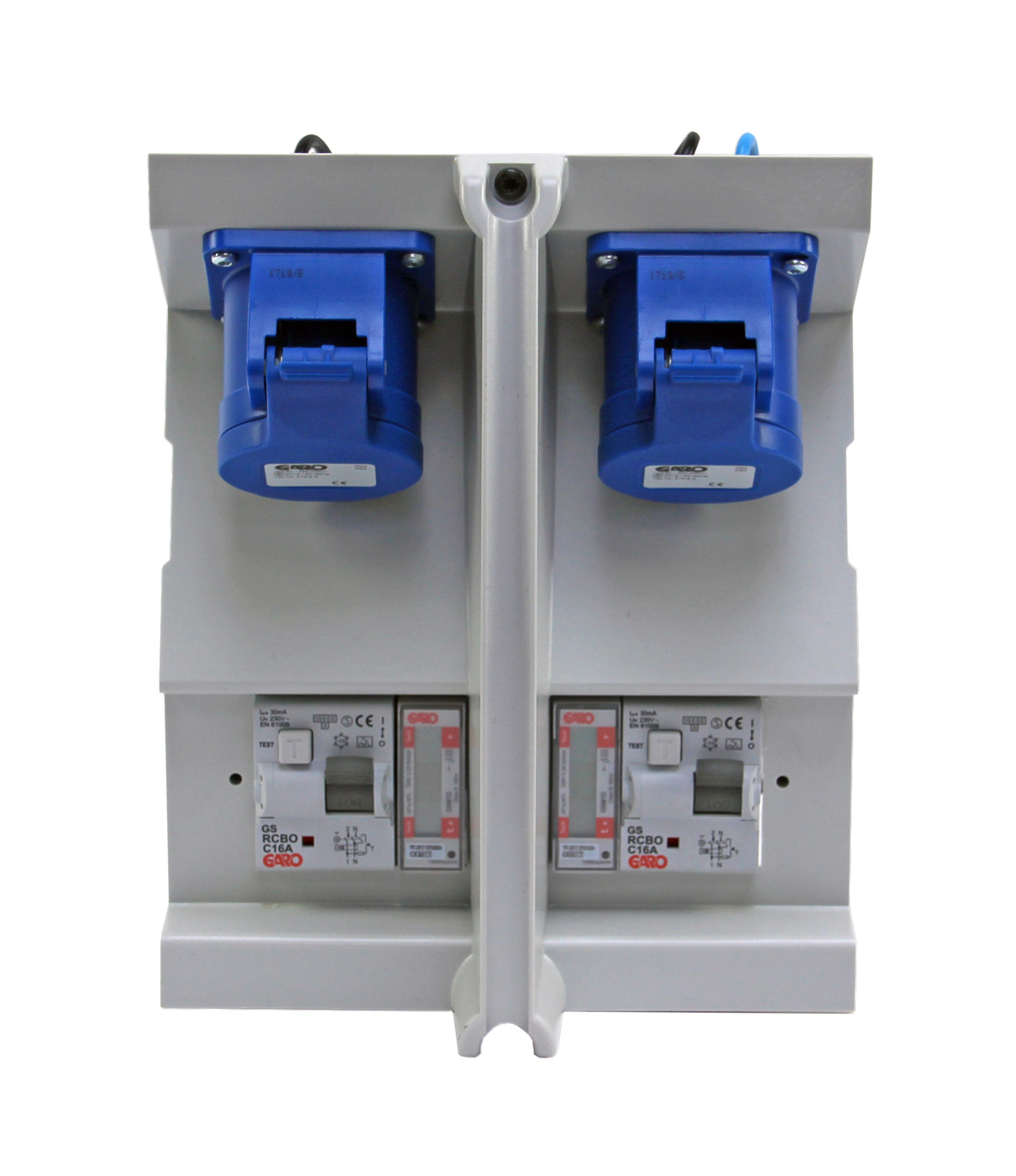

Inserts 24h/day two IEC-outlets with measuring

Using this insert you always have access to electricity 24 hours/day. The insert has a digital energy meter, which makes it possible to read the exact consumption. The insert is fitted with 2 RCBOs and 2 IEC sockets and with measurement on the socket. The components are mounted on a DIN rail, making replacement very easy. The insert is compatible and can be used with old series of P100 enclosure. Insert camping with measuring 16A connected 24h/day,RCBO
E-number
2449212
Article number
353016
Materials Plastic
Colour Grey
Standard EN 61439-3
Package size [pcs] 1
Netweight [kg] 1.20
Width [mm] 175
Height [mm] 220
Depth [mm] 100
Degree of protection [IP] 44
Frequency [Hz] 50
Flanged socket outlet 2 pcs 16A 2P+E 230V
Rated voltage [V AC] 230
Short-circuit current [kA] 10
Response time [min] Continuous
Meter 2
Name INS CAMP-PN2 24H/D 16A WM
E-number 2449212
Article number 353016
Type designation ACMN 216-2
Rated current [A] 16
RCBO 2pcs 16A

More variants of Inserts 24h/day two IEC-outlets with measuring

E-number Article number Type designation Rated current [A] RCBO
INS CAMP-PN2 24H/D 10A WM 2449211 353015 ACMN 210-2 10 2pcs 10A
INS CAMP-PN2 24H/D 16A WM 2449212 353016 ACMN 216-2 16 2pcs 16A

Accessories for Inserts 24h/day two IEC-outlets with measuring

Name E-number Article number Type designation Description
ENERGYMETER 1P PULS ENERGYMETER 1P PULS 0900131 108043 GNM1D Energymeter 1 pole pulse
ENERGYMETER 3P PULS ENERGYMETER 3P PULS 0900134 108046 GNM3D Energymeter 3 pole pulse
RCCB GS 25A 2P 30mA RCCB GS 25A 2P 30mA 2163321 110092 RCCB GS 25A 30mA 10kA 2P RCCB type GS 25A 2-pole 30mA
MCB GS C-KAR 4A 10kA 1P MCB GS C-KAR 4A 10kA 1P 2142704 2142704 MCB GS C104 MCB GS C-Characteristic 4A 10kA 1-pole
MCB GS C-KAR 6A 10kA 1P MCB GS C-KAR 6A 10kA 1P 2142705 2142705 MCB GS C106 MCB GS C-Characteristic 6A 10kA 1-pole
MCB GS C-KAR 10A 10kA 1P MCB GS C-KAR 10A 10kA 1P 2142706 2142706 MCB GS C110 MCB GS C-Characteristic 10A 10kA 1-pole
MCB GS C-KAR 16A 10kA 1P MCB GS C-KAR 16A 10kA 1P 2142708 2142708 MCB GS C116 MCB GS C-Characteristic 16A 10kA 1-pole
LOCKING PIN LOCKING PIN 2163136 2163136 LB 2 Locking pin suitable MCB GS,RCCB GS,RCBO GS,GCB ,GCBO and most other components.
RCBO GS C-CHAR 6A 2P RCBO GS C-CHAR 6A 2P 2163247 2163247 RCBO GS C6A 2P RCBO GS C-Characteristic 6A 10kA 2-pole
RCBO GS C-CHAR 10A 2P RCBO GS C-CHAR 10A 2P 2163248 2163248 RCBO GS C10A 2P RCBO GS C-Characteristic 10A 10kA 2-pole
RCBO GS C-CHAR 16A 2P RCBO GS C-CHAR 16A 2P 2163250 2163250 RCBO GS C16A 2P RCBO GS C-Characteristic 16A 10kA 2-pole
RCBO GC C-CHAR 6A 2P RCBO GC C-CHAR 6A 2P 2163283 2163283 RCBO GC C6A 1+N RCBO GC C-Characteristic 6A 6kA 2-pole
RCBO GC C-CHAR 10A 2P RCBO GC C-CHAR 10A 2P 2163284 2163284 RCBO GC C10A 1+N RCBO GC C-Characteristic 10A 6kA 2-pole
RCBO GC C-CHAR 13A 2P RCBO GC C-CHAR 13A 2P 2163285 2163285 RCBO GC C13A 1+N RCBO GC C-Characteristic 13A 6kA 2-pole
RCBO GC C-CHAR 16A 2P RCBO GC C-CHAR 16A 2P 2163286 2163286 RCBO GC C16A 1+N RCBO GC C-Characteristic 16A 6kA 2-pole
SOCKET STRAIGHT SMALL 3P 16A 6h SOCKET STRAIGHT SMALL 3P 16A 6h 2424890 2424890 UIL 216-6 S Socket straight basic small 3-poles 16A 6h.
OUTLET INSERT MVU OUTLET INSERT MVU 2449413 2449413 MVU Outlet inserts B50xH50
CONTACTPLUG P-SERIE MVC CONTACTPLUG P-SERIE MVC 2449505 2449505 KD-P Contactplug fits P100 MVC
HANDLE MVAT 5-PAC HANDLE MVAT 5-PAC 2449507 2449507 VT Handle MVAT 5-pac
OUTLETINS ROUND PET OUTLETINS ROUND PET 2449524 2449524 MVV Childproof schuko socket PET round.
TIMER CARHEATHER TIMER CARHEATHER 2449525 2449525 TIMER Timer for carheather
