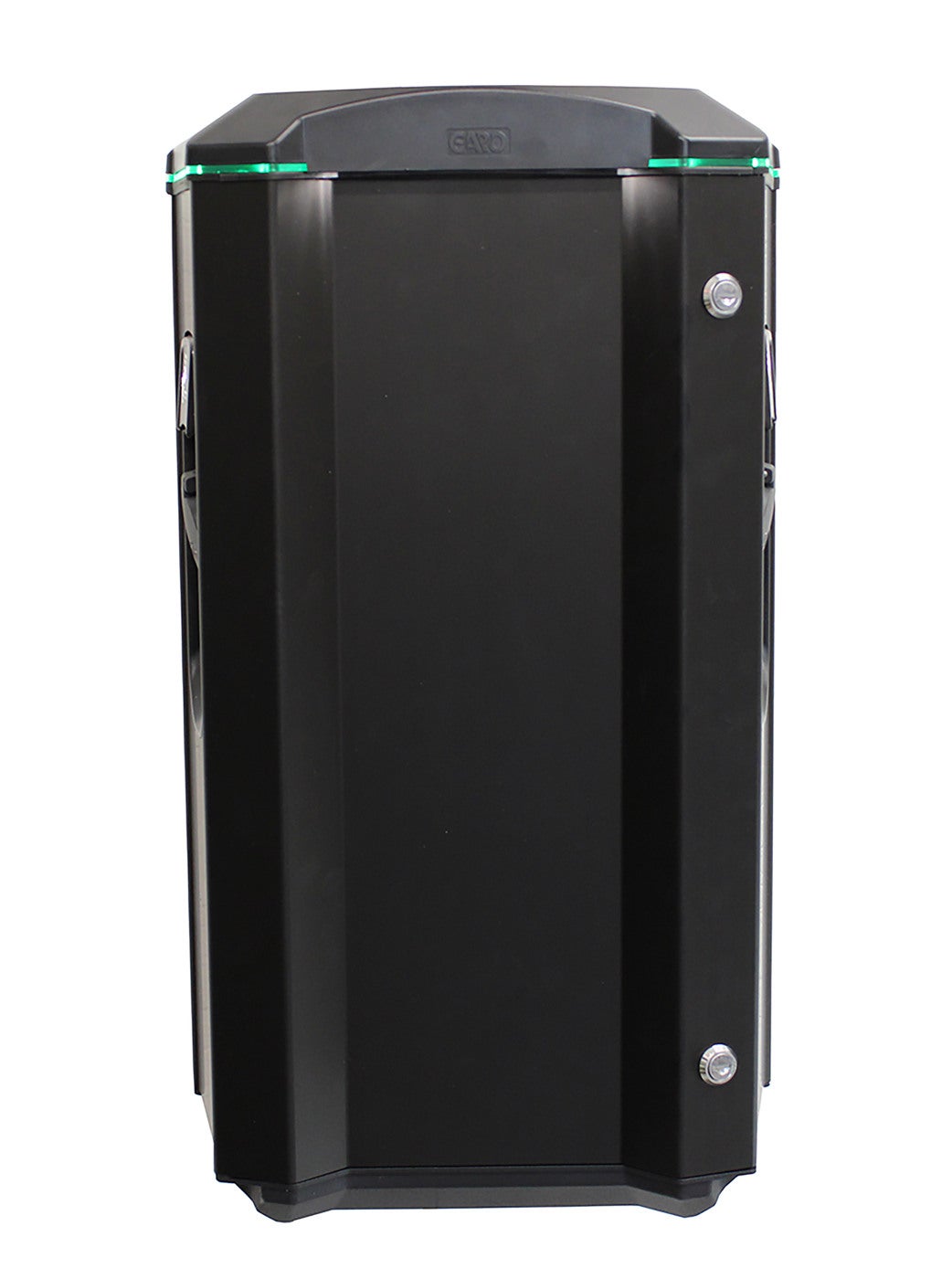

Twin Outlet without Wifi
GAROs wallbox with two charging points, without Wifi. Can be built to the desired system through group formation, based on the master unit with Wifi card to which simpler charging boxes can be connected. Each charging point is protected with DC fault protection and RCBO A according to international standards. Load balancing automatically reduces the vehicle's charging current and minimizes the risk of the main fuse tripping. Complete with GARO Modbus energy meter in the power station for activation of load balancing. Wallbox 2pcs EV-outlet 22kW RCCB-A DC-fault protection with Mbus meter
| Materials | Aluminium |
|---|---|
| Colour | Black |
| Rated voltage [V AC] | 230/400 |
| Cable [m] | Not included |
| Package size [pcs] | 1 |
| Standard | EN 61851-1 IEC 61439-7 AEVCS |
| Width [mm] | 277 |
| Height [mm] | 660 |
| Depth [mm] | 213 |
| Frequency [Hz] | 50 |
| Temperature range [C] | -25...+40 |
| Mounting method | Wall mounting |
| Degree of protection [IP] | 44 |
| Storage temperature [C] | -40...+50 |
| RFID | No |
| Impact strength | IK10 |
| RCCB/RCBO | RCCB A DC fault protection |
| Charging current [A] | 6, 10, 13, 16, 20, 25, 32 |
| Locks | Yes |
| Name | WALLBOX 2EV 22kW DCMBUS-A |
|---|---|
| E-number | 2480305 |
| Article number | 353683 |
| Rated current [A] | 63 |
| Meter | Mbus |
| AC/DC output | Type2 outlet |
| AC/DC output | Type2 outlet |
| Netweight [kg] | 15 |
| Phases | 3 |
| Power outlet [kW] | 22 |
