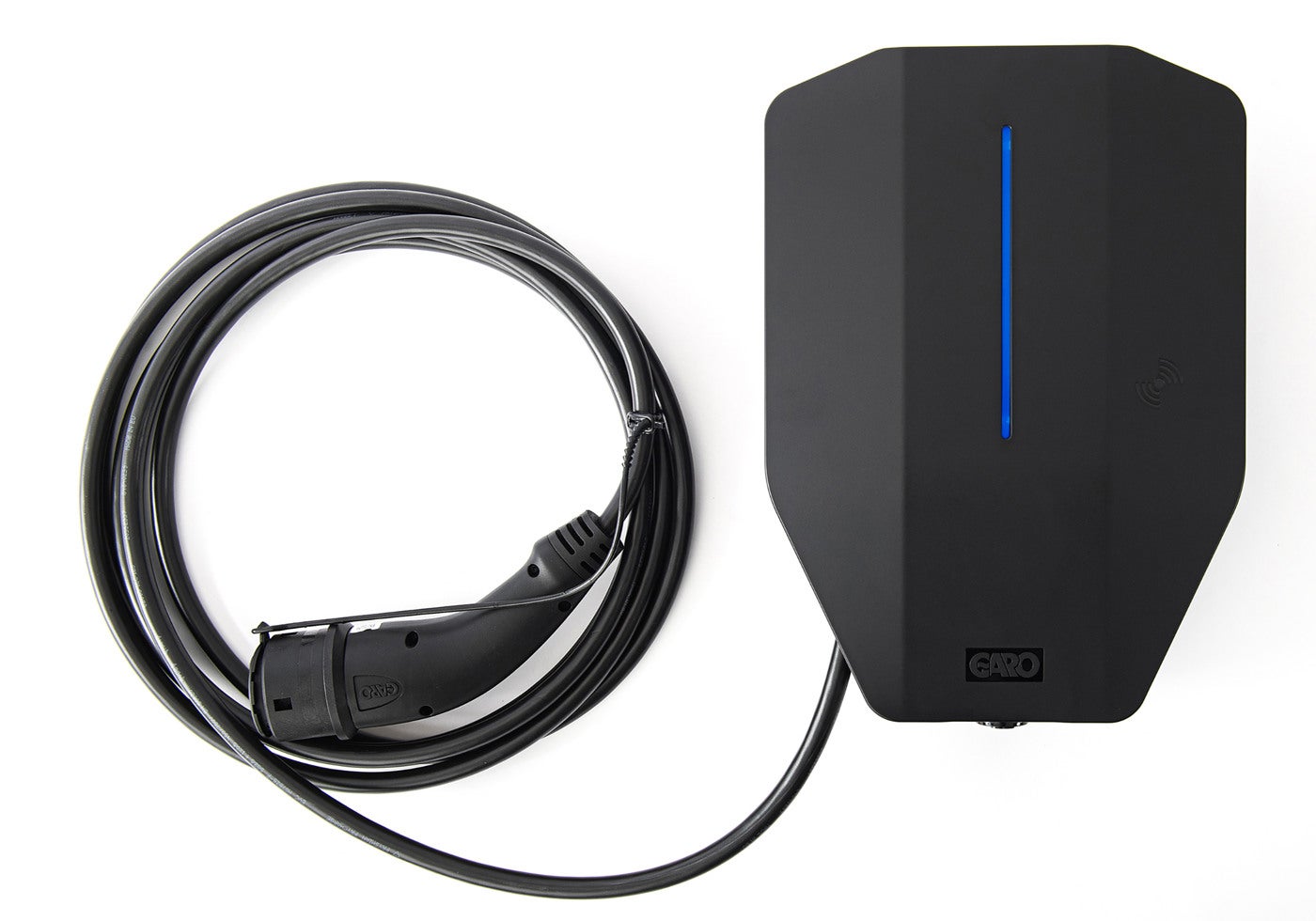

• Disc.WALLBOX ENTITY PRO 22 CAB 4M - 1

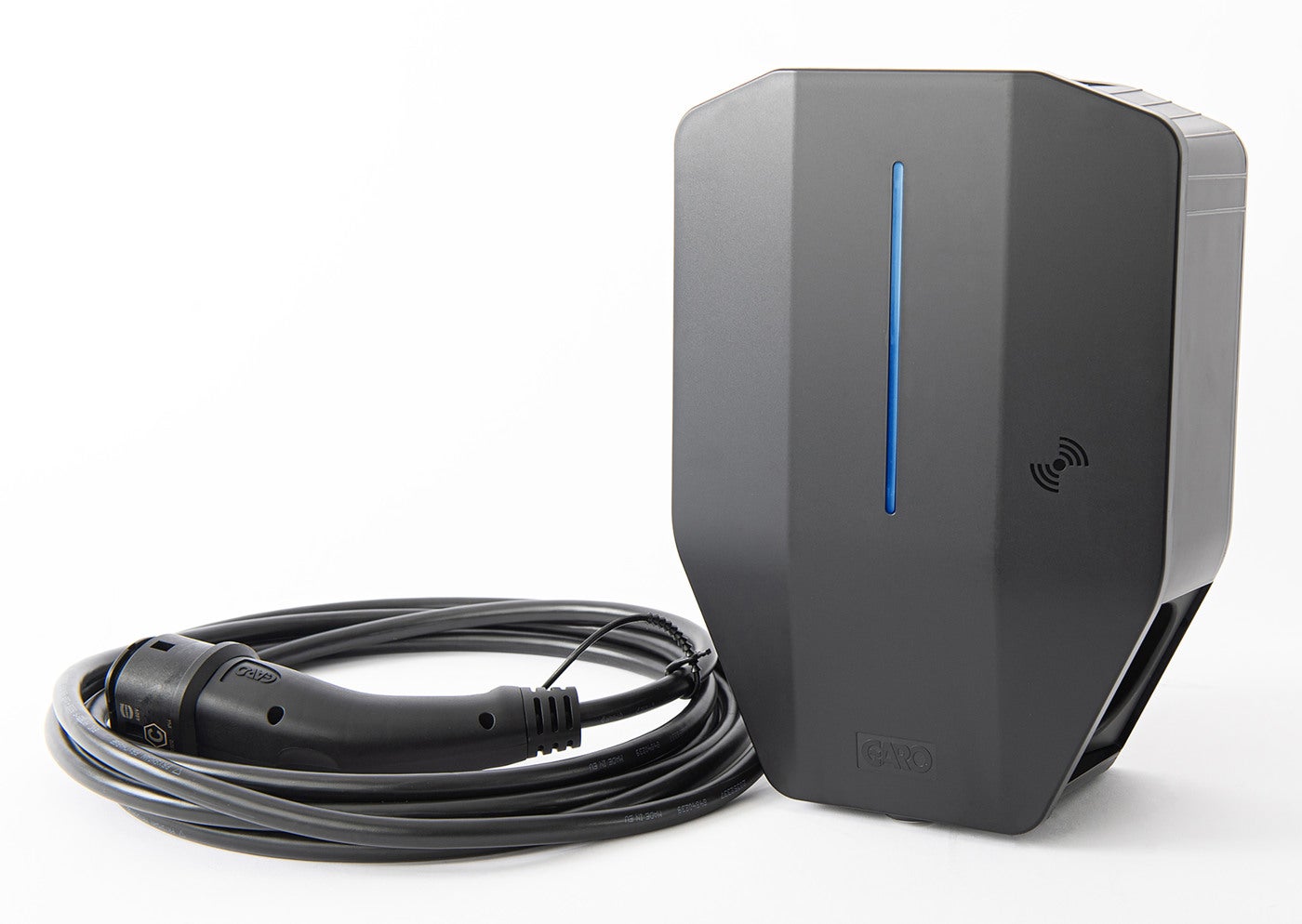

  • Disc.WALLBOX ENTITY PRO 22 CAB 4M - 2

Entity PRO Wallbox

Entity PRO complete wallbox with following components: An installation bracket, a charging unit and a front panel. Available for purchase in a single or dual version. Entity PRO comes with a fixed cable available in various lengths or an outlet. Built-in Energymeter or visible MID meter. Integrated residual current device (RCD) with an all-pole mechanical circuit breaker for AC and DC that meets all requirements. The wallboxes can communicate with each other over Ethernet or mesh Wi-Fi and the internet over LTE CAT M1, Ethernet or Wi-Fi. NB: Complete wallbox. Laddbox Entity Pro 22kW med fast kabel 4m, last- och fasbalansering, modem med SIM Garo Connect.
E-number
2701046
Article number
354267
Support
Name Disc.WALLBOX ENTITY PRO 22 CAB 4M
E-number 2701046
Article number 354267
Type designation EPCS40332SIGI

Instruction Sheet

Manual

Product sheet

Accessories for Entity PRO Wallbox

Name E-number Article number Type designation Description
FRONT ENTITY PRO BLACK FRONT ENTITY PRO BLACK E2701011 354216 EPFCB Front Entity Pro black with locks and keys
FRONT ENTITY PRO GREY FRONT ENTITY PRO GREY E2701012 354217 EPFCG Front Entity Pro grey with locks and keys
FRONT ENTITY PRO WHITE FRONT ENTITY PRO WHITE E2701013 354218 EPFCW Front Entity Pro white with locks and keys
FRONT ENTITY PRO RED FRONT ENTITY PRO RED E2701014 354219 EPFCR Front Entity Pro red with locks and keys
FRONT ENTITY PRO METER BLACK FRONT ENTITY PRO METER BLACK E2701015 354220 EPFCBM Front Entity Pro black visible meter with locks and keys
FRONT ENTITY PRO METER GREY FRONT ENTITY PRO METER GREY E2701016 354221 EPFCGM Front Entity Pro grey visible meter with locks and keys
FRONT ENTITY PRO METER WHITE FRONT ENTITY PRO METER WHITE E2701017 354222 EPFCWM Front Entity Pro white visible meter with locks and keys
FRONT ENTITY PRO METER RED FRONT ENTITY PRO METER RED E2701018 354223 EPFCRM Front Entity Pro red visible meter with locks and keys
POLE MOUNT ENTITY PRO SINGLE POLE MOUNT ENTITY PRO SINGLE E2701019 354224 EPPFS Pole mount single Entity Pro
POLE MOUNT ENTITY PRO BTB POLE MOUNT ENTITY PRO BTB E2701020 354225 EPPFD Pole mount Entity Pro back to back (BTB)
GROUND STAND ENTITY PRO SINGLE GROUND STAND ENTITY PRO SINGLE E2701021 354226 EPGSS Entity Pro Ground Stand single or back to back
GROUND STAND ENTITY PRO DOUBLE GROUND STAND ENTITY PRO DOUBLE E2701022 354227 EPGSD Ground stand Entity Pro double
CABLE HOOK ENTITY WALL CABLE HOOK ENTITY WALL E2701024 354229 EWH Cable hook Entity wall
INSTALL KIT STAND ENTITY PRO INSTALL KIT STAND ENTITY PRO E2701025 354230 EPSSC Installation Kit stand Entity Pro (terminal, cables, cableanchor, soil moisture barrier)
LOAD INTERFACE ENTITY BALANCEB LOAD INTERFACE ENTITY BALANCEB E2701041 354247 ELIB Entity load interface unit basic
LOAD INTERFACE ENTITY BALANCEA LOAD INTERFACE ENTITY BALANCEA E2701042 354248 ELIA Entity load interface unit advanced
LOADINTERFACEKIT ENTITYBALANCEB LOADINTERFACEKIT ENTITYBALANCEB E2701027 354385 ELIBCT100ANTMCB4 Loadinterface kit Entity Balance Basic
