LOAD INTERFACE ENTITY BALANCEA

Entity Balance Advanced

Entity Balance Advanced Power Unit fitted with: Two Ethernet ports (RJ45) for network connection (two-port switch). A 90 mm SMA Wi-Fi antenna for mesh Wi-Fi to connect to charging stations and/or the internet over Wi-Fi. Terminal blocks for: 5A current transformer (optional), M-BUS, Modbus, relay control (future function). Entity load interface unit advanced
E-number
2701042
Article number
354248
Support
Type designation ELIA
Rated current [A] 0,0016
Materials Plastic
Colour Grey
Rated voltage [V AC] 230/400
Package size [pcs] 1
Standard EN 62368-1
Width [mm] 72
Height [mm] 86
Depth [mm] 49
Frequency [Hz] 50
Temperature range [C] -40...+40
Mounting method DIN-rail
Degree of protection [IP] 20
Storage temperature [C] -40...+40
Phases 1
RAL-nummer RAL7035
Name LOAD INTERFACE ENTITY BALANCEA
E-number 2701042
Article number 354248

Manual

Accessories for Entity Balance Advanced

Name E-number Article number Type designation Description

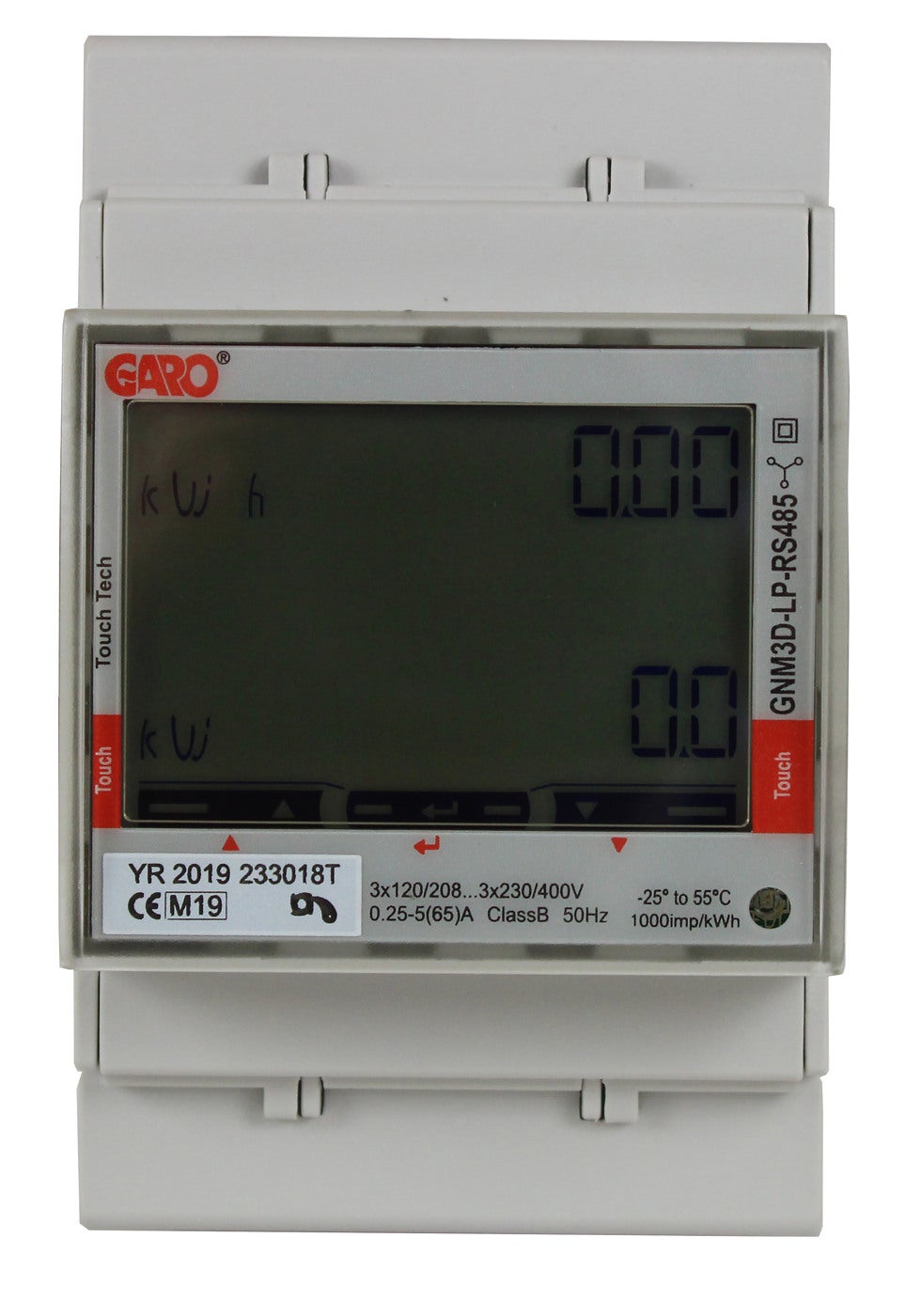

ENERGYMETER 3P MODB LP RS485 ENERGYMETER 3P MODB LP RS485 0900500 109306 GNM3D-LP RS485 Energymeter 3phase modbus llocal production RS485

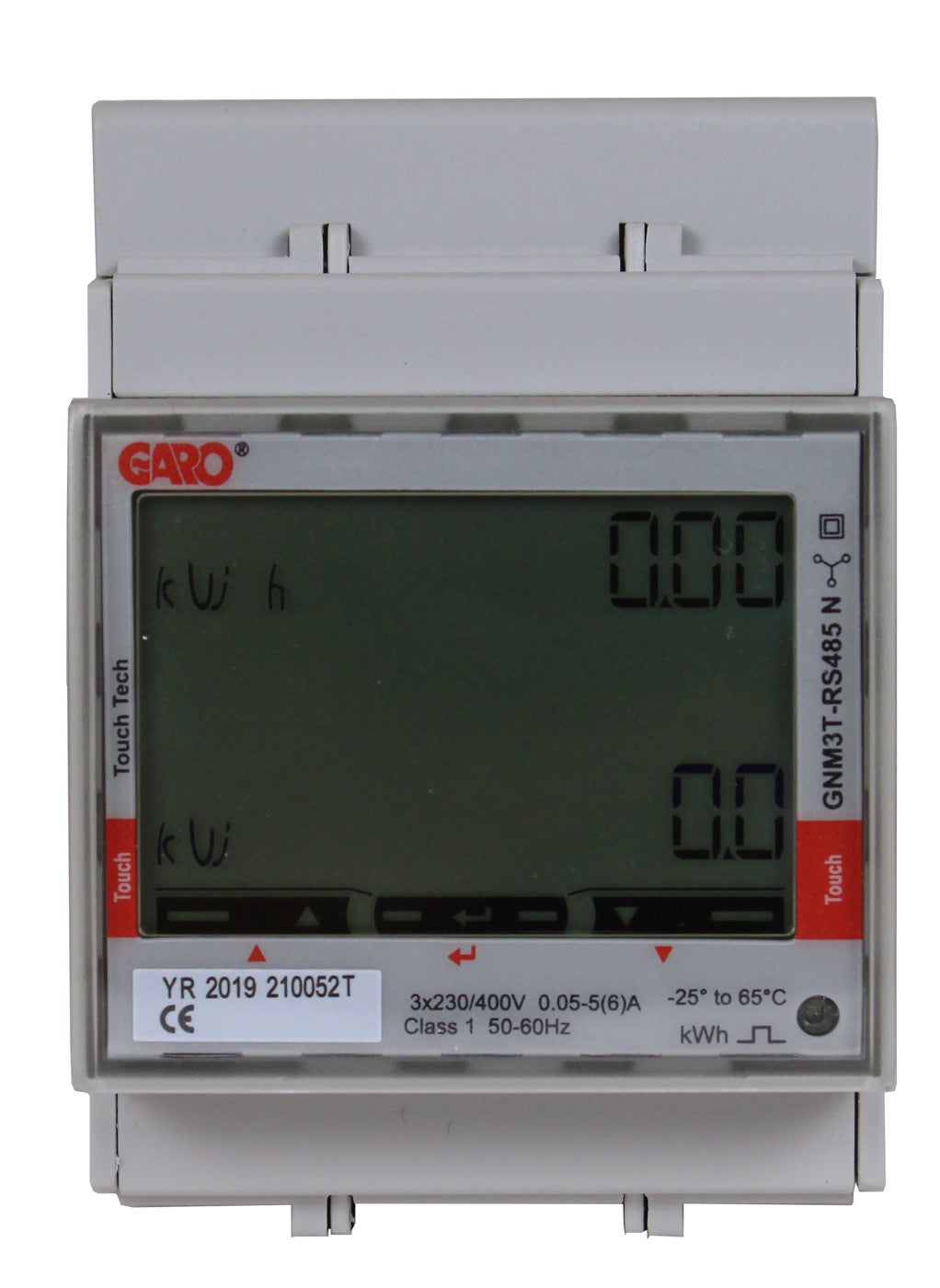

ENERGYMETER TRAFO 5A MODBUS ENERGYMETER TRAFO 5A MODBUS 0901000 109385 GNM3T-LP RS485 N Energymeter trafo 5A modbus not MID approved.
CURRENT TRANSFORMER SPLIT CORE 36-300A CURRENT TRANSFORMER SPLIT CORE 36-300A 4263376 110945 GDT-3 36-300A Current transformer split core for 5A transformer energymeters class 1, opening 36mmØ 300A 3-pcs/box
CURRENT TRANSFORMER SPLIT CORE 36-600A CURRENT TRANSFORMER SPLIT CORE 36-600A 4263377 110946 GDT-3 36-600A Current transformer split core for 5A transformer energymeters class 1, opening 36mmØ 600A 3 pcs/box
RCBO GC C-CHAR 10A 2P RCBO GC C-CHAR 10A 2P 2163284 2163284 RCBO GC C10A 1+N RCBO GC C-Characteristic 10A 6kA 2-pole
LOADINTERFACEKIT ENTITYBALANCEB LOADINTERFACEKIT ENTITYBALANCEB 2701027 354385 ELIBCT100ANTMCB4 Loadinterface kit Entity Balance Basic
