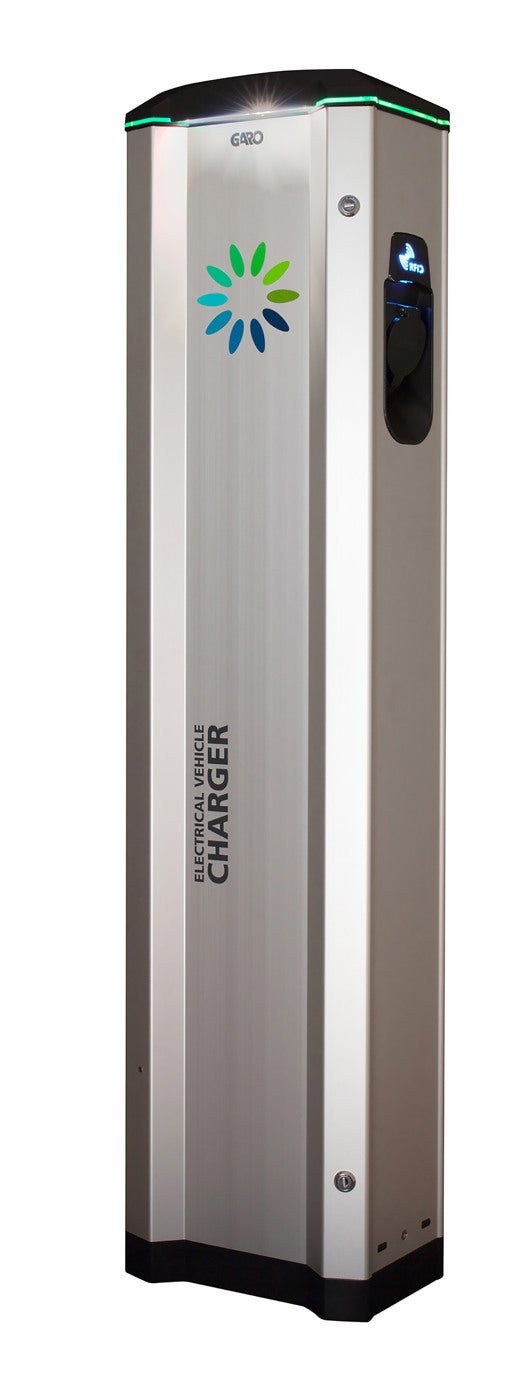

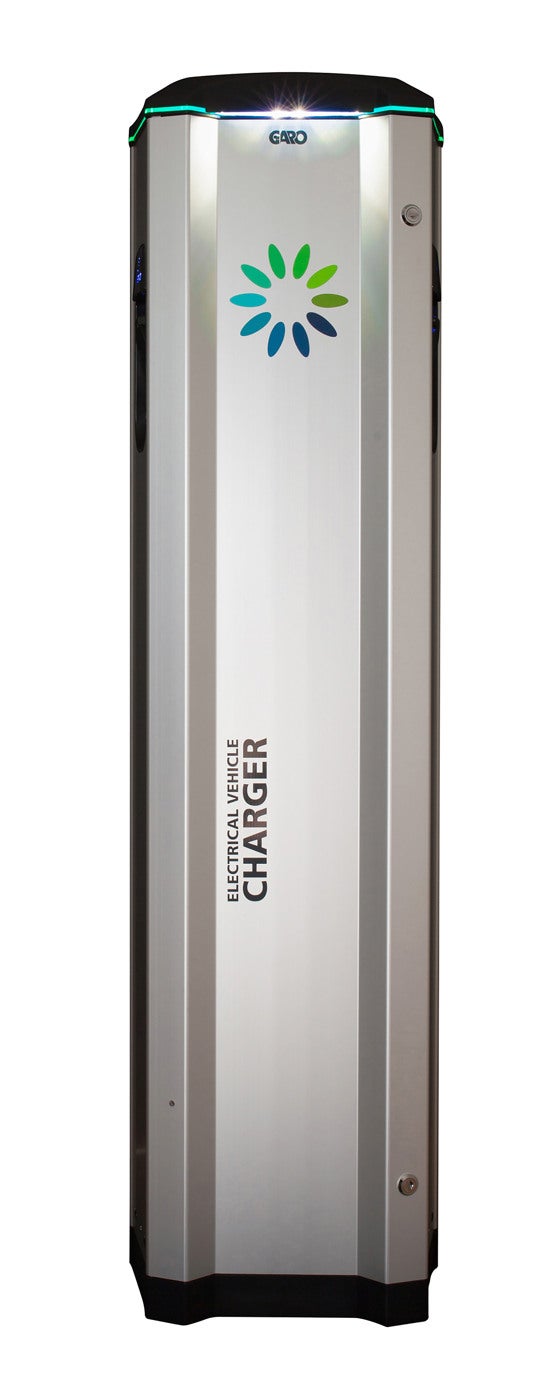

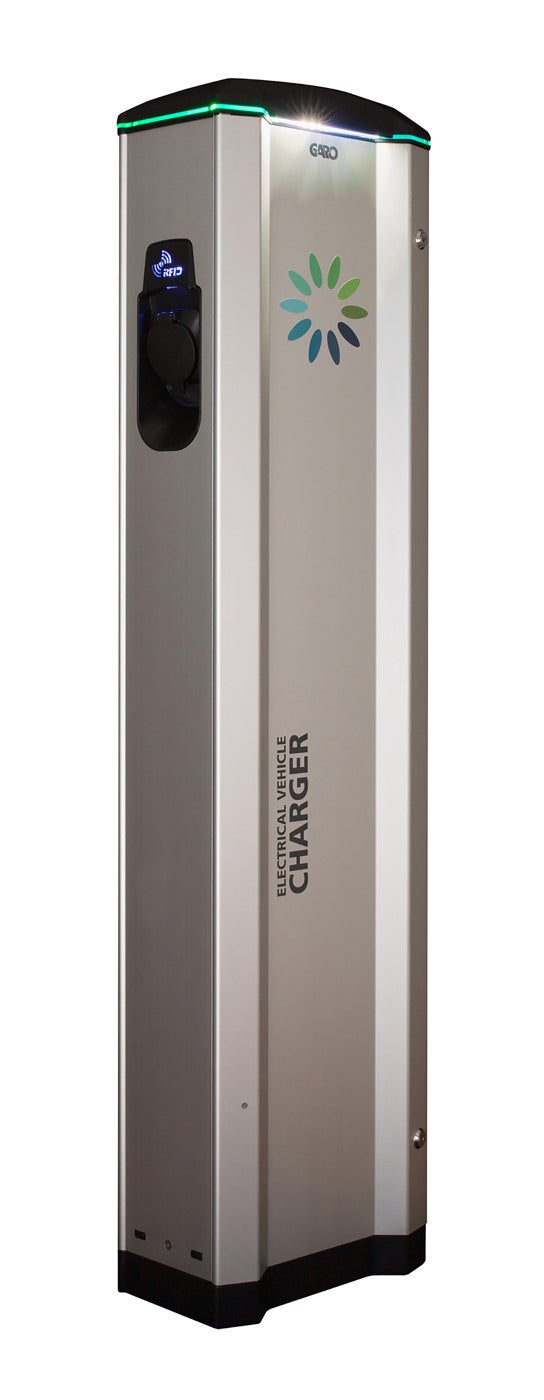

LS4 outlet MC

Public charging stations for ground mounting with 2 fixed cables and integrated MCB and RCCB for each outlet. Light list indicator is at the top of the station and on distance you can read the charging status. The connection to the base station with mobile com or wired internet connection. In accordance with the applicable international standard IEC 60364-7-722 charging of electric cars there are requirements for Type B RCDs or type A RCDs in combination with the DC monitoring that breaks at 6mA. EVSE ground mounted type2 EV-outlet 11kW with meter, RFID and LAN.

E-number
2700342

Article number
354057

Support

NetProductWeight	24.5
EngineerWidth	375
EngineerHeight	1400
EngineerDepth	208

Name	EVSE LS4 T2EV 11kW M R LAN
E-number	2700342
Article number	354057
Type designation	LS4-DCM-T211WO-R-LAN

More variants of LS4 outlet MC

E-number

E2701320

Article number

354658

Type designation

LS4-DCM-T211WO-R-MC

E-number

E2701322

Article number

354660

Type designation

LS4-DCM-T222WO-R-MC

Standard

EN61851-1 IEC 61439-7 AEVCS

Storage temperature [C]

-40C...+50C

Operation Temperature [C]

-25C...+40C

Frequency [Hz]

50Hz

Housing material

Aluminium

Color

Grey

Rated current [A]

63A

Rated voltage [V AC]

230/400V AC

Mounting method

Floor fastening

Modelltype

LS4

Energymeter

Built-in meter

Phases [PH]

3PH

Length of cable [m]

Not included

Lock

Yes

Networkable LAN

Networkable WiFi

Yes

AC/DC output 1

Type 2 Outlet

AC/DC output 2

Type 2 Outlet

DC-fault protection

Yes

Power per charging point [kW]

22kW

Number of RCCB-A [pcs]

2pcs 4P 40A

Communication

Cable area [mm²]

50mm² Al/Cu

Degree of protection [IP]

IP54

Impact strength [IK]

IK10

OCPP

More variants of LS4 outlet MC

	E-number	Article number	Type designation	Standard	Storage temperature [C]	Operation Temperature [C]	Frequency [Hz]	Housing material	Color	Rated current [A]	Rated voltage [V AC]	Mounting method	Modelltype	Energymeter	Phases [PH]	Length of cable [m]	Lock	Networkable LAN	Networkable WiFi	AC/DC output 1	AC/DC output 2	DC-fault protection	Power per charging point [kW]	Number of RCCB-A [pcs]	Communication	Cable area [mm²]	Degree of protection [IP]	Impact strength [IK]	OCPP
	E2701320	354658	LS4-DCM-T211WO-R-MC
	E2701322	354660	LS4-DCM-T222WO-R-MC	EN61851-1 IEC 61439-7 AEVCS	-40C...+50C	-25C...+40C	50Hz	Aluminium	Grey	63A	230/400V AC	Floor fastening	LS4	Built-in meter	3PH	Not included	Yes	No	Yes	Type 2 Outlet	Type 2 Outlet	Yes	22kW	2pcs 4P 40A	MC	50mm² Al/Cu	IP54	IK10	0

Accessories for LS4 outlet MC

E-number

E2449787

Article number

107779

Type designation

EVC-T1-PC-20A250V6M-S

E-number

Article number

107791

Type designation

EVC-T2-PC-20A480V6M-S

E-number

E2449790

Article number

107792

Type designation

EVC-T1-PC-32A250V6M-S

E-number

E2449324

Article number

109311

Type designation

EVC-T2-PC-20A480V4M-H

E-number

E2449326

Article number

109313

Type designation

EVC-T2-PC-32A480V4M-H

E-number

Article number

109320

Type designation

E-number

Article number

109321

Type designation

E-number

Article number

109322

Type designation

EVC-T2-C-32A250V4M-H

E-number

Article number

109323

Type designation

E-number

Article number

109324

Type designation

E-number

E2449338

Article number

109325

Type designation

EVC-T2-C-20A250V8M-S

E-number

Article number

109326

Type designation

E-number

Article number

109327

Type designation

E-number

Article number

109328

Type designation

EVC-T2-C-32A250V5M-S

E-number

E2449342

Article number

109329

Type designation

EVC-T2-C-32A250V8M-S

E-number

Article number

109330

Type designation

EVC-T2-C-32A480V5M-S

E-number

E2449895

Article number

352698

Type designation

LS4-CSR

E-number

E2449896

Article number

352699

Type designation

LS4-GA

E-number

E2449897

Article number

352800

Type designation

LS4-WMS

E-number

E2449898

Article number

352803

Type designation

LS4-TB95

Accessories for LS4 outlet MC

Name	E-number	Article number	Type designation	Description
EV CABLE T1PC 1P 20A 250V 6M S	E2449787	107779	EVC-T1-PC-20A250V6M-S	Charging cable type1 car - type2 pillar 1-phase 20A 250V 6 meter straight cable.
EV CABLE T2C-T2P 3P 16A 400V S		107791	EVC-T2-PC-20A480V6M-S	Charging cable type 2 car - type 2 pillar 3-phase 16A 400V
EV CABLE T1PC 1P 32A 250V 6M S	E2449790	107792	EVC-T1-PC-32A250V6M-S	Charging cable type1 car - type2 pillar 1-phase 32A 230V 6 meter straight cable.
EV CABLE T2PC 3P 20A 480V 4M H	E2449324	109311	EVC-T2-PC-20A480V4M-H	Charging cable type2 PC 3-phase 20A 480V 4 meter helix cable.
EV CABLE T2PC 3P 32A 480V 4M H	E2449326	109313	EVC-T2-PC-32A480V4M-H	Charging cable type2 PC 3-phase 32A 480V 4 meter helix cable.
EVC-T2-C-20A250V4M-H		109320		Charging cable type 2 PC 20A 250V 4meter helix cable
EVC-T2-C-20A480V4M-H		109321		Charging cable type 2 C 20A 480V 4meter helix cable
CABLE T2 C 32A 250V 4M H		109322	EVC-T2-C-32A250V4M-H	Charging cable type 2 C 32A 250V 4meter helix cable
CABLE T2 C 32A 480V 4M H		109323		Charging cable type 2 C 32A 480V 4meter helix cable
CABLE T2 C 20A 250V 5M R		109324		Charging cable type 2 C 20A 250V 5meter straight cable
EV CABLE T2C 1P 20A 250V 8M S	E2449338	109325	EVC-T2-C-20A250V8M-S	Charging cable type2 C 1-phase 20A 250V 8 meter straight cable.
CABLE T2 C 20A 480V 5M S		109326		Charging cable type 2 C 20A 480V 5meter straight cable
CABLE T2 C 20A 480V 8M S		109327		Charging cable type 2 C 20A 480V 8meter straight cable
CABLE T2 C 32A 250V 5M S		109328	EVC-T2-C-32A250V5M-S	Charging cable type 2 C 32A 250V 5meter straight cable
EV CABLE T2C 1P 32A 250V 8M S	E2449342	109329	EVC-T2-C-32A250V8M-S	Charging cable type2 C 1-phase 32A 250V 8 meter straight cable.
EV CABLE T2C 3P 32A 480V 5M S		109330	EVC-T2-C-32A480V5M-S	Charging cable type 2 C 32A 480V 5 meter straight cable.
CABLE STRAIN RELIEF LS4	E2449895	352698	LS4-CSR	Cable strain relief for LS4
GROUND ANCHOR LS4	E2449896	352699	LS4-GA	Ground anchor LS4
WALL MOUNT LS4 STANDARD	E2449897	352800	LS4-WMS	Wall mount LS4 standard
TERMINAL BLOCK 95mm²LS4	E2449898	352803	LS4-TB95	Terminal block 95mm² LS4
