Connectable standard - LS4

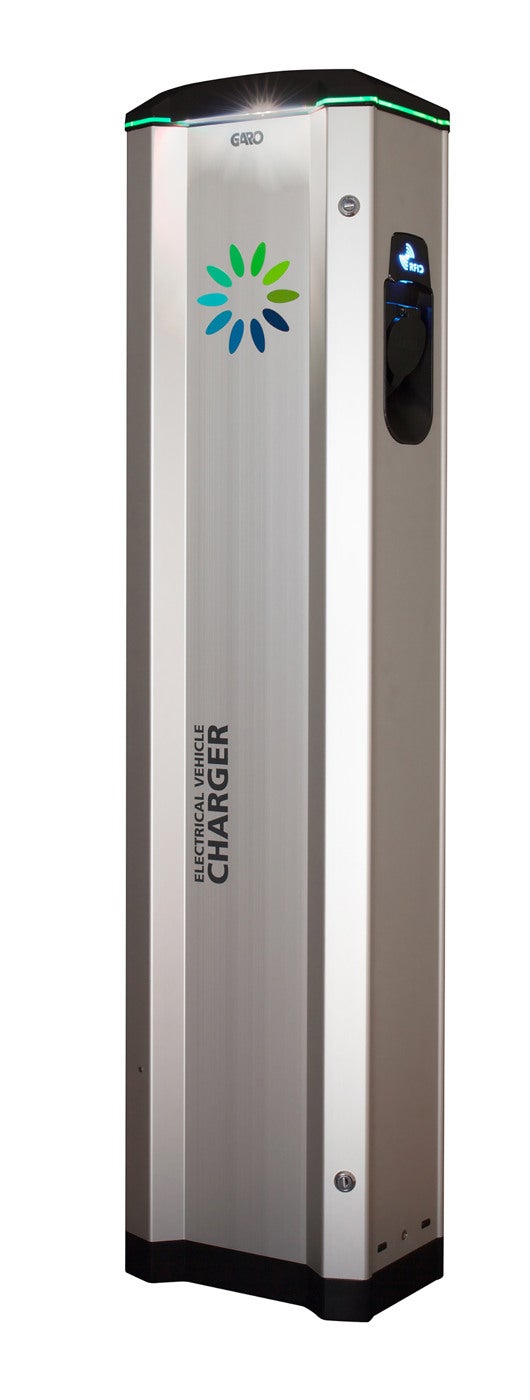

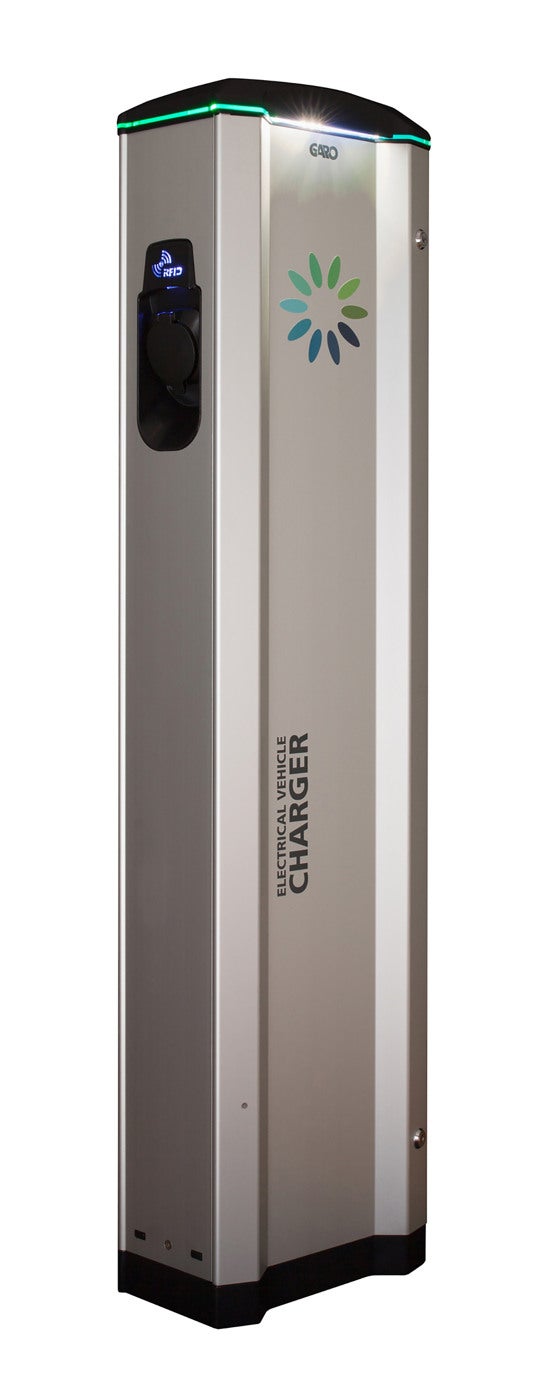

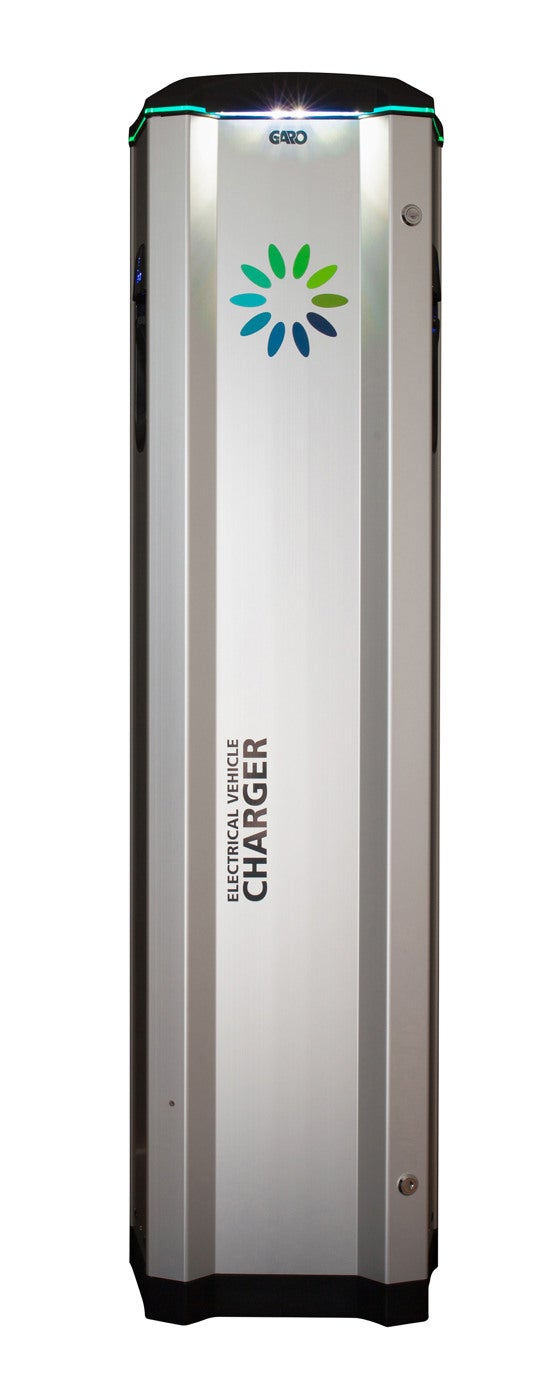

Connectable standard - LS4 Chargestation standard 2EV outlet 3,7kW with measuring and mobile communication.
E-number
2449232
Article number
353563
Materials Aluminium
Colour Grå
Rated voltage [V AC] 230/400
Package size [pcs] 1
Standard EN 61851-1 IEC 61439-7 AEVCS
Netweight [kg] 24.50
Width [mm] 375
Height [mm] 1400
Depth [mm] 208
Frequency [Hz] 50
Temperature range [C] -25...+40
Mounting method Golvfastsättning
Degree of protection [IP] 44
Cablearea [mm²] 50mm² AL/CU
Storage temperature [C] -40...+50
Meter Ja
RFID Ja
Impact strength IK10
RCCB/RCBO JFB-A DC-felskydd
Name CHARGER 2EV 3,7kW W MEA MC
E-number 2449232
Article number 353563
Type designation LS4-DCM-T237WO-R-MC
Rated current [A] 16
AC/DC output Typ2 Uttag
AC/DC output Typ2 Uttag
Phases 1
Communication Mobile com
Power outlet [kW] 3,7

More variants of Connectable standard - LS4

E-number Article number Type designation Rated current [A] AC/DC output AC/DC output Phases Communication Power outlet [kW]
CHARGER 2EV 3,7kW W MEA MC 2449232 353563 LS4-DCM-T237WO-R-MC 16 Typ2 Uttag Typ2 Uttag 1 Mobile com 3,7
CHARGER 2EV 11kW W MEA MC 2449233 353564 LS4-DCM-T211WO-R-MC 32 Typ2 Uttag Typ2 Uttag 3 Mobile com 11
CHARGER 2EV 22kW W MEA MC 2449234 353565 LS4-DCM-T222WO-R-MC 63 Typ2 Uttag Typ2 Uttag 3 Mobile com 22
CHARGER 2EV 3,7kW W MEA LAN 2449235 353566 LS4-DCM-T237WO-R-LAN 32 Typ2 Uttag Typ2 Uttag 1 LAN 3,7
CHARGER 2EV 11kW W MEA LAN 2449236 353567 LS4-DCM-T211WO-R-LAN 32 Typ2 Uttag Typ2 Uttag 3 LAN 11
EVSE LS4 T2EV 22kW M R LAN 2449237 353568 LS4-DCM-T222WO-R-LAN 63 Typ2 Uttag Typ2 Uttag 3 LAN 22

Accessories for Connectable standard - LS4

Name E-number Article number Type designation Description
EV CABLE T1PC 1P 20A 250V 6M S EV CABLE T1PC 1P 20A 250V 6M S 2449787 107779 EVC-T1-PC-20A250V6M-S Charging cable type1 car - type2 pillar 1-phase 20A 250V 6 meter straight cable.
Disc.EV CABLE T2C-T2P 1P 16A 230V S Disc.EV CABLE T2C-T2P 1P 16A 230V S 2449788 107790 EVC-T2-PC-20A250V6M-S Charging cable type2 car - type2 pillar 1-phase 16A 230V
EV CABLE T2C-T2P 3P 16A 400V S EV CABLE T2C-T2P 3P 16A 400V S 2449789 107791 EVC-T2-PC-20A480V6M-S Charging cable type 2 car - type 2 pillar 3-phase 16A 400V
EV CABLE T1PC 1P 32A 250V 6M S EV CABLE T1PC 1P 32A 250V 6M S 2449790 107792 EVC-T1-PC-32A250V6M-S Charging cable type1 car - type2 pillar 1-phase 32A 230V 6 meter straight cable.
EV CABLE T2PC 1P 20A 250V 4M H EV CABLE T2PC 1P 20A 250V 4M H 2449323 109310 EVC-T2-PC-20A250V4M-H Charging cable type2 PC 1-phase 20A 250V 4 meter helix cable.
EV CABLE T2PC 3P 20A 480V 4M H EV CABLE T2PC 3P 20A 480V 4M H 2449324 109311 EVC-T2-PC-20A480V4M-H Charging cable type2 PC 3-phase 20A 480V 4 meter helix cable.
Disc.EV CABLE T2PC 1P 32A 250V 4M H Disc.EV CABLE T2PC 1P 32A 250V 4M H 2449325 109312 EVC-T2-PC-32A250V4M-H Charging cable type2 PC 1-phase 32A 250V 4 meter helix cable.
EV CABLE T2PC 3P 32A 480V 4M H EV CABLE T2PC 3P 32A 480V 4M H 2449326 109313 EVC-T2-PC-32A480V4M-H Charging cable type2 PC 3-phase 32A 480V 4 meter helix cable.
EV CABLE T2PC 1P 20A 250V 5M S EV CABLE T2PC 1P 20A 250V 5M S 2449327 109314 EVC-T2-PC-20A250V5M-S Charging cable type2 PC 1-phase 20A 250V 5 meter straight cable.
EV CABLE T2PC 3P 20A 480V 5M S EV CABLE T2PC 3P 20A 480V 5M S 2449328 109315 EVC-T2-PC-20A480V5M-S Charging cable type2 PC 3-phase 20A 480V 5 meter straight cable.
EV CABLE T2PC 1P 32A 250V 5M S EV CABLE T2PC 1P 32A 250V 5M S 2449329 109316 EVC-T2-PC-32A250V5M-S Charging cable type2 PC 1-phase 32A 250V 5 meter straight cable.
EV CABLE T2PC 1P 32A 250V 5M S EV CABLE T2PC 1P 32A 250V 5M S 2449330 109317 EVC-T2-PC-32A250V8M-S Charging cable type2 PC 1-phase 32A 250V 8 meter straight cable.
EV CABLE T2PC 3P 32A 480V 5M S EV CABLE T2PC 3P 32A 480V 5M S 2449331 109318 EVC-T2-PC-32A480V5M-S Charging cable type2 PC 3-phase 32A 480V 5 meter straight cable.
EV CABLE T2PC 3P 32A 480V 8M S EV CABLE T2PC 3P 32A 480V 8M S 2449332 109319 EVC-T2-PC-32A480V8M-S Charging cable type2 PC 3-phase 32A 480V 8 meter straight cable.
CABLE T2 PC 20A 250V 4M H CABLE T2 PC 20A 250V 4M H 2449333 109320 EVC-T2-C-20A250V4M-H Charging cable type 2 PC 20A 250V 4meter helix cable
CABLE T2 C 20A 480V 4M H CABLE T2 C 20A 480V 4M H 2449334 109321 EVC-T2-C-20A480V4M-H Charging cable type 2 C 20A 480V 4meter helix cable
CABLE T2 C 32A 250V 4M H CABLE T2 C 32A 250V 4M H 2449335 109322 EVC-T2-C-32A250V4M-H Charging cable type 2 C 32A 250V 4meter helix cable
CABLE T2 C 32A 480V 4M H CABLE T2 C 32A 480V 4M H 2449336 109323 EVC-T2-C-32A480V4M-H Charging cable type 2 C 32A 480V 4meter helix cable
CABLE T2 C 20A 250V 5M R CABLE T2 C 20A 250V 5M R 109324 EVC-T2-C-20A250V5M-S Charging cable type 2 C 20A 250V 5meter straight cable
EV CABLE T2C 1P 20A 250V 8M S EV CABLE T2C 1P 20A 250V 8M S 2449338 109325 EVC-T2-C-20A250V8M-S Charging cable type2 C 1-phase 20A 250V 8 meter straight cable.
CABLE T2 C 20A 480V 5M S CABLE T2 C 20A 480V 5M S 109326 Charging cable type 2 C 20A 480V 5meter straight cable
CABLE T2 C 20A 480V 8M S CABLE T2 C 20A 480V 8M S 109327 EVC-T2-C-20A480V8M-S Charging cable type 2 C 20A 480V 8meter straight cable
CABLE T2 C 32A 250V 5M S CABLE T2 C 32A 250V 5M S 109328 EVC-T2-C-32A250V5M-S Charging cable type 2 C 32A 250V 5meter straight cable
EV CABLE T2C 1P 32A 250V 8M S EV CABLE T2C 1P 32A 250V 8M S 2449342 109329 EVC-T2-C-32A250V8M-S Charging cable type2 C 1-phase 32A 250V 8 meter straight cable.
EV CABLE T2C 3P 32A 480V 5M S EV CABLE T2C 3P 32A 480V 5M S 109330 EVC-T2-C-32A480V5M-S Charging cable type 2 C 32A 480V 5 meter straight cable.
TEST EQUIPMENT TYPE 2 INLET TEST EQUIPMENT TYPE 2 INLET 4201022 352344 TEQ-T2-IL Testequipment with type 2 inlet
TEST EQUIPMENT TYPE 2 PLUG TEST EQUIPMENT TYPE 2 PLUG 4201023 352345 TEQ-T2-FC Test Equipment with type 2 plug
POLE MOUNT Ø60 LS4 POLE MOUNT Ø60 LS4 2449894 352697 LS4-PM Poleplate for 60-tube
CABLE STRAIN RELIEF LS4 CABLE STRAIN RELIEF LS4 2449895 352698 LS4-CSR Cable strain relief for LS4
GROUND ANCHOR LS4 GROUND ANCHOR LS4 2449896 352699 LS4-GA Ground anchor LS4
WALL MOUNT LS4 STANDARD WALL MOUNT LS4 STANDARD 2449897 352800 LS4-WMS Wall mount LS4 standard
TERMINAL BLOCK 95mm²LS4 TERMINAL BLOCK 95mm²LS4 2449898 352803 LS4-TB95 Terminal block 95mm² LS4
