Connectable standard - LS4

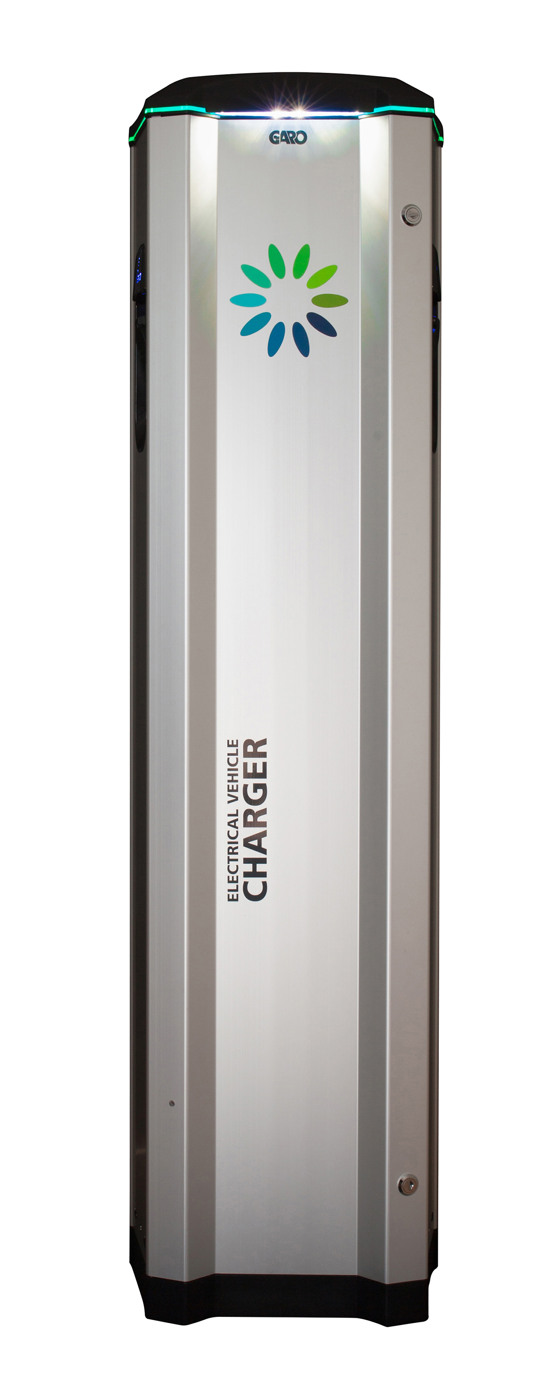

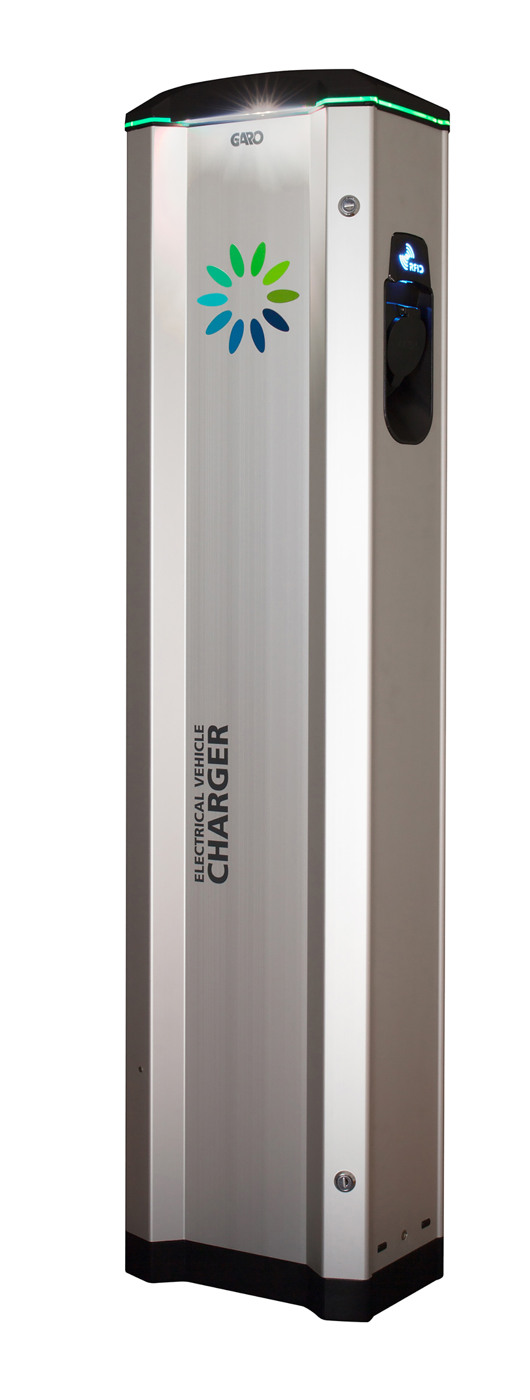

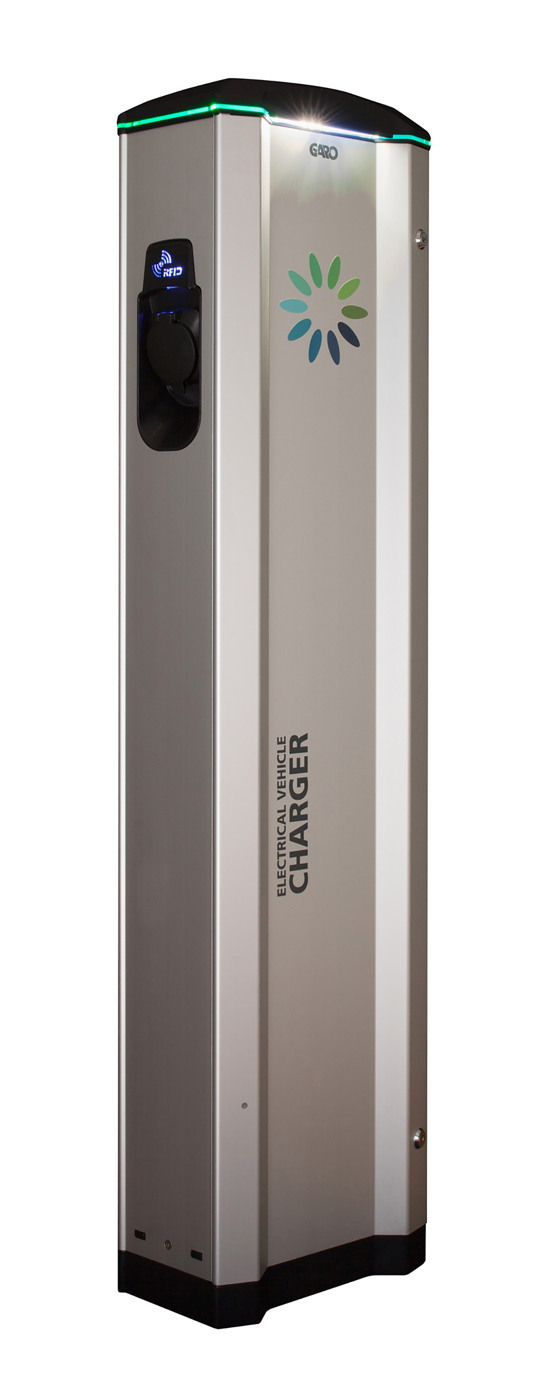

Public charging stations for ground mounting with 2 EV outlet and integrated MCB and RCCB for each outlet. Light list indicator is at the top of the station and on distance you can read the charging status. The connection to the base station with mobile com or wired internet connection. In accordance with the applicable international standard IEC 60364-7-722 charging of electric cars there are requirements for Type B RCDs or type A RCDs in combination with the DC monitoring that breaks at 6mA. Chargestation standard 2EV outlet 3,7kW with measuring and ethernet communication.
-
EVSE LS4 T2EV 22kW M R MCE-number
2700343Article number
354054 -
EVSE LS4 T2EV 22kW M R LANE-number
2700344Article number
354055 -
EVSE LS4 T2EV 11kW M R MCE-number
2700341Article number
354056 -
EVSE LS4 T2EV 11kW M R LANE-number
2700342Article number
354057 -
EVSE LS4 T2EV 22KW M R LAN RE-number
2700385Article number
354067
| Materials | Aluminium |
|---|---|
| Colour | Grey |
| Rated voltage [V AC] | 230/400 |
| Package size [pcs] | 1 |
| Standard | EN 61851-1 IEC 61439-7 AEVCS |
| Netweight [kg] | 24.50 |
| Width [mm] | 375 |
| Height [mm] | 1400 |
| Depth [mm] | 208 |
| Frequency [Hz] | 50 |
| Temperature range [C] | -25C...+40C |
| Mounting method | Floor fastening |
| Degree of protection [IP] | 54 |
| Cablearea [mm²] | 50mm² AL/CU |
| Storage temperature [C] | -40C...+50C |
| Meter | Yes |
| RFID | Yes |
| Impact strength | IK10 |
| RCCB/RCBO | RCCB A DC fault protection |
| Name | CHARGER 2EV 3,7kW W MEA LAN |
|---|---|
| Article number | 353566 |
| Type designation | LS4-DCM-T237WO-R-LAN |
| Rated current [A] | 32 |
| AC/DC output | Type2 outlet |
| AC/DC output | Type2 outlet |
| Phases | 1 |
| Communication | LAN |
| Power outlet [kW] | 3,7 |
