Connectable standard - LS4

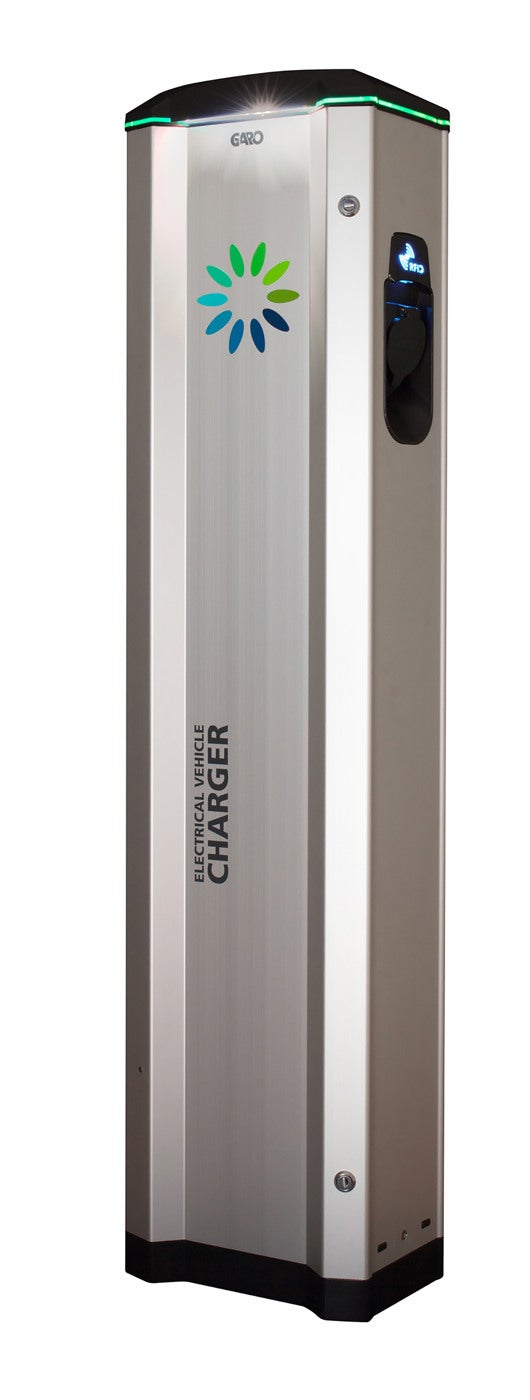

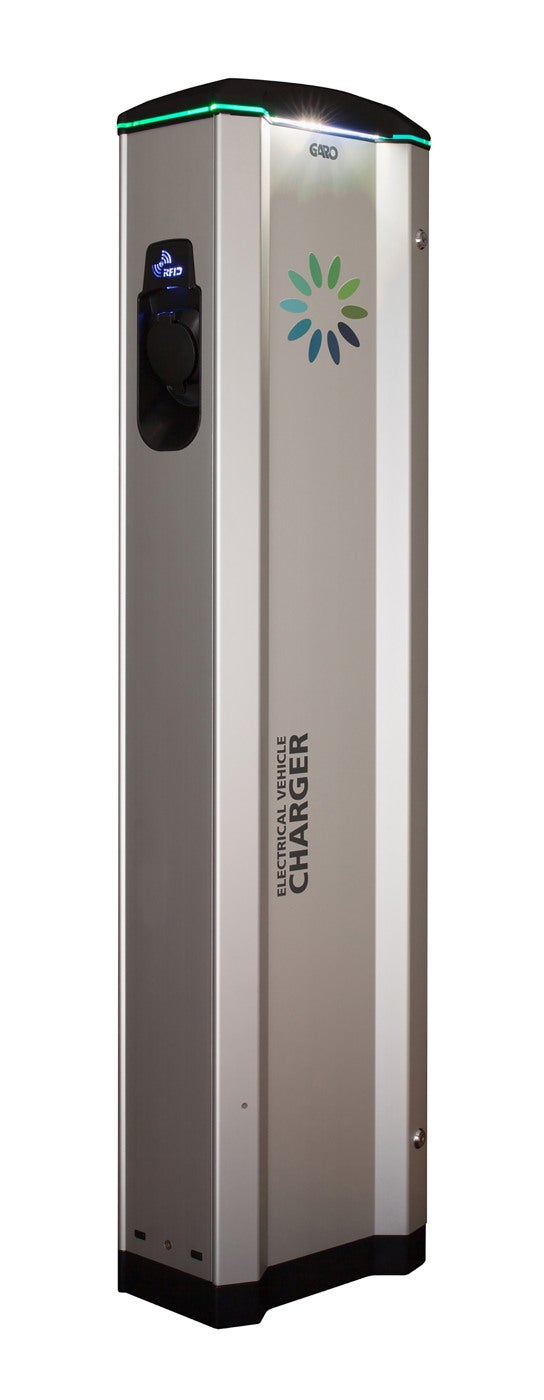

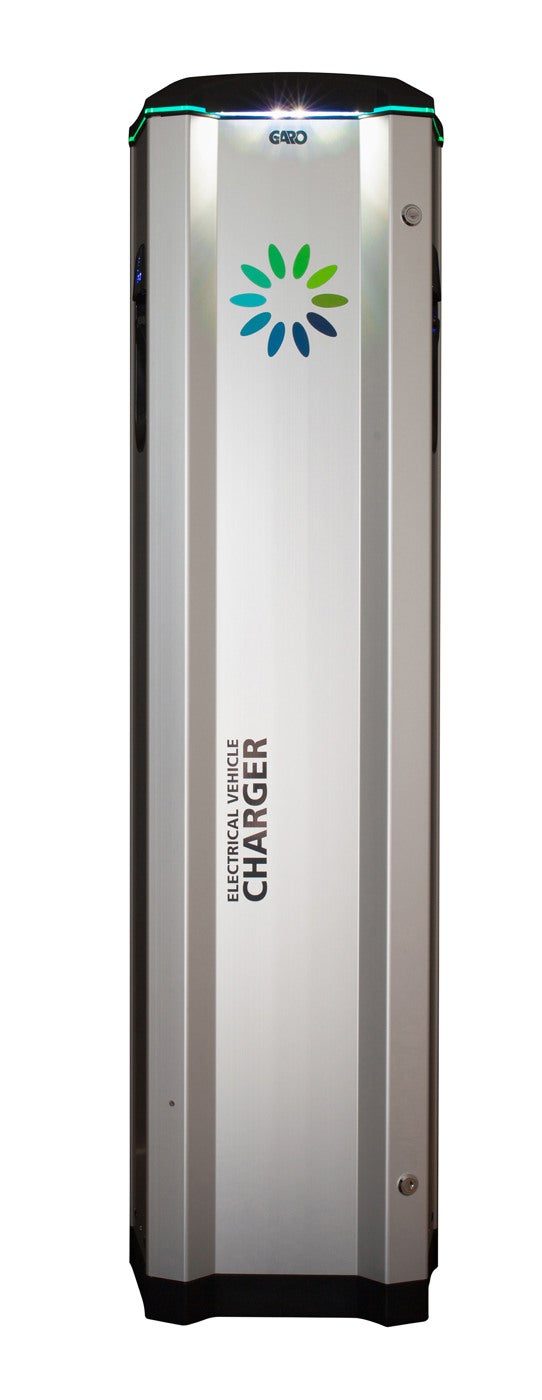

Public charging stations for ground mounting with 2 EV outlet and integrated MCB and RCCB for each outlet. Light list indicator is at the top of the station and on distance you can read the charging status. The connection to the base station with mobile com or wired internet connection. In accordance with the applicable international standard IEC 60364-7-722 charging of electric cars there are requirements for Type B RCDs or type A RCDs in combination with the DC monitoring that breaks at 6mA. Chargestation standard 2EV-outlet 22kW with measuring and mobile communication.
E-number
2449234
Article number
353565
Materials Aluminium
Colour Grey
Rated voltage [V AC] 230/400
Package size [pcs] 1
Standard EN 61851-1 IEC 61439-7 AEVCS
Netweight [kg] 24.50
Width [mm] 375
Height [mm] 1400
Depth [mm] 208
Frequency [Hz] 50
Temperature range [C] -25C...+40C
Mounting method Floor fastening
Degree of protection [IP] 54
Cablearea [mm²] 50mm² AL/CU
Storage temperature [C] -40C...+50C
Meter Yes
RFID Yes
Impact strength IK10
RCCB/RCBO RCCB A DC fault protection
Name CHARGER 2EV 22kW W MEA MC
E-number 2449234
Article number 353565
Type designation LS4-DCM-T222WO-R-MC
Rated current [A] 63
AC/DC output Type2 outlet
AC/DC output Type2 outlet
Phases 3
Communication Mobile Com
Power outlet [kW] 22

More variants of Connectable standard - LS4

E-number Article number Type designation Rated current [A] AC/DC output AC/DC output Phases Communication Power outlet [kW]
EVSE LS4 T2EV 22kW M R MC 2700343 354054 LS4-DCM-T222WO-R-MC 63 Type2 outlet Type2 outlet 3 Mobile Com 22
EVSE LS4 T2EV 22kW M R LAN 2700344 354055 LS4-DCM-T222WO-R-LAN 63 Type2 outlet Type2 outlet 3 LAN 22
EVSE LS4 T2EV 11kW M R MC 2700341 354056 LS4-DCM-T211WO-R-MC 32 Type2 outlet Type2 outlet 3 Mobile Com 11
EVSE LS4 T2EV 11kW M R LAN 2700342 354057 LS4-DCM-T211WO-R-LAN 32 Type2 outlet Type2 outlet 3 LAN 11
EVSE LS4 T2EV 22KW M R LAN R 2700385 354067 LS4-DCM-T222WO-R-LAN-RT 63 Type2 outlet Type2 outlet 3 LAN 22

Accessories for Connectable standard - LS4

Name E-number Article number Type designation Description
EV CABLE T1PC 1P 20A 250V 6M S EV CABLE T1PC 1P 20A 250V 6M S 2449787 107779 EVC-T1-PC-20A250V6M-S Charging cable type1 car - type2 pillar 1-phase 20A 250V 6 meter straight cable.

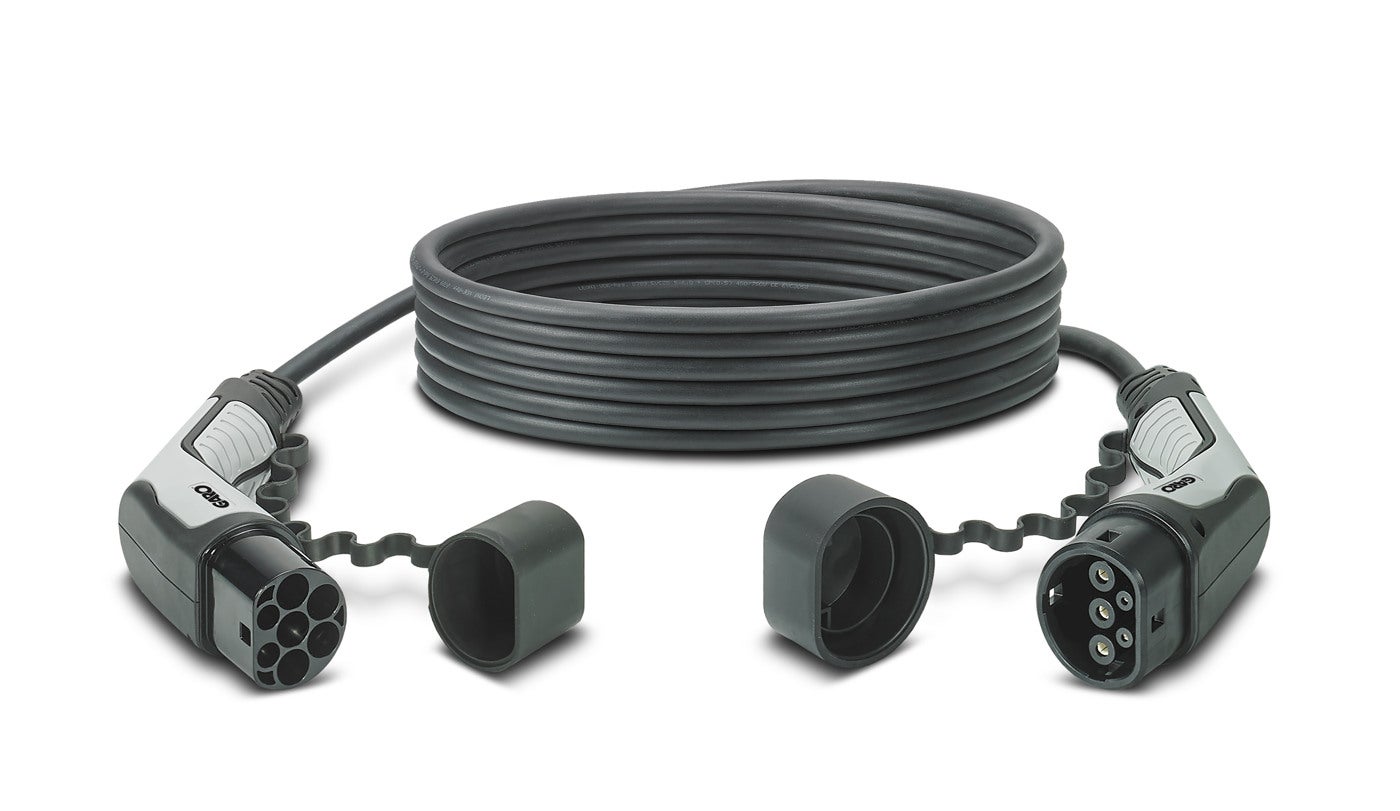

Disc.EV CABLE T2C-T2P 1P 16A 230V S Disc.EV CABLE T2C-T2P 1P 16A 230V S 107790 EVC-T2-PC-20A250V6M-S Charging cable type2 car - type2 pillar 1-phase 16A 230V
EV CABLE T2C-T2P 3P 16A 400V S EV CABLE T2C-T2P 3P 16A 400V S 107791 EVC-T2-PC-20A480V6M-S Charging cable type 2 car - type 2 pillar 3-phase 16A 400V
EV CABLE T1PC 1P 32A 250V 6M S EV CABLE T1PC 1P 32A 250V 6M S 2449790 107792 EVC-T1-PC-32A250V6M-S Charging cable type1 car - type2 pillar 1-phase 32A 230V 6 meter straight cable.
Disc.EV CABLE T2PC 1P 20A 250V 4M H Disc.EV CABLE T2PC 1P 20A 250V 4M H 109310 EVC-T2-PC-20A250V4M-H Charging cable type2 PC 1-phase 20A 250V 4 meter helix cable.
EV CABLE T2PC 3P 20A 480V 4M H EV CABLE T2PC 3P 20A 480V 4M H 2449324 109311 EVC-T2-PC-20A480V4M-H Charging cable type2 PC 3-phase 20A 480V 4 meter helix cable.
Disc.EV CABLE T2PC 1P 32A 250V 4M H Disc.EV CABLE T2PC 1P 32A 250V 4M H 109312 EVC-T2-PC-32A250V4M-H Charging cable type2 PC 1-phase 32A 250V 4 meter helix cable.
EV CABLE T2PC 3P 32A 480V 4M H EV CABLE T2PC 3P 32A 480V 4M H 2449326 109313 EVC-T2-PC-32A480V4M-H Charging cable type2 PC 3-phase 32A 480V 4 meter helix cable.
EV CABLE T2PC 1P 20A 250V 5M S EV CABLE T2PC 1P 20A 250V 5M S 2449327 109314 EVC-T2-PC-20A250V5M-S Charging cable type2 PC 1-phase 20A 250V 5 meter straight cable.
EV CABLE T2PC 3P 20A 480V 5M S EV CABLE T2PC 3P 20A 480V 5M S 2449328 109315 EVC-T2-PC-20A480V5M-S Charging cable type2 PC 3-phase 20A 480V 5 meter straight cable.
EV CABLE T2PC 1P 32A 250V 5M S EV CABLE T2PC 1P 32A 250V 5M S 2449329 109316 EVC-T2-PC-32A250V5M-S Charging cable type2 PC 1-phase 32A 250V 5 meter straight cable.
EV CABLE T2PC 1P 32A 250V 5M S EV CABLE T2PC 1P 32A 250V 5M S 2449330 109317 EVC-T2-PC-32A250V8M-S Charging cable type2 PC 1-phase 32A 250V 8 meter straight cable.
EV CABLE T2PC 3P 32A 480V 5M S EV CABLE T2PC 3P 32A 480V 5M S 2449331 109318 EVC-T2-PC-32A480V5M-S Charging cable type2 PC 3-phase 32A 480V 5 meter straight cable.
EV CABLE T2PC 3P 32A 480V 8M S EV CABLE T2PC 3P 32A 480V 8M S 2449332 109319 EVC-T2-PC-32A480V8M-S Charging cable type2 PC 3-phase 32A 480V 8 meter straight cable.
CABLE T2 PC 20A 250V 4M H CABLE T2 PC 20A 250V 4M H 109320 EVC-T2-C-20A250V4M-H Charging cable type 2 PC 20A 250V 4meter helix cable
CABLE T2 C 20A 480V 4M H CABLE T2 C 20A 480V 4M H 109321 EVC-T2-C-20A480V4M-H Charging cable type 2 C 20A 480V 4meter helix cable
CABLE T2 C 32A 250V 4M H CABLE T2 C 32A 250V 4M H 109322 EVC-T2-C-32A250V4M-H Charging cable type 2 C 32A 250V 4meter helix cable
CABLE T2 C 32A 480V 4M H CABLE T2 C 32A 480V 4M H 109323 EVC-T2-C-32A480V4M-H Charging cable type 2 C 32A 480V 4meter helix cable
CABLE T2 C 20A 250V 5M R CABLE T2 C 20A 250V 5M R 109324 EVC-T2-C-20A250V5M-S Charging cable type 2 C 20A 250V 5meter straight cable
EV CABLE T2C 1P 20A 250V 8M S EV CABLE T2C 1P 20A 250V 8M S 2449338 109325 EVC-T2-C-20A250V8M-S Charging cable type2 C 1-phase 20A 250V 8 meter straight cable.
CABLE T2 C 20A 480V 5M S CABLE T2 C 20A 480V 5M S 109326 Charging cable type 2 C 20A 480V 5meter straight cable
CABLE T2 C 20A 480V 8M S CABLE T2 C 20A 480V 8M S 109327 Charging cable type 2 C 20A 480V 8meter straight cable
CABLE T2 C 32A 250V 5M S CABLE T2 C 32A 250V 5M S 109328 EVC-T2-C-32A250V5M-S Charging cable type 2 C 32A 250V 5meter straight cable
EV CABLE T2C 1P 32A 250V 8M S EV CABLE T2C 1P 32A 250V 8M S 2449342 109329 EVC-T2-C-32A250V8M-S Charging cable type2 C 1-phase 32A 250V 8 meter straight cable.
EV CABLE T2C 3P 32A 480V 5M S EV CABLE T2C 3P 32A 480V 5M S 109330 EVC-T2-C-32A480V5M-S Charging cable type 2 C 32A 480V 5 meter straight cable.

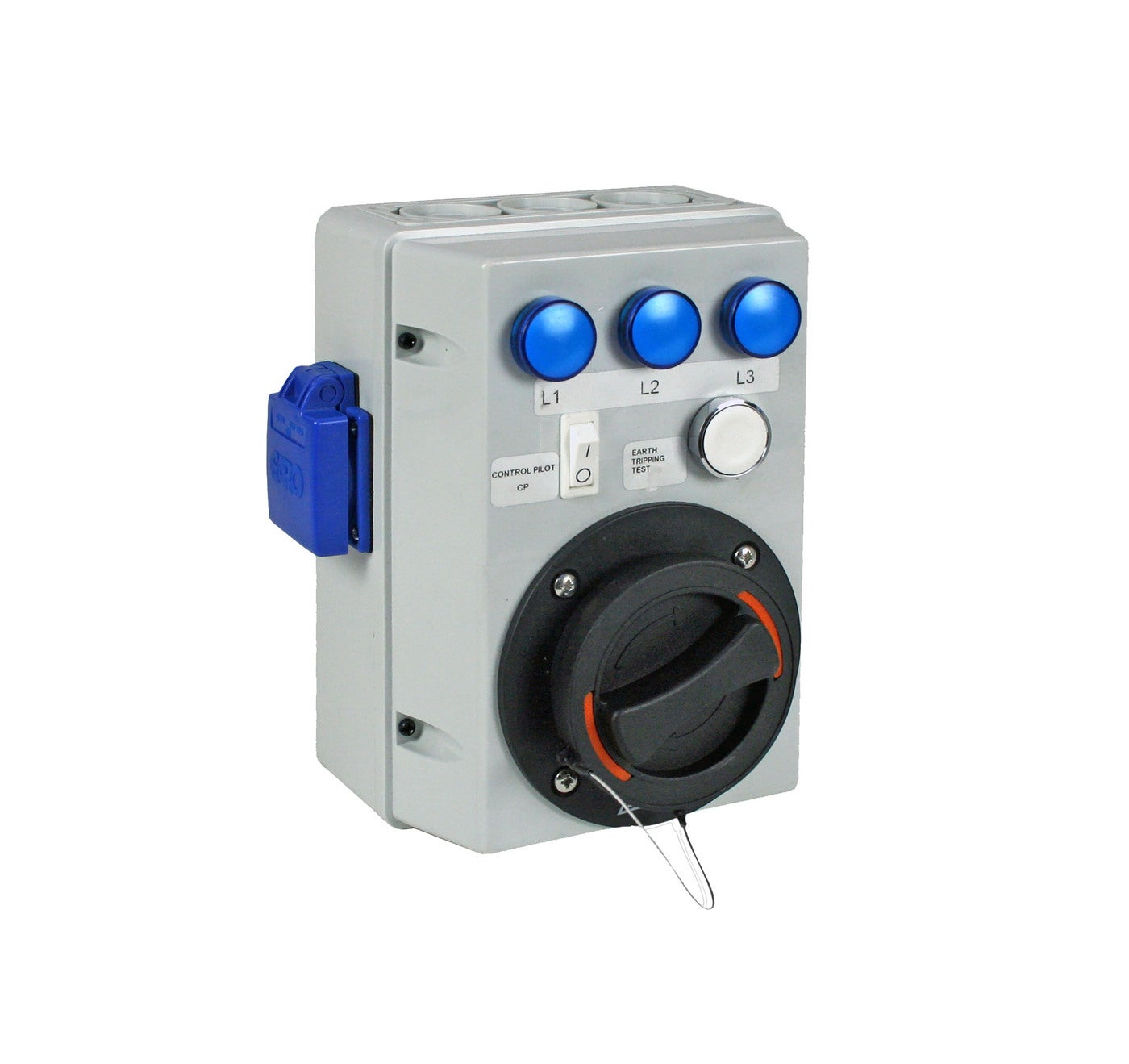

TEST EQUIPMENT TYPE 2 INLET TEST EQUIPMENT TYPE 2 INLET 4201022 352344 TEQ-T2-IL Testequipment with type 2 inlet

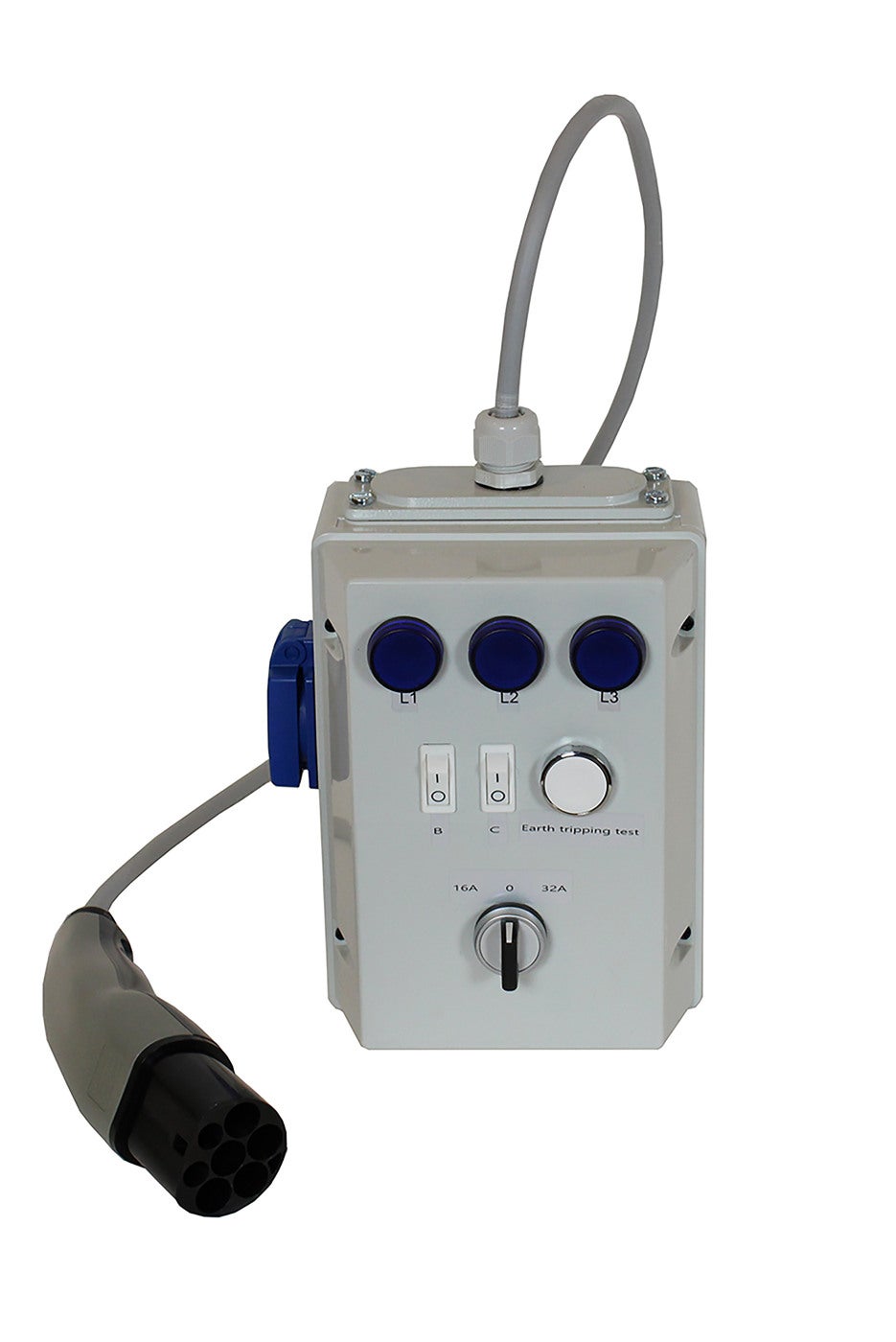

TEST EQUIPMENT TYPE 2 PLUG TEST EQUIPMENT TYPE 2 PLUG 4201023 352345 TEQ-T2-FC Test Equipment with type 2 plug

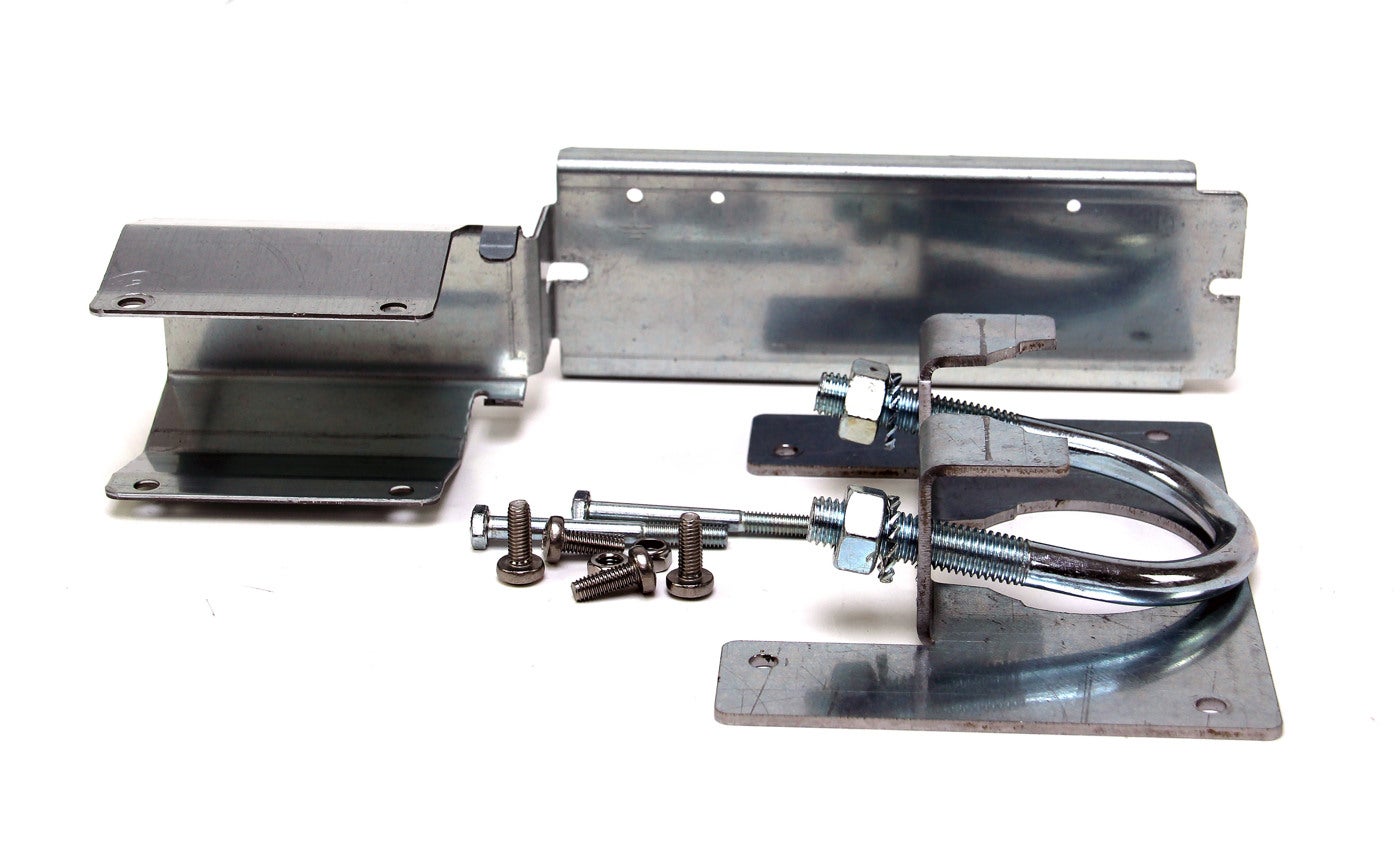

Disc.POLE MOUNT Ø60 LS4 Disc.POLE MOUNT Ø60 LS4 352697 Poleplate for 60-tube
