Connectable standard - LS4

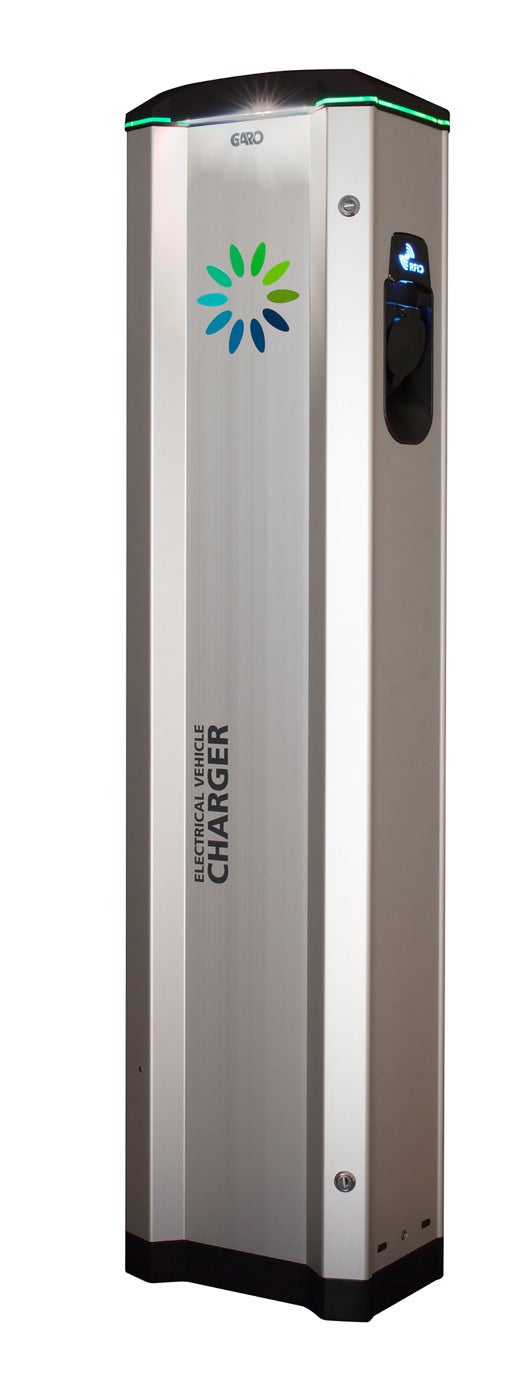

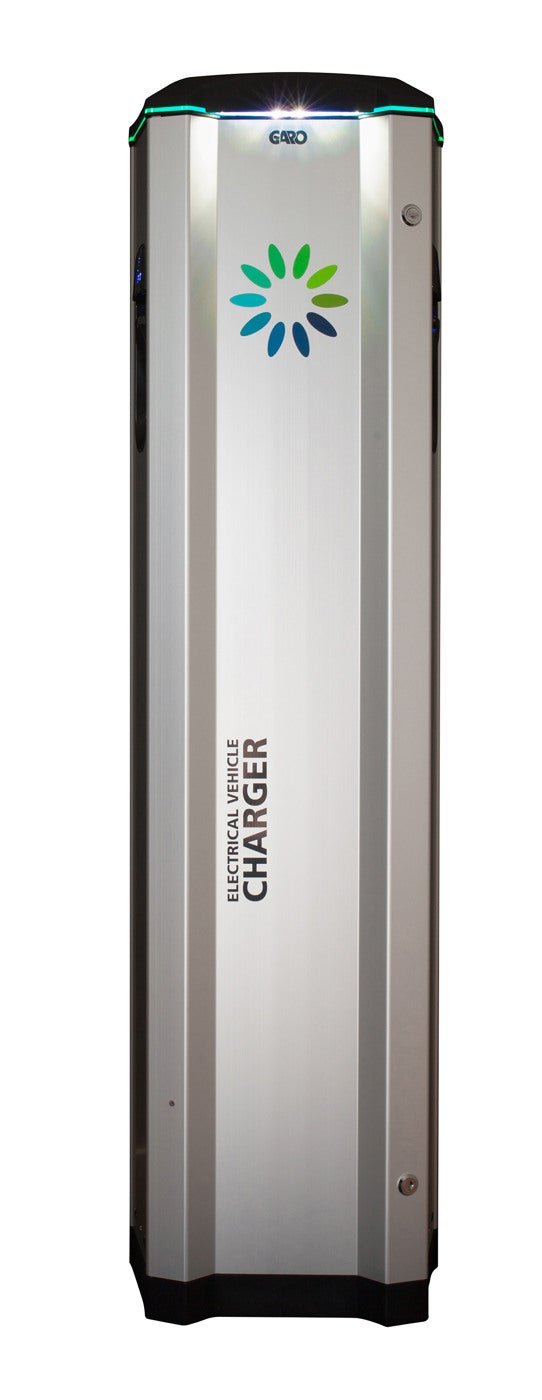

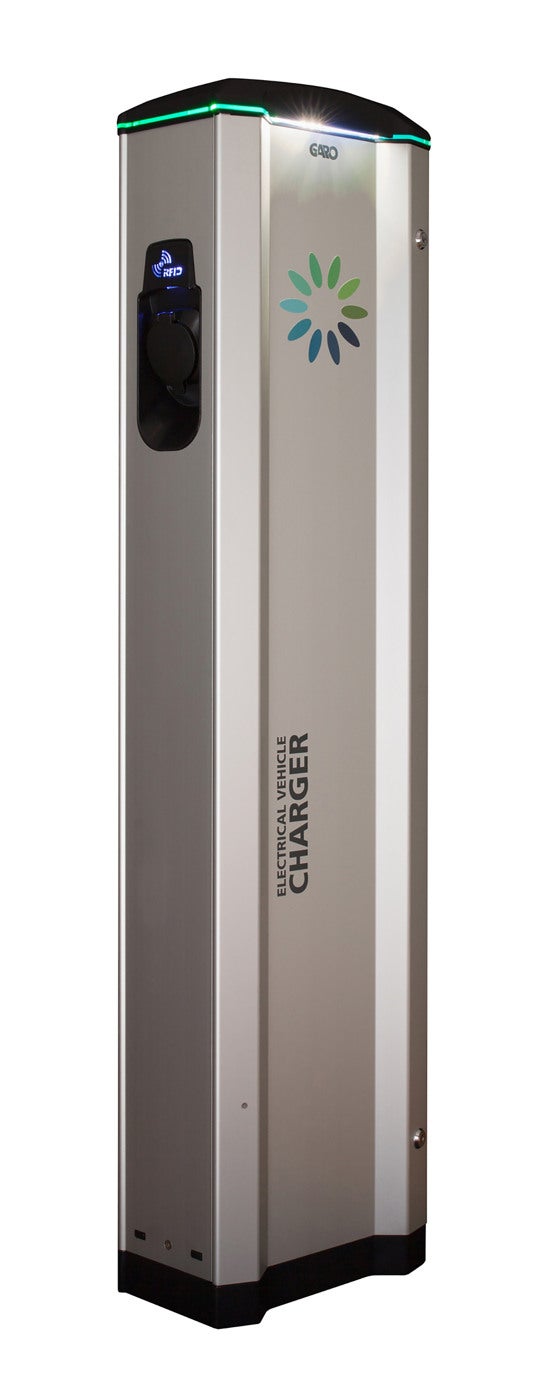

Public charging stations for ground mounting with 2 EV outlet and integrated MCB and RCCB for each outlet. Light list indicator is at the top of the station and on distance you can read the charging status. The connection to the base station with mobile com or wired internet connection. In accordance with the applicable international standard IEC 60364-7-722 charging of electric cars there are requirements for Type B RCDs or type A RCDs in combination with the DC monitoring that breaks at 6mA. Chargestation standard 2EV-outlet 11kW with measuring and mobile communication.
E-number
2449233
Article number
353564
Materials Aluminium
Colour Grey
Rated voltage [V AC] 230/400
AC/DC output 1 Type2 outlet
AC/DC output 2 Type2 outlet
Package size [pcs] 1
Standard EN 61851-1 IEC 61439-7 AEVCS
Netweight [kg] 24.50
Width [mm] 375
Height [mm] 1400
Depth [mm] 208
Frequency [Hz] 50
Temperature range [C] -25...+40
Mounting method Floor fastening
Degree of protection [IP] 44
Cablearea [mm²] 50mm² AL/CU
Storage temperature [C] -40...+50
Meter Yes
RFID Yes
Impact strength IK10
RCCB/RCBO RCCB A DC fault protection
Name CHARGER 2EV 11kW W MEA MC
E-number 2449233
Article number 353564
Rated current [A] 32
Phases 3
Communication Mobile Com
Power outlet [kW] 11

Accessories for Connectable standard - LS4

Name E-number Article number Type designation Description
EV CABLE T1PC 1P 20A 250V 6M S EV CABLE T1PC 1P 20A 250V 6M S 2449787 107779 EVC-T1-PC-20A250V6M-S Charging cable type1 car - type2 pillar 1-phase 20A 250V 6 meter straight cable.
Disc.EV CABLE T2C-T2P 1P 16A 230V S Disc.EV CABLE T2C-T2P 1P 16A 230V S 107790 EVC-T2-PC-20A250V6M-S Charging cable type2 car - type2 pillar 1-phase 16A 230V
EV CABLE T2C-T2P 3P 16A 400V S EV CABLE T2C-T2P 3P 16A 400V S 107791 EVC-T2-PC-20A480V6M-S Charging cable type 2 car - type 2 pillar 3-phase 16A 400V
EV CABLE T1PC 1P 32A 250V 6M S EV CABLE T1PC 1P 32A 250V 6M S 2449790 107792 EVC-T1-PC-32A250V6M-S Charging cable type1 car - type2 pillar 1-phase 32A 230V 6 meter straight cable.
Disc.EV CABLE T2PC 1P 20A 250V 4M H Disc.EV CABLE T2PC 1P 20A 250V 4M H 109310 EVC-T2-PC-20A250V4M-H Charging cable type2 PC 1-phase 20A 250V 4 meter helix cable.
EV CABLE T2PC 3P 20A 480V 4M H EV CABLE T2PC 3P 20A 480V 4M H 2449324 109311 EVC-T2-PC-20A480V4M-H Charging cable type2 PC 3-phase 20A 480V 4 meter helix cable.
Disc.EV CABLE T2PC 1P 32A 250V 4M H Disc.EV CABLE T2PC 1P 32A 250V 4M H 109312 EVC-T2-PC-32A250V4M-H Charging cable type2 PC 1-phase 32A 250V 4 meter helix cable.
EV CABLE T2PC 3P 32A 480V 4M H EV CABLE T2PC 3P 32A 480V 4M H 2449326 109313 EVC-T2-PC-32A480V4M-H Charging cable type2 PC 3-phase 32A 480V 4 meter helix cable.
EV CABLE T2PC 1P 20A 250V 5M S EV CABLE T2PC 1P 20A 250V 5M S 2449327 109314 EVC-T2-PC-20A250V5M-S Charging cable type2 PC 1-phase 20A 250V 5 meter straight cable.
EV CABLE T2PC 3P 20A 480V 5M S EV CABLE T2PC 3P 20A 480V 5M S 2449328 109315 EVC-T2-PC-20A480V5M-S Charging cable type2 PC 3-phase 20A 480V 5 meter straight cable.
EV CABLE T2PC 1P 32A 250V 5M S EV CABLE T2PC 1P 32A 250V 5M S 2449329 109316 EVC-T2-PC-32A250V5M-S Charging cable type2 PC 1-phase 32A 250V 5 meter straight cable.
EV CABLE T2PC 1P 32A 250V 5M S EV CABLE T2PC 1P 32A 250V 5M S 2449330 109317 EVC-T2-PC-32A250V8M-S Charging cable type2 PC 1-phase 32A 250V 8 meter straight cable.
EV CABLE T2PC 3P 32A 480V 5M S EV CABLE T2PC 3P 32A 480V 5M S 2449331 109318 EVC-T2-PC-32A480V5M-S Charging cable type2 PC 3-phase 32A 480V 5 meter straight cable.
EV CABLE T2PC 3P 32A 480V 8M S EV CABLE T2PC 3P 32A 480V 8M S 2449332 109319 EVC-T2-PC-32A480V8M-S Charging cable type2 PC 3-phase 32A 480V 8 meter straight cable.
CABLE T2 PC 20A 250V 4M H CABLE T2 PC 20A 250V 4M H 109320 EVC-T2-C-20A250V4M-H Charging cable type 2 PC 20A 250V 4meter helix cable
CABLE T2 C 20A 480V 4M H CABLE T2 C 20A 480V 4M H 109321 EVC-T2-C-20A480V4M-H Charging cable type 2 C 20A 480V 4meter helix cable
CABLE T2 C 32A 250V 4M H CABLE T2 C 32A 250V 4M H 109322 EVC-T2-C-32A250V4M-H Charging cable type 2 C 32A 250V 4meter helix cable
CABLE T2 C 32A 480V 4M H CABLE T2 C 32A 480V 4M H 109323 EVC-T2-C-32A480V4M-H Charging cable type 2 C 32A 480V 4meter helix cable
CABLE T2 C 20A 250V 5M R CABLE T2 C 20A 250V 5M R 109324 EVC-T2-C-20A250V5M-S Charging cable type 2 C 20A 250V 5meter straight cable
EV CABLE T2C 1P 20A 250V 8M S EV CABLE T2C 1P 20A 250V 8M S 2449338 109325 EVC-T2-C-20A250V8M-S Charging cable type2 C 1-phase 20A 250V 8 meter straight cable.
CABLE T2 C 20A 480V 5M S CABLE T2 C 20A 480V 5M S 109326 Charging cable type 2 C 20A 480V 5meter straight cable
CABLE T2 C 20A 480V 8M S CABLE T2 C 20A 480V 8M S 109327 Charging cable type 2 C 20A 480V 8meter straight cable
CABLE T2 C 32A 250V 5M S CABLE T2 C 32A 250V 5M S 109328 EVC-T2-C-32A250V5M-S Charging cable type 2 C 32A 250V 5meter straight cable
EV CABLE T2C 1P 32A 250V 8M S EV CABLE T2C 1P 32A 250V 8M S 2449342 109329 EVC-T2-C-32A250V8M-S Charging cable type2 C 1-phase 32A 250V 8 meter straight cable.
EV CABLE T2C 3P 32A 480V 5M S EV CABLE T2C 3P 32A 480V 5M S 109330 EVC-T2-C-32A480V5M-S Charging cable type 2 C 32A 480V 5 meter straight cable.
TEST EQUIPMENT TYPE 2 INLET TEST EQUIPMENT TYPE 2 INLET 4201022 352344 TEQ-T2-IL Testequipment with type 2 inlet
TEST EQUIPMENT TYPE 2 PLUG TEST EQUIPMENT TYPE 2 PLUG 4201023 352345 TEQ-T2-FC Test Equipment with type 2 plug
POLE MOUNT Ø60 LS4 POLE MOUNT Ø60 LS4 2449894 352697 LS4-PM Poleplate for 60-tube
CABLE STRAIN RELIEF LS4 CABLE STRAIN RELIEF LS4 2449895 352698 LS4-CSR Cable strain relief for LS4
GROUND ANCHOR LS4 GROUND ANCHOR LS4 2449896 352699 LS4-GA Ground anchor LS4
WALL MOUNT LS4 STANDARD WALL MOUNT LS4 STANDARD 2449897 352800 LS4-WMS Wall mount LS4 standard
TERMINAL BLOCK 95mm²LS4 TERMINAL BLOCK 95mm²LS4 2449898 352803 LS4-TB95 Terminal block 95mm² LS4
