Wallbox Cable Entity Home

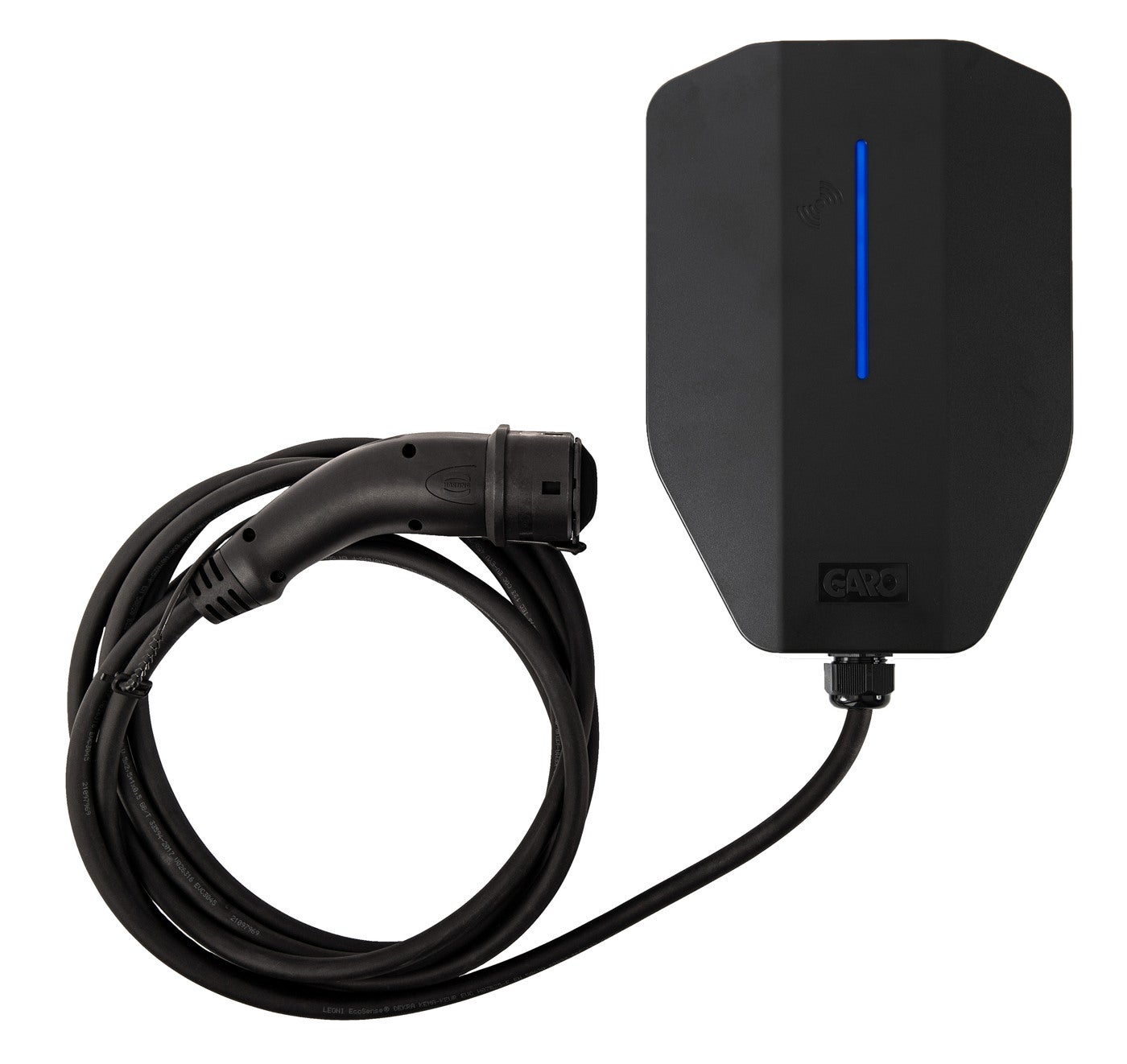

Entity Home Wallbox. 5-year warranty in SE. A future-proof charging station that contains all necessary components: Installation console, charging unit and front panel. Entity Home has a fixed 5m type 2 cable. RFID reader. Integrated electronic meter Integrated residual current device (RCD) with an all-pole mechanical circuit breaker for AC and DC leakage detection that meets all requirements according to IEC62955. The units of the Entity family can communicate with each other via Ethernet or Wifi-Mesh. Con GARO Entity Home Charging station 3PH 20A Fixed cable 5meter
E-number
E2700955
E2700955
Article number
354575
354575
| Type designation | ECCSC50320FIMI |
|---|---|
| Standard | EN61851-1, IEC62955, IEC61439-7, EN61008-1, EN60898-1, ISO15118 |
| Short-circuit current [kA] | 10kA |
| Storage temperature [C] | -40C...+40C |
| Operation Temperature [C] | -40C...+40C |
| Frequency [Hz] | 50Hz |
| Housing material | Plastic |
| Color | Black |
| Rated current [A] | 20A |
| Rated voltage [V AC] | 230/400V AC |
| Mounting method | Wall mounting |
| Modelltype | Entity Compact |
| Energymeter | Built-in meter |
| Phases [PH] | 3PH |
| Length of cable [m] | 5m |
| Lock | Yes |
| AC/DC output 1 | Type 2 Cable Straight |
| Power per charging point [kW] | 13,9kW |
| Local load balance | Yes |
| RAL-number | RAL9011 |
| Residual Current Limit AC [A] | IΔdc=0,006A |
| Residual Current Limit DC [A] | IΔN 30mA |
| Max current connected unit [A] | Connected unit max 32A |
| Maximal pre fuse [A, kA] | Max.prefuse in 80A, 10kA |
| Degree of protection [IP] | IP54 |
| Impact strength [IK] | IK10 |
| NetProductWeight | 4.1 |
| EngineerWidth | 190 |
| EngineerHeight | 268 |
| EngineerDepth | 102 |
| Name | Disc.WALLBOX ENTITY HOME 14 5M-S |
|---|---|
| E-number | E2700955 |
| Article number | 354575 |
