Chargingunit Cable Entity Home

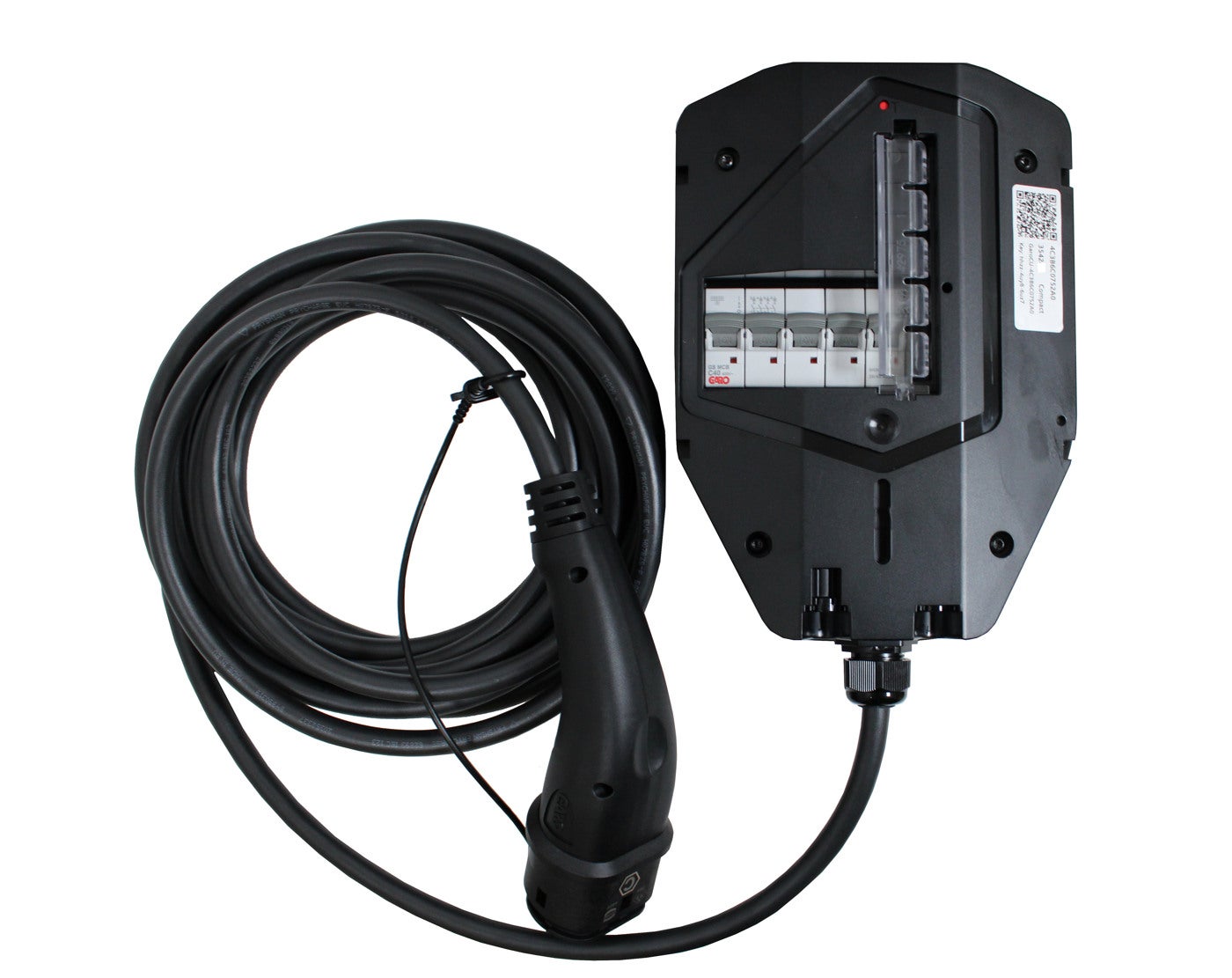

The charging unit is the component in the Entity family that determines the properties of the charger.The Entity Compact charging unit comes with a fixed 5m type 2 cable. RFID reader. Integrated electronic meter Integrated residual current device (RCD) with an all-pole mechanical circuit breaker for AC and DC leakage detection that meets all requirements according to IEC62955. The units of the Entity family can communicate with each other via Ethernet or Wifi-Mesh. Connects to the internet via Ethernet or W Chargingunit Entity Home 3phase 20A fixed cable 5meter
E-number
E2700956
E2700956
Article number
354576
354576
| Type designation | ENTC CU HOME 14 5M |
|---|---|
| Standard | EN61851-1, IEC62955, IEC61439-7, EN61008-1, EN60898-1, ISO15118 |
| Short-circuit current [kA] | 10kA |
| Storage temperature [C] | -40C...+40C |
| Operation Temperature [C] | -40C...+40C |
| Frequency [Hz] | 50Hz |
| Housing material | Plastic |
| Color | Black |
| Rated current [A] | 20A |
| Rated voltage [V AC] | 230/400V AC |
| Mounting method | Wall mounting |
| Modelltype | Entity Home |
| Phases [PH] | 3PH |
| Length of cable [m] | 5m |
| Lock | Yes |
| AC/DC output 1 | Type 2 Cable Straight |
| Power per charging point [kW] | 13,9kW |
| RAL-number | RAL9011 |
| Charging current [A] | 0-20 |
| Degree of protection [IP] | IP54 |
| Impact strength [IK] | IK10 |
| NetProductWeight | 3.7 |
| EngineerWidth | 190 |
| EngineerHeight | 268 |
| EngineerDepth | 102 |
| Name | Disc.CHARG UNIT ENTITY HOME 14 5M-S |
|---|---|
| E-number | E2700956 |
| Article number | 354576 |
