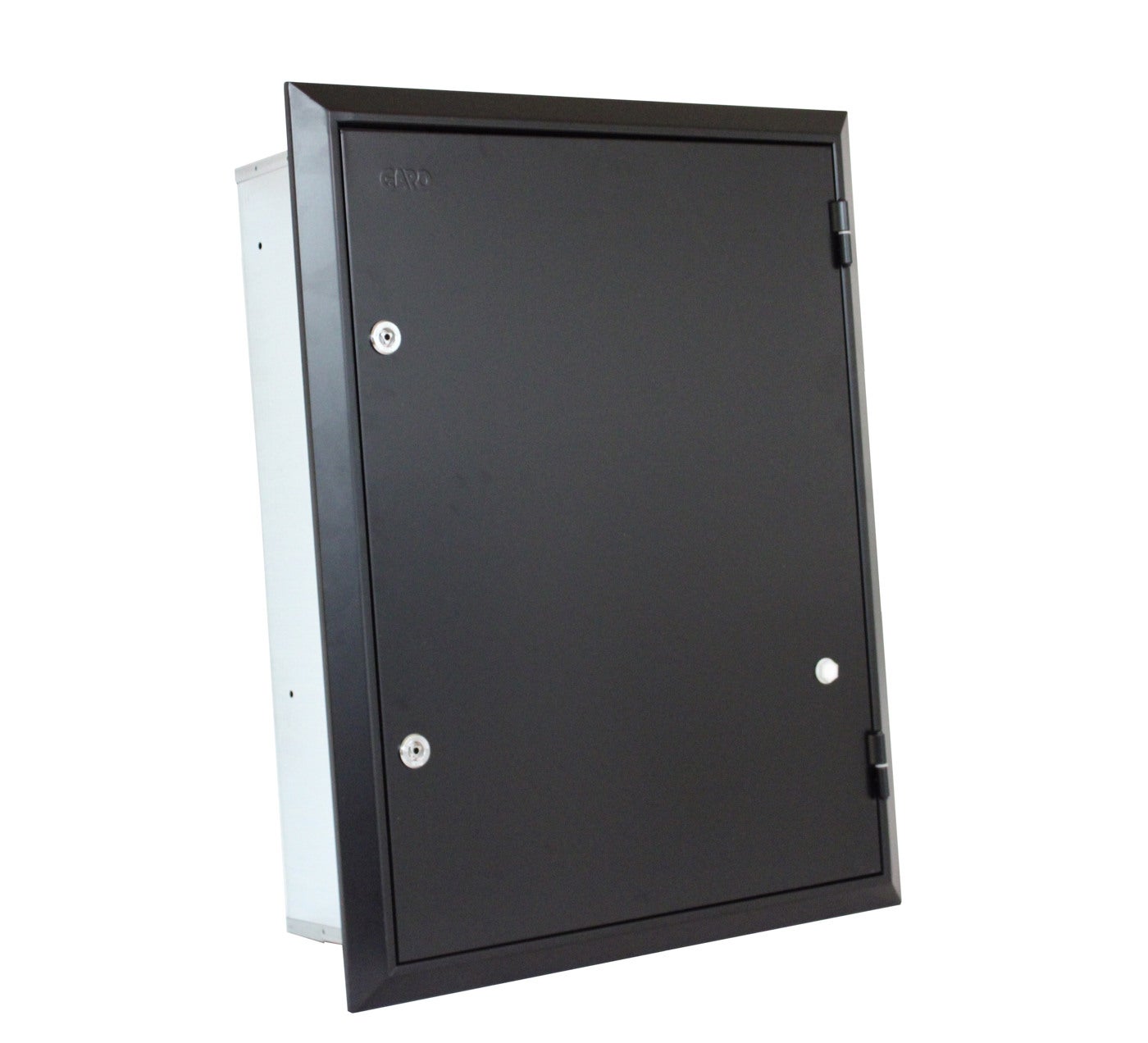

  • METER CABINET REC 25A BLACK - 2

Meter cabinets W632 1-place

E-number
E2270007
Article number
353920
Support
Standard SS 430 01 01
Short-circuit current [kA] 25kA
Housing material Hot dip galvanized sheet metal
Rated voltage [V AC] 230/400V AC
Mounting method Flush mounted
Modelltype GIM
Module space measured 18
Lock Yes
Mountingplate Yes
Recessed depth [mm] 205mm
Recessed height [mm] 710mm
Recessed width [mm] 542mm
Incoming terminal [mm²] 50mm² Al/Cu
Module space unmeasured 4
Outgoing [mm²] 16mm² Cu
Space for meters [pcs] 1
Degree of protection [IP] IP23
Name METER CABINET REC 25A BLACK
E-number E2270007
Article number 353920
Color Black
Rated current [A] 25A
RAL-number RAL9005
NetProductWeight 21
EngineerWidth 632
EngineerHeight 795
EngineerDepth 205

More variants of Meter cabinets W632 1-place

E-number Article number Type designation Color Rated current [A] RAL-number NetProductWeight EngineerWidth EngineerHeight EngineerDepth
METERCABINET FLUSH 25A 1PL E2270000 2270000 GIM 1-25 Grey 25A RAL7035 20 632 792 205
METERCABINET FLUSH 25A 1PL RED E2270001 2270001 GIM 1-25 Faluröd Red 25A RAL3009 21 660 792 240
METERCABINET FLUSH 63A 1PL E2270003 2270003 GIM 1-63 Grey 63A RAL7035 21 632 792 205
METERCABINET FLUSH 25A 1PL WH E2270090 2270090 GIM 1-25 VIT White 25A RAL9010 21 660 830 240
METER CABINET REC 25A BLACK E2270007 353920 Black 25A RAL9005 21 632 795 205

Accessories for Meter cabinets W632 1-place

Name E-number Article number Type designation Description
TERMINAL NEUTRAL 7P TERMINAL NEUTRAL 7P E2178171 108471 NP7 Neutral plint 7 blue for DIN mounting
TERMINAL EARTH PE7 G TERMINAL EARTH PE7 G E2178172 108472 JP7 Terminal earth 7-poles green for DIN-rail
LOCK INCL SPRING LOCK INCL SPRING 1646610 1646610 RT65 Lock including retainingspring
KEY FOR RT65 LOCK KEY FOR RT65 LOCK E1646612 1646612 RN KEY FOR RT65 LOCK
KEY TRIANGLE TK10 KEY TRIANGLE TK10 E1646614 1646614 PG 51 KEY TRIANGLE TK10
MAIN SWITCH 3P 40A MAIN SWITCH 3P 40A E2142854 2142854 HB 340 Main switch modular 40A 3-pole
MAIN SWITCH 4P 80A MAIN SWITCH 4P 80A E2142857 2142857 HB 480 Main switch modular 80A 4-pole
SWITCH CHANGEOVER 80A 4P VMI SWITCH CHANGEOVER 80A 4P VMI E2142877 2142877 OMK 4P 80A Changeover I-O-II 4poles 80A
FUSE BASE 1P DII FUSE BASE 1P DII E2260420 2260420 DII Fuse base DII 1 poles 25A 50mm
FUSE BASE 1P DIII FUSE BASE 1P DIII E2260422 2260422 DIII Fuse base DIII 1 poles 63A 52,5mm
TERMINALS N+PE 3X16+6 TERMINALS N+PE 3X16+6 E2270618 2270618 Terminals N+PE 3X16+6
POTENT TERM MET CAB POTENT TERM MET CAB E2270620 2270620 Potential terminal fits metal cabinet
TERMINAL BLOCK 5x95 TERMINAL BLOCK 5x95 E2270622 2270622 KACL 595
TBS AL/CU CONNECTION SET TBS AL/CU CONNECTION SET E2270628 2270628 Connectionset TBS Al/Cu
SURGE PROTEC PACKAGE SURGE PROTEC PACKAGE E2270637 2270637 PTT1 Overvoltage protection in finished package solution specially designed for urban areas, wiring and installation components are also included in the kit.
SURGE PROTECTION KIT URBAN AREAS MET CAB SURGE PROTECTION KIT URBAN AREAS MET CAB E2270638 2270638 Overvoltage protection in finished package solution specially designed for urban areas, wiring and installation components are also included in the kit.
CONSTRUCTION KIT FOR METERCABINETS CONSTRUCTION KIT FOR METERCABINETS E2270641 2270641 Build Kits, products adapted for the power supply of equipment during the construction time of a facility, where there is access to meter cabinets.
SEALABLE HOOD PH ll-lll SEALABLE HOOD PH ll-lll E2270644 2270644 Sealable hood PHII-III
SURGE PROTEC PACKAGE SURGE PROTEC PACKAGE 2270647 2270647 PEK1 Overvoltage protection in finished package solution specially designed for urban areas, wiring and installation components are also included in the kit.
CONVERSION KIT 25-63A CONVERSION KIT 25-63A E2270649 2270649 Conversion kit 25-63A
TELE MEDIA BOX FOR METERCABINETS TELE MEDIA BOX FOR METERCABINETS E2270685 2270685 Tele media box
LOCK TELEBOX LLT 1 LOCK TELEBOX LLT 1 E2270688 2270688 Lock for Telebox.
TELEBOX TELEBOX E2270691 2270691 TELE-D Telebox
WEATHER PROTECTION KIT GIM 1 WEATHER PROTECTION KIT GIM 1 E2270097 351604 Seal kit for GIM-1.
PADLOCK KIT FOR METERCABINET PADLOCK KIT FOR METERCABINET E2200473 352150 Lock set for padlock that fits meter cabinets (padlocks not included).
