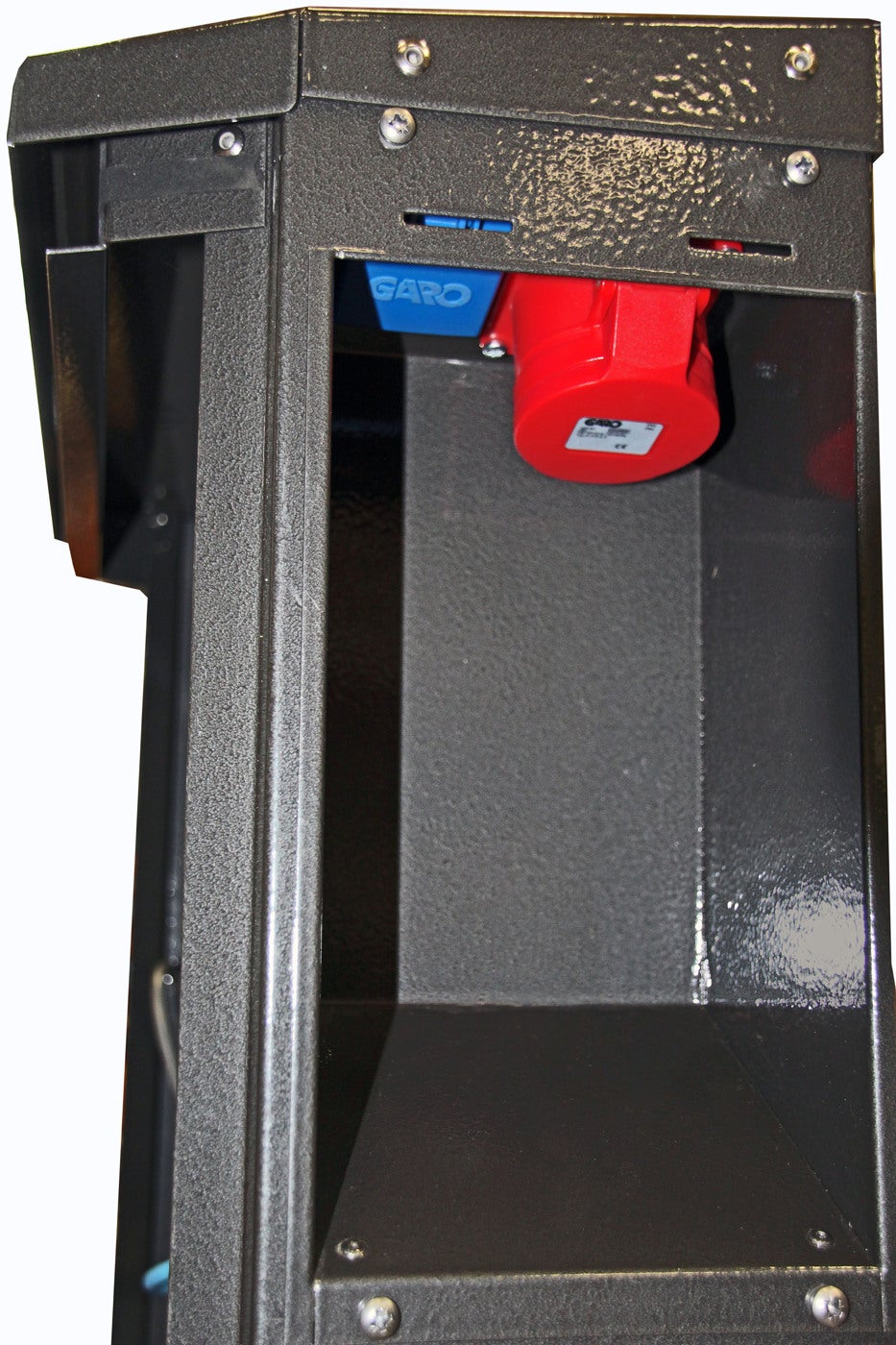

Meter cabinets with temporary power W457
Meter cabinets with temporary power and space for 7 DIN-Rail component modules.The cabinets include cable strain relief and cable glands of rubber membrane to avoid soil moisture Ground metal cabinet type C temporary electricity 63A
| Materials | Magnelis |
|---|---|
| Standard | SS 430 01 01 |
| Short-circuit current [kA] | 25kA |
| Frequency [Hz] | 50Hz |
| Color | Anthracite |
| Rated voltage [V AC] | 230/400V AC |
| Module space measured | 7 |
| Lock | Yes |
| Number of MCB 1P (1) | 1pcs C110 |
| Number of Schuko[pcs] | 1pcs |
| Incoming terminal [mm²] | 50mm² Al/Cu |
| Module space unmeasured | 8 |
| Outgoing terminal [mm²] | Al 16/Cu 35 |
| Degree of protection [IP] | IP44 |
| Name | METERCABINET GROUND C1-63 TE |
|---|---|
| E-number | E2200412 |
| Article number | 352414 |
| Type designation | MMLK-C 1-63 TE32 |
| Rated current [A] | 63A |
| Number of MCB 3P (1) | 1pcs C332 |
| Number of RCCB [pcs] 1 | 1pcs 4P 63A |
| CEE socket outlet 32A | 1pcs 5P 32A 230/400V |
