Terminal profiles for Ø60mm tube post double

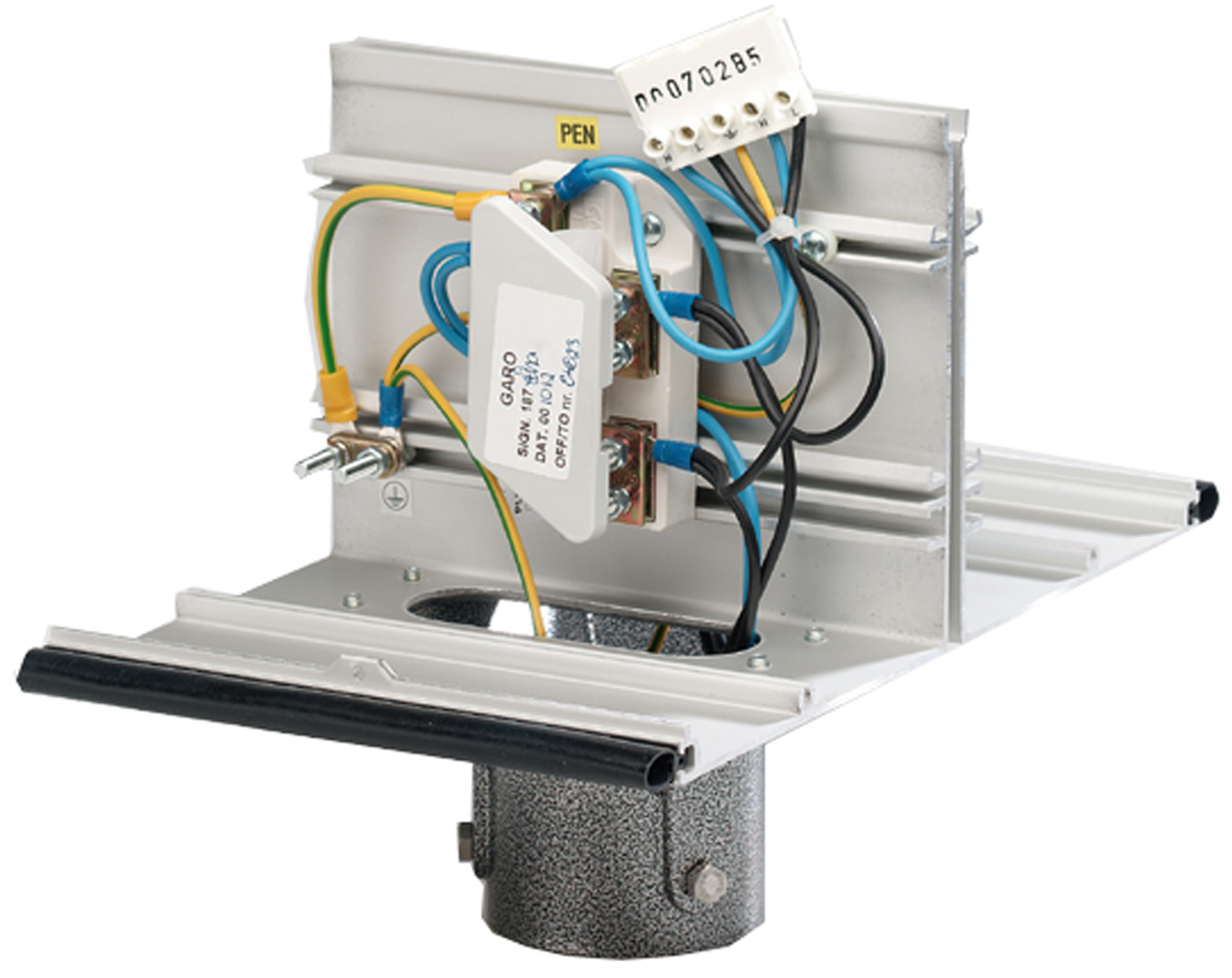

Terminal block section for Ø60 mm tubular posts where two enclosures are to be mounted on the section. In the terminal block, all the cables needed to connect the insert to electricity. The terminal block is mounted on the post, the enclosure is mounted on the terminal block and finally the insert is assembled with a quick connection. Equipped with an installation friendly terminal 25mm2 prepared for outgoing electrical feed 16mm2 Al/Cu. The terminal block does not fit for older versions of P100 enclosure. Terminal profile for tube post double, fits P100 system.
Article number
2449416
Support
Type designation PFD
Materials Aluminium
Location On post
Standard EN 61439-3
Package size [pcs] 1
Netweight [kg] 1.80
Name Disc.TERM PROF-P TUBE POST DOUBLE
Article number 2449416
Wire flexible [mm²] 2x35
Colour Grå/Grey
Width [mm] 185
Height [mm] 219
Depth [mm] 280

Accessories for Terminal profiles for Ø60mm tube post double

Name E-number Article number Type designation Description
TERM BLOCK CON 5P AL/CU MVC-N TERM BLOCK CON 5P AL/CU MVC-N 2670477 353155 P5-N Terminal block connector 5-poles Al/Cu PN-MVC
