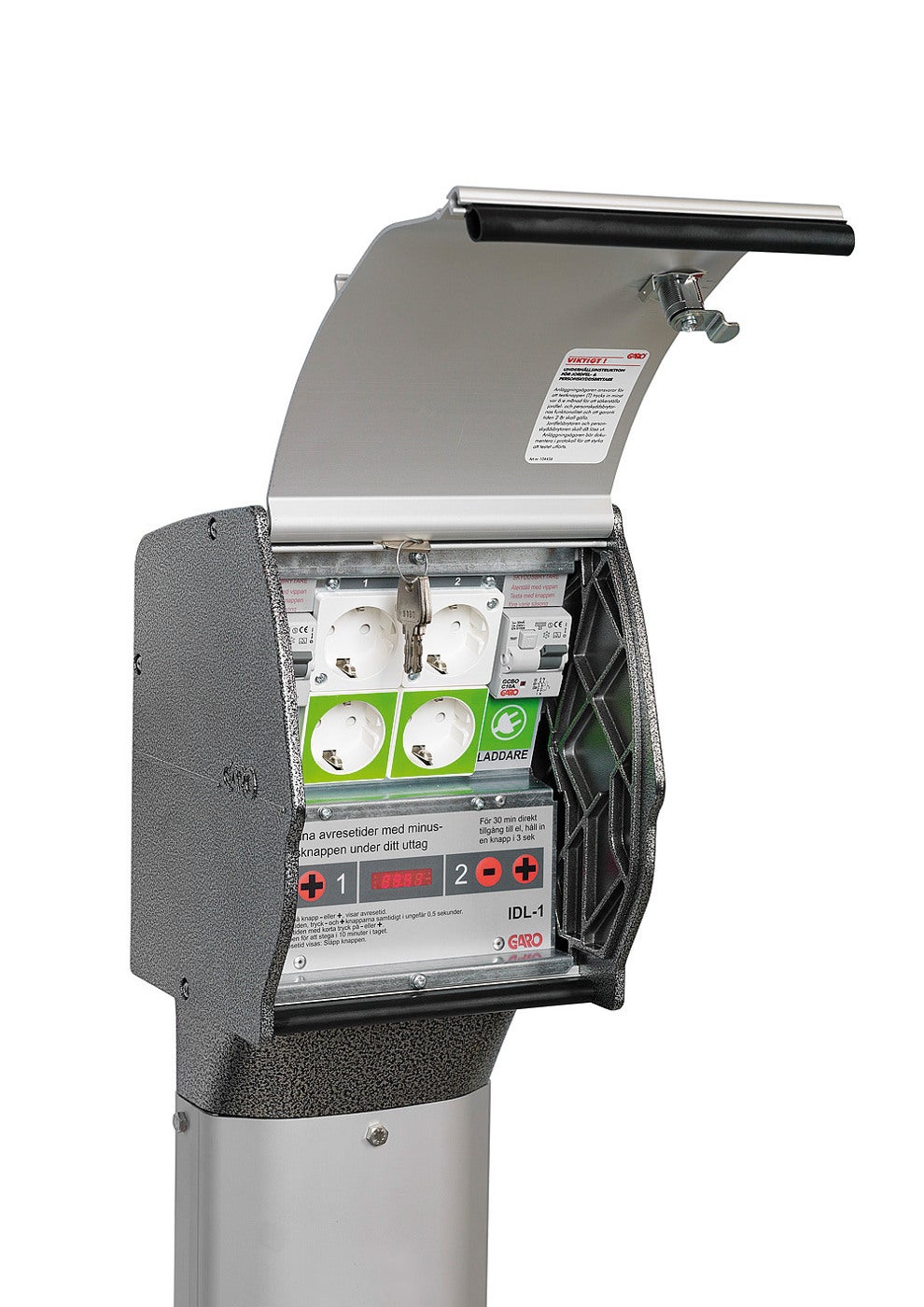

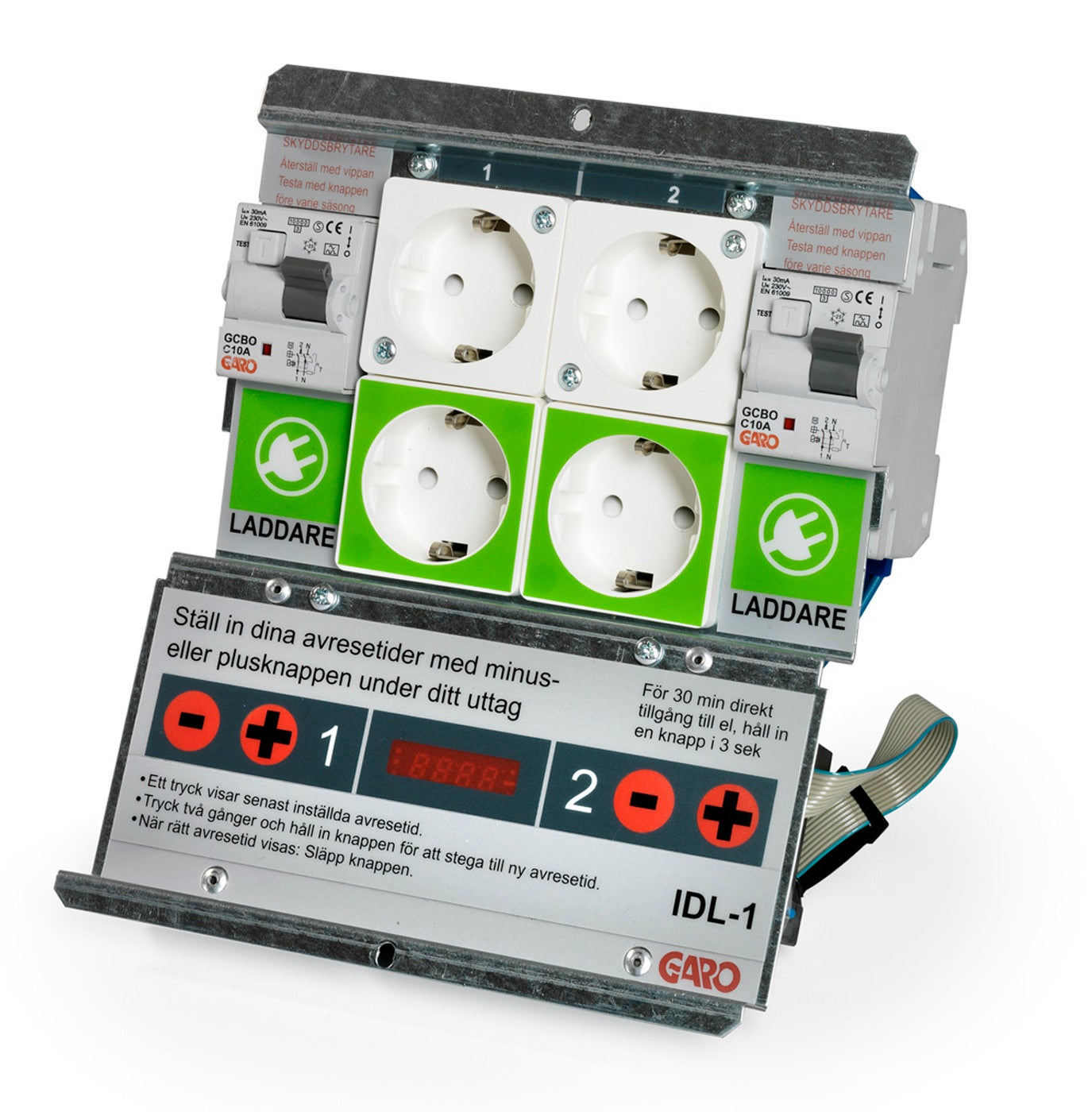

Inserts for electric cars without meaursuring.

Inserts for electric cars with 4 schuko without meaursuring. Insert car without measuring 16A fits P100 system,chargehybrid,with RCBO.
Article number
2449432
Support
Materials Aluzinc
Degree of protection [IP] 44
Colour Grå/Grey
Standard EN 61439-3
Package size [pcs] 1
Netweight [kg] 1.50
Width [mm] 175
Height [mm] 220
Depth [mm] 120
Rated current [A] 16
Rated voltage [V AC] 230
Short-circuit current [kA] 10
Response time [min] Max 180
Meter 0
Schuko [pcs] 2
Frequency [Hz] 50
Name Disc.INS CAR-P2 CH HYB 16A WO MEAS
Article number 2449432
RCBO 2pcs 16A/2P
