Disc.INS CAR-P1 TIME&TEMP 6A WO MEAS

Inserts time & temperature controll without measuring

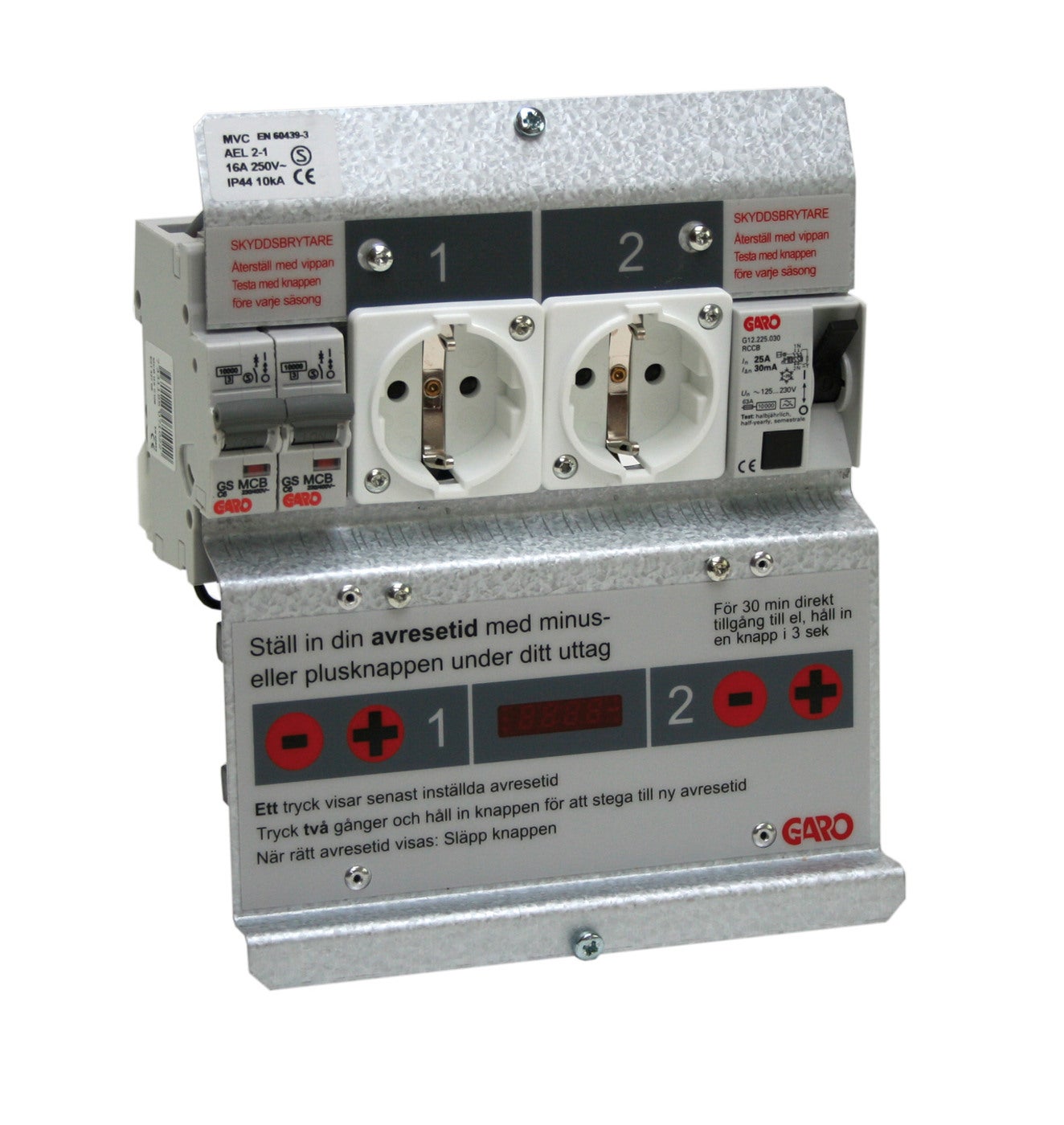

GAROs insert AELN with repeating time-and temperature controlled socket. The inserts are equipped with 2 Schuko sockets and 2 RCBOs and with illuminated overlay, outlets and setting buttons. The time-and temperature-controlled socket is controlled by the set departure time and the current outdoor temperature and a maintenance-free capacitor backup, which means that they can withstand power failures of up to 48 hours without losing their setting. The components are mounted on a DIN rail, making replacement very easy. All AELN inserts have a maximum on time for 3 hours for the time and temperature controlled outlets and automatic summer / wintertime. The insert is compatible and can be used with old series of P100 enclosure. Insert car without measuring 6A fits P100 system, time & temperatur controlled,with RCCB.
Article number
2449437
Support
Name Disc.INS CAR-P1 TIME&TEMP 6A WO MEAS
Article number 2449437
Type designation AEL 206-1

Accessories for Inserts time & temperature controll without measuring

Name E-number Article number Type designation Description
RCCB 25A 30mA 10kA 2P RCCB 25A 30mA 10kA 2P E2163321 110092 RCCB 2P 25A 10kA 30mA GS RCCB type GS 25A 2-pole 30mA
MCB C 1P 4A 10kA GS MCB C 1P 4A 10kA GS E2142704 2142704 MCB GS C104 MCB GS C-Characteristic 4A 10kA 1-pole
MCB C 1P 6A 10kA GS MCB C 1P 6A 10kA GS E2142705 2142705 MCB GS C106 MCB GS C-Characteristic 6A 10kA 1-pole
MCB C 1P 10A 10kA GS MCB C 1P 10A 10kA GS E2142706 2142706 MCB GS C110 Miniature cirucit breaker C-characteristic 1-pole 10A 10kA GS
MCB C 1P 16A 10kA GS MCB C 1P 16A 10kA GS E2142708 2142708 MCB GS C116 MCB GS C-Characteristic 16A 10kA 1-pole
LOCKING PIN LOCKING PIN E2163136 2163136 LB 2 Locking pin suitable MCB GS,RCCB GS,RCBO GS,GCB ,GCBO and most other components.
RCBO GS C-CHAR 6A 2P RCBO GS C-CHAR 6A 2P E2163247 2163247 RCBO C2P 6A 10kA GS RCBO GS C-Characteristic 6A 10kA 2-pole
RCBO C 2P 10A 10kA RCBO C 2P 10A 10kA E2163248 2163248 RCBO C2P 10A 10kA GS Residual current circuit breaker with overcurrent protection (RCBO) C-characteristic 2-poles 10A 10kA
RCBO C 16A 2P GS RCBO C 16A 2P GS E2163250 2163250 RCBO C2P 16A 10kA GS RCBO GS C-Characteristic 16A 10kA 2-pole
OUTLET INSERT MVU OUTLET INSERT MVU E2449413 2449413 MVU Outlet inserts B50xH50
CONTACT PLUG P100 CONTACT PLUG P100 E2449505 2449505 KD-P Contactplug fits P100 MVC
HANDLE MVAT 5-PAC HANDLE MVAT 5-PAC E2449507 2449507 VT Handle MVAT 5-pac
INSERT OUTLET ROUND PET MVV INSERT OUTLET ROUND PET MVV E2449524 2449524 MVV Childproof schuko socket PET round.
TIMER CAR HEATER TIMER CAR HEATER E2449525 2449525 TIMER Timer for carheather. 24H
