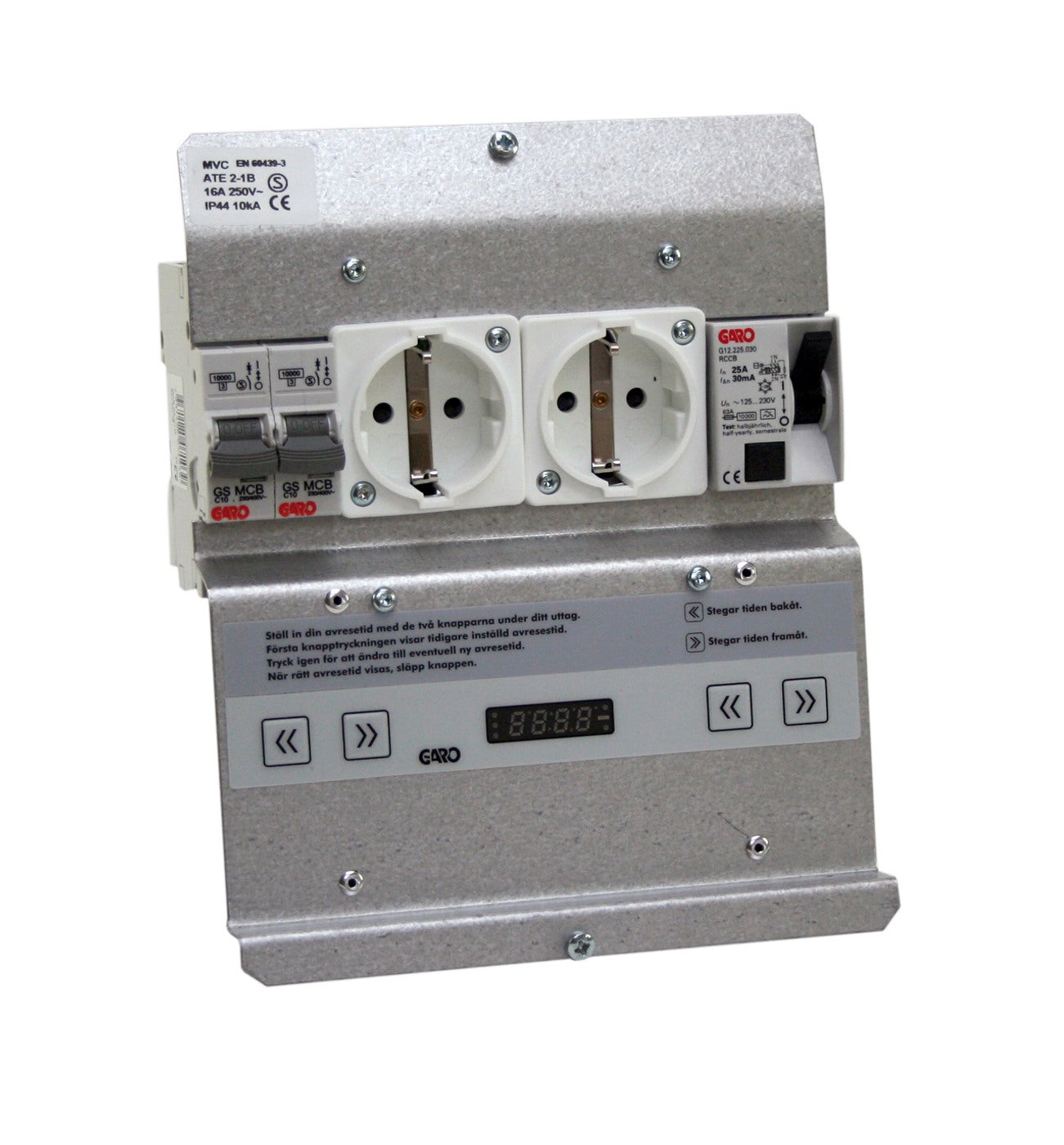

Disc.INS CAR-P1 MAX 3h 10A WO MEAS

Inserts for fixed response time 3h

GAROs insert ATEN is an electronic timer with a repeating fixed operating time of 3 hours. Equipped with 2 Schuko sockets and 2 RCBOs or RCD and MCB. The components are mounted on a DIN rail, making replacement very easy. The insert has maintenance-free capacitor backup of 48 hours and a clock with automatic summer / wintertime. The insert is compatible and can be used with old series of P100 enclosure. Insert car without measuring 10A fits P100 system, 3h response time, with RCCB.
Article number
2449434
Support
Degree of protection [IP] 44
Package size [pcs] 1
Width [mm] 175
Height [mm] 220
Depth [mm] 100
Rated voltage [V AC] 230
Short-circuit current [kA] 10
Response time [min] Max 180
Frequency [Hz] 50
Name Disc.INS CAR-P1 MAX 3h 10A WO MEAS
Article number 2449434
Type designation ATE 210-1
Materials Aluzinc
Colour Grå/Grey
Standard EN 61439-3
Netweight [kg] 1.20
Rated current [A] 16
RCCB 1 pcs 25A/2P
MCB 2 pcs C110
RCBO 1
Schuko [pcs] 1
Expiredate 2017-08-28
Replacementarticle Disc.INS CAR-P1 MAX 3h 10A WO MEAS (353027)
Replacementarticle 353027

More variants of Inserts for fixed response time 3h

E-number Article number Type designation Materials Colour Standard Netweight [kg] Rated current [A] RCCB MCB RCBO Schuko [pcs]
INS CAR-PN1 MAX 3H 6A WOM 2449219 353026 ATEN 206-1 Plastic Grey EN 61439-7 1.30 6 1 pcs 25A/2P 2 pcs C106 1 2
INS CAR-PN1 10A MAX 3H WO MEAS 2449220 353027 ATEN 210-1 Plastic Grey EN 61439-7 1.30 10 1 pcs 25A/2P 2 pcs C110 1 2
INS CAR-PN2 MAX 3H 6A WOM 2449221 353028 ATEN 206-2 Plastic Grey EN 61439-7 1.20 6 2pcs 6A/2P 2
INS CAR-PN2 MAX 3H 10A WOM 2449222 353029 ATEN 210-2 Plastic Grey EN 61439-7 1.20 10 2pcs 10A/2P 2

Accessories for Inserts for fixed response time 3h

Name E-number Article number Type designation Description
RCCB 2P 25A 10kA 30mA RCCB 2P 25A 10kA 30mA 2163321 110092 RCCB 2P 25A 10kA 30mA GS Residual current circuit breaker 2-poles 25A 10kA 30mA
MCB GS C-KAR 4A 10kA 1P MCB GS C-KAR 4A 10kA 1P 2142704 2142704 MCB GS C104 MCB GS C-Characteristic 4A 10kA 1-pole
MCB GS C-KAR 6A 10kA 1P MCB GS C-KAR 6A 10kA 1P 2142705 2142705 MCB GS C106 MCB GS C-Characteristic 6A 10kA 1-pole
MCB GS C-KAR 10A 10kA 1P MCB GS C-KAR 10A 10kA 1P 2142706 2142706 MCB GS C110 MCB GS C-Characteristic 10A 10kA 1-pole
MCB GS C-KAR 16A 10kA 1P MCB GS C-KAR 16A 10kA 1P 2142708 2142708 MCB GS C116 MCB GS C-Characteristic 16A 10kA 1-pole
LOCKING PIN LOCKING PIN 2163136 2163136 LB 2 Locking pin suitable MCB GS,RCCB GS,RCBO GS,GCB ,GCBO and most other components.
RCBO GS C-CHAR 6A 2P RCBO GS C-CHAR 6A 2P 2163247 2163247 RCBO C2P 6A 10kA GS RCBO GS C-Characteristic 6A 10kA 2-pole
RCBO GS C-CHAR 10A 2P RCBO GS C-CHAR 10A 2P 2163248 2163248 RCBO C2P 10A 10kA GS RCBO GS C-Characteristic 10A 10kA 2-pole
RCBO GS C-CHAR 16A 2P RCBO GS C-CHAR 16A 2P 2163250 2163250 RCBO C2P 16A 10kA GS RCBO GS C-Characteristic 16A 10kA 2-pole
RCBO GC C-CHAR 6A 2P RCBO GC C-CHAR 6A 2P 2163283 2163283 RCBO C6A 2P 6kA 1M GS RCBO GC C-Characteristic 6A 6kA 2-pole
RCBO GC C-CHAR 10A 2P RCBO GC C-CHAR 10A 2P 2163284 RCBO C10A 2P 6kA 1M GS RCBO GC C-Characteristic 10A 6kA 2-pole
RCBO GC C-CHAR 13A 2P RCBO GC C-CHAR 13A 2P 2163285 2163285 RCBO C13A 2P 6kA 1M GS RCBO GC C-Characteristic 13A 6kA 2-pole
RCBO GC C-CHAR 16A 2P RCBO GC C-CHAR 16A 2P 2163286 2163286 RCBO C16A 2P 6kA 1M GS RCBO GC C-Characteristic 16A 6kA 2-pole
SOCKET STRAIGHT SMALL 3P 16A 6h SOCKET STRAIGHT SMALL 3P 16A 6h 2424890 2424890 UIL 216-6 S Socket straight basic small 3-poles 16A 6h.
OUTLET INSERT MVU OUTLET INSERT MVU 2449413 2449413 MVU Outlet inserts B50xH50
CONTACTPLUG P-SERIE MVC CONTACTPLUG P-SERIE MVC 2449505 2449505 KD-P Contactplug fits P100 MVC
HANDLE MVAT 5-PAC HANDLE MVAT 5-PAC 2449507 2449507 VT Handle MVAT 5-pac
OUTLETINS ROUND PET OUTLETINS ROUND PET 2449524 2449524 MVV Childproof schuko socket PET round.
TIMER CARHEATHER TIMER CARHEATHER 2449525 2449525 TIMER Timer for carheather. 24H
