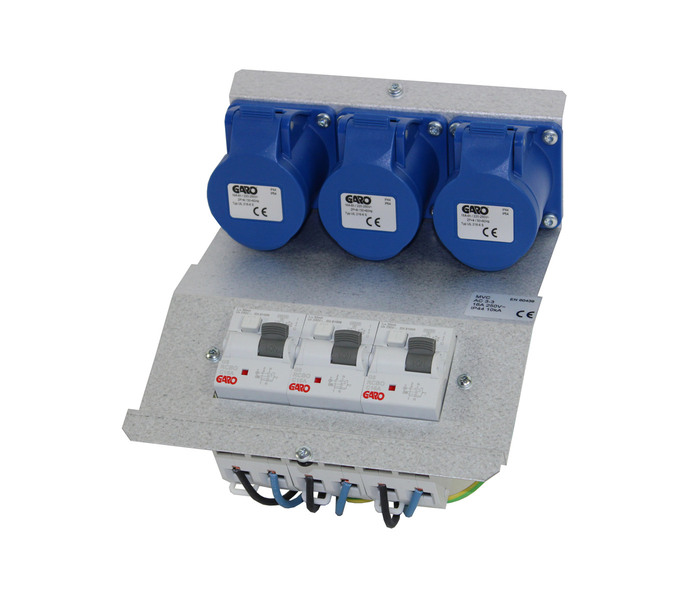

• INS CAMP-P3 24H/DAY10A WO MEAS - 1

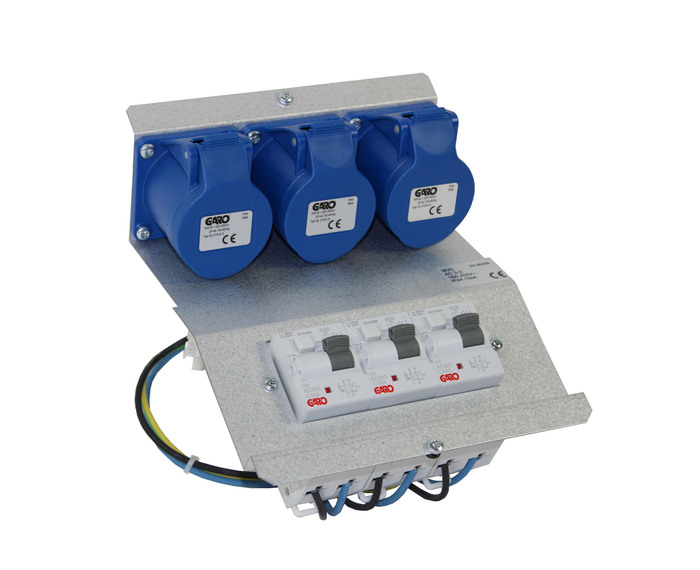

  • INS CAMP-P3 24H/DAY10A WO MEAS - 2

Inserts 24h/day three IEC-outlet without measuring

Using this insert you always have access to electricity 24 hours/day. The insert is equipped with 3 RCBOs and 3 IEC sockets without measurement. Insert camping without measuring 10A fits P100 system, 3 outlet connected 24h/day.
E-number
2449445
Article number
2449445
Support
Materials Aluzinc
Colour Grey
Standard EN 61439-3
Package size [pcs] 1
Netweight [kg] 1.50
Width [mm] 175
Height [mm] 220
Depth [mm] 100
Rated current [A] 16
Degree of protection [IP] 44
Frequency [Hz] 50
Flanged socket outlet 3 pcs 16A 2P+E 230V
Rated voltage [V AC] 230
Short-circuit current [kA] 10
Response time [min] Continuous
Meter No
Name INS CAMP-P3 24H/DAY10A WO MEAS
E-number 2449445
Article number 2449445
Type designation AC 310-3
RCBO 3pcs 10A

More variants of Inserts 24h/day three IEC-outlet without measuring

E-number Article number Type designation RCBO
INS CAMP-P3 24H/DAY10A WO MEAS 2449445 2449445 AC 310-3 3pcs 10A
INS CAMP-P3 24H/DAY 16A WO MEAS 2449446 2449446 AC 316-3 3pcs 16A

Accessories for Inserts 24h/day three IEC-outlet without measuring

Name E-number Article number Type designation Description
RCCB 2P 25A 10kA 30mA RCCB 2P 25A 10kA 30mA 2163321 110092 RCCB 2P 25A 10kA 30mA GS Residual current circuit breaker 2-poles 25A 10kA 30mA
MCB GS C-KAR 4A 10kA 1P MCB GS C-KAR 4A 10kA 1P 2142704 2142704 MCB GS C104 MCB GS C-Characteristic 4A 10kA 1-pole
MCB GS C-KAR 6A 10kA 1P MCB GS C-KAR 6A 10kA 1P 2142705 2142705 MCB GS C106 MCB GS C-Characteristic 6A 10kA 1-pole
MCB GS C-KAR 10A 10kA 1P MCB GS C-KAR 10A 10kA 1P 2142706 2142706 MCB GS C110 MCB GS C-Characteristic 10A 10kA 1-pole
MCB GS C-KAR 16A 10kA 1P MCB GS C-KAR 16A 10kA 1P 2142708 2142708 MCB GS C116 MCB GS C-Characteristic 16A 10kA 1-pole
LOCKING PIN LOCKING PIN 2163136 2163136 LB 2 Locking pin suitable MCB GS,RCCB GS,RCBO GS,GCB ,GCBO and most other components.
RCBO GS C-CHAR 6A 2P RCBO GS C-CHAR 6A 2P 2163247 2163247 RCBO C2P 6A 10kA GS RCBO GS C-Characteristic 6A 10kA 2-pole
RCBO GS C-CHAR 10A 2P RCBO GS C-CHAR 10A 2P 2163248 2163248 RCBO C2P 10A 10kA GS RCBO GS C-Characteristic 10A 10kA 2-pole
RCBO GS C-CHAR 16A 2P RCBO GS C-CHAR 16A 2P 2163250 2163250 RCBO C2P 16A 10kA GS RCBO GS C-Characteristic 16A 10kA 2-pole
RCBO GC C-CHAR 6A 2P RCBO GC C-CHAR 6A 2P 2163283 2163283 RCBO C6A 2P 6kA 1M GS RCBO GC C-Characteristic 6A 6kA 2-pole
RCBO GC C-CHAR 10A 2P RCBO GC C-CHAR 10A 2P 2163284 RCBO C10A 2P 6kA 1M GS RCBO GC C-Characteristic 10A 6kA 2-pole
RCBO GC C-CHAR 13A 2P RCBO GC C-CHAR 13A 2P 2163285 2163285 RCBO C13A 2P 6kA 1M GS RCBO GC C-Characteristic 13A 6kA 2-pole
RCBO GC C-CHAR 16A 2P RCBO GC C-CHAR 16A 2P 2163286 2163286 RCBO C16A 2P 6kA 1M GS RCBO GC C-Characteristic 16A 6kA 2-pole
SOCKET STRAIGHT SMALL 3P 16A 6h SOCKET STRAIGHT SMALL 3P 16A 6h 2424890 2424890 UIL 216-6 S Socket straight basic small 3-poles 16A 6h.
OUTLET INSERT MVU OUTLET INSERT MVU 2449413 2449413 MVU Outlet inserts B50xH50
CONTACTPLUG P-SERIE MVC CONTACTPLUG P-SERIE MVC 2449505 2449505 KD-P Contactplug fits P100 MVC
HANDLE MVAT 5-PAC HANDLE MVAT 5-PAC 2449507 2449507 VT Handle MVAT 5-pac
OUTLETINS ROUND PET OUTLETINS ROUND PET 2449524 2449524 MVV Childproof schuko socket PET round.
TIMER CARHEATHER TIMER CARHEATHER 2449525 2449525 TIMER Timer for carheather. 24H
