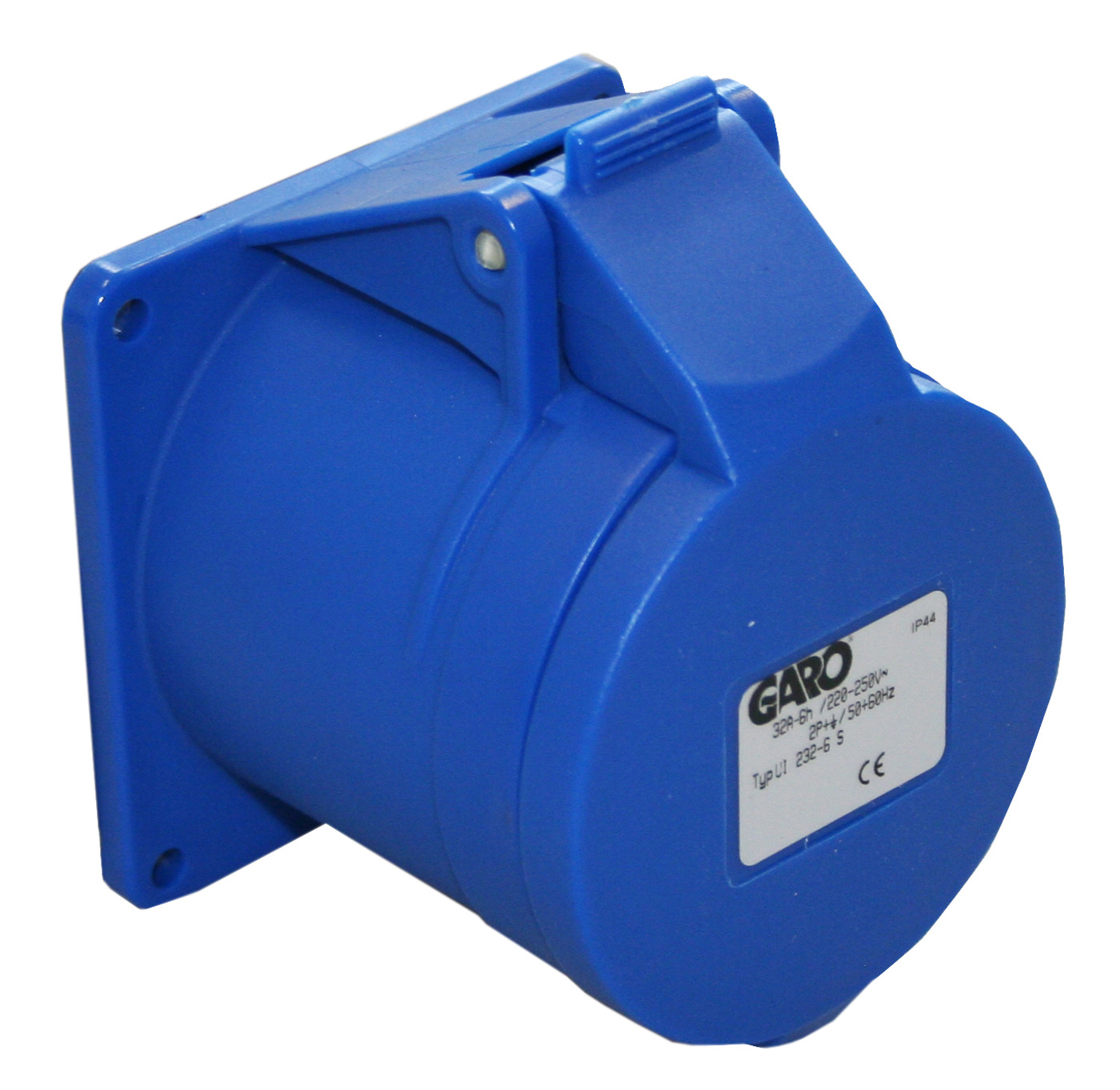

SOCKET STRAIGHT TT 4P 32A 9h

Flanged sockets Quick with straight mounting plate 32A IP44

Quick, our screwless range with snap-in connections that require no tools, just a simple push of the thumb. Socket 32A for recess mounting with straight mounting plate. Supplied including seal. Socket straight with quick connection 4-poles 32A 9h
E-number
2425557
Article number
2425557
Support
Wire flexible [mm²] 2,5-6
Rated current [A] 32
Degree of protection [IP] 44
Standard Class 1 EN 60044-8
Package size [pcs] 10
Width [mm] 75
Height [mm] 75
Depth [mm] 90
Materials Plastic
Location Recessed
Function Quick
Wire solid [mm²] 2,5-10
Name SOCKET STRAIGHT TT 4P 32A 9h
E-number 2425557
Article number 2425557
Type designation UI 332-9 Q
Colour Blue
Frequency [Hz] 50/60
Rated voltage [V AC] 230
Netweight [kg] 0.17
No.of Poles [pcs] 4/3P+E
Position of earth [h] 9

More variants of Flanged sockets Quick with straight mounting plate 32A IP44

E-number Article number Type designation Colour Frequency [Hz] Rated voltage [V AC] Netweight [kg] No.of Poles [pcs] Position of earth [h]
SOCKET STRAIGHT TT 3P 32A 2h 2425547 2425547 UI 232-2 Q Green >300-500 >50 0.15 3/2P+E 2
SOCKET STRAIGHT TT 3P 32A 4h 2425548 2425548 UI 232-4 Q Yellow 50/60 100-130 0.15 3/2P+E 4
SOCKET STRAIGHT TT 3P 32A 6h 2425549 2425549 UI 232-6 Q Blue 50/60 200-250 0.15 3/2P+E 6
SOCKET STRAIGHT TT 3P 32A 9h 2425550 2425550 UI 232-9 Q Red 50/60 380-415 0.15 3/2P+E 9
SOCKET STRAIGHT TT 3P 32A 12h 2425551 2425551 UI 232-12 Q Grey 50/60 Matning fr.isolertransf. 0.15 3/2P+E 12
SOCKET STRAIGHT TT 4P 32A 2h 2425552 2425552 UI 332-2 Q Green >300-500 >50 0.17 4/3P+E 2
SOCKET STRAIGHT TT 4P 32A 3h 2425553 2425553 UI 332-3 Q Red 50/60 380-440 0.17 4/3P+E 3
SOCKET STRAIGHT TT 4P 32A 4h 2425554 2425554 UI 332-4 Q Yellow 50/60 100-130 0.17 4/3P+E 4
SOCKET STRAIGHT TT 4P 32A 6h 2425555 2425555 UI 332-6 Q Röd/Red 50/60 400 0.17 4/3P+E 6
SOCKET STRAIGHT TT 4P 32A 7h 2425556 2425556 UI 332-7 Q Black 50/60 480-500 0.17 4/3P+E 7
SOCKET STRAIGHT TT 4P 32A 9h 2425557 2425557 UI 332-9 Q Blue 50/60 230 0.17 4/3P+E 9
SOCKET STRAIGHT TT 4P 32A 10h 2425558 2425558 UI 332-10 Q Green 100-300 >50 0.17 4/3P+E 10
SOCKET STRAIGHT TT 4P 32A 11h 2425559 2425559 UI 332-11 Q Red 60 440-460 0.17 4/3P+E 11
SOCKET STRAIGHT TT 5P 32A 2h 2425560 2425560 UI 432-2 Q Green >300-500 >50 0.20 5/3PN+E 2
SOCKET STRAIGHT TT 5P 32A 3h 2425561 2425561 UI 432-3 Q Red 50/60 380-440 0.20 5/3PN+E 3
SOCKET STRAIGHT TT 5P 32A 4h 2425562 2425562 UI 432-4 Q Yellow 50/60 100-130 0.20 5/3PN+E 4
SOCKET STRAIGHT TT 5P 32A 4h 2425563 2425563 UI 432-5 Q Black 50/60 600-690 0.20 5/3PN+E 5
SOCKET STRAIGHT TT 5P 32A 6h 2425564 2425564 UI 432-6 Q Red 50/60 230/400 0.20 5/3PN+E 6
SOCKET STRAIGHT TT 5P 32A 7h 2425565 2425565 UI 432-7 Q Black 50/60 480-500 0.20 5/3PN+E 7
SOCKET STRAIGHT TT 5P 32A 9h 2425566 2425566 UI 432-9 Q Blue 50/60 208-250 0.20 5/3PN+E 9
SOCKET STRAIGHT TT 5P 32A 11h 2425567 2425567 UI 432-11 Q Red 60 440-460 0.20 5/3PN+E 11
