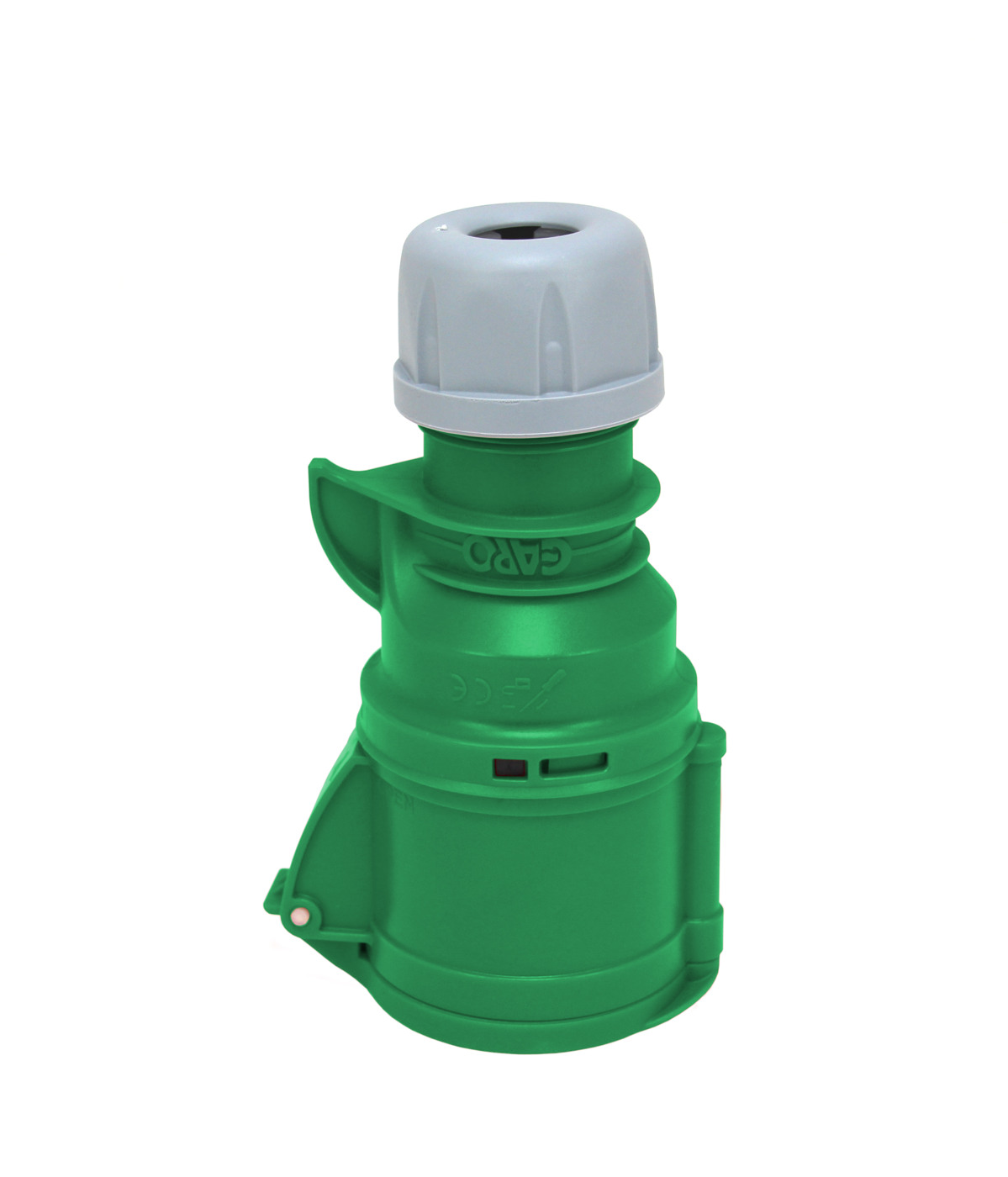

CONNECTORS TT 5P 16A 2h

Connectors Quick 16A IP44

Quick in-line socket is our screwless range with quick connections that require no tools, just a simple push of the thumb. Connectors with quick 5-poles 16A 2h.
E-number
2425449
Article number
2425449
Support
Wire flexible [mm²] 1-2,5
Rated current [A] 16
Degree of protection [IP] 44
Standard Class 1 EN 60044-8
Depth [mm] 38
Materials Plastic
Function Quick
Name CONNECTORS TT 5P 16A 2h
E-number 2425449
Article number 2425449
Type designation S 416-2 Q
Colour Green
Frequency [Hz] >300-500
Rated voltage [V AC] >50
Netweight [kg] 0.20
Width [mm] 89
Height [mm] 142
No.of Poles [pcs] 5/3PN+E
Position of earth [h] 2
RAL-nummer RAL6010

More variants of Connectors Quick 16A IP44

E-number Article number Type designation Colour Frequency [Hz] Rated voltage [V AC] Netweight [kg] Width [mm] Height [mm] No.of Poles [pcs] Position of earth [h] RAL-nummer
CONNECTORS TT 3P 16A 2h 2425432 2425432 S 216-2 Q Green >300-500 >50 0.14 76 129 3/2P+E 2 RAL6010
CONNECTORS TT 3P 16A 3h 2425433 2425433 S 216-3 Q Grey DC >50-250 0.14 76 129 3/2P+E 3 RAL7046
CONNECTORS TT 3P 16A 4h 2425434 2425434 S 216- 4 Q Yellow 50/60 100-130 0.14 76 129 3/2P+E 4 RAL1023
CONNECTORS TT 3P 16A 5h 2425435 2425435 S 216- 5 Q Grey 60 277 0.14 76 129 3/2P+E 5 RAL7046
CONNECTORS TT 3P 16A 6h 2425436 2425436 S 216- 6 Q Blue 50/60 200-250 0.14 76 129 3/2P+E 6 RAL5017
CONNECTORS TT 3P 16A 7h 2425437 2425437 S 216- 7 Q Black 50/60 480-500 0.14 76 129 3/2P+E 7 RAL9005
CONNECTORS TT 3P 16A 9h 2425438 2425438 S 216- 9 Q Red 50/60 380-415 0.14 76 129 3/2P+E 9 RAL3000
CONNECTORS TT 3P 16A 12h 2425439 2425439 S 216- 12 Q Grey 50/60 Matning fr.isolertransf. 0.14 76 129 3/2P+E 12 RAL7046
CONNECTORS TT 4P 16A 2h 2425440 2425440 S 316-2 Q Green >300-500 >50 0.17 80 135 4/3P+E 2 RAL6010
CONNECTORS TT 4P 16A 3h 2425441 2425441 S 316-3 Q Red 50/60 380-440 0.17 80 135 4/3P+E 3 RAL3000
CONNECTORS TT 4P 16A 4h 2425442 2425442 S 316-4 Q Yellow 50/60 100-130 0.17 80 135 4/3P+E 4 RAL1023
CONNECTORS TT 4P 16A 5h 2425443 2425443 S 316-5 Q Black 50/60 600-690 0.17 80 135 4/3P+E 5 RAL9005
CONNECTORS TT 4P 16A 6h 2425444 2425444 S 316-6 Q Red 50/60 400 0.17 80 135 4/3P+E 6 RAL3000
CONNECTORS TT 4P 16A 7h 2425445 2425445 S 316-7 Q Black 50/60 480-500 0.17 80 135 4/3P+E 7 RAL9005
CONNECTORS TT 4P 16A 9h 2425446 2425446 S 316-9 Q Blue 50/60 230 0.17 80 135 4/3P+E 9 RAL5017
CONNECTORS TT 4P 16A 10h 2425447 2425447 S 316-10 Q Green 100-300 >50 0.17 80 135 4/3P+E 10 RAL6010
CONNECTORS TT 4P 16A 11h 2425448 2425448 S 316-11 Q Red 60 440-460 0.17 80 135 4/3P+E 11 RAL3000
CONNECTORS TT 5P 16A 2h 2425449 2425449 S 416-2 Q Green >300-500 >50 0.20 89 142 5/3PN+E 2 RAL6010
CONNECTORS TT 5P 16A 3h 2425450 2425450 S 416-3 Q Red 50/60 380-440 0.20 89 142 5/3PN+E 3 RAL3000
CONNECTORS TT 5P 16A 4h 2425451 2425451 S 416-4 Q Yellow 50/60 100-130 0.20 89 142 5/3PN+E 4 RAL1023
CONNECTORS TT 5P 16A 5h 2425452 2425452 S 416-5 Q Black 50/60 600-690 0.20 89 142 5/3PN+E 5 RAL9005
CONNECTORS TT 5P 16A 6h 2425453 2425453 S 416-6 Q Red 50/60 230/400 0.20 89 142 5/3PN+E 6 RAL3000
CONNECTORS TT 5P 16A 7h 2425454 2425454 S 416-7 Q Black 50/60 480-500 0.20 89 142 5/3PN+E 7 RAL9005
CONNECTORS TT 5P 16A 9h 2425455 2425455 S 416-9 Q Blue 50/60 208-250 0.20 89 142 5/3PN+E 9 RAL5017
CONNECTORS TT 5P 16A 11h 2425456 2425456 S 416-11 Q Red 60 440-460 0.20 89 142 5/3PN+E 11 RAL3000
