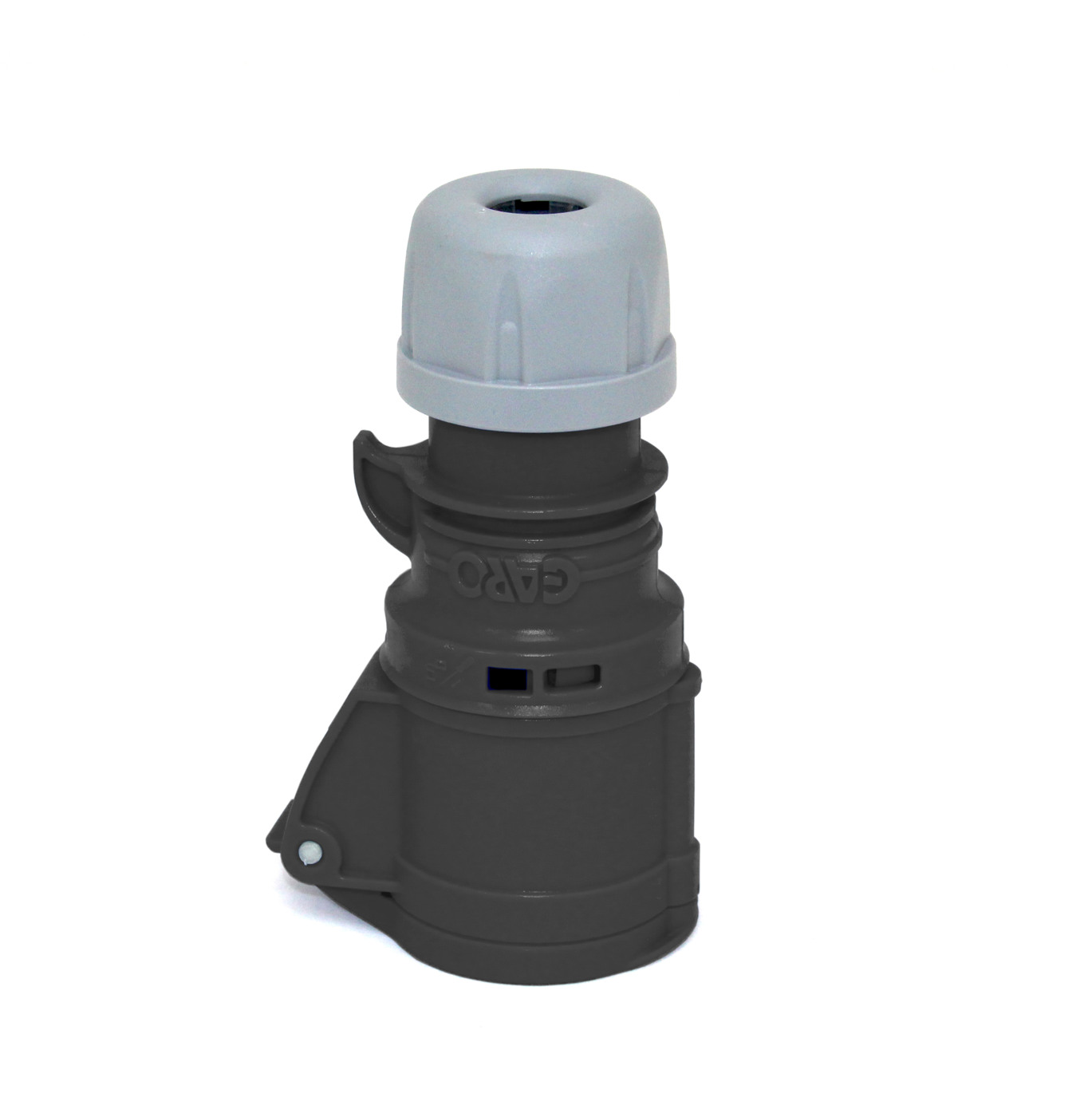

CONNECTORS TT 4P 16A 7h

Connectors Quick 16A IP44

Quick in-line socket is our screwless range with quick connections that require no tools, just a simple push of the thumb. Connectors with quick 4-poles 16A 7h.
E-number
2425445
Article number
2425445
Support
Rated current [A] 16
Degree of protection [IP] 44
Wire flexible [mm²] 1-2,5
Standard Class 1 EN 60044-8
Depth [mm] 38
Materials Plastic
Function Quick
Name CONNECTORS TT 4P 16A 7h
E-number 2425445
Article number 2425445
Type designation S 316-7 Q
No.of Poles [pcs] 4/3P+E
Rated voltage [V AC] 480-500
Frequency [Hz] 50/60
Colour Black
Width [mm] 80
Height [mm] 135
Netweight [kg] 0.17
Position of earth [h] 7
RAL-nummer RAL9005

More variants of Connectors Quick 16A IP44

E-number Article number Type designation No.of Poles [pcs] Rated voltage [V AC] Frequency [Hz] Colour Width [mm] Height [mm] Netweight [kg] Position of earth [h] RAL-nummer
CONNECTORS TT 3P 16A 2h 2425432 2425432 S 216-2 Q 3/2P+E >50 >300-500 Green 76 129 0.14 2 RAL6010
CONNECTORS TT 3P 16A 3h 2425433 2425433 S 216-3 Q 3/2P+E >50-250 DC Grey 76 129 0.14 3 RAL7046
CONNECTORS TT 3P 16A 4h 2425434 2425434 S 216- 4 Q 3/2P+E 100-130 50/60 Yellow 76 129 0.14 4 RAL1023
CONNECTORS TT 3P 16A 5h 2425435 2425435 S 216- 5 Q 3/2P+E 277 60 Grey 76 129 0.14 5 RAL7046
CONNECTORS TT 3P 16A 6h 2425436 2425436 S 216- 6 Q 3/2P+E 200-250 50/60 Blue 76 129 0.14 6 RAL5017
CONNECTORS TT 3P 16A 7h 2425437 2425437 S 216- 7 Q 3/2P+E 480-500 50/60 Black 76 129 0.14 7 RAL9005
CONNECTORS TT 3P 16A 9h 2425438 2425438 S 216- 9 Q 3/2P+E 380-415 50/60 Red 76 129 0.14 9 RAL3000
CONNECTORS TT 3P 16A 12h 2425439 2425439 S 216- 12 Q 3/2P+E Matning fr.isolertransf. 50/60 Grey 76 129 0.14 12 RAL7046
CONNECTORS TT 4P 16A 2h 2425440 2425440 S 316-2 Q 4/3P+E >50 >300-500 Green 80 135 0.17 2 RAL6010
CONNECTORS TT 4P 16A 3h 2425441 2425441 S 316-3 Q 4/3P+E 380-440 50/60 Red 80 135 0.17 3 RAL3000
CONNECTORS TT 4P 16A 4h 2425442 2425442 S 316-4 Q 4/3P+E 100-130 50/60 Yellow 80 135 0.17 4 RAL1023
CONNECTORS TT 4P 16A 5h 2425443 2425443 S 316-5 Q 4/3P+E 600-690 50/60 Black 80 135 0.17 5 RAL9005
CONNECTORS TT 4P 16A 6h 2425444 2425444 S 316-6 Q 4/3P+E 400 50/60 Red 80 135 0.17 6 RAL3000
CONNECTORS TT 4P 16A 7h 2425445 2425445 S 316-7 Q 4/3P+E 480-500 50/60 Black 80 135 0.17 7 RAL9005
CONNECTORS TT 4P 16A 9h 2425446 2425446 S 316-9 Q 4/3P+E 230 50/60 Blue 80 135 0.17 9 RAL5017
CONNECTORS TT 4P 16A 10h 2425447 2425447 S 316-10 Q 4/3P+E >50 100-300 Green 80 135 0.17 10 RAL6010
CONNECTORS TT 4P 16A 11h 2425448 2425448 S 316-11 Q 4/3P+E 440-460 60 Red 80 135 0.17 11 RAL3000
CONNECTORS TT 5P 16A 2h 2425449 2425449 S 416-2 Q 5/3PN+E >50 >300-500 Green 89 142 0.20 2 RAL6010
CONNECTORS TT 5P 16A 3h 2425450 2425450 S 416-3 Q 5/3PN+E 380-440 50/60 Red 89 142 0.20 3 RAL3000
CONNECTORS TT 5P 16A 4h 2425451 2425451 S 416-4 Q 5/3PN+E 100-130 50/60 Yellow 89 142 0.20 4 RAL1023
CONNECTORS TT 5P 16A 5h 2425452 2425452 S 416-5 Q 5/3PN+E 600-690 50/60 Black 89 142 0.20 5 RAL9005
CONNECTORS TT 5P 16A 6h 2425453 2425453 S 416-6 Q 5/3PN+E 230/400 50/60 Red 89 142 0.20 6 RAL3000
CONNECTORS TT 5P 16A 7h 2425454 2425454 S 416-7 Q 5/3PN+E 480-500 50/60 Black 89 142 0.20 7 RAL9005
CONNECTORS TT 5P 16A 9h 2425455 2425455 S 416-9 Q 5/3PN+E 208-250 50/60 Blue 89 142 0.20 9 RAL5017
CONNECTORS TT 5P 16A 11h 2425456 2425456 S 416-11 Q 5/3PN+E 440-460 60 Red 89 142 0.20 11 RAL3000
