Measurement devices module 250A.

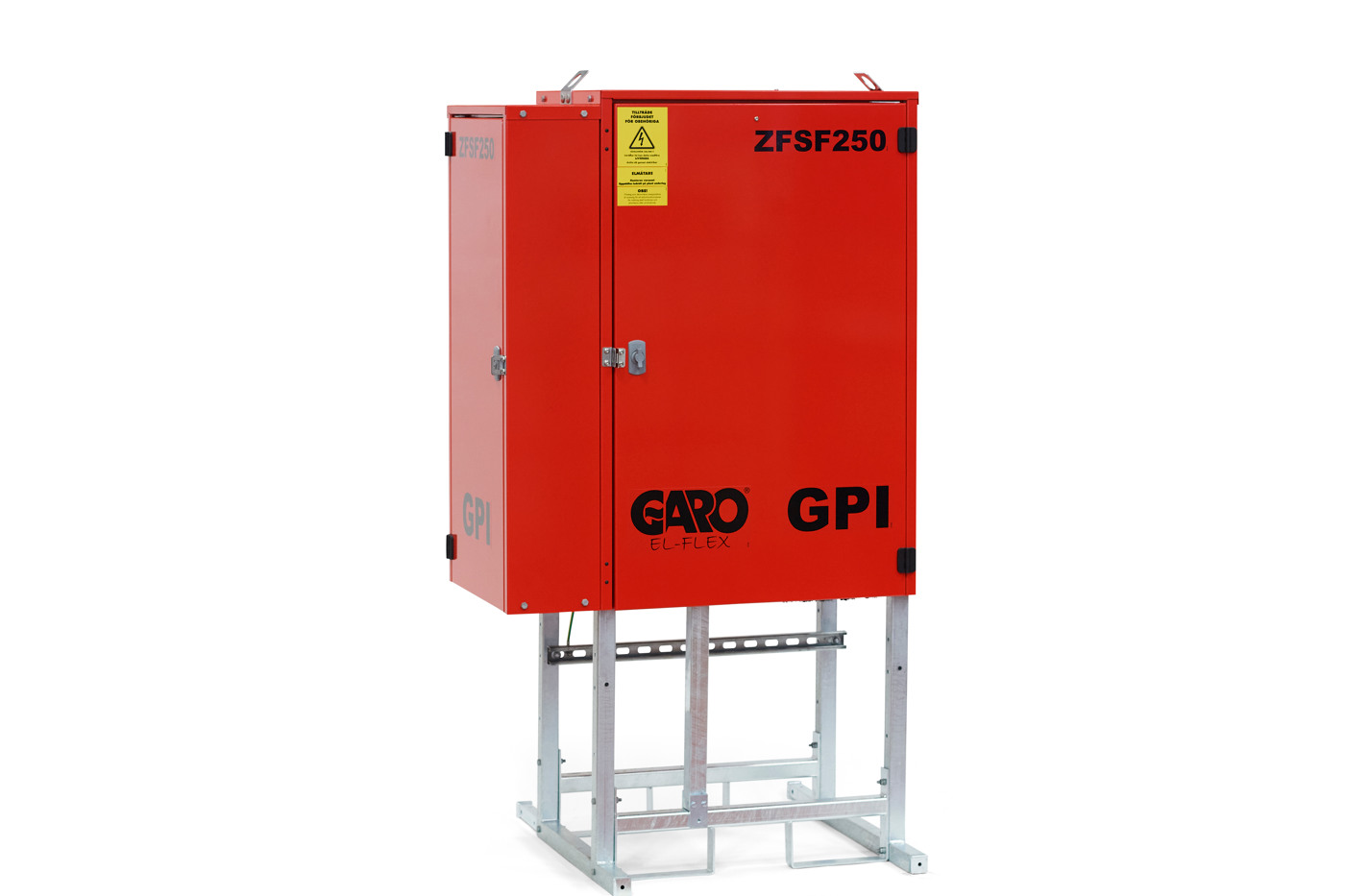

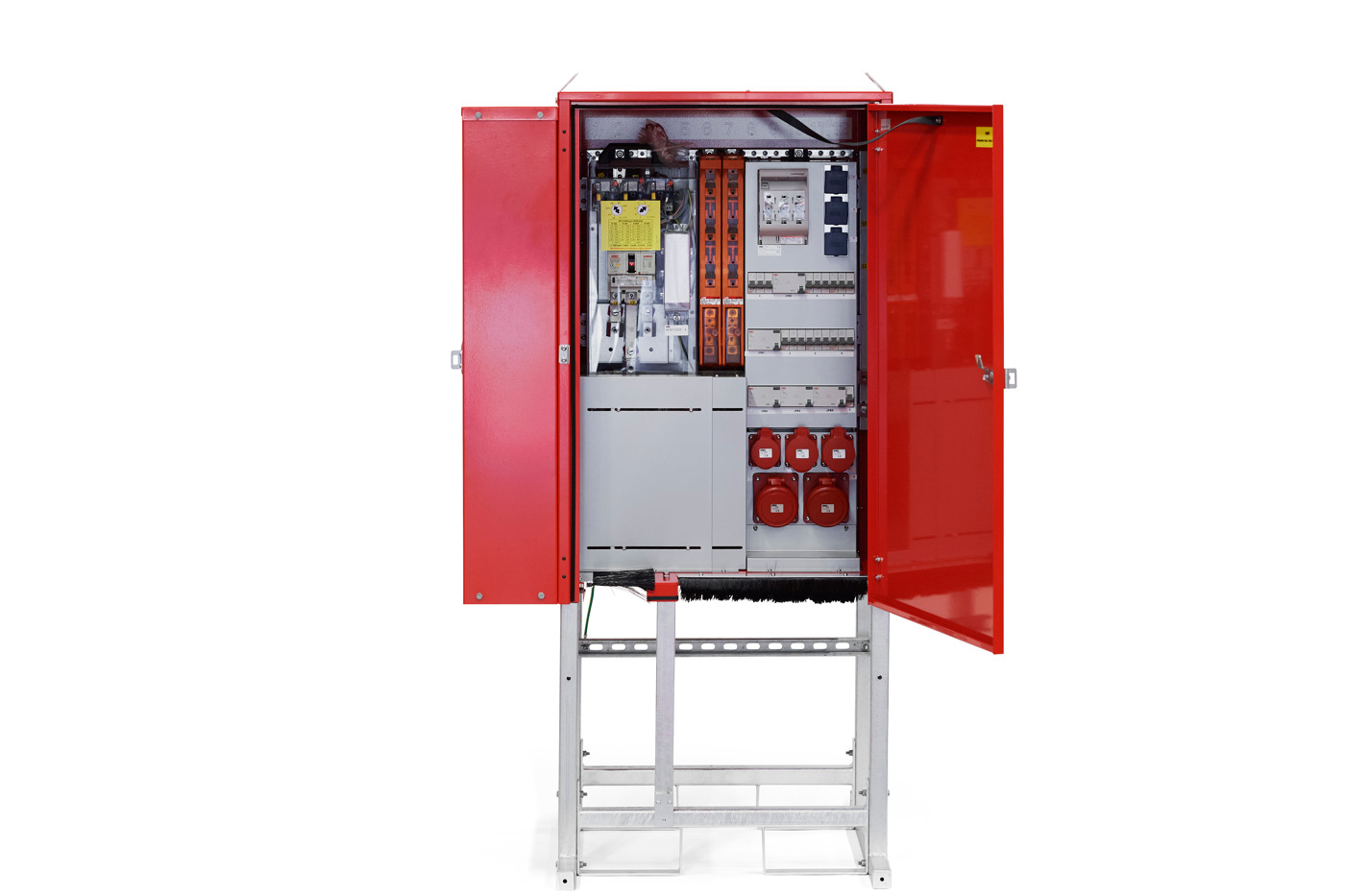

Main distribution assembly 250A (HC250) built in the GPI system. This distribution assembly is normally used for the construction of apartment blocks, hotels or large events, etc. The distribution assembly is equipped with different outputs for onward feed with earth cables (Type AKKJ 16-95 mm² and 95-240 mm²), and sockets 13-63A which are preceded by residual current devices and miniature circuit breakers. The distribution assembly is equipped with a hot-dip galvanized stand and lockable doors. Tightening torque terminalsblock 10-95mm²:15 Nm Tightening torque terminalsblock 95-2470mm²:25 Nm. Main distribution assembly 250A GPI/EB/2xSLK160 2x63 2x32 1x16 3x13
E-number
2469131
Article number
353913
Materials Sheet steel
Colour Red
Rated current [A] 250
Frequency [Hz] 50
Standard EN 61439-4
Rated voltage [V AC] 400
Package size [pcs] 1
Schuko [pcs] 3
Flanged socket outlet 2 pcs 63A 3P+N+E 230/400V
MCB 3 pcs C332
RCCB 2 pcs 63A/4P/300mA
Space for meters [pcs] 1
Fixed connection NH00/160 [pcs] 2
Name TEMP POWER MET UNIT 250A GPI/EB M
E-number 2469131
Article number 353913
Type designation ZFSF 250 GPI/EB/02/22103
Degree of protection [IP] 44
Netweight [kg] 170
Width [mm] 905
Height [mm] 1662
Depth [mm] 506
Flanged socket outlet 2 pcs 32A 3P+N+E 230/400V
MCB 1 pcs C316
Flanged socket outlet 2 pcs 63A 3P+N+E 230/400V
MCB 3 pcs C332
RCCB 2 pcs 63A/4P/300mA
MCB 2 pcs C363

More variants of Measurement devices module 250A.

E-number Article number Type designation Degree of protection [IP] Netweight [kg] Width [mm] Height [mm] Depth [mm] Flanged socket outlet MCB Flanged socket outlet MCB RCCB MCB Fixed connect.NH1-2/250A [pcs]
TEMP POWER MET UNIT 250A GPI/EB 2469125 353728 ZFSF 250 GPI/EB/12/23303 44 224 1305 1662 506 3 pcs 32A 3P+N+E 230/400V 3 pcs C316 2 pcs 63A 3P+N+E 230/400V 3 pcs C332 2 pcs 63A/4P/300mA 1
TEMP POWER MET UNIT 250A GPI/EB M 2469131 353913 ZFSF 250 GPI/EB/02/22103 44 170 905 1662 506 2 pcs 32A 3P+N+E 230/400V 1 pcs C316 2 pcs 63A 3P+N+E 230/400V 3 pcs C332 2 pcs 63A/4P/300mA 2 pcs C363
