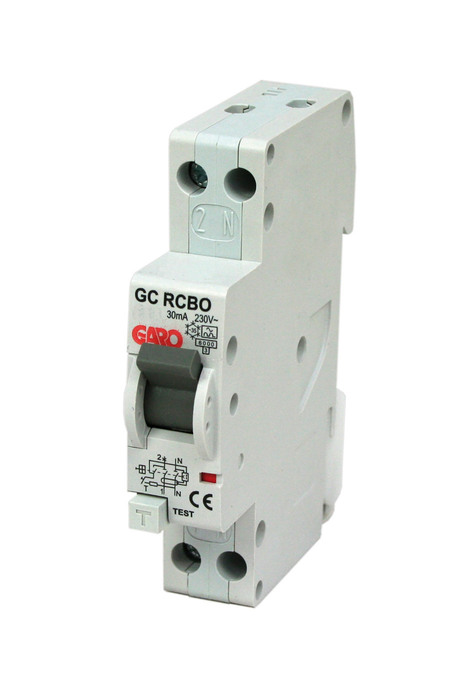

RCBO 6kA 2-pole C-characteristics 1-mod

Garo 1-module RCBO is an electronic version that is ideal when space is limited as it is only 1 module wide. The design is suitable for the Swedish outdoor climate as it is tested and approved for -35 degrees. RCBO GC C-Characteristic 20A 6kA 2-pole
E-number
2163287
Article number
2163287
Poles 2
Rated voltage [V AC] 230/400
Frequency [Hz] 50/60
Degree of protection [IP] 20
Wire flexible [mm²] 1-10
Colour Grey
Tightening torque [Nm] 1,8
Temperature range [C] -35...+55
Storage temperature [C] -35...+55
Modules [pcs] 1
Standard EN 61009-1
Package size [pcs] 1
Width [mm] 18
Height [mm] 89
Depth [mm] 77
Netweight [kg] 0.11
Materials Plastic
Rated short-circuit cap. [kA] 6
Connection type Screw
Claim prefuse [A] 125
Tripping characteristics C
Sensitivity [mA] 30
Leakage current A
Name RCBO GC C-CHAR 20A 2P
E-number 2163287
Article number 2163287
Type designation RCBO GC C20A 1+N
Rated current [A] 20

More variants of RCBO 6kA 2-pole C-characteristics 1-mod

E-number Article number Type designation Rated current [A]
RCBO GC C-CHAR 6A 2P 2163283 2163283 RCBO GC C6A 1+N 6
RCBO GC C-CHAR 10A 2P 2163284 2163284 RCBO GC C10A 1+N 10
RCBO GC C-CHAR 13A 2P 2163285 2163285 RCBO GC C13A 1+N 13
RCBO GC C-CHAR 16A 2P 2163286 2163286 RCBO GC C16A 1+N 16
RCBO GC C-CHAR 20A 2P 2163287 2163287 RCBO GC C20A 1+N 20
RCBO GC C-CHAR 25A 2P 2163288 2163288 RCBO GC C25A 1+N 25
