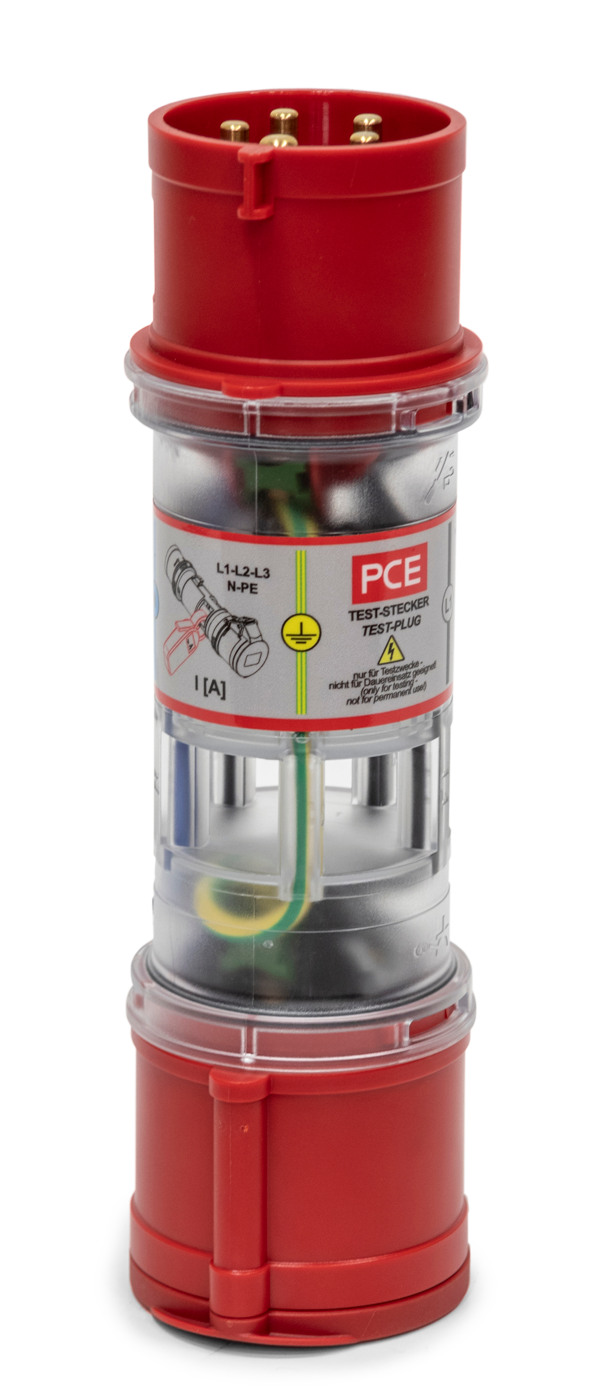

Curent measurement plug 32A

CEE current measurement test adapter allows a simple and easy measurement of each single phase L1-L2-L3 with a standard clamp meter and offers an optional rotation field check. Current test plug with with rotation check
E-number
2404872
Article number
108226
Materials Plastic
Degree of protection [IP] 44
Colour Red
Cablearea [mm²] 5G6
Netweight [kg] 0.55
Frequency [Hz] 50/60
Width [mm] 73
Height [mm] 99
Depth [mm] 250
Flanged plug 1 pcs 32A 3P+N+E 230/400V
Flanged socket outlet 1 pcs 32A 3P+N+E 230/400V
Rated voltage [V AC] 400
Package size [pcs] 1
Name CURRENT TEST P432-6 W ROT CH
E-number 2404872
Article number 108226
Type designation FFPR-432-6
Rotation field check Yes

More variants of Curent measurement plug 32A

E-number Article number Type designation Rotation field check
CURRENT TEST P432-6 W ROT CH 2404872 108226 FFPR-432-6 Yes
CURRENT TEST P432-6 WO ROT CH 2404873 108227 FFP-432-6 No
