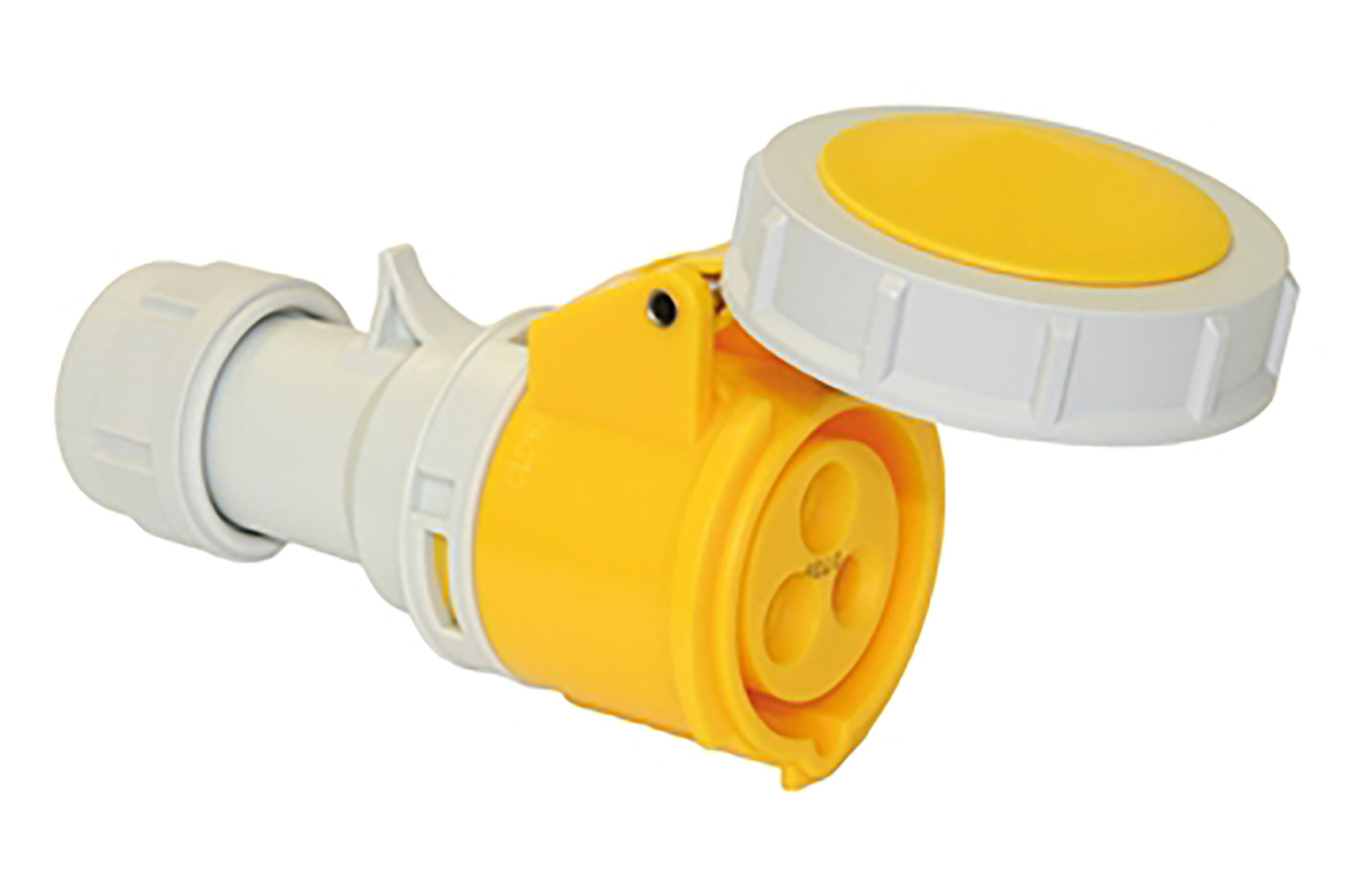

Connectors Basic 32A IP67

Basic, our standard range with a screw function. In-line connector 32A in waterproof design. Connectors basic watertight 3-poles 32A 4h.
E-number
2424712
Article number
2424712
Wire flexible [mm²] 2,5-6
Rated current [A] 32
Degree of protection [IP] 67
Package size [pcs] 10
Depth [mm] 50
Materials Plastic
Function Basic
Name CONNECTORS WT 3P 32A 4h
E-number 2424712
Article number 2424712
Type designation SV 232-4 S
Colour Yellow
Frequency [Hz] 50/60
Rated voltage [V AC] 100-130
Netweight [kg] 0.27
Width [mm] 96
Height [mm] 162
No.of Poles [pcs] 3/2P+E
Position of earth [h] 4
RAL-nummer RAL1023

More variants of Connectors Basic 32A IP67

E-number Article number Type designation Colour Frequency [Hz] Rated voltage [V AC] Netweight [kg] Width [mm] Height [mm] No.of Poles [pcs] Position of earth [h] RAL-nummer
CONNECTORS WT 3P 32A 4h 2424712 2424712 SV 232-4 S Yellow 50/60 100-130 0.27 96 162 3/2P+E 4 RAL1023
CONNECTORS WT 3P 32A 6h 2424713 2424713 SV 232-6 S Blue 50/60 200-250 0.27 96 162 3/2P+E 6 RAL5017
CONNECTORS WT 3P 32A 9h 2424714 2424714 SV 232-9 S Red 50/60 380-415 0.27 96 162 3/2P+E 9 RAL3000
CONNECTORS WT 4P 32A 2h 2424715 2424715 SV 332-2 S Green >300-500 >50 0.29 96 162 4/3P+E 2 RAL6010
CONNECTORS WT 4P 32A 3h 2424716 2424716 SV 332-3 S Red 50/60 380-440 0.29 96 162 4/3P+E 3 RAL3000
CONNECTORS WT 4P 32A 4h 2424717 2424717 SV 332-4 S Yellow 50/60 100-130 0.29 96 162 4/3P+E 4 RAL1023
CONNECTORS WT 4P 32A 6h 2424718 2424718 SV 332-6 S Red 50/60 400 0.29 96 162 4/3P+E 6 RAL3000
CONNECTORS WT 4P 32A 7h 2424719 2424719 SV 332-7 S Black 50/60 480-500 0.29 96 162 4/3P+E 7 RAL9005
CONNECTORS WT 4P 32A 9h 2424720 2424720 SV 332-9 S Blue 50/60 230 0.29 96 162 4/3P+E 9 RAL5017
CONNECTORS WT 4P 32A 10h 2424721 2424721 SV 332-10 S Green 100-300 >50 0.29 96 162 4/3P+E 10 RAL6010
CONNECTORS WT 4P 32A 11h 2424722 2424722 SV 332-11 S Red 60 440-460 0.29 96 162 4/3P+E 11 RAL3000
CONNECTORS WT 5P 32A 4h 2424723 2424723 SV 432-4 S Yellow 50/60 100-130 0.34 102 168 5/3PN+E 4 RAL1023
CONNECTORS WT 5P 32A 6h 2424724 2424724 SV 432-6 S Red 50/60 230-400 0.34 102 168 5/3PN+E 6 RAL3000
CONNECTORS WT 5P 32A 9h 2424725 2424725 SV 432-9 S Blue 50/60 208-250 0.34 102 168 5/3PN+E 9 RAL5017
CONNECTORS WT 5P 32A 11h 2424726 2424726 SV 432-11 S Red 60 440-460 0.34 102 168 5/3PN+E 11 RAL3000
