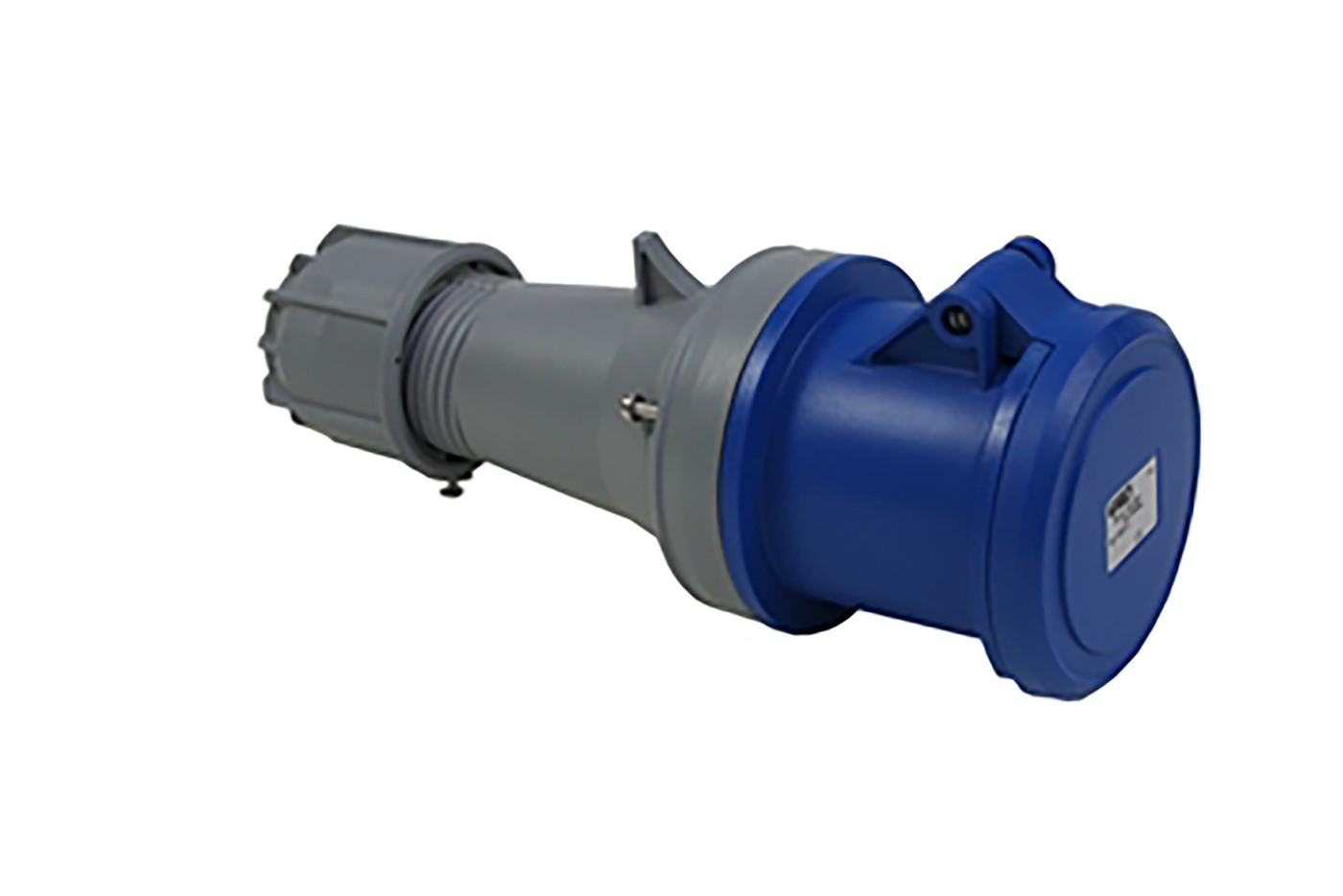

CONNECTORS 5P 63A 9h

Connectors Basic 63A IP44

Basic, our standard range with a screw function. In-line socket 63A. Connectors basic 5-poles 63A 9h.
E-number
2424696
Article number
2424696
Support
Rated current [A] 63
Degree of protection [IP] 44
Wire flexible [mm²] 6-16
Package size [pcs] 2
Width [mm] 107
Height [mm] 269
Depth [mm] 61
Materials Plastic
Function Basic
Name CONNECTORS 5P 63A 9h
E-number 2424696
Article number 2424696
Type designation S 463-9 S
No.of Poles [pcs] 5/3PN+E
Rated voltage [V AC] 208-250
Frequency [Hz] 50/60
Colour Blue
Netweight [kg] 0.78
Position of earth [h] 9
RAL-nummer RAL5017

More variants of Connectors Basic 63A IP44

E-number Article number Type designation No.of Poles [pcs] Rated voltage [V AC] Frequency [Hz] Colour Netweight [kg] Position of earth [h] RAL-nummer
CONNECTORS 3P 63A 4h 2424680 2424680 S 263-4 S 3/2P+E 100-130 50/60 Yellow 0.67 4 RAL1023
CONNECTORS 3P 63A 6h 2424681 2424681 S 263-6 S 3/2P+E 200-250 50/60 Blue 0.67 6 RAL5017
CONNECTORS 3P 63A 9h 2424682 2424682 S 263-9 S 3/2P+E 380-415 50/60 Red 0.67 9 RAL3000
CONNECTORS 3P 63A 12h 2424683 2424683 S 263-12 S 3/2P+E Matning fr.isolertransf. 50/60 Grey 0.67 12 RAL7046
CONNECTORS 4P 63A 3h 2424684 2424684 S 363-3 S 4/3P+E 380-440 50/60 Red 0.73 3 RAL3000
CONNECTORS 4P 63A 4h 2424685 2424685 S 363-4 S 4/3P+E 100-130 50/60 Yellow 0.73 4 RAL1023
CONNECTORS 4P 63A 6h 2424686 2424686 S 363-6 S 4/3P+E 400 50/60 Red 0.73 6 RAL3000
CONNECTORS 4P 63A 7h 2424687 2424687 S 363-7 S 4/3P+E 480-500 50/60 Black 0.73 7 RAL9005
CONNECTORS 4P 63A 9h 2424688 2424688 S 363-9 S 4/3P+E 230 50/60 Blue 0.73 9 RAL5017
CONNECTORS 4P 63A 10h 2424689 2424689 S 363-10 S 4/3P+E >50 100-300 Green 0.73 10 RAL6010
CONNECTORS 4P 63A 11h 2424690 2424690 S 363-11 S 4/3P+E 440-460 60 Red 0.73 11 RAL3000
CONNECTORS 5P 63A 2h 2424691 2424691 S 463-2 S 5/3PN+E >50 >300-500 Green 0.78 2 RAL6010
CONNECTORS 5P 63A 4h 2424692 2424692 S 463- 4 S 5/3PN+E 100-130 50/60 Yellow 0.78 4 RAL1023
CONNECTORS 5P 63A 5h 2424693 2424693 S 463-5 S 5/3PN+E 600-690 50/60 Black 0.78 5 RAL9005
CONNECTORS 5P 63A 6h 2424694 2424694 S 463-6 S 5/3PN+E 230/400 50/60 Red 0.78 6 RAL3000
CONNECTORS 5P 63A 7h 2424695 2424695 S 463-7 S 5/3PN+E 480-500 50/60 Black 0.78 7 RAL9005
CONNECTORS 5P 63A 9h 2424696 2424696 S 463-9 S 5/3PN+E 208-250 50/60 Blue 0.78 9 RAL5017
CONNECTORS 5P 63A 11h 2424697 2424697 S 463-11 S 5/3PN+E 440-460 60 Red 0.78 11 RAL3000
