Switches 250A

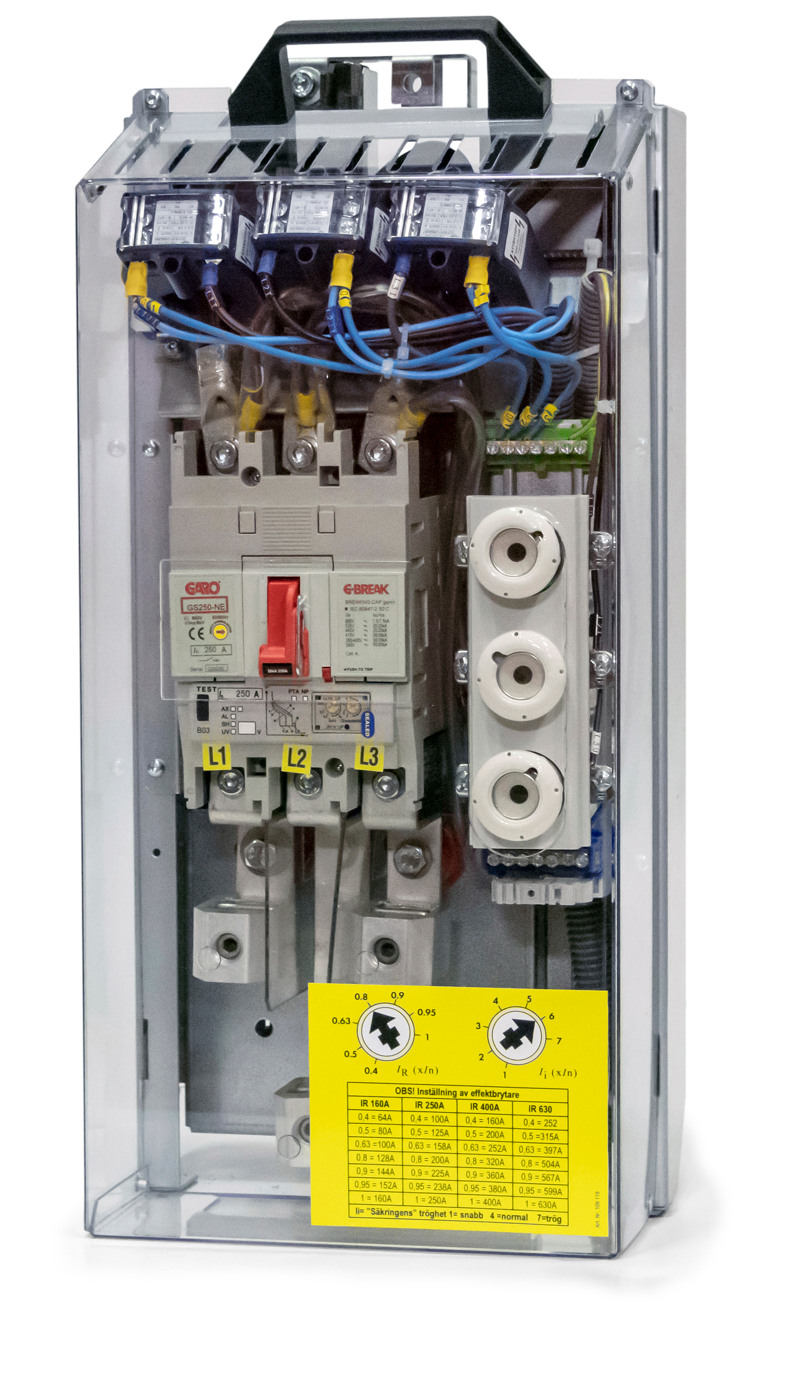

Switch GPI 250A is available in two versions: as a fuse-switch with terminal connection 95-240 mm² or as fuse-switch with current transformer insert and terminal connection 95-240 mm². The current transformer insert houses 3 current transformers 300/5A class 0.2 S. Breaker GPI 250A
Article number
352869
Degree of protection [IP] 23
Rated current [A] 250
Frequency [Hz] 50
Standard EN 61439-4
Rated voltage [V AC] 400
Rated current AC23 400V [A] 250
Rated current AC22 400V [A] 250
Incoming [mm²] 3x95-240
fielddefinition.productarea.effektbrytarekarakteristik.name Reglerbar 1-7
Name BREAKER GPI 250A
Article number 352869
Type designation GEB/TPI 250
Materials Hot dip galvanized
Colour Grey
Netweight [kg] 9
Supply voltage [VAC] 400
Modules [pcs] 5
Fuse size EB 250A reglerbar ner till 100A
Type of switch Effektbrytare elektronisk
Integrated current transformers Yes
Type of current transformers 300/5A klass 0,2S
Number of modules GPI 5

More variants of Switches 250A

E-number Article number Type designation Materials Colour Netweight [kg] Supply voltage [VAC] Width [mm] Height [mm] Depth [mm] Modules [pcs] Fuse size Type of switch Integrated current transformers Type of current transformers Number of modules GPI
BREAKER GPI 250A 352869 GEB/TPI 250 Hot dip galvanized Grey 9 400 5 EB 250A reglerbar ner till 100A Effektbrytare elektronisk Yes 300/5A klass 0,2S 5
BREAKER S GPI 250A 2466473 353529 GEB 250 MINI Hot dip galvanized Grey 7 400 3 EB 250A reglerbar ner till 100A Effektbrytare elektronisk No 3
