Enclosures with bars 1300mm

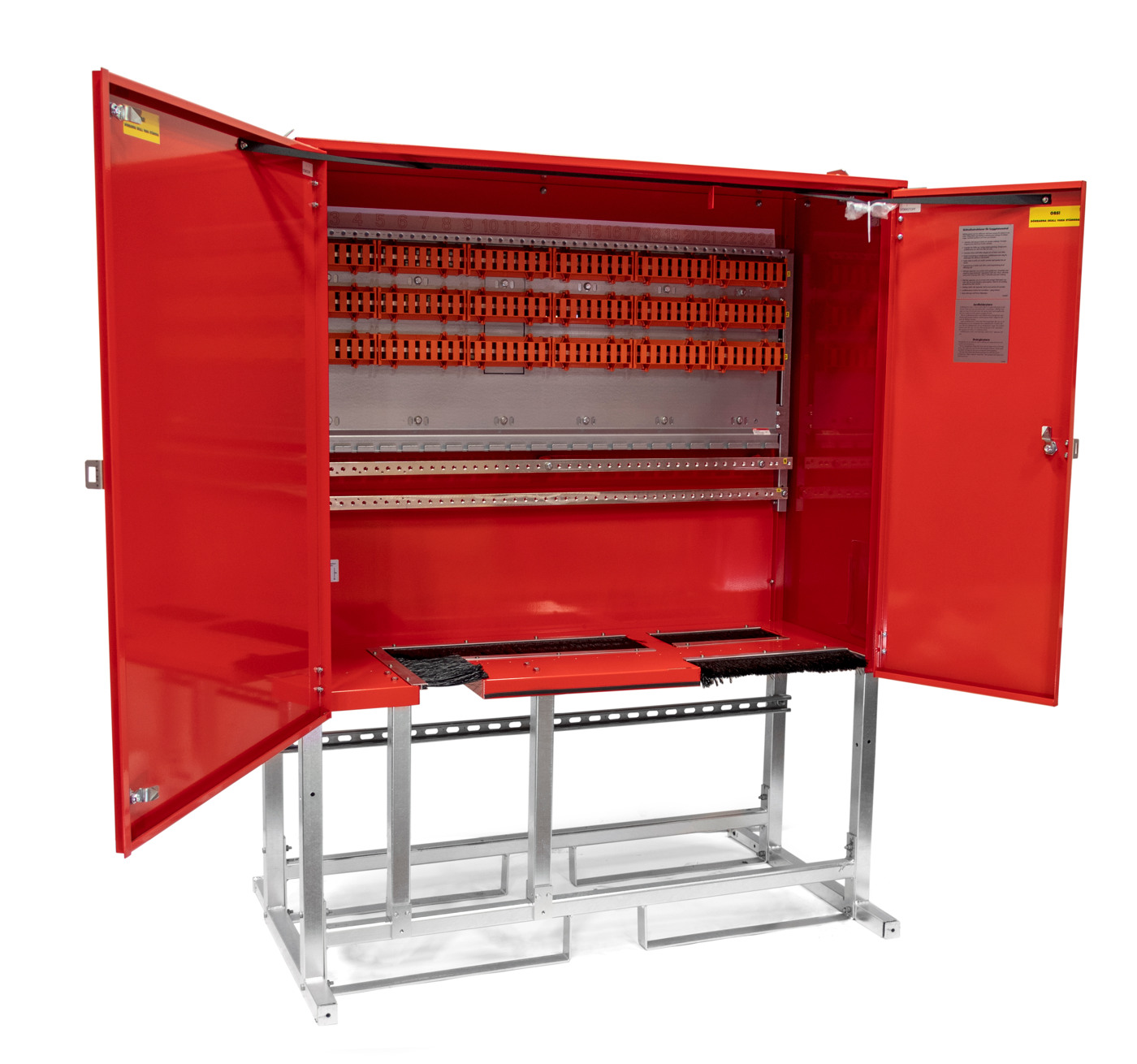

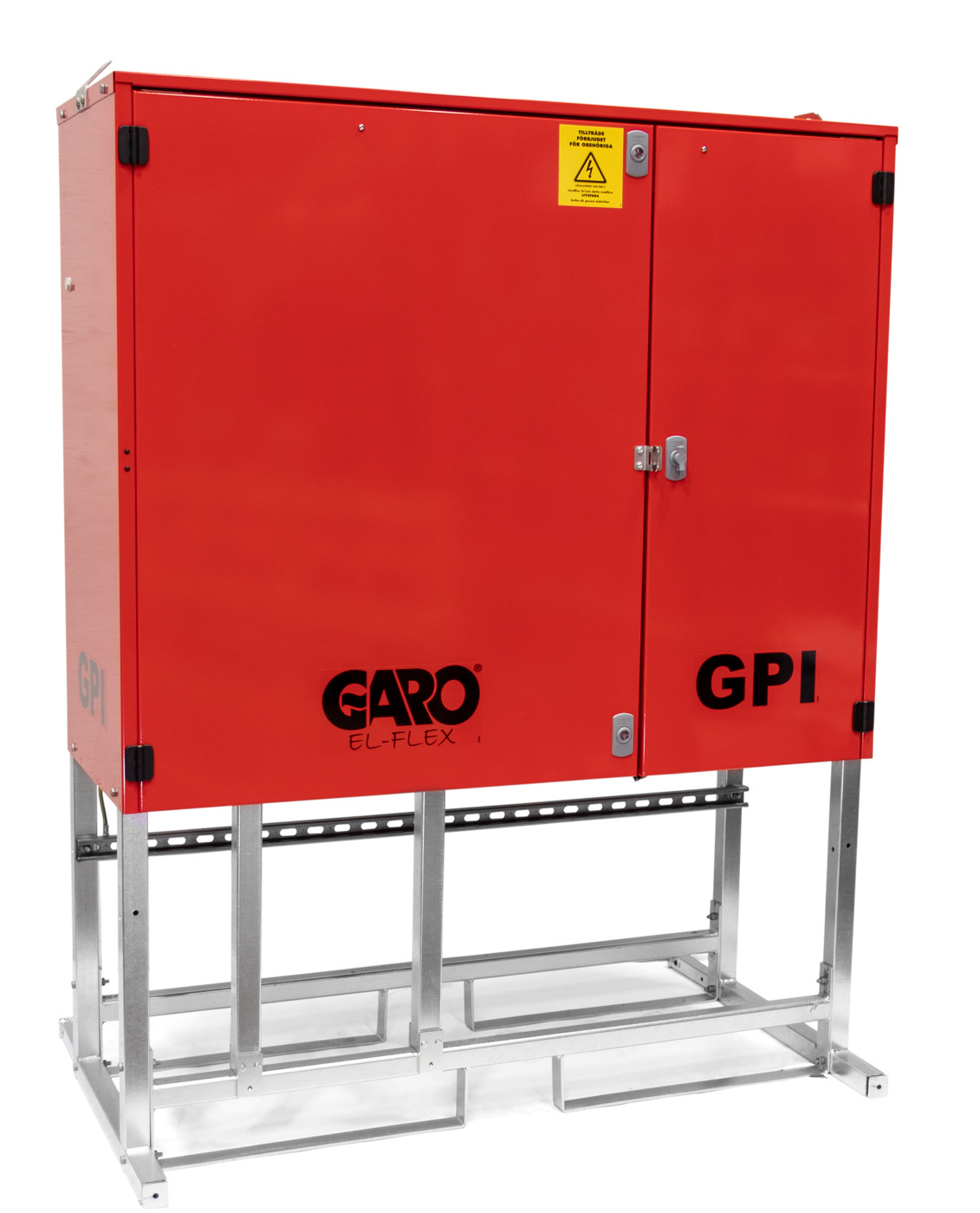

GPI 1300 is available in three designs, with or without meter cabinet, and with incoming cabinet for 2-3 connection cables for 400A-630A Includes busbar system for 630A. Tightening torque terminalsblock 10-95mm²:15 Nm Tightening torque terminalsblock 95-2470mm²:25 Nm GPI temporary power distribution board 1300mm 24 modules
E-number
2469063
Article number
2469063
Materials Sheet metal
Degree of protection [IP] 44
Colour Red
Rated current [A] 630
Frequency [Hz] 50
Standard EN 61439-4
Height [mm] 1662
Depth [mm] 506
Rated voltage [V AC] 230/400
Stands Yes
Max cabelarea[mm²] 4-/5G240
Name GPI TEMP POWER DISTR 1300MM 24
E-number 2469063
Article number 2469063
Type designation GPI 1300/24
Netweight [kg] 190
Width [mm] 1300
Modules [pcs] 24

More variants of Enclosures with bars 1300mm

E-number Article number Type designation Netweight [kg] Width [mm] Modules [pcs]
GPI TEMP POWER DISTR 1300MM 24 2469063 2469063 GPI 1300/24 190 1300 24
GPI TEMP POWER METER 1300MM 24 2469067 2469067 GPI 1300/24-M 205 1505 24
GPI IN TEMP POW METR 1300MM 24 2469069 2469069 GPI 1300/24-IM 257 1916 24+12
