Enclosures with bars 1100mm

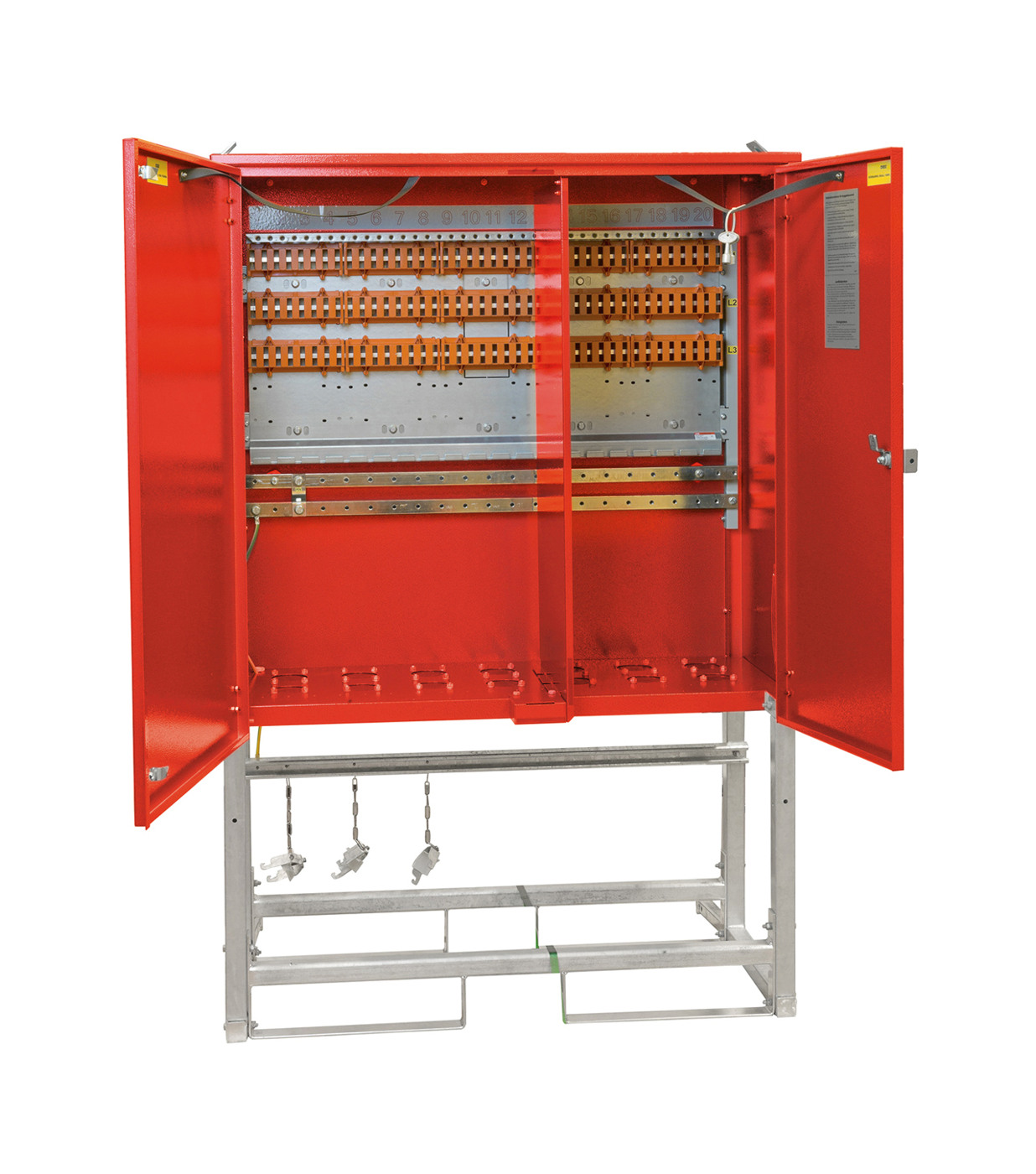

GPI 1100 is available in three designs, with or without meter cabinet, and with incoming cabinet for 2-3 connection cables for 400A-630A Includes busbar system for 630A. Tightening torque terminalsblock 10-95mm²:15 Nm Tightening torque terminalsblock 95-2470mm²:25 Nm GPI temporary power distribution board 1100mm 20modules
E-number
2469062
Article number
2469062
Support
Materials Sheet metal
Degree of protection [IP] 44
Colour Red
Rated current [A] 630
Frequency [Hz] 50
Standard EN 61439-4
Width [mm] 1100
Height [mm] 1662
Depth [mm] 506
Rated voltage [V AC] 230/400
Stands Yes
Modules [pcs] 20
Name GPI TEMP POWER DISTR 1100MM 20
E-number 2469062
Article number 2469062
Type designation GPI 1100/20
Netweight [kg] 163
Max cabelarea[mm²] 4-/5G240

More variants of Enclosures with bars 1100mm

E-number Article number Type designation Netweight [kg] Max cabelarea[mm²]
GPI TEMP POWER DISTR 1100MM 20 2469062 2469062 GPI 1100/20 163 4-/5G240
GPI TEMP POWER METER 1100MM 20 2469066 2469066 GPI 1100/20-M 178 4-/5G240
GPI IN TEMP POW METR 1100MM 20 2469068 2469068 GPI 1100/20-IM 198 4-/5G150

Accessories for Enclosures with bars 1100mm

Name E-number Article number Type designation Description
COVER MODULE GPI 1M 50MM COVER MODULE GPI 1M 50MM 2469101 2469101 BM-1 Cover module GPI 1 module 50mm
COVER MODULE GPI 3M 150MM COVER MODULE GPI 3M 150MM 2469102 2469102 BM-3 Cover module GPI 3 module 150mm
COVER MODULE GPI 200MM COVER MODULE GPI 200MM 2469103 2469103 BM-4 Cover module GPI 4 modules
CONTACT KIT PROTECT GPI CONTACT KIT PROTECT GPI 2469104 2469104 BS-GPI Contact kit protect for hardwire cables
TRANSPORT SECURITY GPI TRANSPORT SECURITY GPI 2469107 2469107 TF Transport security GPI for outletmodule
DIVISIBLE TERMINAL KIT 10-95 DIVISIBLE TERMINAL KIT 10-95 2466339 351982 PE/N 10-95 Divisible terminal kit PE/N 10-95mm² GPI.
DIVISIBLE TERMINAL KIT 95-240 DIVISIBLE TERMINAL KIT 95-240 2466340 351983 PE/N 95-240 Divisible terminal kit PE/N 95-240mm²
SUPPORT INSERT FOR UPI 3M 80793 Protection cover support insert for outlet-modules 3 modules fits GPI-system.
SUPPORT INSERT FOR UPI 4M 80794 Protection cover support insert for outlet-modules 4 modules fits GPI-system.
SUPPORT INSERT FOR UPI 5M 80795 Protection cover support insert for outlet-modules 5modules fits GPI-system.
