Mounting equipment
Garo has mounting equipment for metal roofs, flat roofs and traditional tiled roofs. All fasteners are made of stainless steel and aluminum profiles in order to survive the long lifetime of the Garo solar modules.

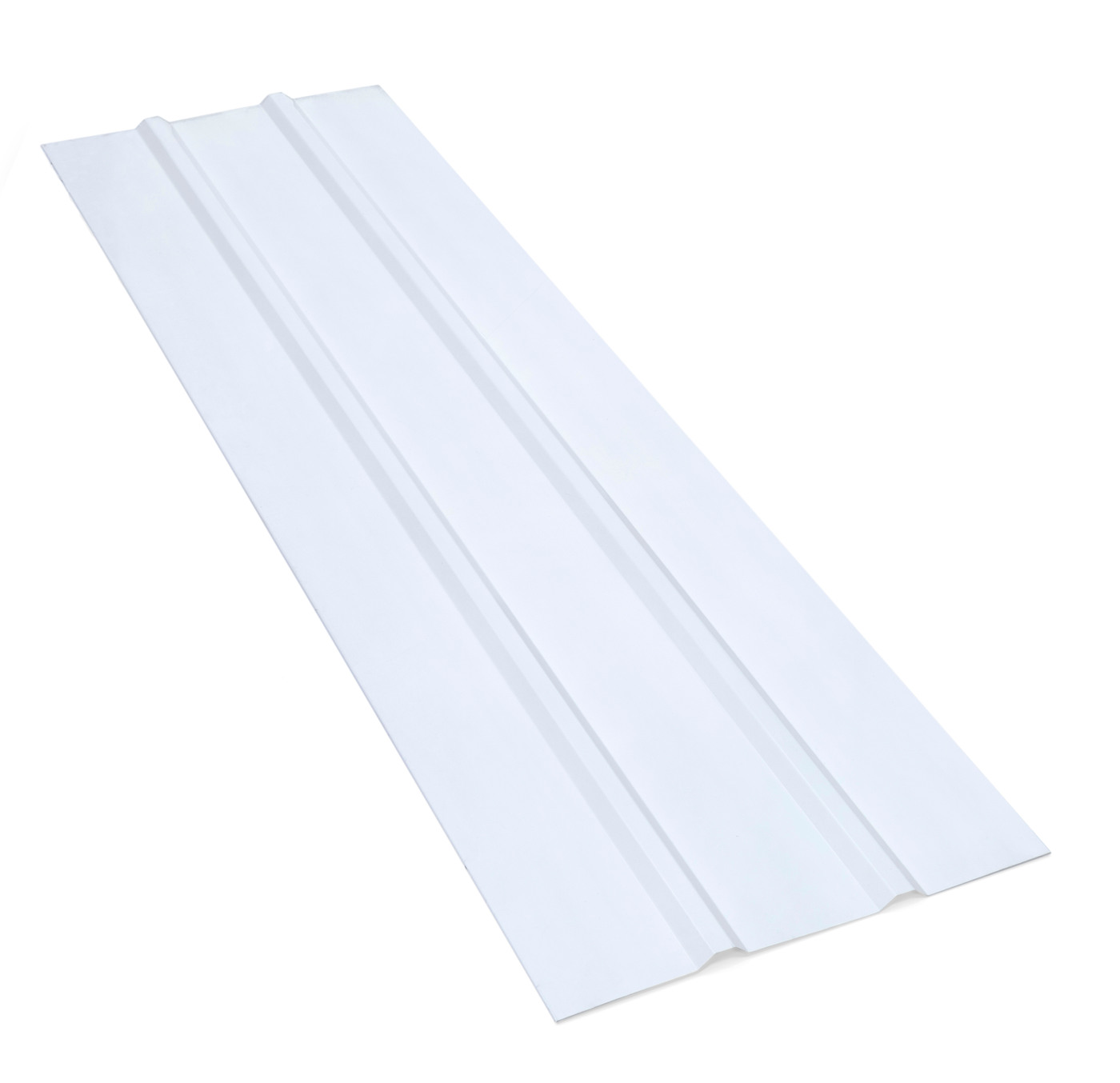

The number of parts needed is determined by the type of roof, number of modules and how the orientation on the roof. Contact GARO for a design calculation Wind protection 12.5GR aluminum base
Article number
108020
108020
| Name | WIND PROT 12.5GR AL BASE |
|---|---|
| Article number | 108020 |
| Type designation | GVS-12 |
| Colour | Grå/Grey |
| Application | Tin roof |
| Ballast | Se produktblad |
| Roof incline [deg] | 0..5 |
| Min metal thicknes [mm] | 0.6 |
| Module orientation | Landscape |
| Snow load [KN/m^2] | 0..2.4 |
| Temperature [C] | -20...+70 |
| Windload [km/h] | 0..115 |
| Mounting | Se produktblad |
