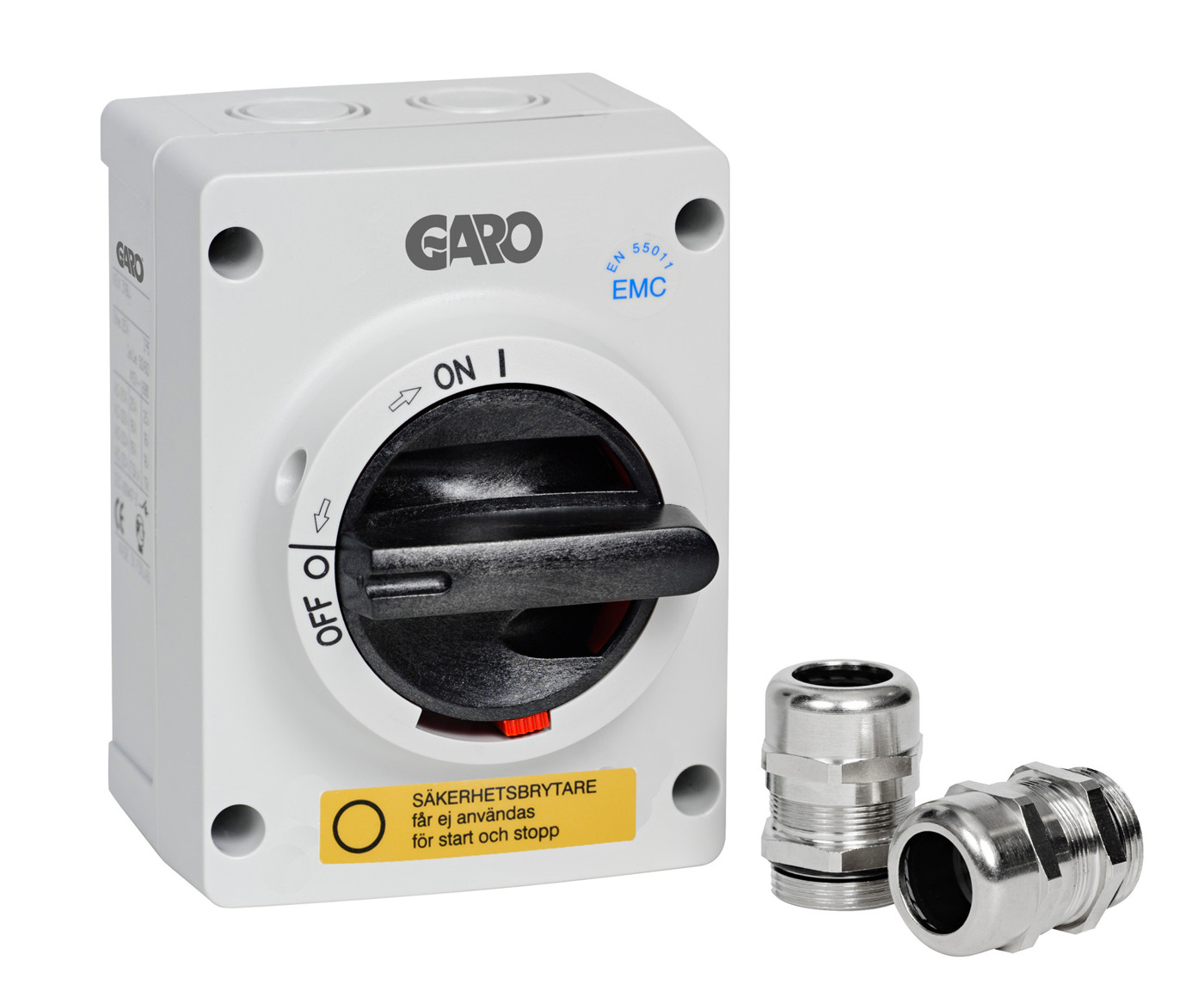

SAFETY SW 3P 16A EMC PC

Safety switches polycarbonate

Safety switches polycarbonate Safety switch 3-pole 16A made of polycarbonate. EMC performance IP66
E-number
3134186
Article number
107610
Support
No.of Poles [pcs] 3
Degree of protection [IP] 66
Colour RAL7035 Grey
Standard EN 60947-3
Materials Polycarbonate
Auxiliary contact Yes
Isolation voltage [V] 690
Name SAFETY SW 3P 16A EMC PC
E-number 3134186
Article number 107610
Type designation GKUM316U1VEMC
Rated current AC23 400V [A] 16
Width [mm] 97
Height [mm] 130
Depth [mm] 106
Netweight [kg] 0.55
Connection N & phase Cu [mm²] 16
Connection PE [pcs] [mm²] 16
Glands 2xM25+M20
Max connection area 16
kW 7,5

Instruction Sheet

Manual

More variants of Safety switches polycarbonate

E-number Article number Type designation Rated current AC23 400V [A] Width [mm] Height [mm] Depth [mm] Netweight [kg] Connection N & phase Cu [mm²] Connection PE [pcs] [mm²] Glands Max connection area kW
SAFETY SW 3P 16A EMC PC 3134186 107610 GKUM316U1VEMC 16 97 130 106 0.55 16 16 2xM25+M20 16 7,5
SAFETY SW 3P 32A EMC PC 3134187 107611 GKUM332U1VEMC 32 144 190 131 0.95 16 16 2xEPA2260+M20 16 15
SAFETY SW 3P 63A EMC PC 3134188 107612 GKUM363U1VEMC 63 144 190 131 1.10 35 35 2xM32L+M16 35 30

Accessories for Safety switches polycarbonate

Name E-number Article number Type designation Description
AUXILIARY SWITCH 2 32-63A 107645 Auxiliary switch 16A 250V AC fits 32-63A
AUXILIARY SWITCH 2 80A 107646 Auxiliary switch fits 80A
AUXILIARY SWITCH 2 125-630A 107647 Auxiliary switch fits 125-160A
RAINROOF U2 W97 RAINROOF U2 W97 107648 Rainroof W97xH52 xL125 mm
RAINROOF U3 W144 RAINROOF U3 W144 107649 Rainroof W156xH62xD140mm
RAINROOF TR03 W410 RAINROOF TR03 W410 107651 Rainroof W410xH83 xL300 mm
