Fuse combination boxes GPK

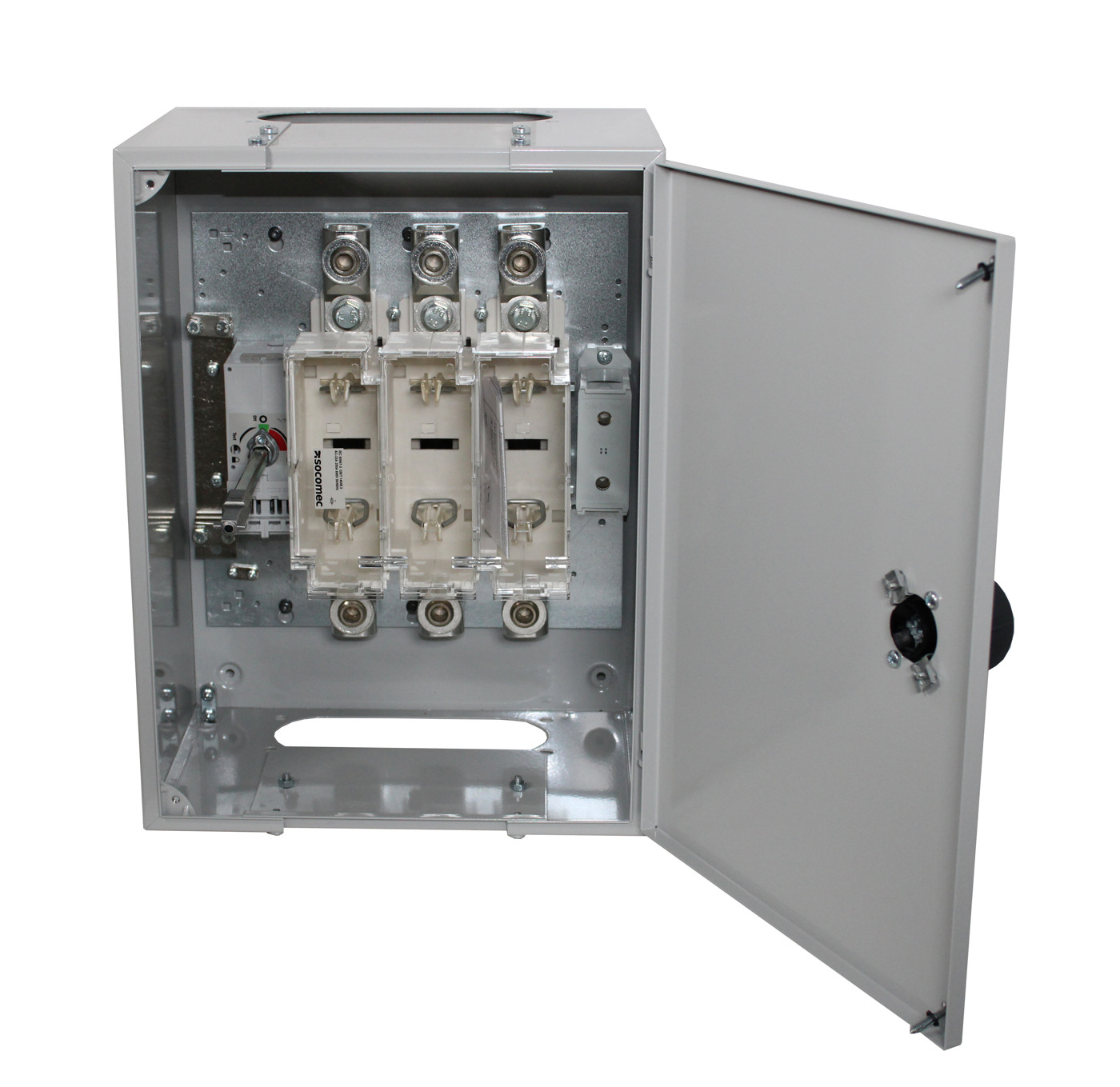

The fuse-switch consists of a combined 3-pole fuse-link base with front operated switch-disconnector function. The cover is interlocked and cannot be opened in the closed position. In the open position, it is energized on both sides of the fuse-link and the switching functions also satisfy the conditions applicable for the disconnector. It is also possible to lock the operating mechanism with a padlock in the closed position. SLBP 3250, 3400 SLBP and SLBP 3630 have two-piece flange openings on the top and bottom. The fuse-switch is also equipped with PE+N. Fuse switch enclosure 250A 3-pole for blade fuse 1 flange 21 up/down
E-number
2384215
Article number
2384215
Degree of protection [IP] 43
Colour RAL7035 Grey
Standard EN 61439-3
Materials Sheet steel
Name FUSE COMB BOX 250A SP
E-number 2384215
Article number 2384215
Type designation SLBP 3250
Rated current [A] 250
Width [mm] 325
Height [mm] 440
Depth [mm] 240
Netweight [kg] 14.80
Switch [A] 3x250
Fuse size 1

More variants of Fuse combination boxes GPK

E-number Article number Type designation Rated current [A] Width [mm] Height [mm] Depth [mm] Netweight [kg] Switch [A] Fuse size
FUSE COMB BOX 125A SP 2384201 2384201 SLBP 3125 125 215 330 175 6.30 3x125 00
FUSE COMB BOX 160A SP 2384205 2384205 SLBP 3160 160 270 330 175 7.20 3x160 00
FUSE COMB BOX 250A SP 2384215 2384215 SLBP 3250 250 325 440 240 14.80 3x250 1
FUSE COMB BOX 400A SP 2384222 2384222 SLBP 3400 400 435 550 240 19 3x400 2
