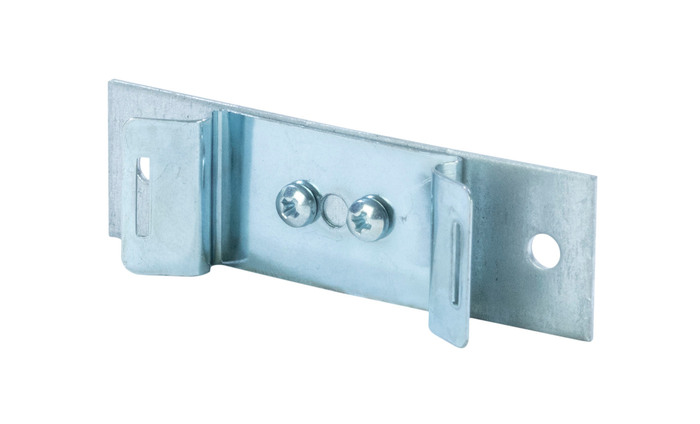

• DIN-BRACKET NPE/F 35 - 1

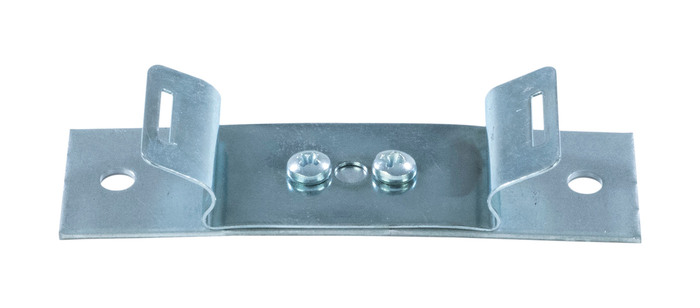

  • DIN-BRACKET NPE/F 35 - 2

Equipment for bar system

The JKP earth bar is designed for fastening directly into the enclosure, with the possibility of using AKS clamps. Din bracket NPE/F35
E-number
2394630
Article number
2394630
Support
Name DIN-BRACKET NPE/F 35
E-number 2394630
Article number 2394630
Type designation DF 35
Width [mm] 21
Height [mm] 12
Depth [mm] 70
Netweight [kg] 0.02

More variants of Equipment for bar system

E-number Article number Type designation Width [mm] Height [mm] Depth [mm] Netweight [kg]
N TERMINAL 35 2394602 2394602 NPE 35 20 70 30 0.05
N TERMINAL 120 2394604 2394604 NPE 120 33 39 100 0.15
N TERMINAL 35 DIVISIBLE 2394612 2394612 NPF 35 20 70 30 0.05
N TERMINAL 120 DIVISIBLE 2394614 2394614 NPF 120 33 100 0.18
EARTH BAR 35 2394622 2394622 JS 35 29 19 99 0.06
EARTH BAR 120 2394624 2394624 JS 120 40 30 137 0.15
DIN-BRACKET NPE/F 35 2394630 2394630 DF 35 21 12 70 0.02
