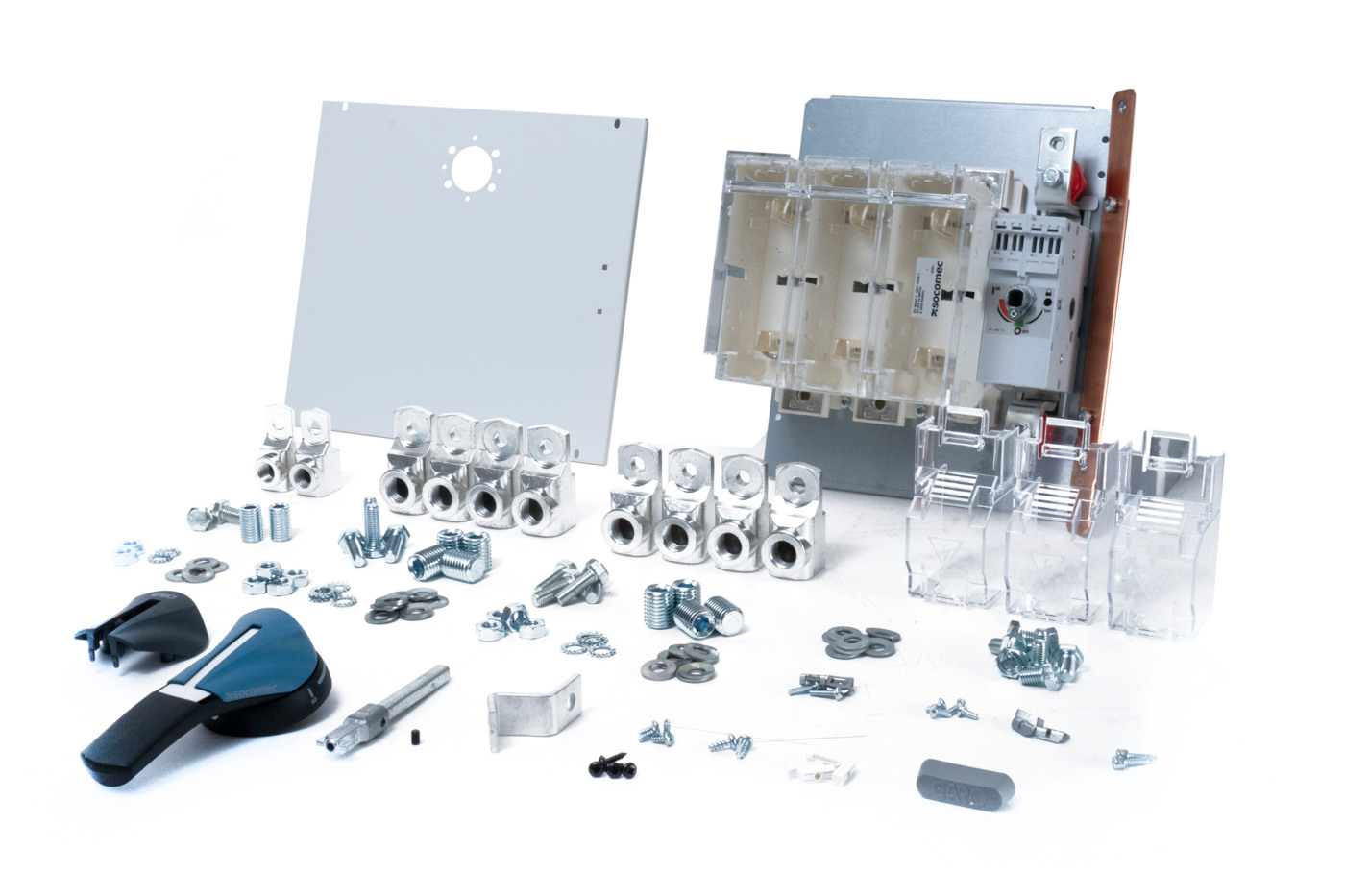

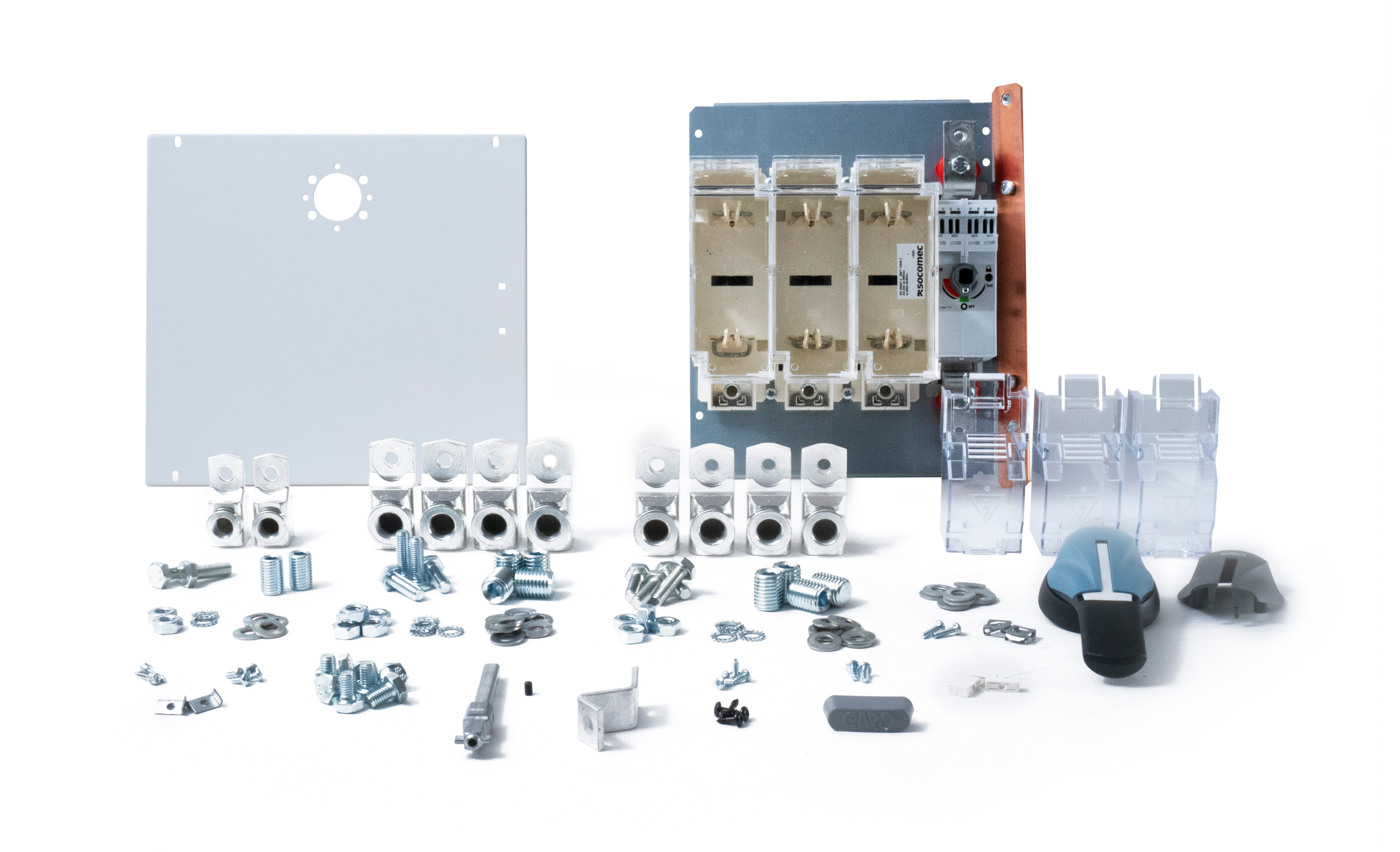

Inserts fuse combination

Inserts with ISB-type fuse switch, includes front plate and terminal clamp. Insert fuse comb 250A 3-poles DIN 1
Article number
2260530
Support
Width [mm] 277
Height [mm] 300
Depth [mm] 215
Name INS FUSE COMB 250A 3P DIN 1
Article number 2260530
Type designation ISB 3250
Rated current [A] 250
Poles 3
Tightening torque [Nm] 25
Package size [pcs] 1
Netweight [kg] 8.30
Connection PE [pcs] [mm²] Al/Cu 16-185
Output side Al/Cu 50-240,Ramklämma
Incoming [mm²] Al/Cu 16-95,ALK 16-95
Connection N [pcs] Al/Cu 50-300
Fuse size NH1

More variants of Inserts fuse combination

E-number Article number Type designation Rated current [A] Poles Tightening torque [Nm] Package size [pcs] Netweight [kg] Connection PE [pcs] [mm²] Output side Incoming [mm²] Connection N [pcs] Fuse size
INS FUSE COMB 160A 3P DIN00 2260528 ISB 3160 160 3 25 1 5.20 Cu 120 AL/Cu 25-120,Ramklämma Al/Cu 16-95,ALK 16-95 Al/Cu 35-150 NH00
INS FUSE COMB 160A 4P DIN00 2260529 ISB 4160 160 4 1 5.50 NH00
INS FUSE COMB 250A 3P DIN 1 2260530 ISB 3250 250 3 25 1 8.30 Al/Cu 16-185 Al/Cu 50-240,Ramklämma Al/Cu 16-95,ALK 16-95 Al/Cu 50-300 NH1
INS FUSE COMB 250A 4P DIN1 2260531 ISB 4250 250 4 8.70 NH1
