Inserts blade-fuse base

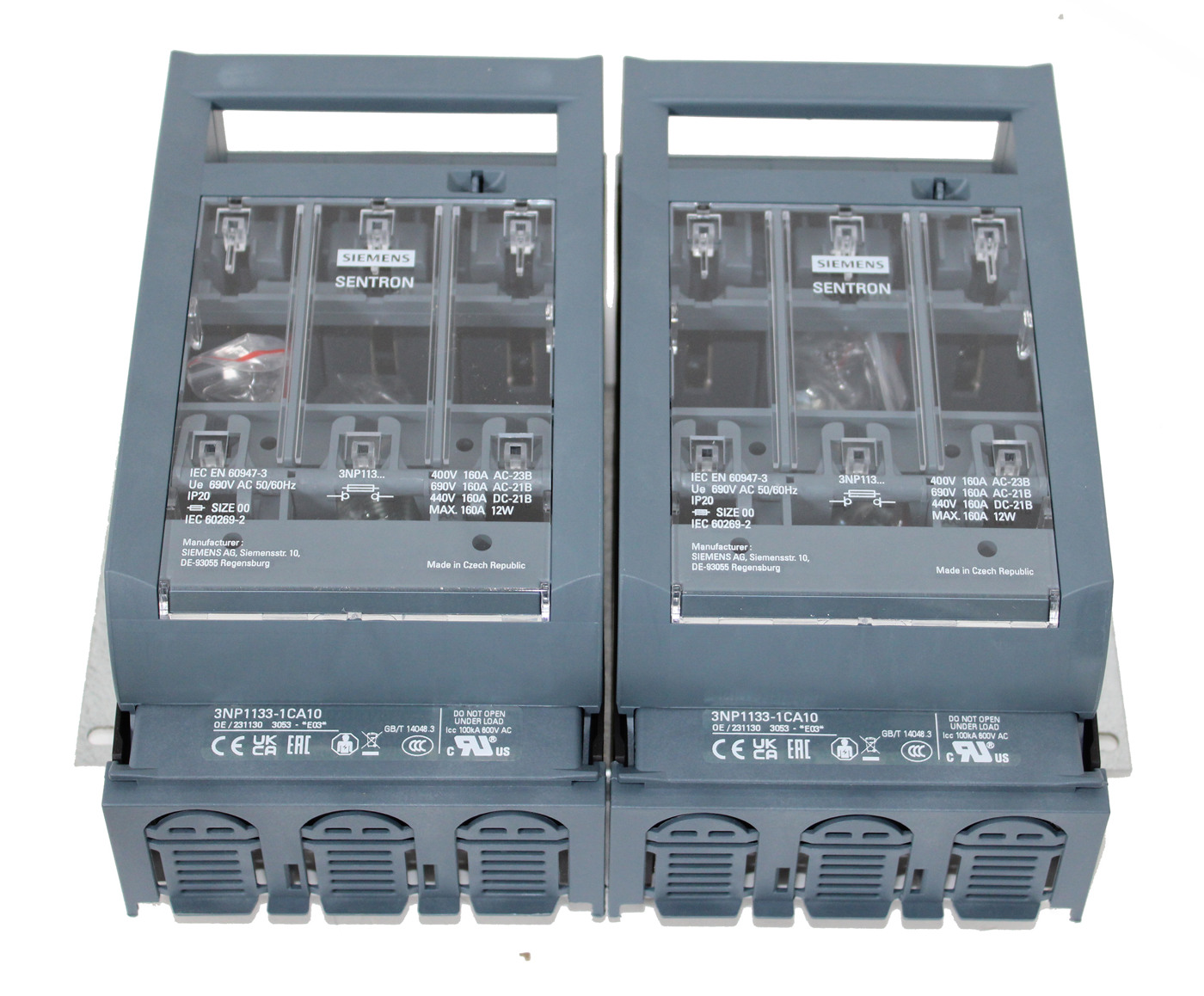

Fuse-link inserts, type ILK is ILK is a door fuse disconnector. IKS is an insert with a fuse-link holder. All inserts are supplied with front plates, a protective cover and terminal clamps. Insert blade fuse 160A 2x3 00 AL
Article number
2260533
Support
Package size [pcs] 1
Width [mm] 277
Height [mm] 300
Depth [mm] 215
Name INS BLADE-FUSE 160A 2x3 00 Al
Article number 2260533
Type designation IKS 160
Rated current [A] 160
Netweight [kg] 4
Output side Al/Cu 16-185
Incoming [mm²] Al/Cu 16-185
Fuse size 2x3 DIN00

More variants of Inserts blade-fuse base

E-number Article number Type designation Rated current [A] Netweight [kg] Output side Incoming [mm²] Fuse size
INS BLADE-FUSE 160A 2x3 00 Cu 2260532 ILK 160 160 3.70 Cu 2,5-50 Cu 2,5-50 2x3 DIN00
INS BLADE-FUSE 160A 2x3 00 Al 2260533 IKS 160 160 4 Al/Cu 16-185 Al/Cu 16-185 2x3 DIN00
INS BLADE-FUSE 250A 1x3 DIN1 2260534 IKS 250 250 3.70 Al/Cu 16-185 Al/Cu 16-185 1x3 1
INS BLADE-FUSE 400A 1x3 DIN2 2260535 IKS 400 400 4.50 Cu 2//95-240 Cu 2//95-240 1x3 2
INS BLADE-FUSE 630A 1x3 DIN3 2260536 IKS 630 630 5.10 Cu 2//95-240 Cu 2//95-240 1x3 3
