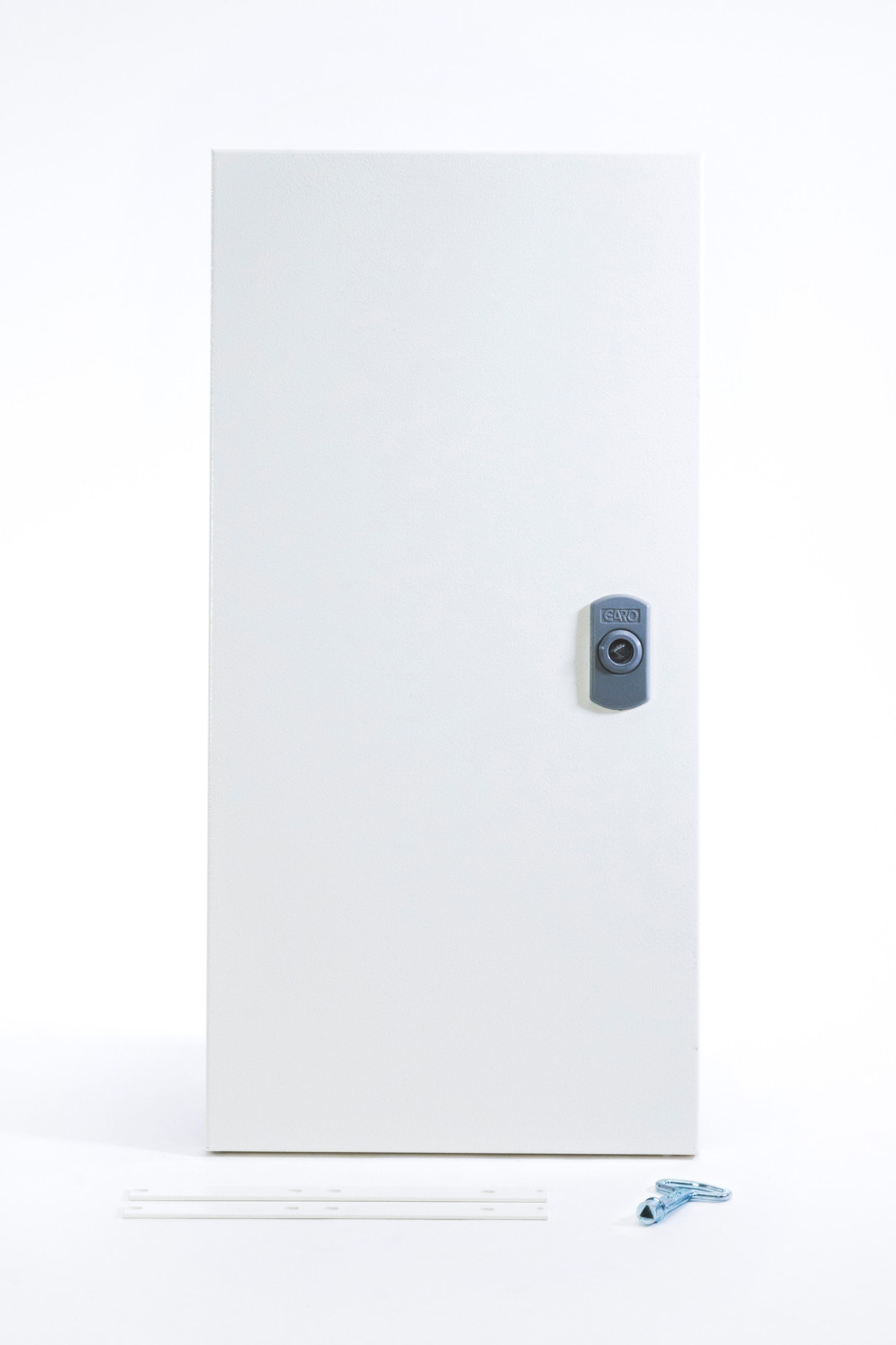

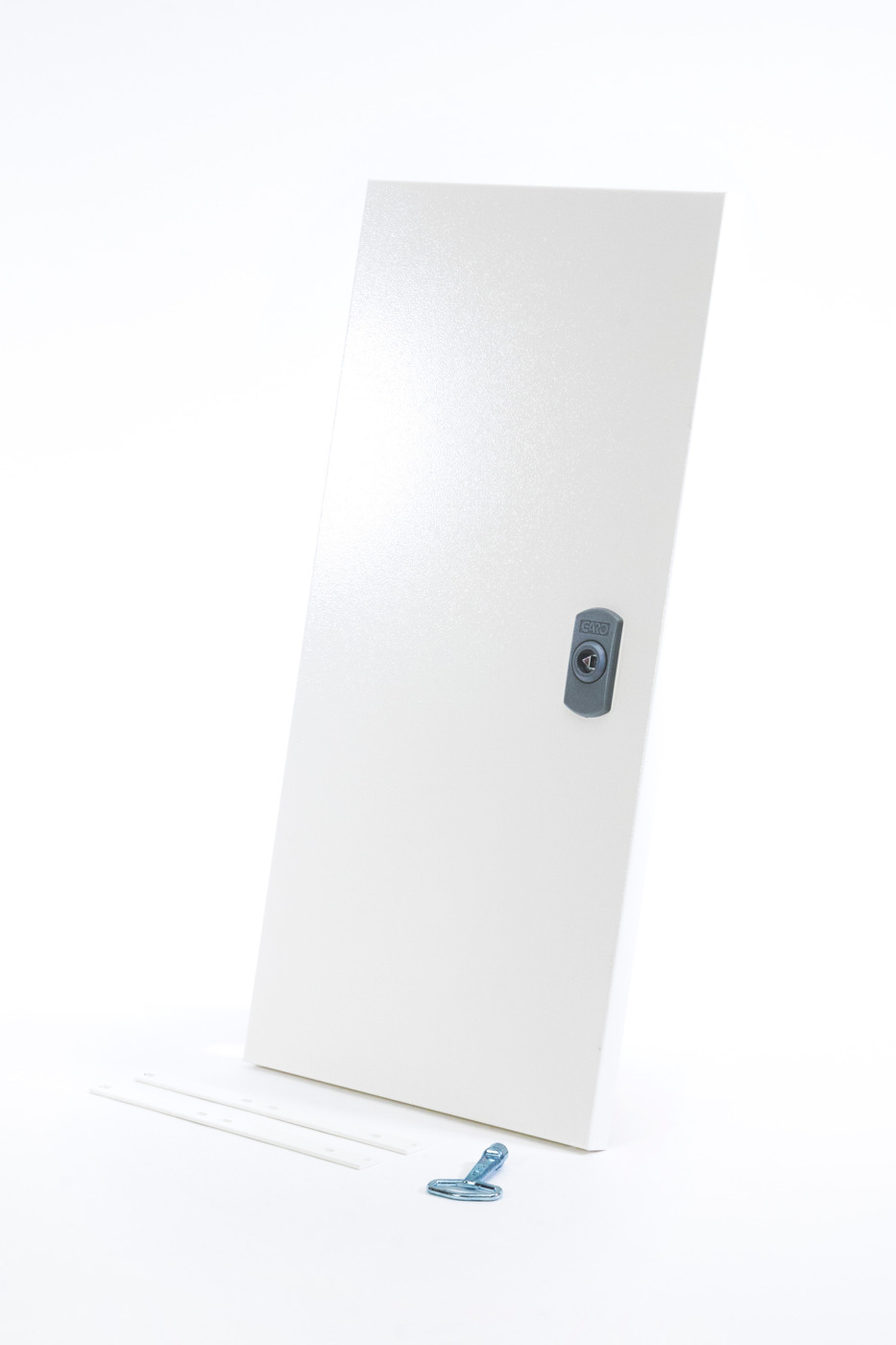

Doors W320mm

Doors are available in six different heights with depth 20 mm. All doors have twist lock and seal and can also be fitted with a cylinder lock with key. Door installation meets protection class IP44. Door width=320 height=640
Article number
2260480
Degree of protection [IP] 44
Colour RAL9010 White
Width [mm] 320
Depth [mm] 20
Materials Sheet metal
Name DOOR W320 H640
Article number 2260480
Type designation D1-4
Height [mm] 640
Netweight [kg] 2.50

More variants of Doors W320mm

E-number Article number Type designation Height [mm] Netweight [kg]
DOOR W320 H640 2260480 D1-4 640 2.50
DOOR W320 H790 2260481 D1-5 790 2.98
DOOR W320 H1090 2260482 D1-7 1090 4.10
DOOR W320 H1390 2260483 D1-9 1390 4.84
DOOR W320 H1690 2260484 D1-11 1690 5.75
DOOR W320 H1990 2260485 D1-13 1990 6.70
