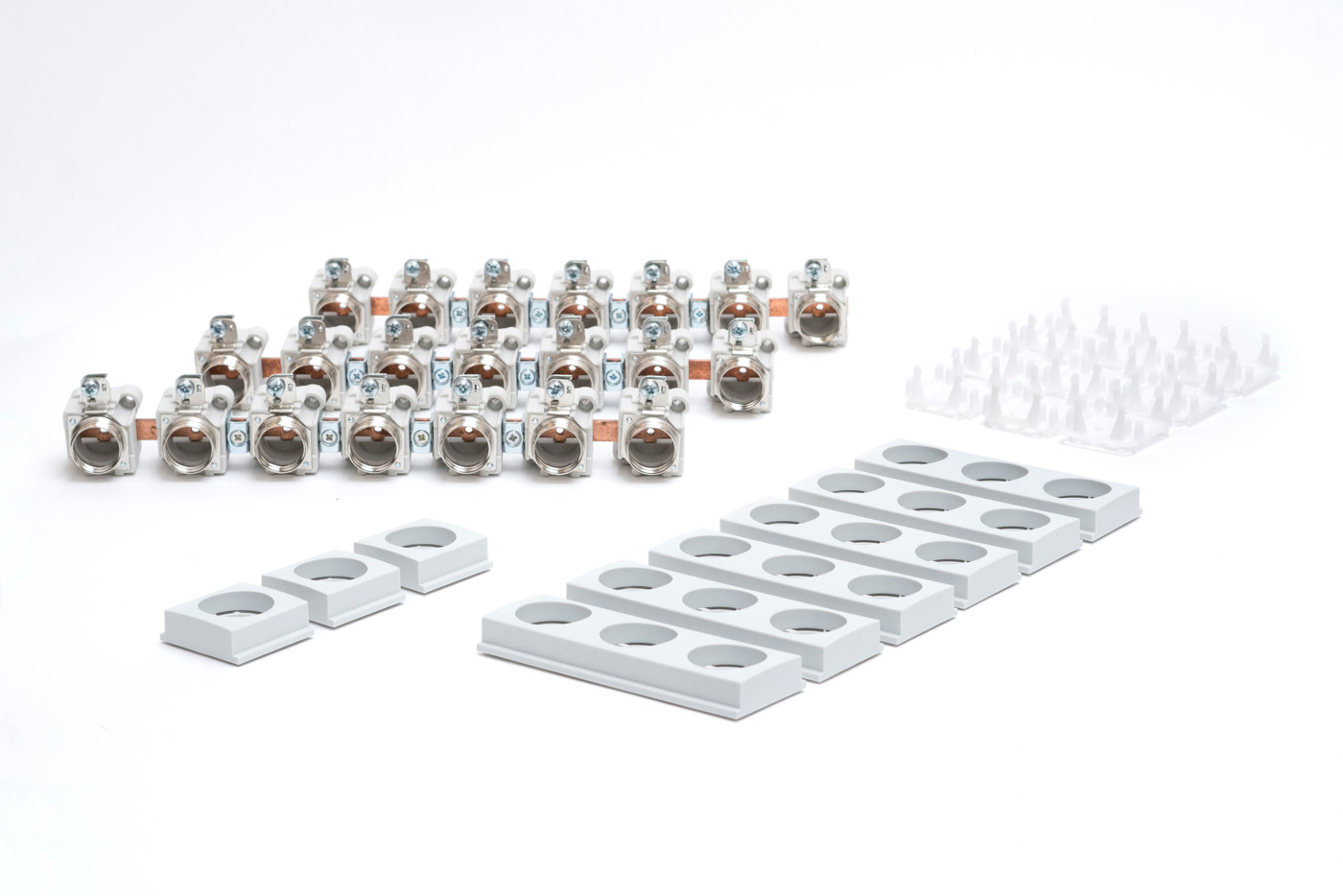

• FUSE BASE Dll 25A 7x3 - 1

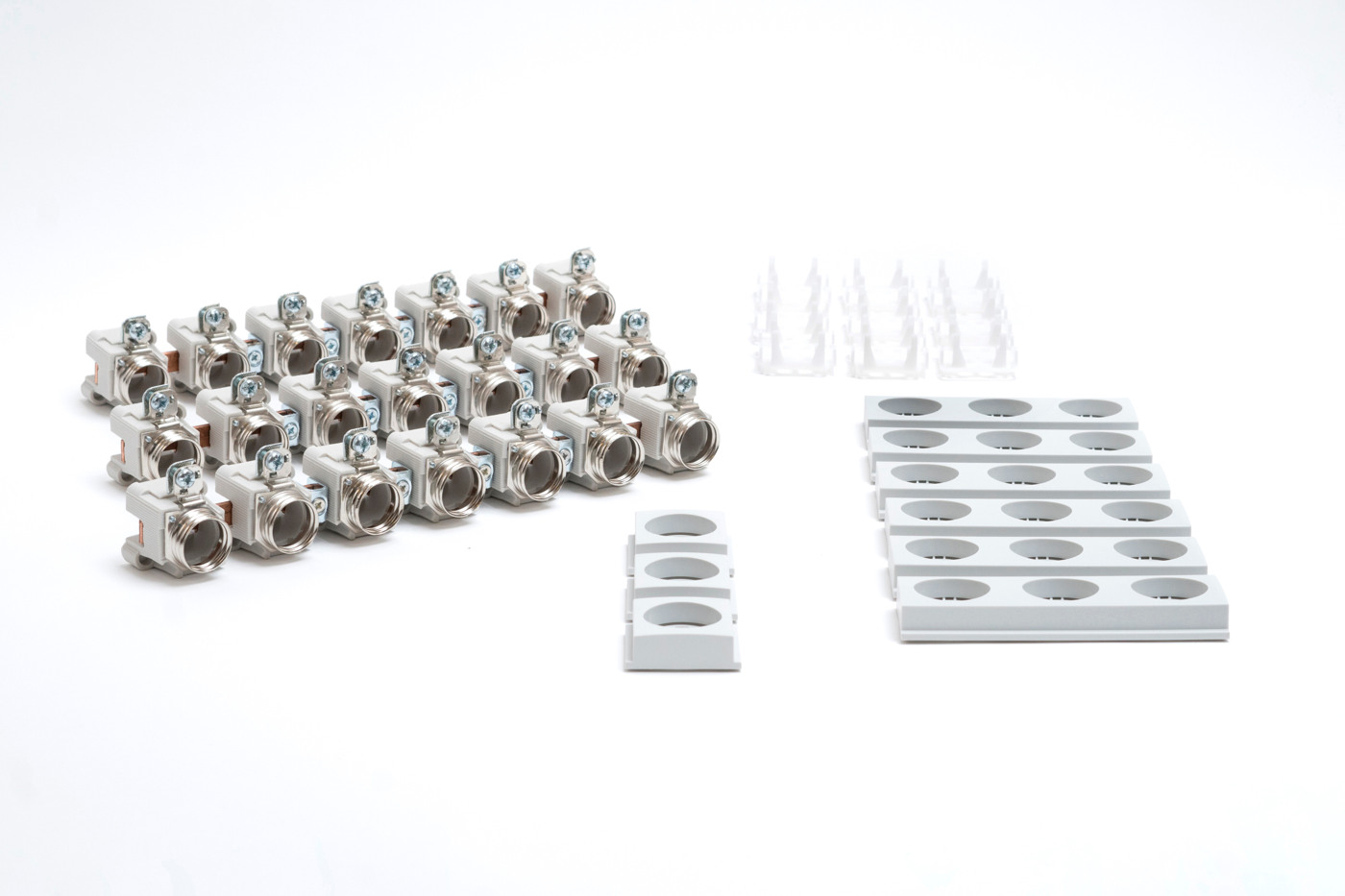

  • FUSE BASE Dll 25A 7x3 - 2

Fuse base DZ

Fuse base DZ FUSE BASE Dll 25A 7x3
Article number
2260241
Support
Name FUSE BASE Dll 25A 7x3
Article number 2260241
Type designation DZ 25 7x3 DII 25A (226024
Rated current [A] 25
Poles 7x3
Width [mm] 350
Height [mm] 50
Netweight [kg] 2.30
Output side 4x35
Incoming [mm²] 4x35

More variants of Fuse base DZ

E-number Article number Type designation Rated current [A] Poles Width [mm] Height [mm] Depth [mm] Netweight [kg] Output side Incoming [mm²]
FUSE BASE Dll 25A 5x3 2260243 2260243 DZ 25 5x3 DII 25A 25 5x3 250 300 75 1.60 4x35 2x35
FUSE BASE Dll 25A 4x3 2260244 2260244 DZ 25 4x3 DII 25A 25 4x3 200 200 50 1.33 4x10 2x35
FUSE BASE Dll 63A 4x3 2260245 2260245 DZ 63 4x3 DIII 63A 63 4x3 240 240 65 1.90 4x16 2x50
FUSE BASE Dll 63A 3x3 2260246 2260246 DZ 63 3x3 DIII 63A 63 3x3 180 180 60 1.47 3x16 2x50
FUSE BASE Dll 1P 2260420 2260420 DII 25 1 50 70 70 0.10 10 10
FUSE BASE DIII 1P 2260422 2260422 DIII 63 1 52 83 70 0.17 16 16
