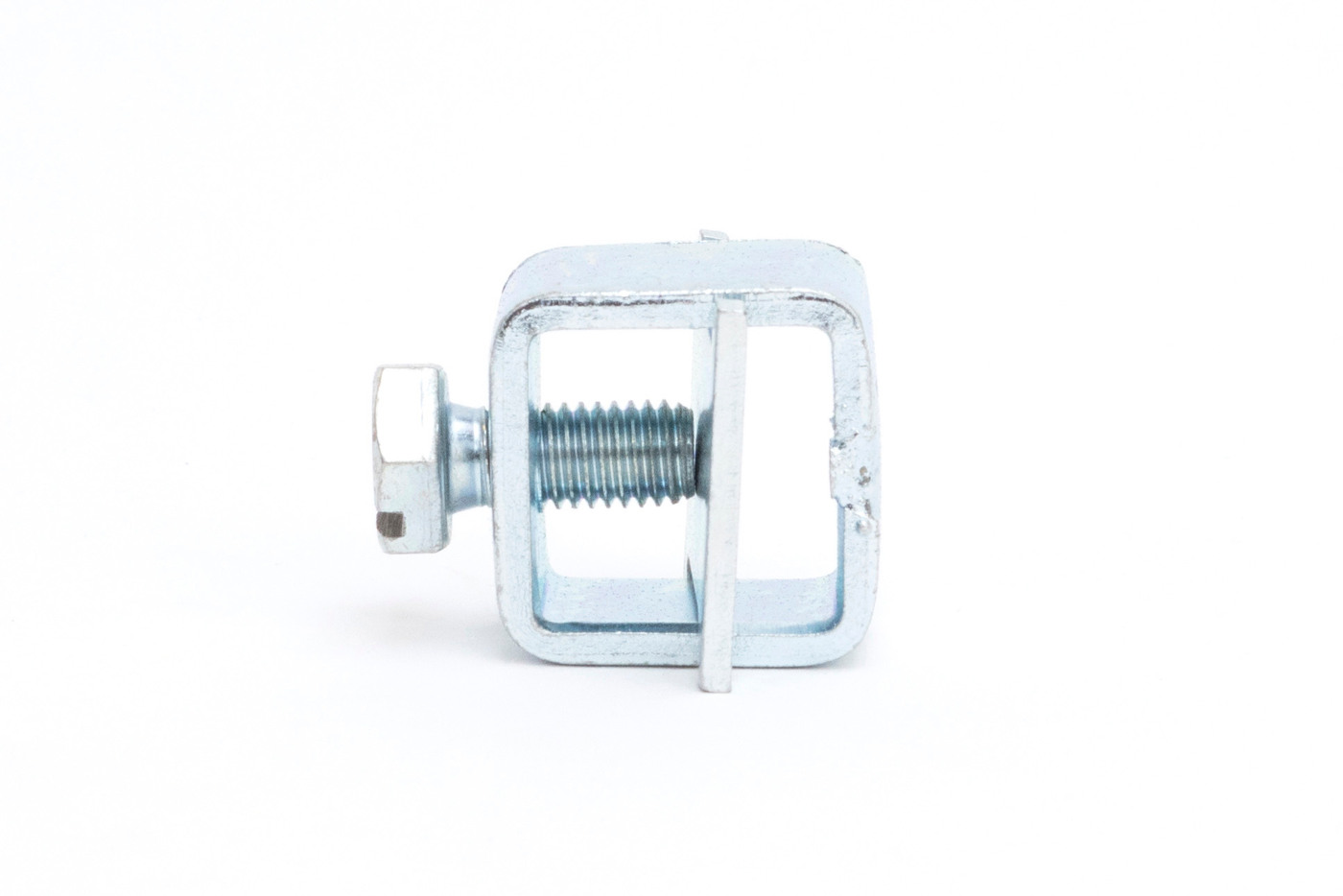

• OZXA12 CLAMP Cu70-180 - 1

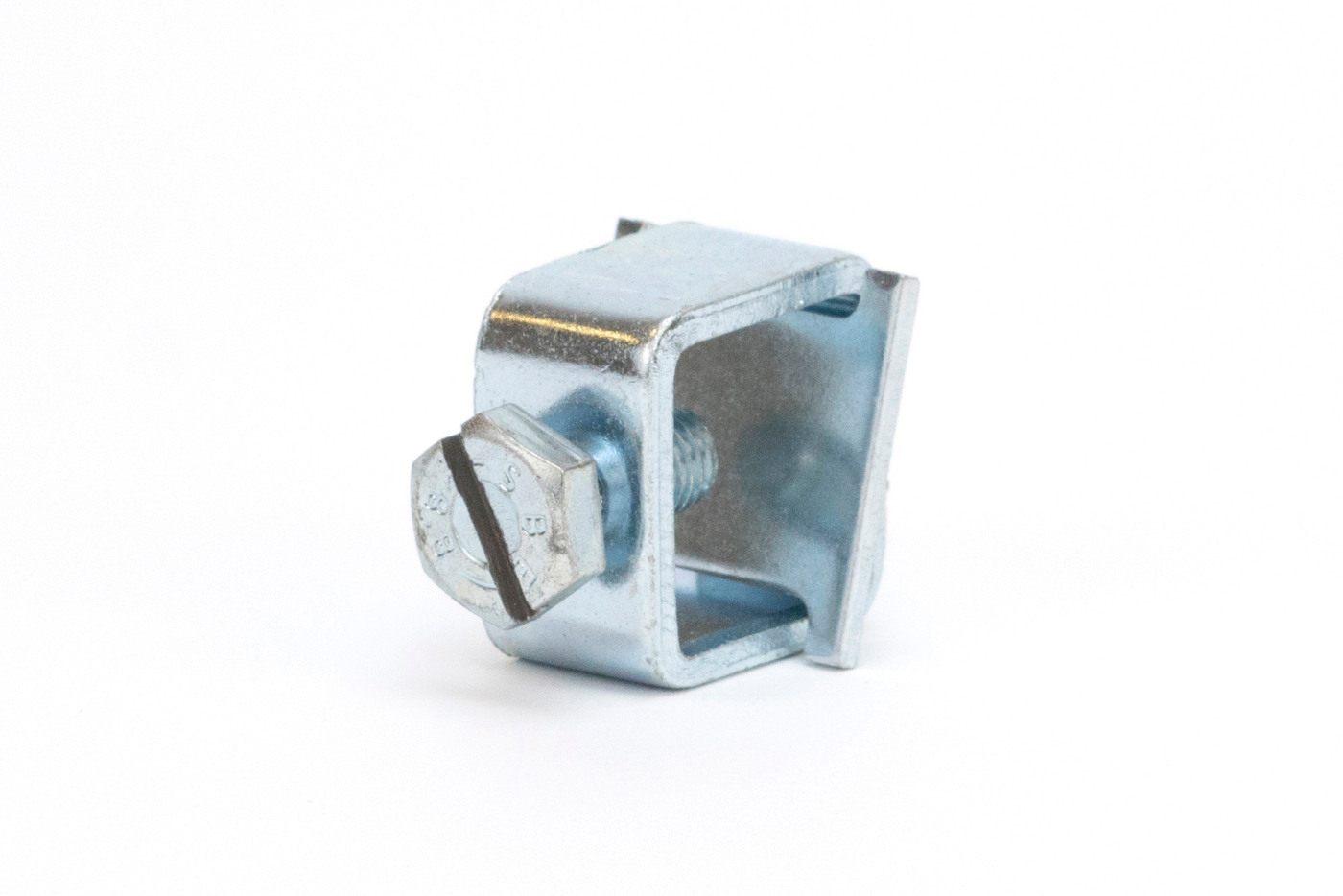

  • OZXA12 CLAMP Cu70-180 - 2

Connection clamps

AKS and AFX-type terminal clamps are used for connecting to copper elements in bar/rail systems. ALK-type clamps are suitable for incoming and outgoing cabling, both Al and Cu, and are included as standard in certain switch inserts. Clamp Cu70-180 OZXA12
Article number
2260578
Support
Name OZXA12 CLAMP Cu70-180
Article number 2260578
Type designation OZXA 12
Width [mm] 35
Height [mm] 45
Depth [mm] 35
Netweight [kg] 0.10

More variants of Connection clamps

E-number Article number Type designation Width [mm] Height [mm] Depth [mm] Netweight [kg]
PE+N 2x16+12x6 2260251 PN1 122 27 40 0.16
PE+N 2x35+3x16+24x6 2260255 PNF 3 277 37 40 0.38
CONNECT CLIPS 35-5 2260360 2260360 AKS 35-5 16 42 29 0.05
CONNECT CLIPS 70-5 2260362 2260362 AKS 70-5 32 55 21 0.07
AKS 120-5.CABLE CLAMP 2260364 2260364 AKS 120-5 35 62 24 0.10
AKS 35-10.CABLE CLAMP 2260366 2260366 AKS 35-10 30 51 17 0.05
AKS 70-10.CABLE CLAMP 2260368 2260368 AKS 70-10 32 58 22 0.07
AKS 120-10.CABLE CLAMP 2260370 2260370 AKS 120-10 34 68 23 0.10
