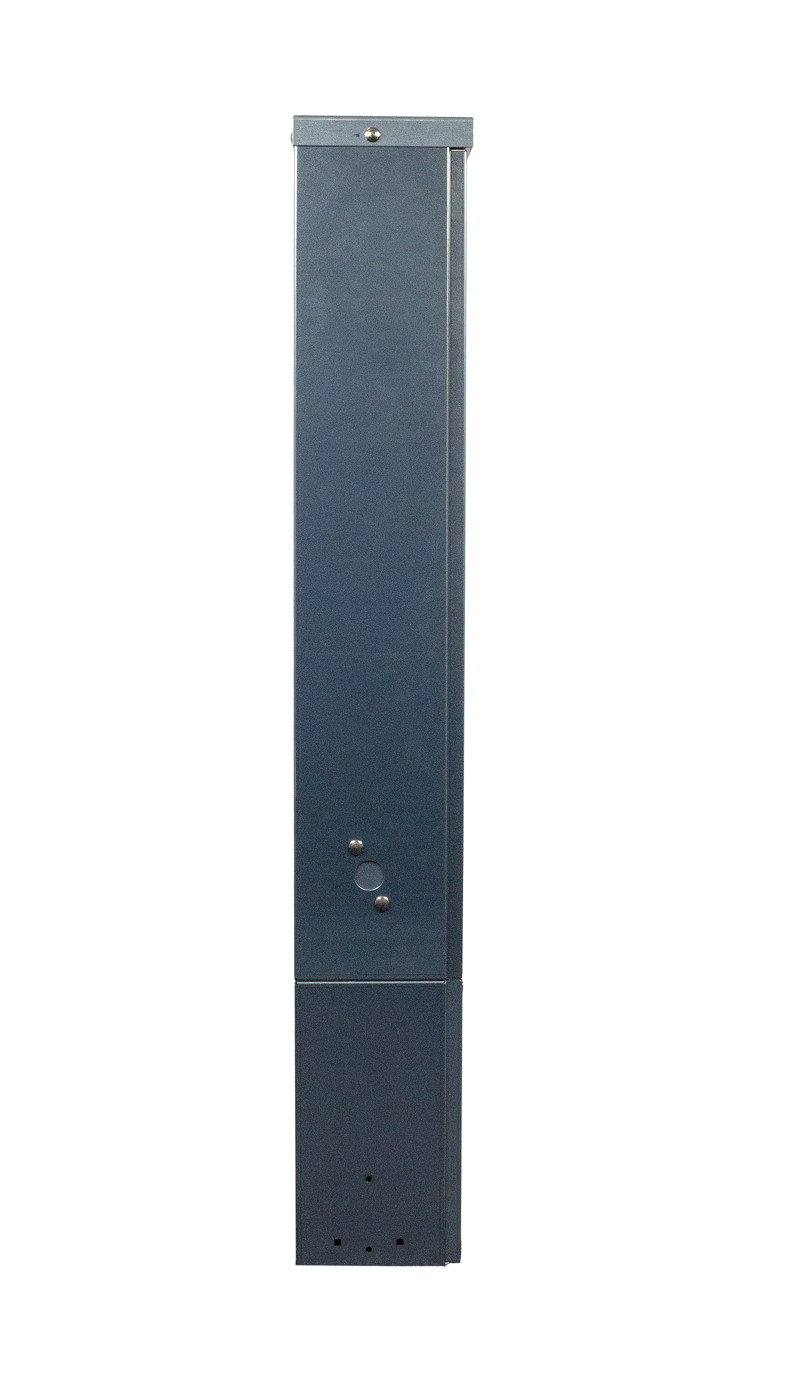

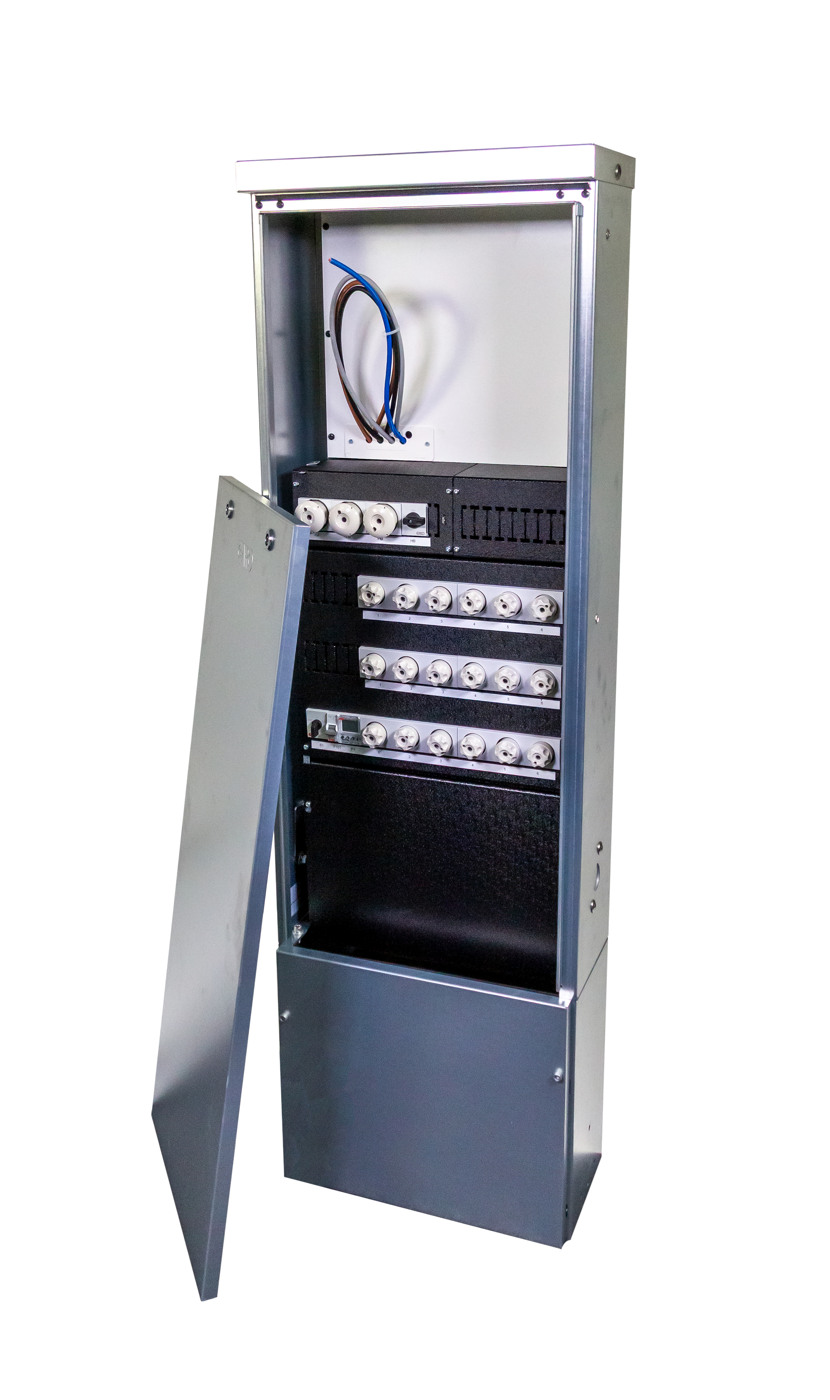

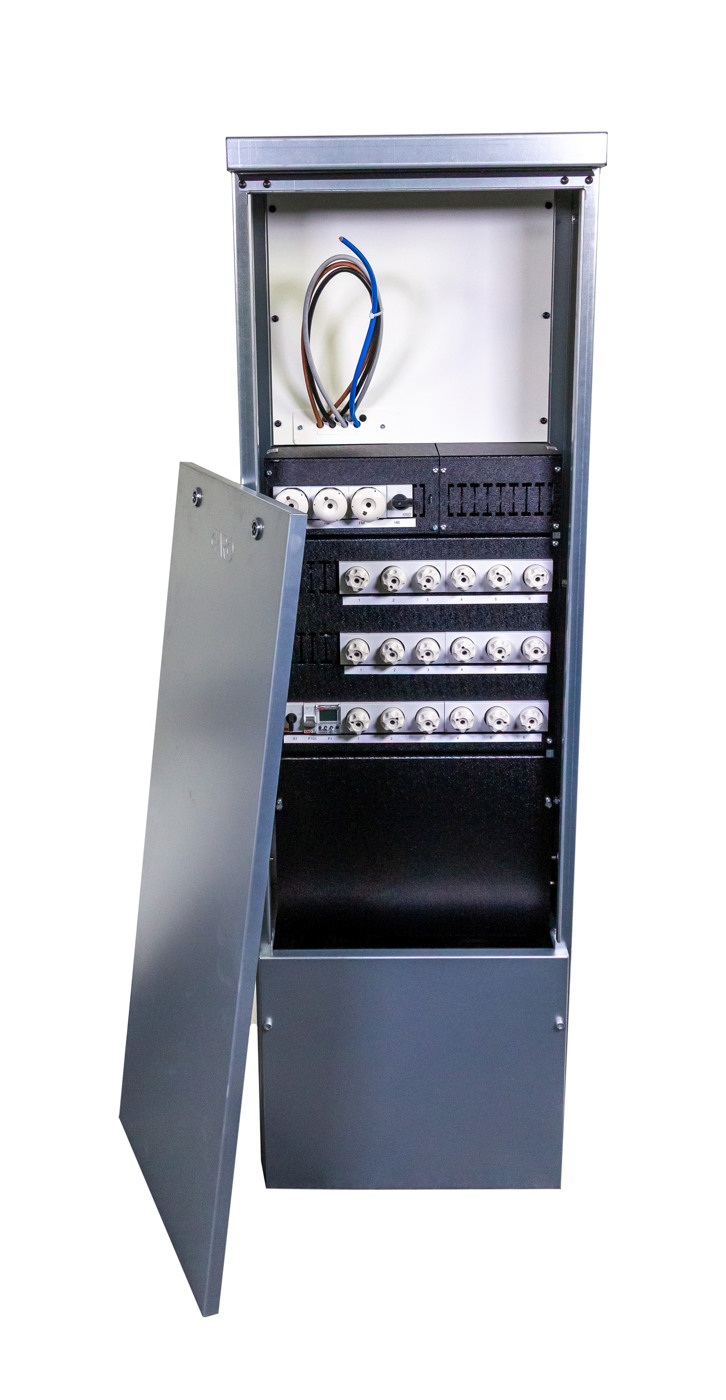

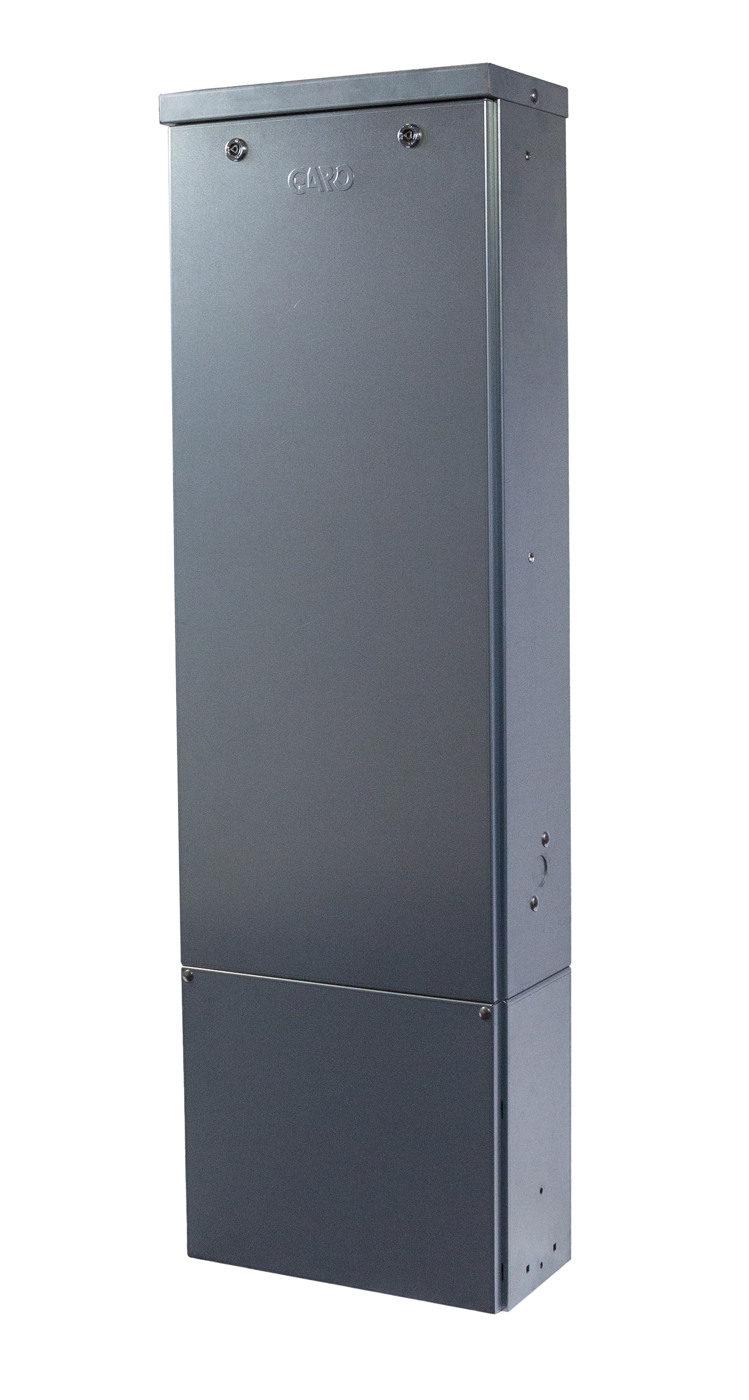

Streetlight cabinet astro 6 groups
Complete street light cabinet for 6 outgoing groups equipped with a wooden board for meters of consumption. The lighting is activated via internal control with astronomical timer where setting of location / coordinates automatically adjusts and controls after the sun rises and sets Street light cabinet with 6 outgoing DII groups. Controlled by internal astronomical timer
| Type designation | GCL-6DAU |
|---|---|
| Rated current [A] | 63 |
| Poles | 4 |
| Rated voltage [V AC] | 400 |
| Frequency [Hz] | 50 |
| Degree of protection [IP] | 34D |
| Colour | Grey |
| Standard | IEC 61439-1, -5 |
| Package size [pcs] | 1 |
| Width [mm] | 476 |
| Height [mm] | 1550 |
| Depth [mm] | 240 |
| Netweight [kg] | 57.50 |
| Materials | Stål |
| Short-circuit current [kA] | 25 |
| Fuse size | 6XDll |
| Incoming terminal Cu [mm²] | 50 Al/Cu |
| Mounting method | Ground mounted |
| Impact strength | IK10 |
| Outgoing terminal [mm²] | 16 Cu |
| Light relay | No |
| Time switch | Yes |
| Measurement | Yes |
| Contactor [A] | 65 |
| Name | STREET LIGHT CABIN 6 GRP ASTRO |
|---|---|
| E-number | 0731492 |
| Article number | 354543 |
