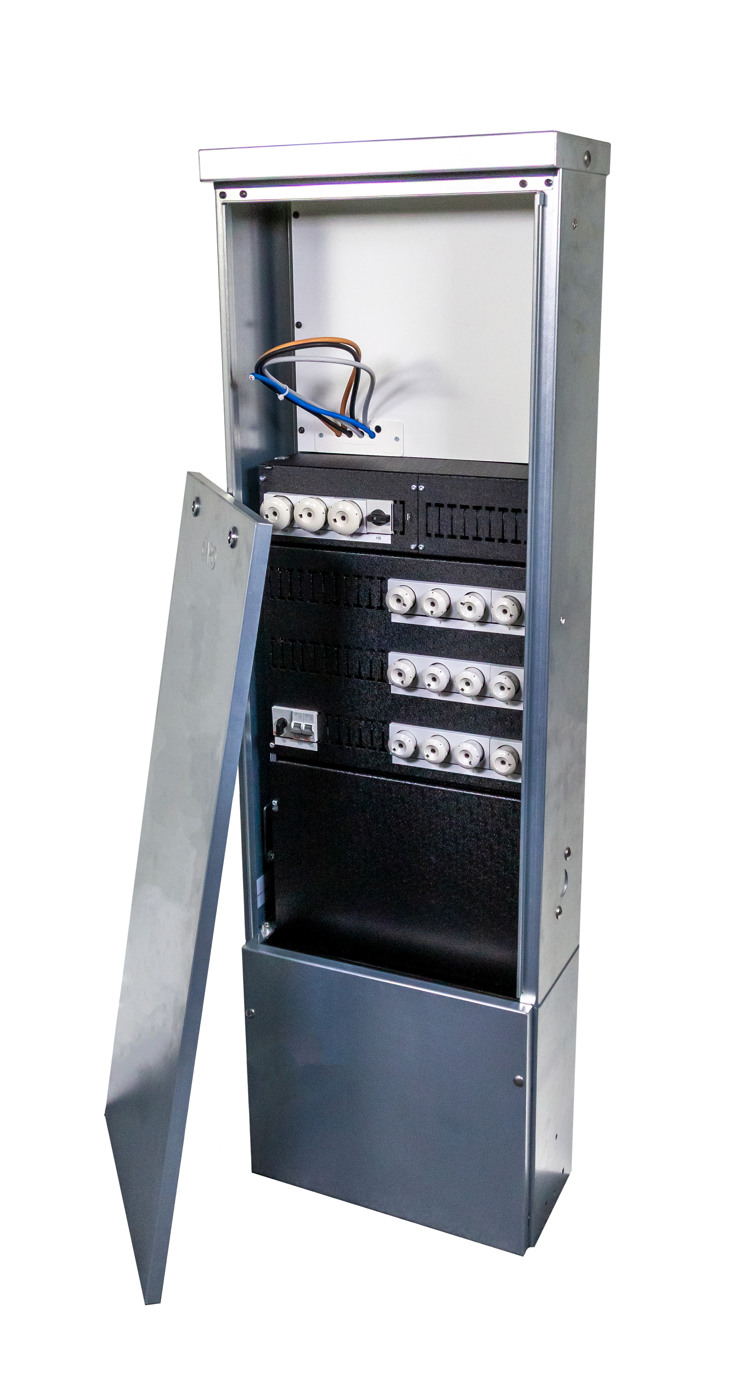

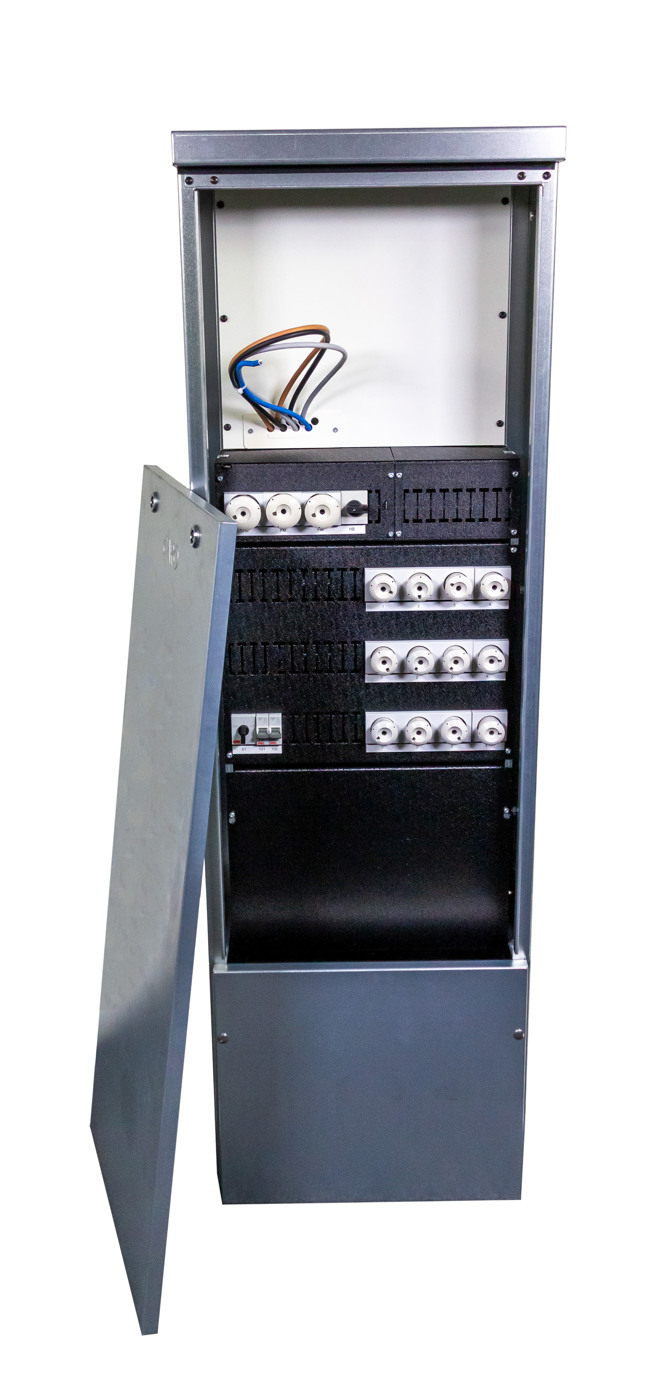

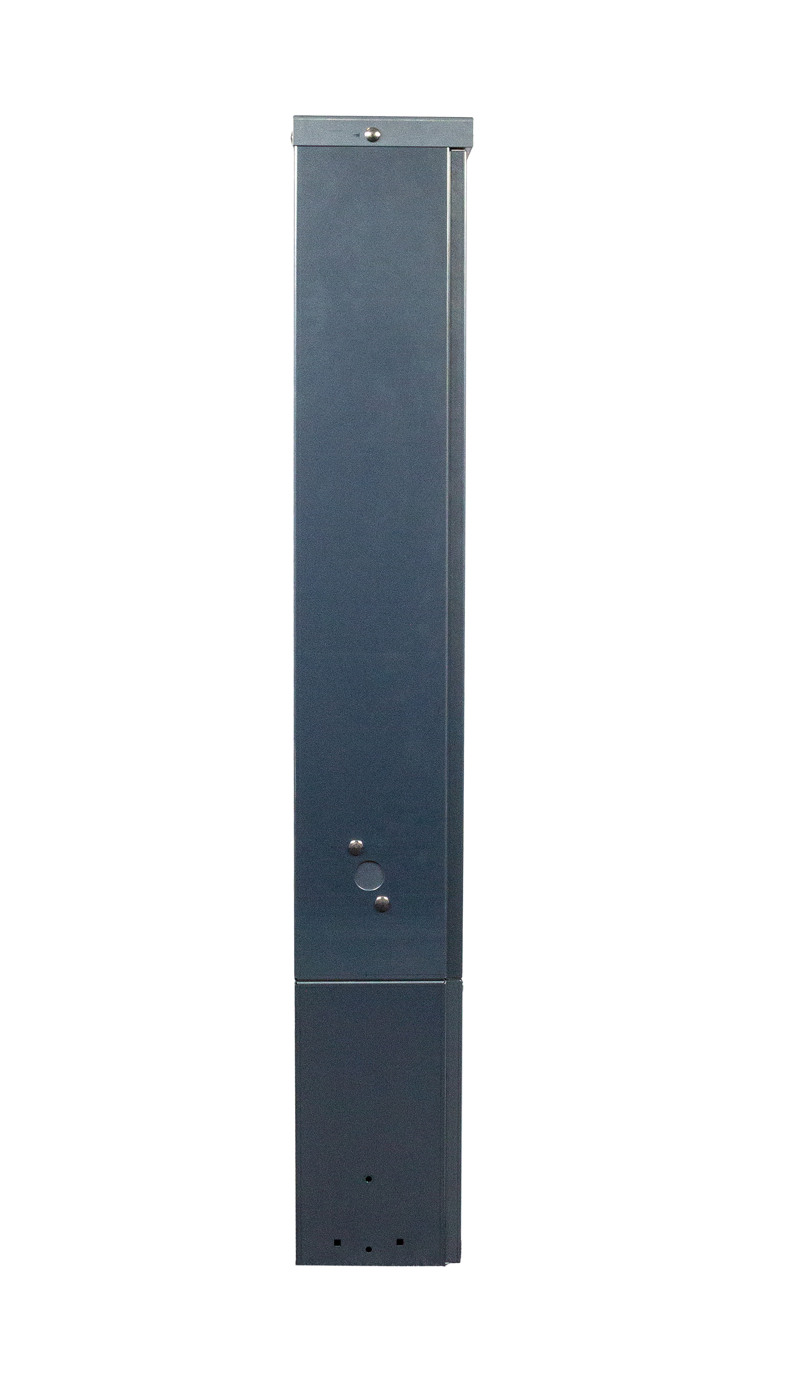

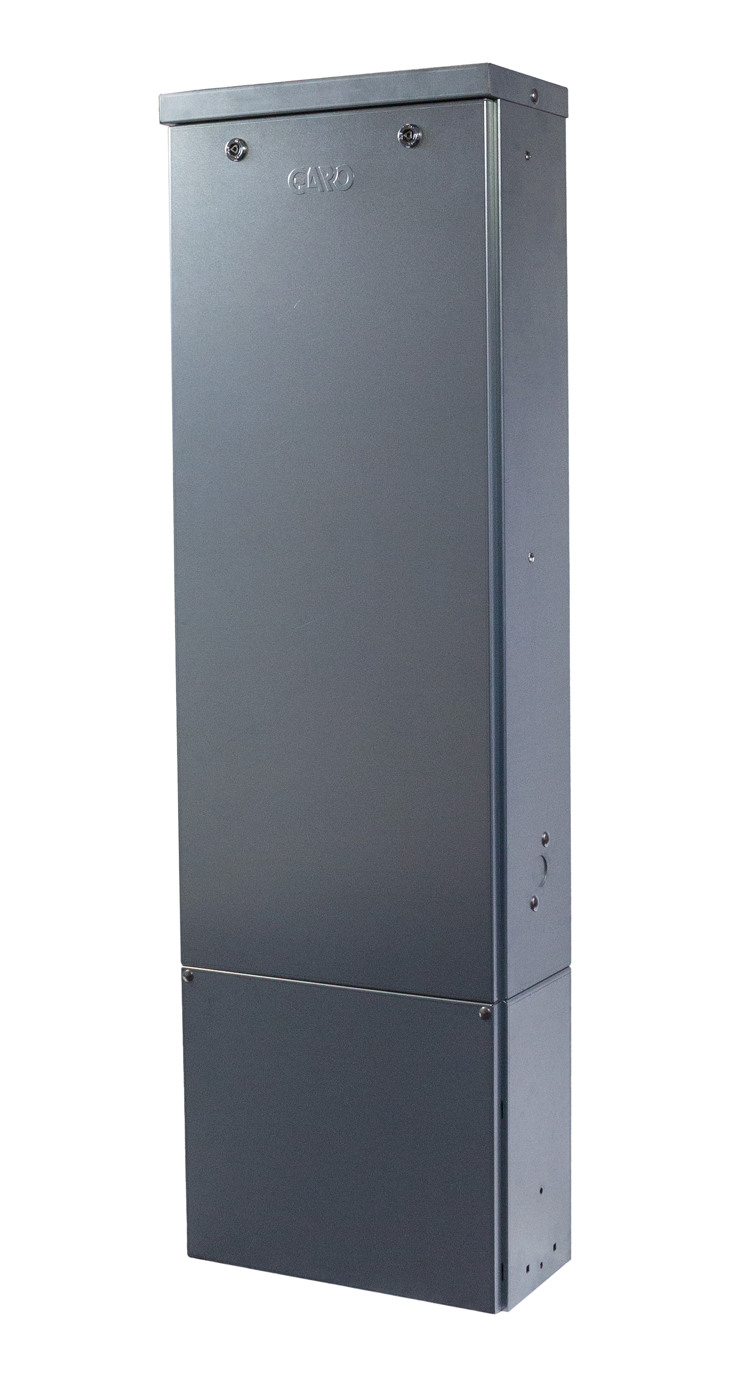

Streetlight cabinet external supply 4 groups
Complete street light cabinet for 4outgoing groups equipped with a wooden board for meters of consumption. The lighting is activated via external supply Street lighting cabinet with 4 outgoing DII groups. External supply.
| Type designation | GCL-4D |
|---|---|
| Rated current [A] | 63 |
| Poles | 4 |
| Rated voltage [V AC] | 400 |
| Frequency [Hz] | 50 |
| Degree of protection [IP] | 34D |
| Colour | Grey |
| Standard | IEC 61439-1, -5 |
| Package size [pcs] | 1 |
| Width [mm] | 476 |
| Height [mm] | 220 |
| Depth [mm] | 240 |
| Netweight [kg] | 56.50 |
| Materials | Stål |
| Short-circuit current [kA] | 25 |
| Fuse size | 4XDll |
| Incoming terminal Cu [mm²] | 50 Al/Cu |
| Mounting method | Ground mounted |
| Impact strength | IK10 |
| Outgoing terminal [mm²] | 16 Cu |
| Light relay | No |
| Time switch | No |
| Measurement | Yes |
| Contactor [A] | 65 |
| Name | STREET LIGHT CABINET 4 GRP |
|---|---|
| E-number | 0731485 |
| Article number | 354536 |
