Plugs low voltage 32A IP44

Plugs and sockets for low voltages of <50V with rated currents of 16A and 32A. The frequency and voltage are determined by the location of the sub-alignment guide on the socket. The main alignment guide/slot width, which is always at the 6 o'clock position, is determined by the current: 16A (wide version) and 32A (narrow version) respectively. This is to prevent a 32A plug with a narrow guide from being connected to a 16A socket with a wide slot. Plugs low-voltage 3-poles 32A 4h.
E-number
2425690
Article number
2425690
Wire flexible [mm²] 4-10
Rated current [A] 32
Degree of protection [IP] 44
Standard EN 60309-2
Width [mm] 51
Height [mm] 135
Depth [mm] 48
Materials Plastic
Function Low voltage

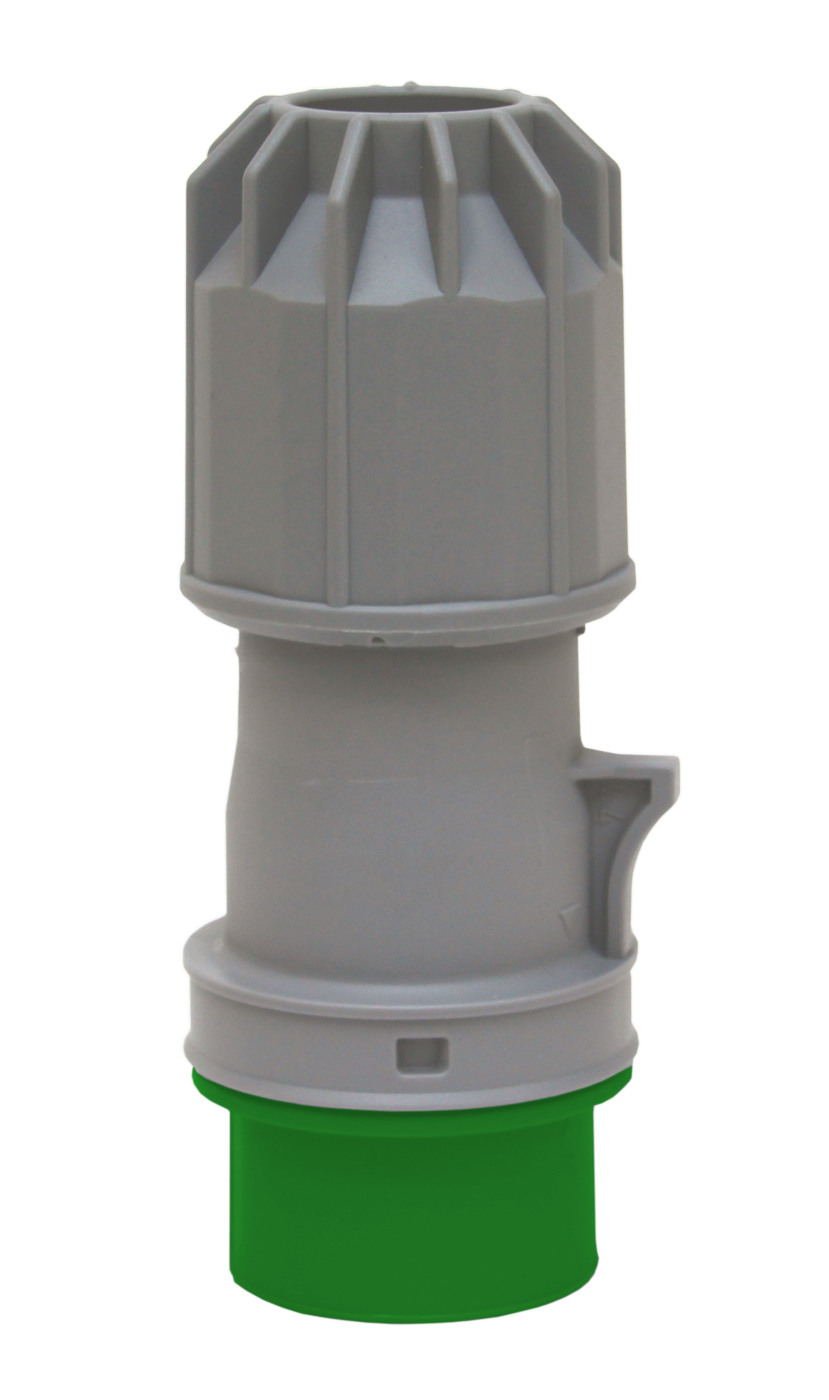

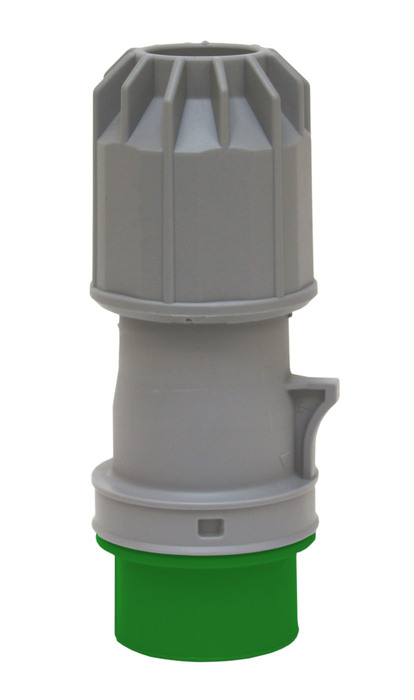

Name PLUGS LOW-VOLTAGE 3P 32A 4h
E-number 2425690
Article number 2425690
Type designation PK 332- 4 S
Colour Green
Frequency [Hz] 100/200
Rated voltage [V AC] 40-50
Netweight [kg] 0.15
No.of Poles [pcs] 3P
Position of earth [h] 4
RAL-nummer RAL6010

More variants of Plugs low voltage 32A IP44

E-number Article number Type designation Colour Frequency [Hz] Rated voltage [V AC] Netweight [kg] No.of Poles [pcs] Position of earth [h] RAL-nummer
PLUGS LOW-VOLTAGE 2P 32A 2425686 2425686 PK 232 S Purple 50/60 20-25 0.14 2P RAL4005
PLUGS LOW-VOLTAGE 2P 32A 10h 2425687 2425687 PK 232-10 S Grey DC 20-25,40-50 0.14 2P 10 RAL7046
PLUGS LOW-VOLTAGE 2P 32A 12h 2425688 2425688 PK 232-12 S White 50/60 40-50 0.14 2P 12 RAL9016
PLUGS LOW-VOLTAGE 3P 32A 2425689 2425689 PK 332 S Purple 50/60 20-25 0.15 3P RAL4005
PLUGS LOW-VOLTAGE 3P 32A 4h 2425690 2425690 PK 332- 4 S Green 100/200 40-50 0.15 3P 4 RAL6010
PLUGS LOW-VOLTAGE 3P 32A 12h 2425691 2425691 PK 332- 12S White 50/60 40-50 0.15 3P 12 RAL9016
