Angled plugs Basic 32A IP44

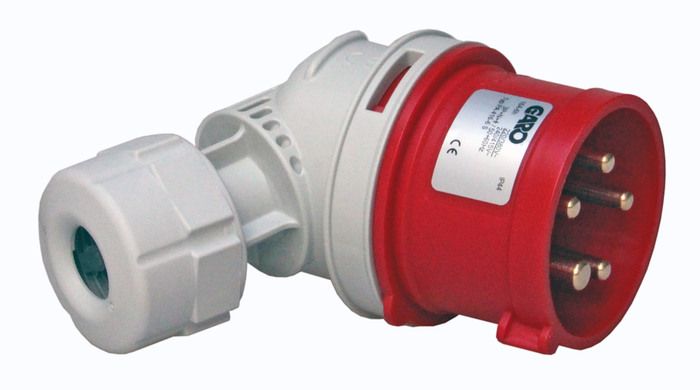

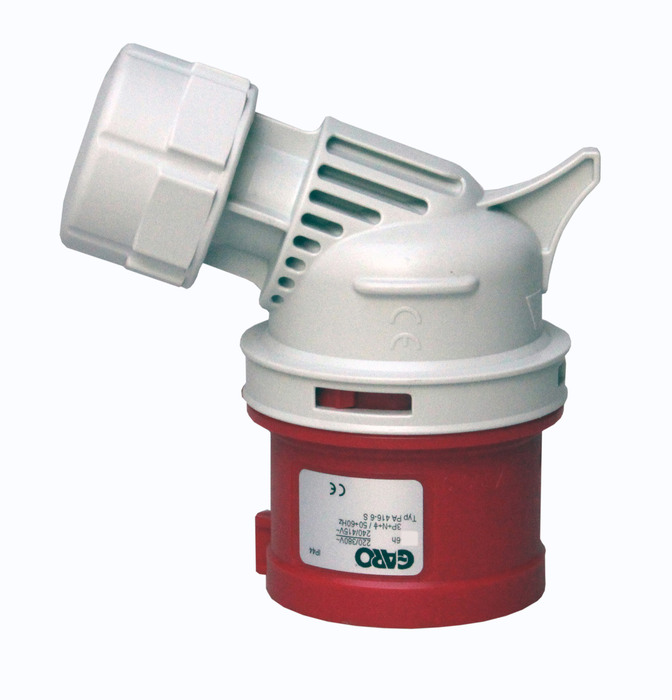

Plug angled basic, right angle plug with screw function. Plugs basic angled 5-poles 32A 6h.
E-number
2424629
2424629
Article number
2424629
2424629
Type designation | PA 432-6S |
---|---|
Rated current [A] | 32 |
No.of Poles [pcs] | 5/3PN+E |
Rated voltage [V AC] | 230/400 |
Frequency [Hz] | 50/60 |
Degree of protection [IP] | 44 |
Wire flexible [mm²] | 2,5-6 |
Colour | Red |
Standard | Class 1 EN 60044-8 |
Width [mm] | 70 |
Height [mm] | 135 |
Depth [mm] | 114 |
Netweight [kg] | 0.23 |
Materials | Plastic |
Function | Basic |
Position of earth [h] | 6 |
RAL-nummer | RAL3000 |
Name | PLUGS ANGLED 5P 32A 6h |
---|---|
E-number | 2424629 |
Article number | 2424629 |
