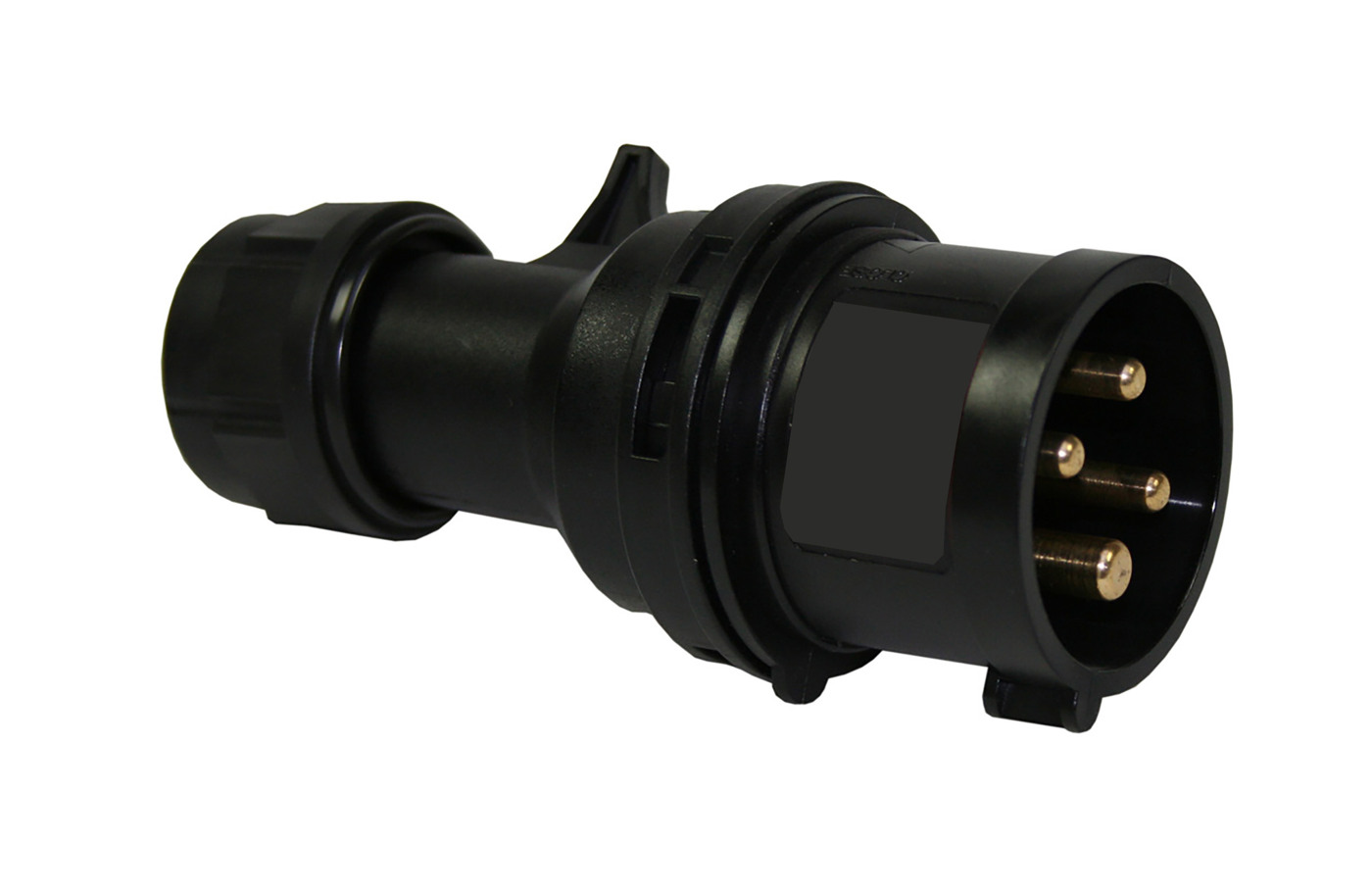

PLUG EVENT 4P 16A 4h

Plugs Event 16A IP44

Plug Scen, designed specifically for stages, arenas and different events. An almost invisible connector on a black floor. Plug 4-pole 16A 4h event
Article number
108316
Support
Rated current [A] 16
Frequency [Hz] 50/60
Degree of protection [IP] 44
Wire flexible [mm²] 1-2,5
Standard Class 1 EN 60044-8
Materials Plastic
Function Scen
Name PLUG EVENT 4P 16A 4h
Article number 108316
Type designation P 316-4 S+B
No.of Poles [pcs] 4/3P+E
Rated voltage [V AC] 100-130
Colour Black
Width [mm] 61
Height [mm] 128
Depth [mm] 2
Netweight [kg] 0.13
Position of earth [h] 4
RAL-nummer RAL9005

More variants of Plugs Event 16A IP44

E-number Article number Type designation No.of Poles [pcs] Rated voltage [V AC] Colour Width [mm] Height [mm] Depth [mm] Netweight [kg] Position of earth [h] RAL-nummer
PLUGS EVENT 3P 16A 6h 2425650 2425650 P 216-6 S+B 3/2P+E 200-250 Blue 47 118 28 0.10 6 RAL5017
PLUGS EVENT 4P 16A 6h 2425651 2425651 P 316-6 S+B 4/3P+E 400 Red 53 124 38 0.13 6 RAL3000
PLUGS EVENT 5P 16A 6h 2425652 2425652 P 416-6 S+B 5/3PN+E 230/400 Red 61 131 42 0.15 6 RAL3000
